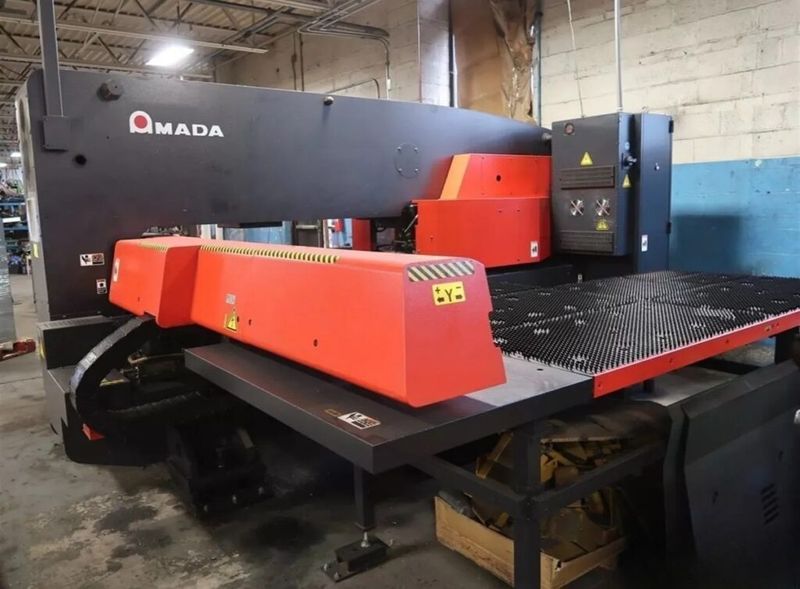

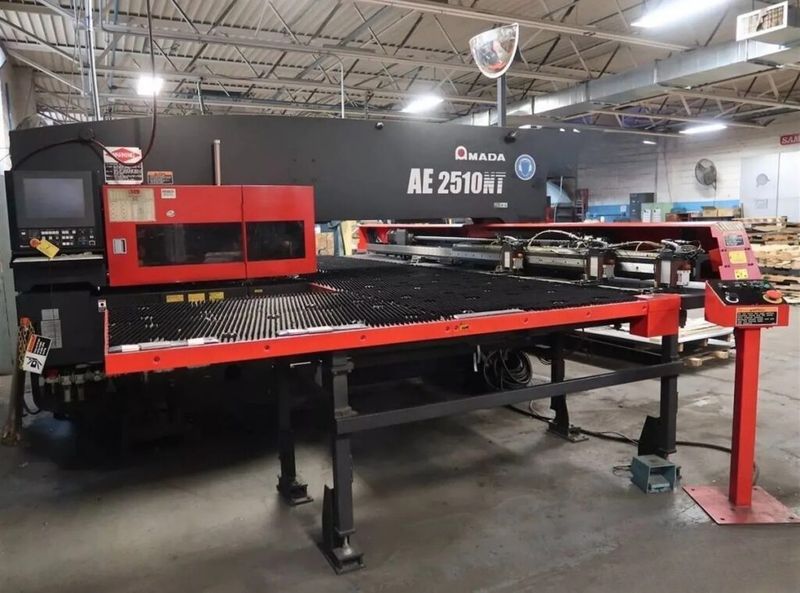

Amada AE 2510 NT CNC Turret Punch Press (2013)

Manufacturer

Amada

Category

Punches

Type

PUNCHES, TURRET

Stock

123260004

Model

AE 2510 NT

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 123260004
  • Location: United States
  • Brand: Amada
  • Model: AE 2510 NT
  • Year: 2013
  • Approx. Shipping Weight: 28,660 Lbs

Specifications

  • Tonnage: 22 T
  • # Turret Stations: 45 station
  • Control: CNC
  • Capacity: 22 tons
  • Sheet Size: 98.425" x 50"
  • Largest Punched Hole: 3 1/2"
  • Number Of Turret Stations: 45 Station 4-Auto-Index
  • Stroke Length: 1.65" (increased forming cap.)
  • X/Y Hits Per Min. 1" Centers .197" Stroke: X=350 HPM, Y=280 HPM
  • X/Y Hit Rate Marking: 900 HPM
  • Linear Positioning Speed: X=3,150 IPM, Y=2,362 IPM
  • Control Model: Fanuc AMNC/PC (NT)
  • Drive Motors: AC Servo
  • Smallest Programmable Increment: .001"

Equipped With

Single AC Servo Driven Ram, Built-In Microprocessor – Standard Software Included For Programming A Comprehensive Set Of Patterns Used In Punching, Nibbling, And Notching Operations, Diagnostic System – Extensive Diagnostic System Indicates Programming Errors And Pinpoints Machine And Control Malfunctions, On Screen G-Code Simulator – See The Part Before It Is Punched, Intelligent Turret Set Up- Input Tool Locations And Angles, Clamp Positions, Job Scheduler- Specifiy Job Order And Quantities, Stripping Sensor – Automatically Halts Machine Operation If Tool Does Not Strip, Automatic Repositioning – Heavy Duty Work Holders Secure Material During Repositioning, Metric Or Inch Dimensional Programming, Precision Ground Recirculating Ball Lead Screws For X And Y Axis, Crash Proof Clamp Sensors, Hardened And Ground Turret Index Pins And Bushings, Safety Interlocks And Overrun Protectors With All Step Control Prevents Accidents, Air Blow System, 45 Station 4-Auto Index Thick Turret Brush Table

Additional Info

Can be inspected upon request.
