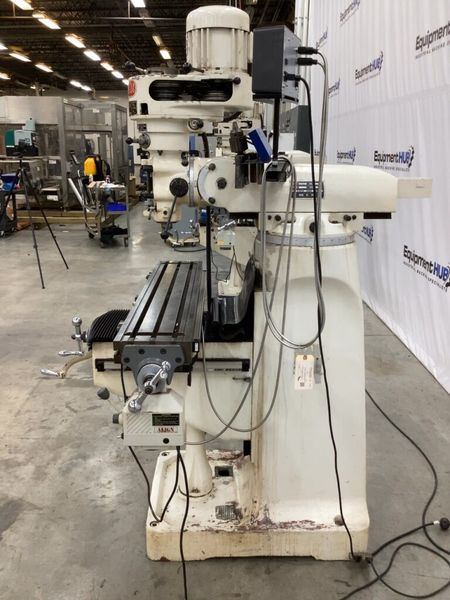

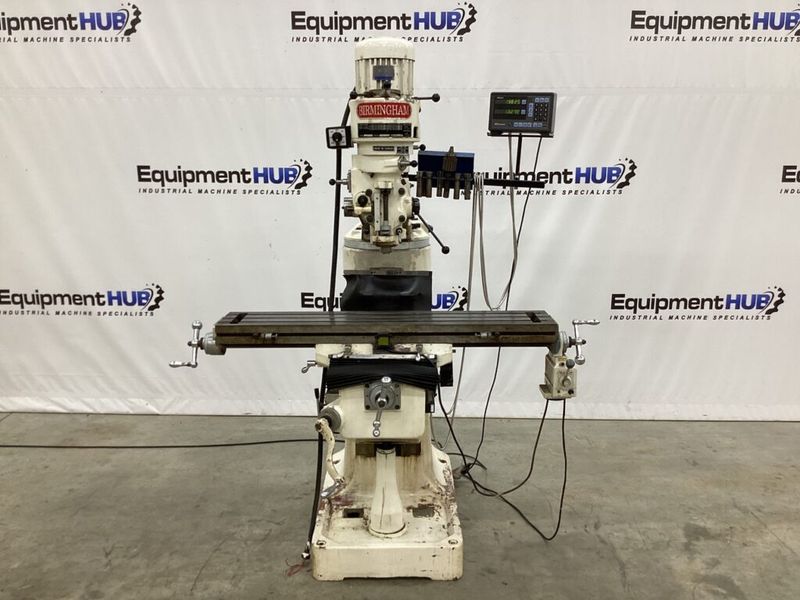

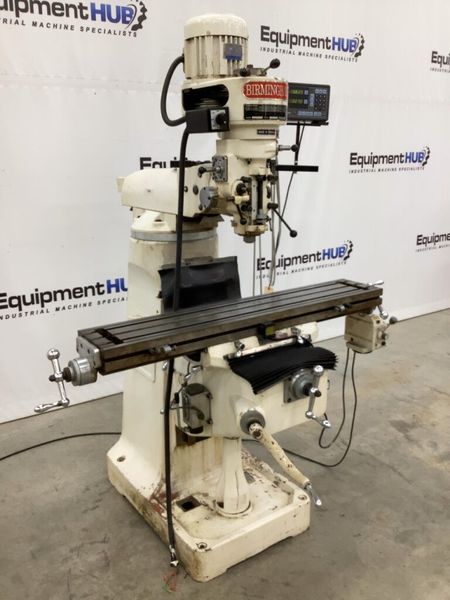

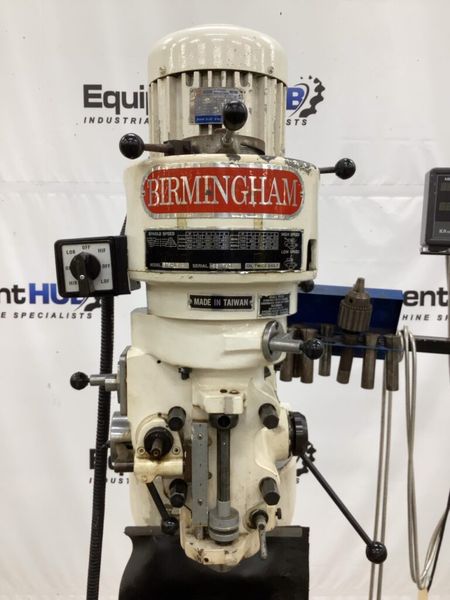

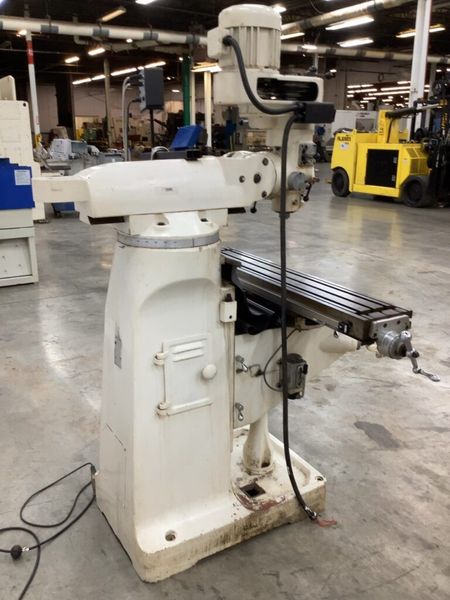

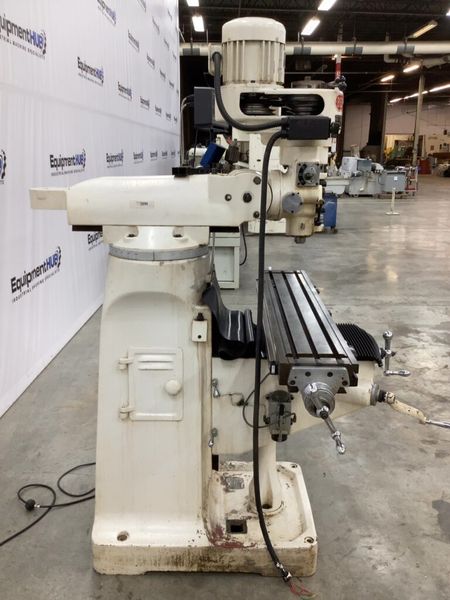

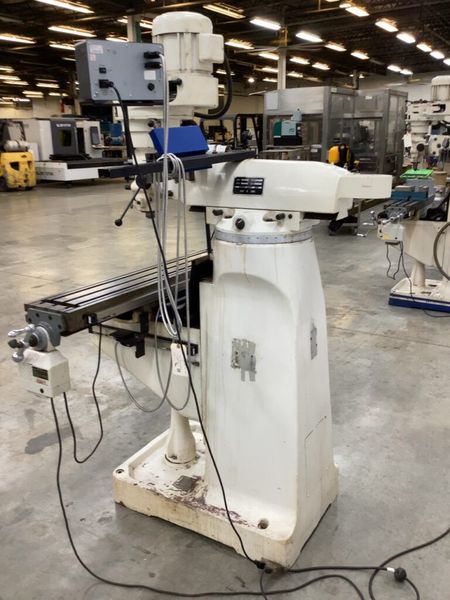

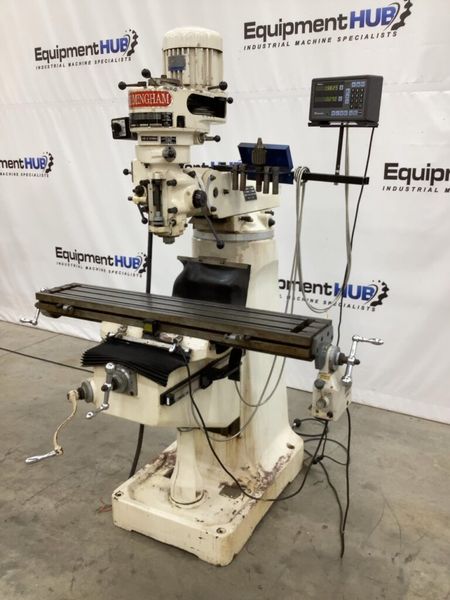

Birmingham BPS-1649 9″ x 49″ Vertical Milling Machine w/ Mitutoyo DRO & Power Feed

Birmingham BPS-1649 9″ x 49″ Vertical Milling Machine w/ Mitutoyo DRO & Power Feed

Name: Birmingham BPS-1649 9″ x 49″ Vertical Milling Machine w/ Mitutoyo DRO & Power Feed
Brand: Birmingham
SKU: 190260058

Manufacturer

Birmingham

Spec Sheet

Stock #: 190260058
Location: Decatur, GA
Brand: Birmingham
Model: BPS-1649
Serial #: 981540
Year: 1998
Approx. Shipping Weight: 2,750 Lbs.
Approx. Shipping Dimensions: 6′ L x 5′ W x 7′ H
Skidding Fee: $175

Specifications

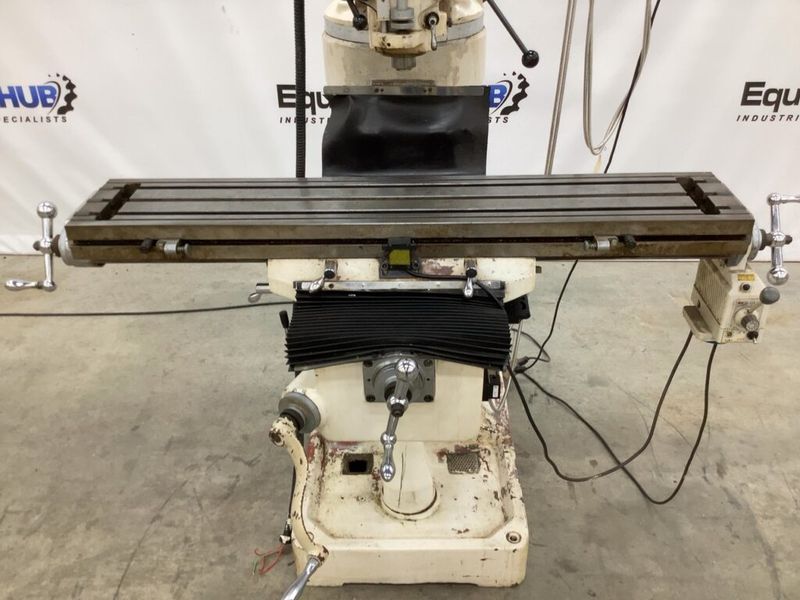

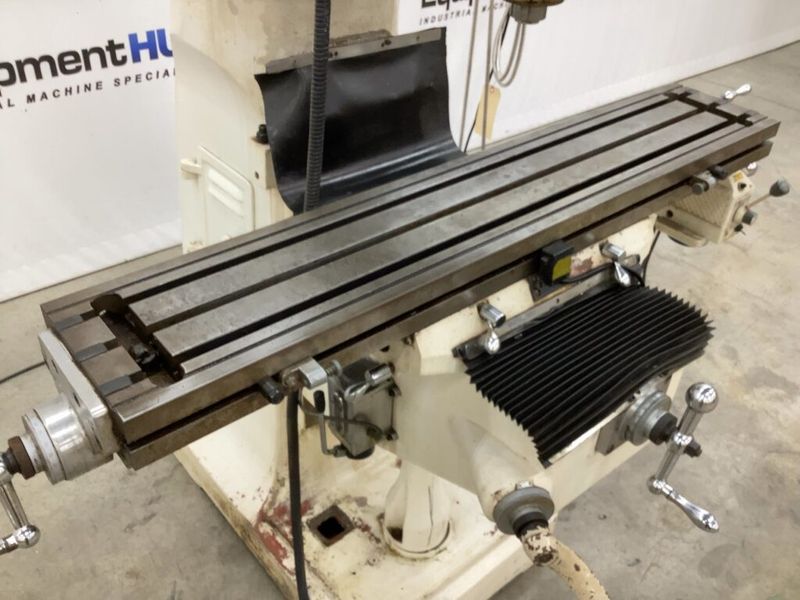

Table Size: 9" x 49"
Longitudinal Travel (X): 35.5"
Cross Travel (Y): 13.25"
Vertical Knee Travel (Z): 15.75"
Quill Travel: 5"
Spindle Taper: R8

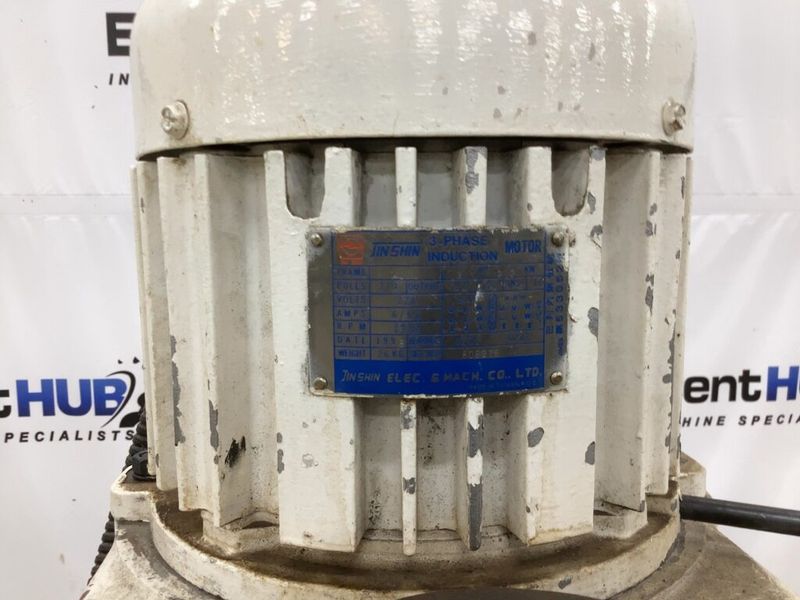

Motor HP: 3HP

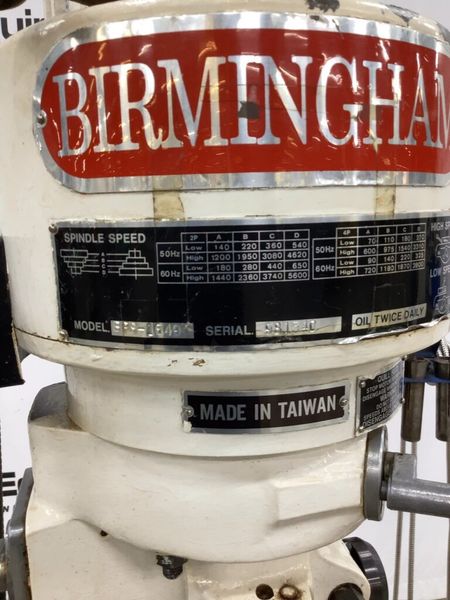

Spindle Speeds: 70 – 5600 RPM, Step Pulley with Hi/Lo Back Gear
Quill Feed: .0015" / .003" / .006" Per Rev
Electrical: 220V/3PH

Equipped With

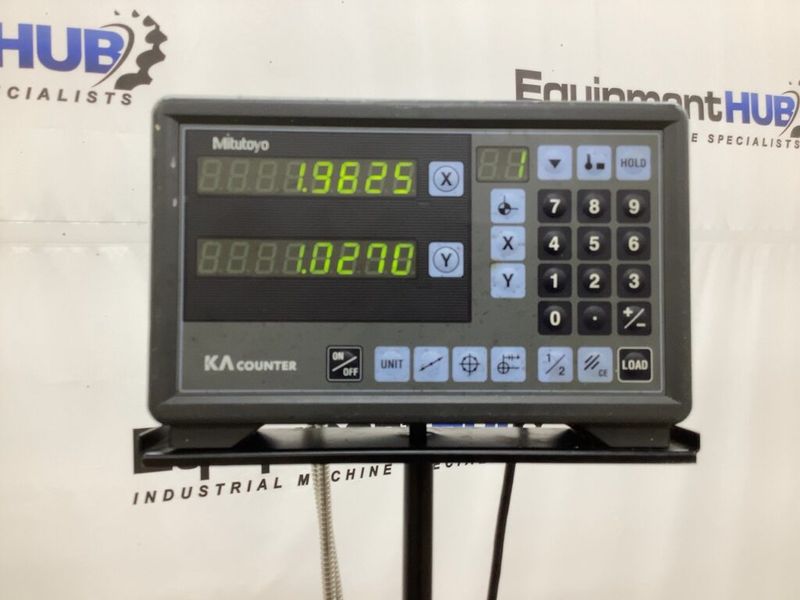

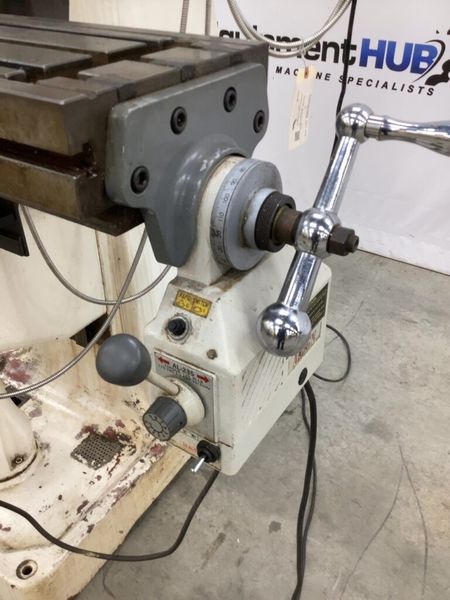

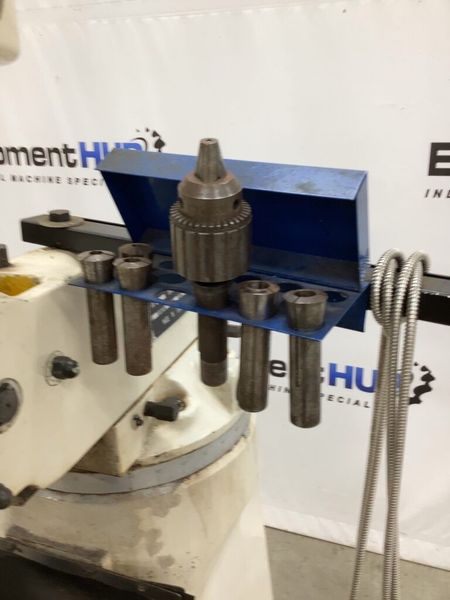

Mitutoyo 2-Axis DRO, Align Al-235 X-Axis Power Feed, One-Shot Lubrication System, R8 Collet Set With Rack, Way Covers, Quill Fine Feed With 3-Speed Selector

Additional Info

The Birmingham Vertical Milling Machine can be demoed upon request. Check out the video on the listing to see it in operation.

No Video Available

Want to request a quote from the owner of this listing?

Request a Quote
