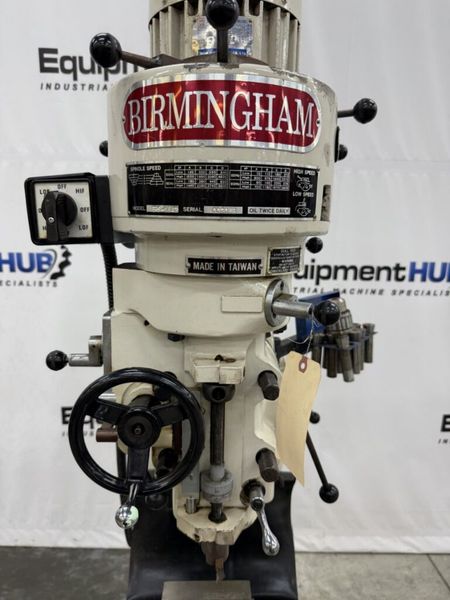

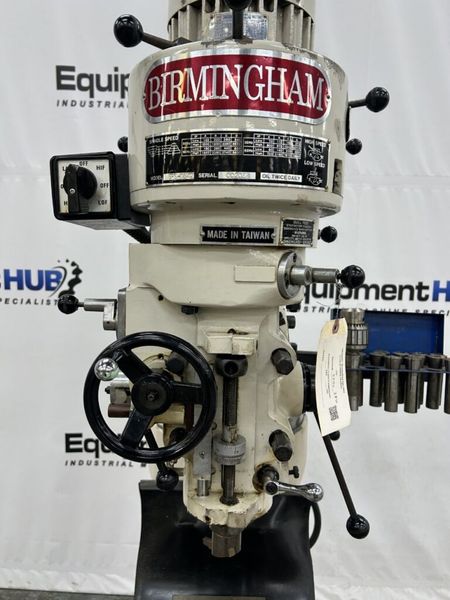

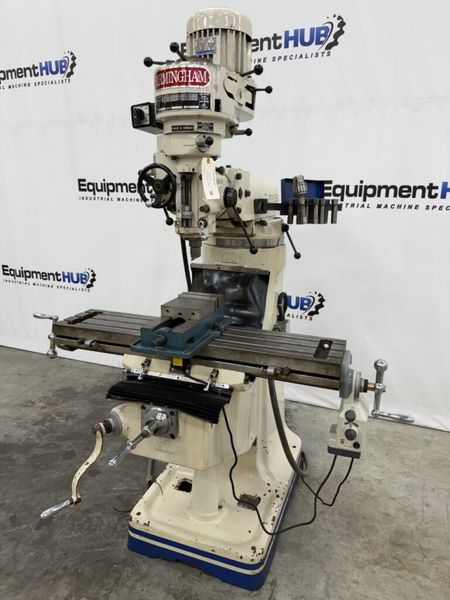

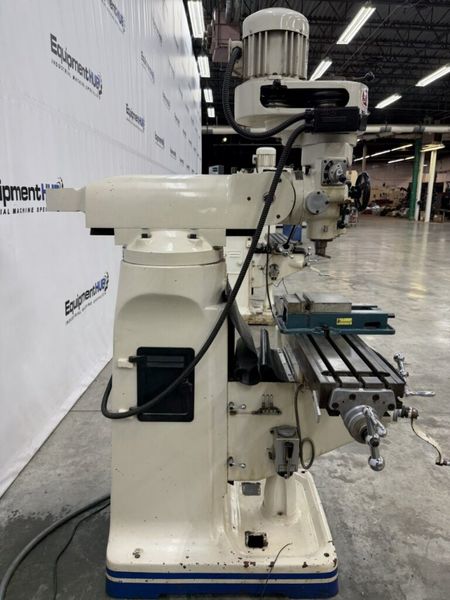

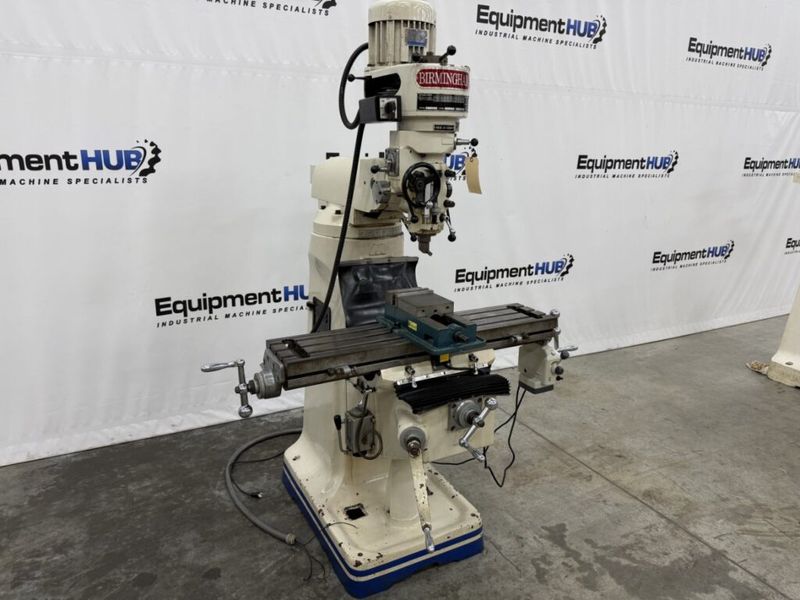

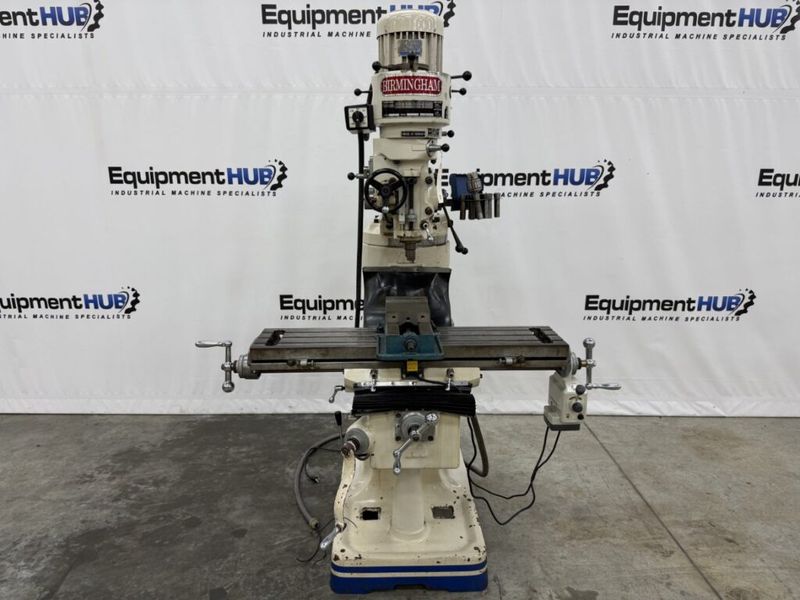

Birmingham BPS-1642 9″ x 42″ Vertical Milling Machine w/ Power Feed, Machinist Vise

Manufacturer

Birmingham

Category

None

Type

MILLING MACHINES, ATTACHMENTS & ACCESSORIES

Stock

190260057

Model

BPS-1642

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 190260057
  • Location: Decatur, GA
  • Brand: Birmingham
  • Model: BPS-1642
  • Serial Number: 002058
  • Approx. Shipping Weight: 2,500 lbs
  • Approx. Shipping Dimensions: 6′ L x 6′ W x 7′ H
  • Skidding Fee: $150

Specifications

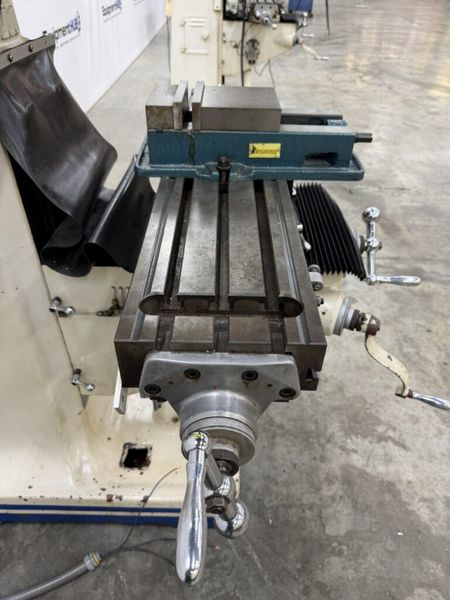

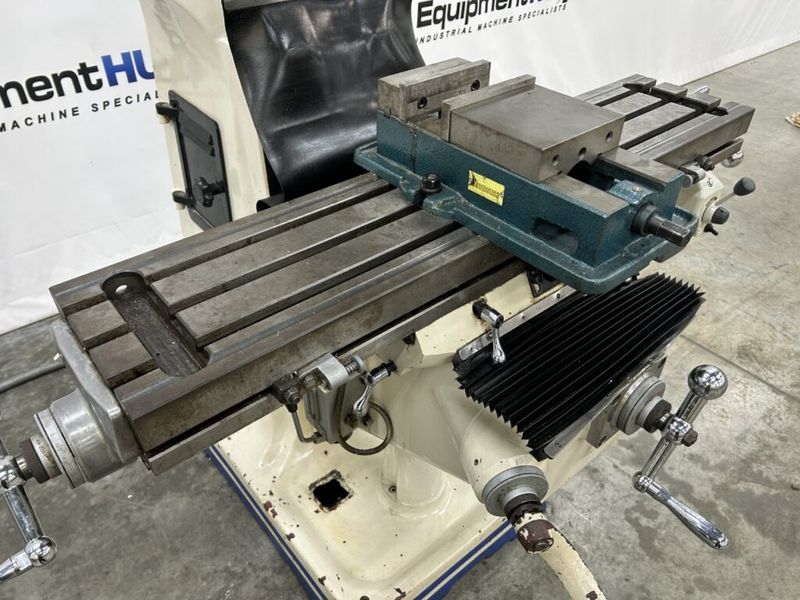

  • Table Size: 9″ x 42″
  • Spindle Taper: R8
  • Spindle Motor: 3 HP (2.2 kW)
  • Motor Type: Dual speed, 2/4 pole
  • Motor RPM: 3,480 / 1,780

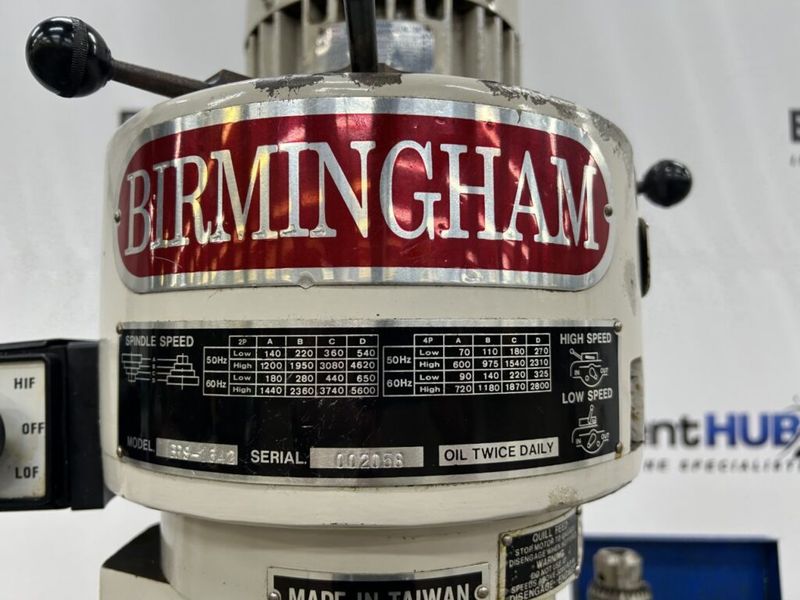

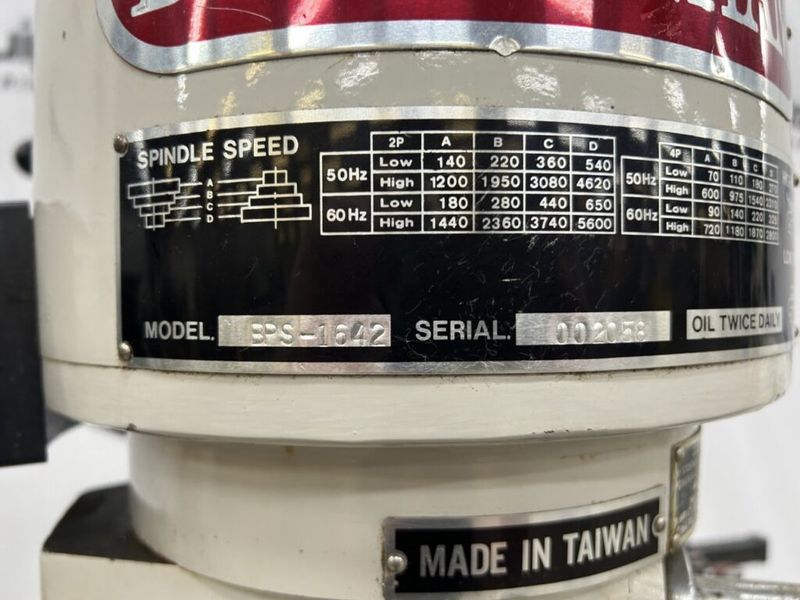

  • Spindle Speed Range (60 Hz): 90 – 5,600 RPM
  • Number Of Spindle Speeds: 16

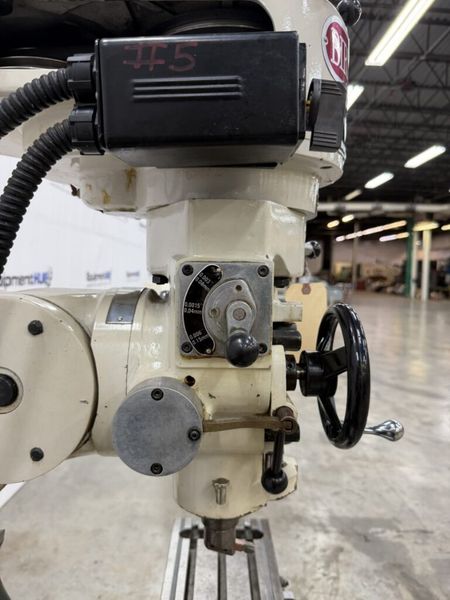

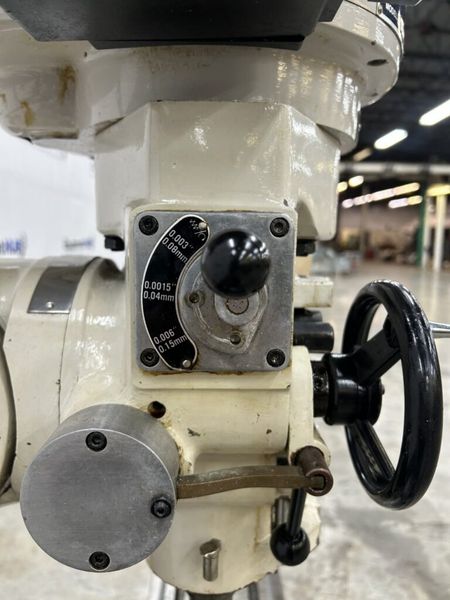

  • Quill Power Feeds: 0.0015″, 0.003″, 0.006″ IPR
  • Number Of T-Slots: 3
  • Knee Travel: 16″

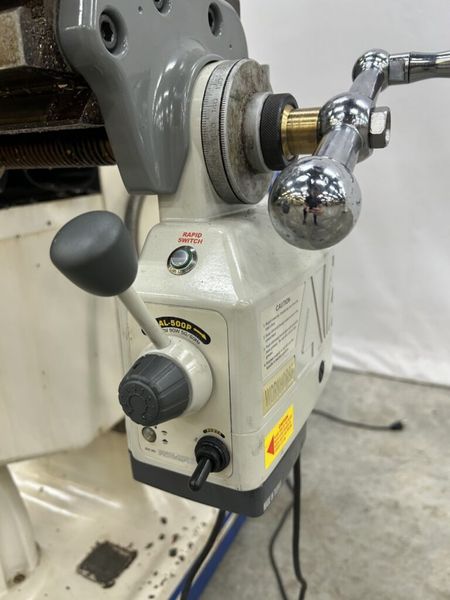

  • X-Axis Power Feed: Workhorse AL-500P, 110V, 90W
  • Lubrication: One-shot / central oiler
  • Phase: 3-Phase
  • Voltage: 220V

Equipped With

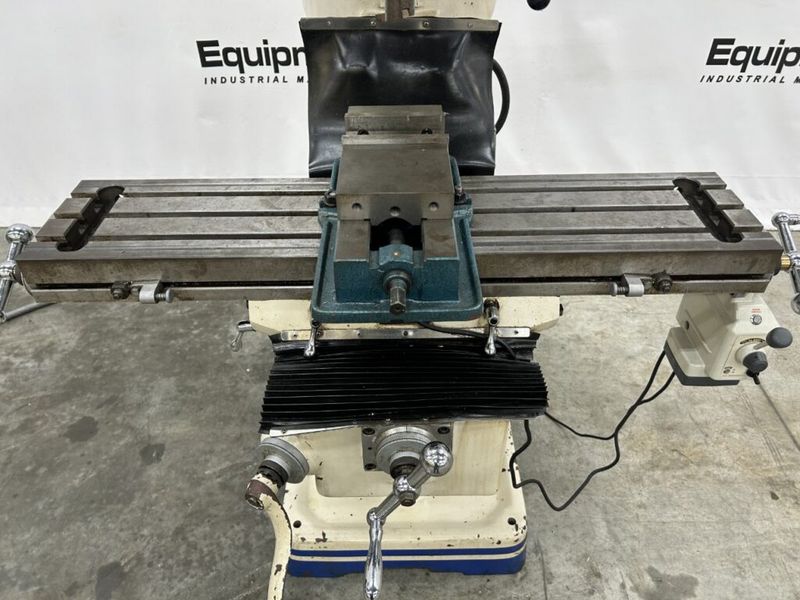

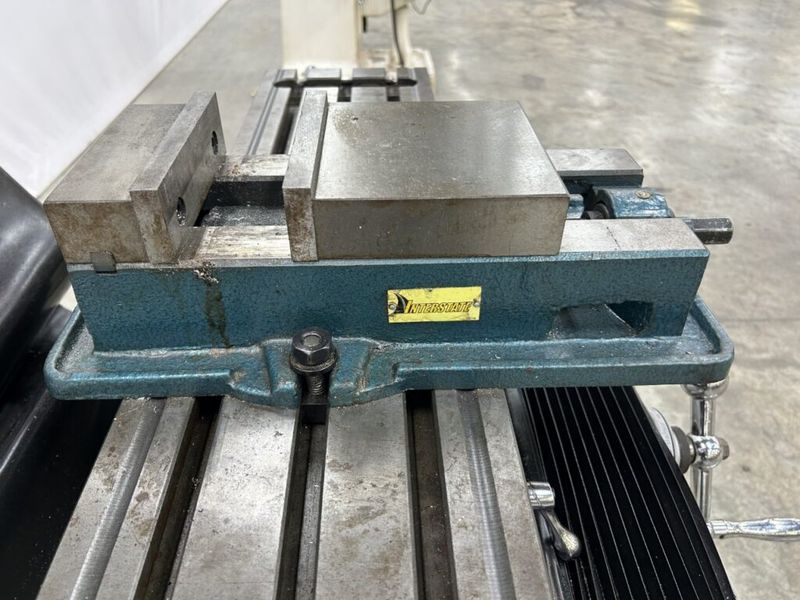

Interstate Milling Vise, Workhorse Al-500P X-Axis Power Feed, R8 Collet Set In Ram-Mounted Rack, Drill Chuck, One Shot Lube

Additional Info

The Vertical Milling Machine can be demoed upon request, check out the video on the listing to see it in operation.
