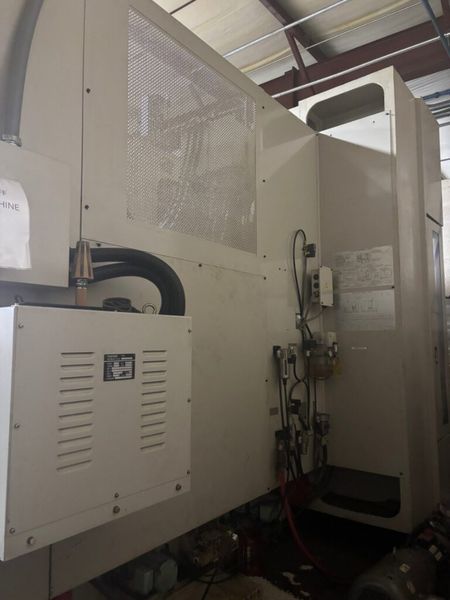

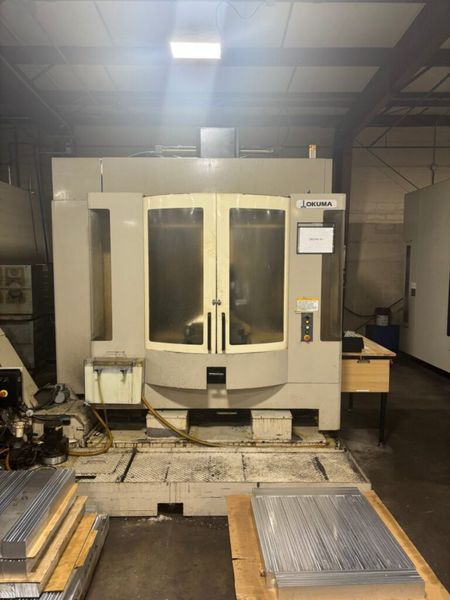

Okuma & Howa MILLAC-550H CNC Horizontal Machining Center

Manufacturer

Okuma & Howa

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

111260010

Model

MILLAC-550HBrand: Okuma & Howa

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 111260010
  • Model: MILLAC-550H
  • Brand: Okuma & Howa
  • Year: 2006
  • Serial Number: 4009
  • Approx. Shipping Weight: 32,975 lbs
  • Approx. Shipping Dimensions: 172″ x 126″ x 120″

Specifications

  • X-Axis Travel: 31.5″
  • Y-Axis Travel: 31.5″
  • Z-Axis Travel: 27.56″
  • B-Axis Travel: 360°
  • Pallet Size: 21.65″ x 21.65″
  • Pallet Changer: Automatic (APC)
  • Spindle Speed: 10,000 RPM
  • Spindle Taper: 50 Taper

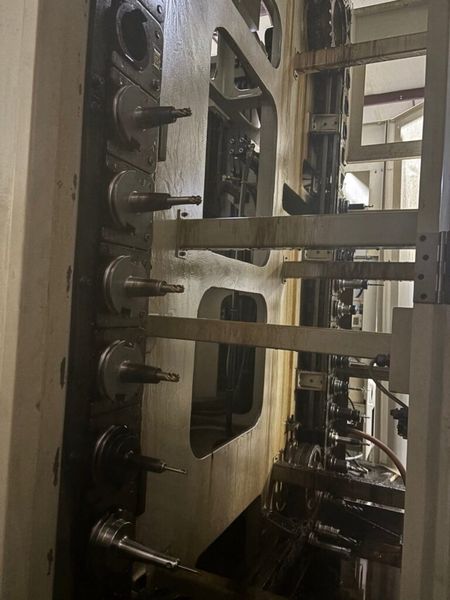

  • Tool Capacity: 60 ATC
  • Max Tool Diameter: 4.92″ / 7.87″ (adjacent pocket empty)
  • Max Tool Weight: 44 lbs
  • Max Tool Length: 15.75″ (from gage line)
  • Tool Change Time (Tool To Tool): 2 sec
  • Tool Change Time (Chip To Chip): 8.5 sec
  • Rapid Traverse: 1,575 IPM
  • Max Cutting Feedrate: 1,575 IPM
  • Positioning Accuracy: ±0.0004″
  • Repeatability: ±0.0002″
  • Floor Space: 126″ x 172″
  • Machine Weight: 32,975 lbs

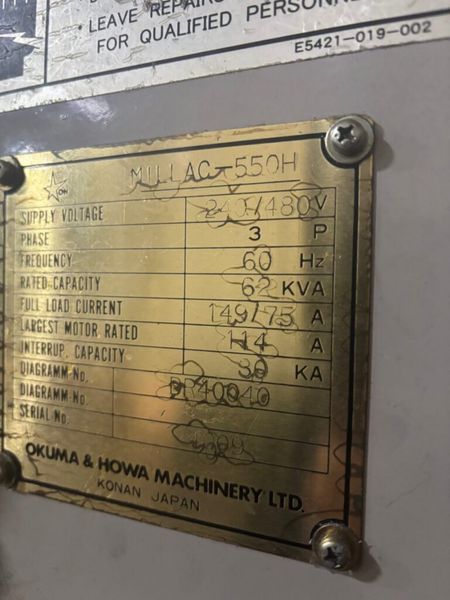

  • Rated Capacity: 62 kVA
  • Full Load Current: 149/75 A

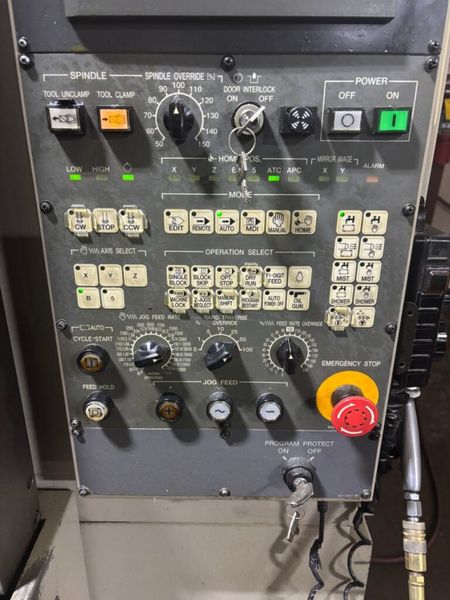

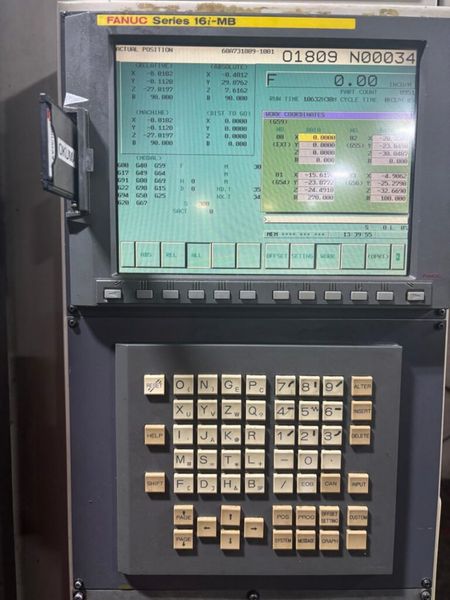

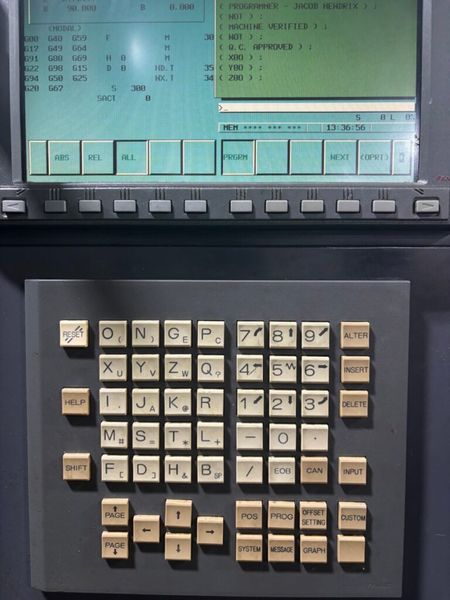

  • Control: Fanuc Series 16i-MB
  • Spindle Motor: 40 HP
  • Electrical: 240/480 V / 3 PH

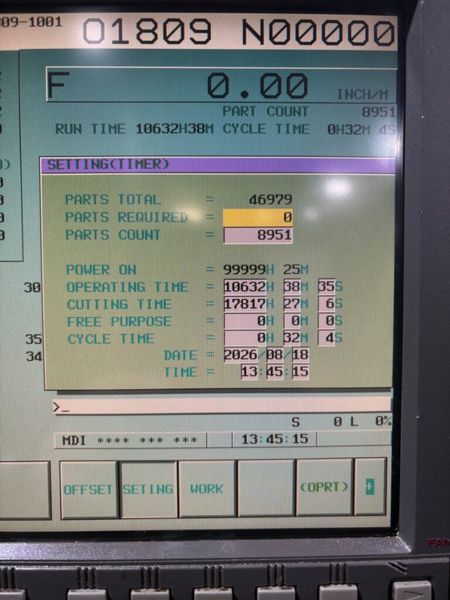

  • Operating Hours: 10,632

Equipped With

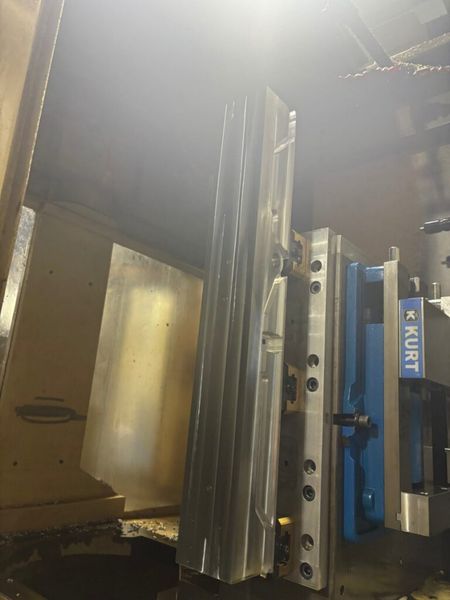

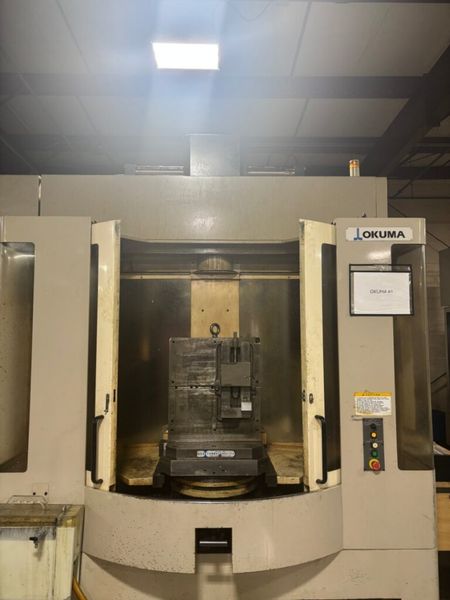

Avt Tombstone City Tombstone Fixture

Additional Info

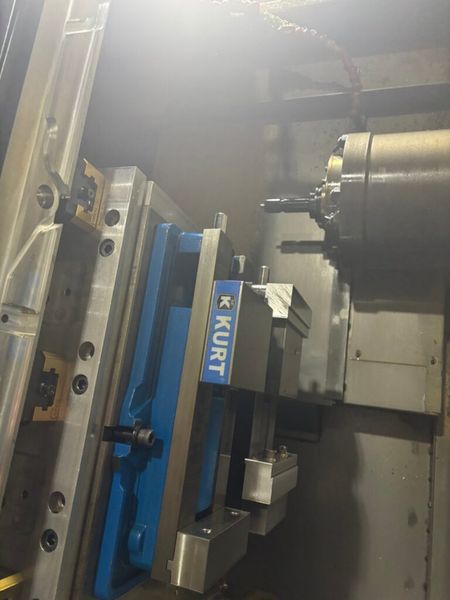

Machine is currently under power and can be demoed upon request. Kurt Milling Vise and Assorted 50-Taper Tooling In The ATC are not included.
