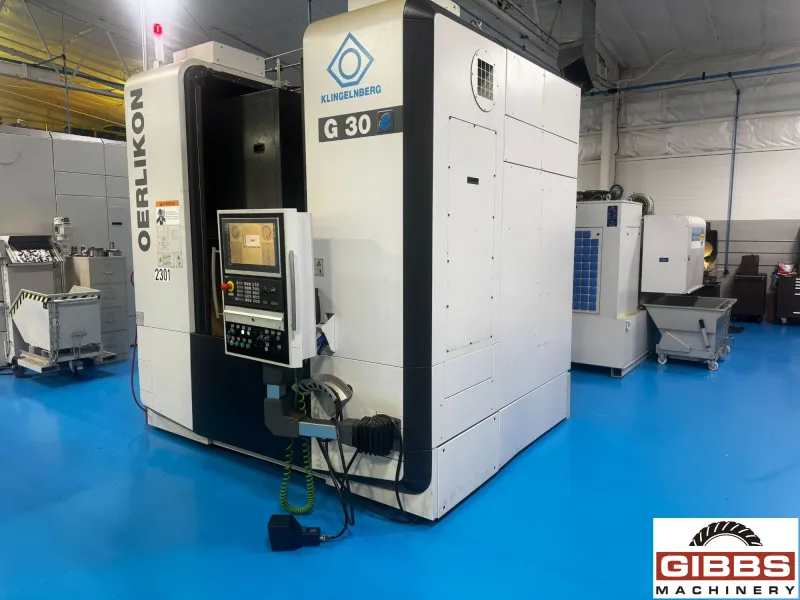

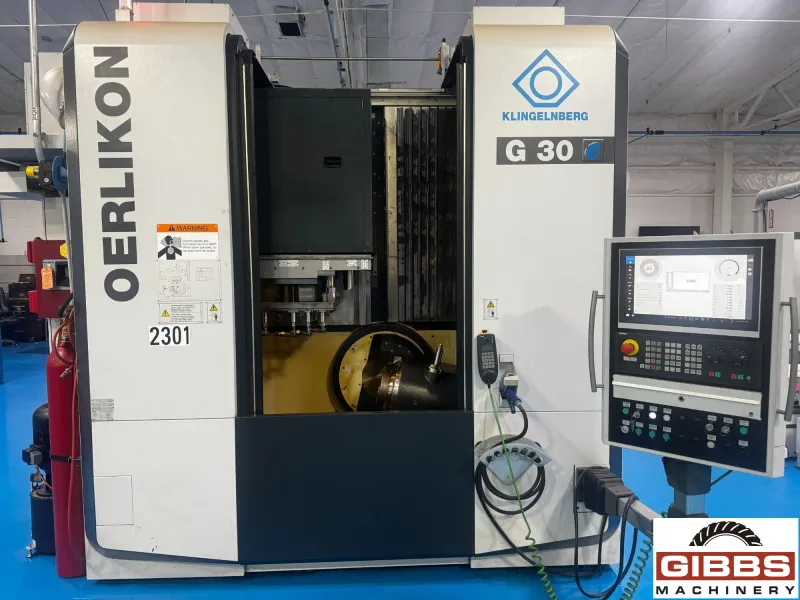

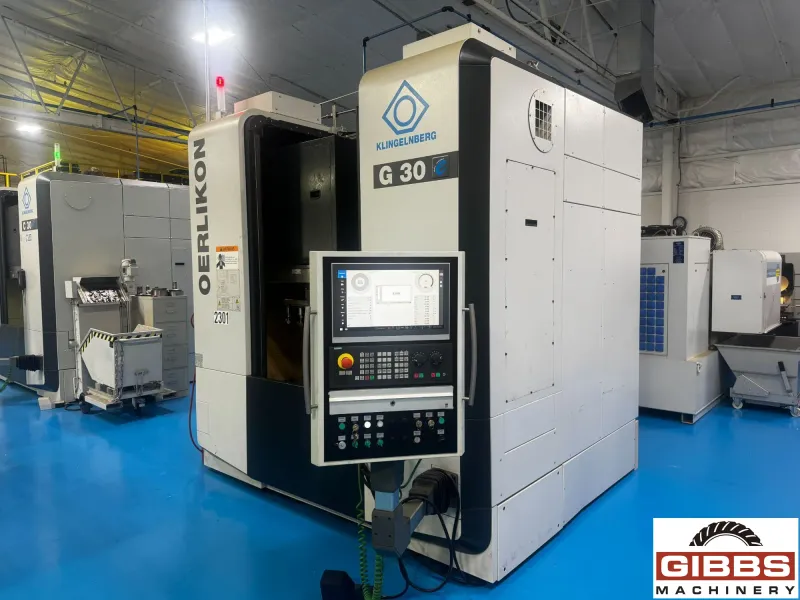

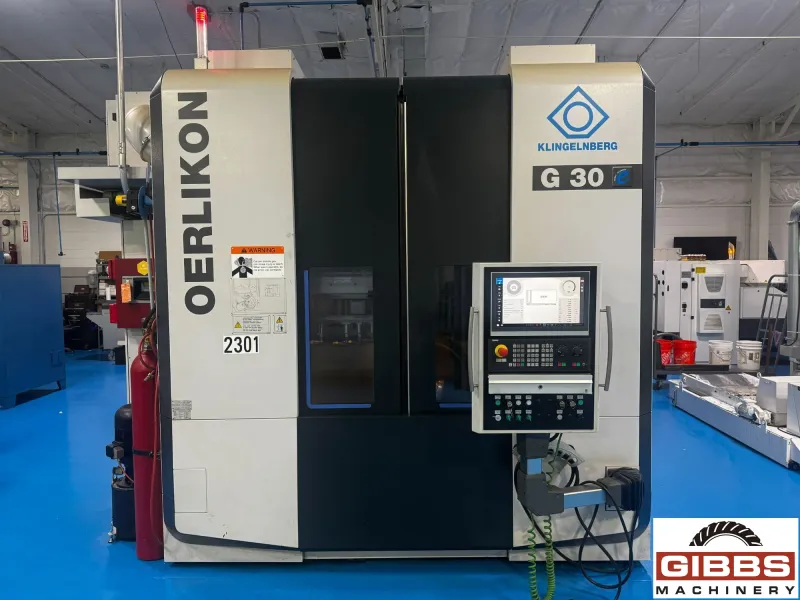

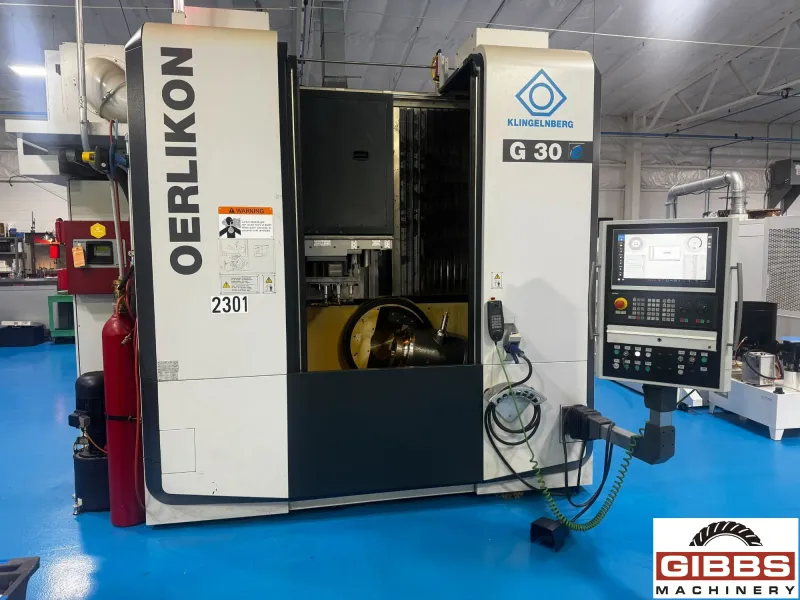

KLINGELNBERG OERLIKON G30 - Bevel Gear Grinder

Manufacturer

KLINGELNBERG OERLIKON

Category

Gear Machines

Type

GEAR GRINDERS

Stock

25934

Model

G30

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

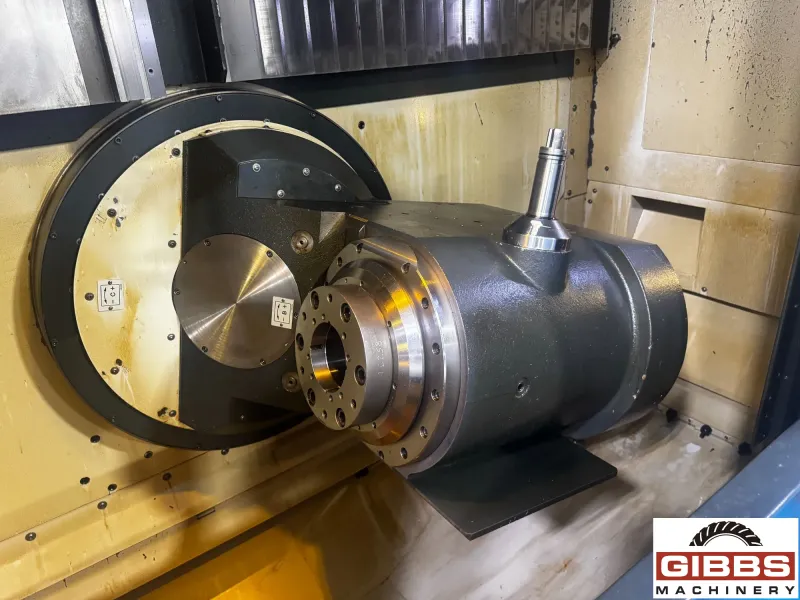

  • 3.9" Workpiece Spindle Adapter
  • Auto Retraction
  • Hydraulic Workpiece & Grinding Wheel Clamping Equipment
  • Automatic Work Area Door
  • Software For Generating & Plunge Grinding (Up to Max. 40 Cycles)
  • Software For Double Generating Possible
  • Software For Dressing After An Adjustable Number of Teeth or Referred
  • to the Number of Cycles
  • Data Storage on Hard Disk for More Than 10.000 Different Workpieces
  • Suction Belt Filter Unit
  • Integrated Oil Mist Extraction Unit
  • Automatic CO2 Suppression System
  • Conical Tool Depth (circular arc toothing)
  • Stock Amount Check
  • Grinding Wheel Flanges W/HSK-Connection (for grinding wheels with metal bottom
  • plate 2" - 4,5"
  • Grinding Wheel Flanges W/HSK-Connection (for grinding wheels with metal bottom
  • plate 5" - 9"
  • Grinding Wheel Handling Device
,

Machine Specifications :

  • Year 2015
  • Manufacturer KLINGELNBERG OERLIKON
  • Maximum Workpiece Diameter 11.8"
  • Module 8.0
  • Maximum Wheel Diameter 9.1"

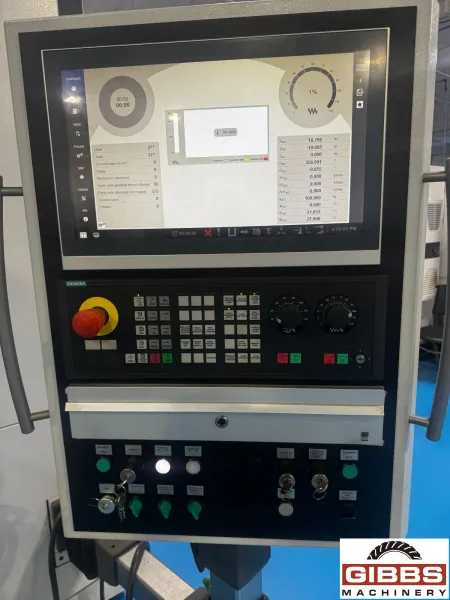

  • Control Manufacture Siemens
  • Diametral Pitch 3.0
,

Klingelnberg Oerlikon G 30 is a high-precision, vertical-concept CNC spiral bevel gear grinding machine designed for the productive, high-accuracy finishing of curved-toothed bevel gears and face-type clutches.

    Specifications:

  • Maximum Workpiece Diameter: 300 mm
  • Normal Module Range: 0.7 - 8 mm
  • Pitch Cone Angle Range: -90 Degrees up to 90 Degrees
  • Through Bore of Workpiece Spindle: 99.258 mm (3.9")
  • Grinding Wheel Diameter Range: 50 mm - 230 mm (2"-9")
  • Maximum Grinding Spindle Speed: 8,000 RPM
