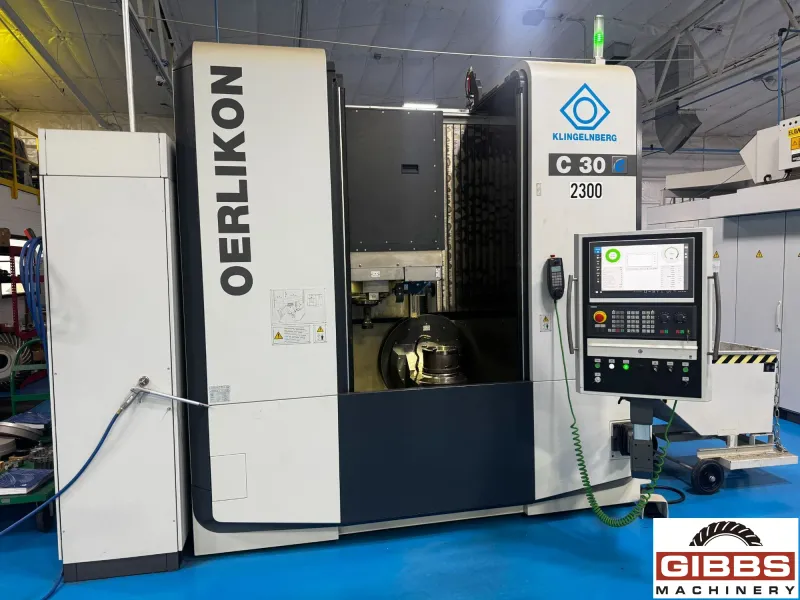

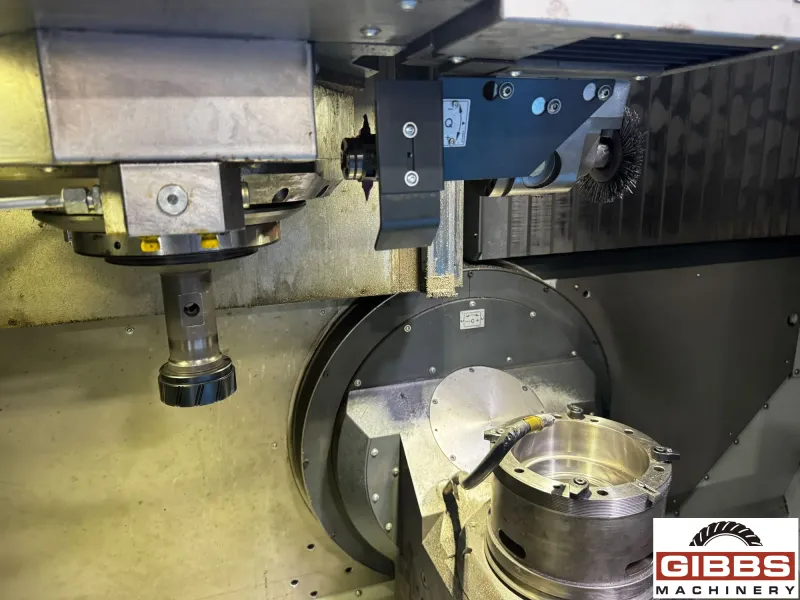

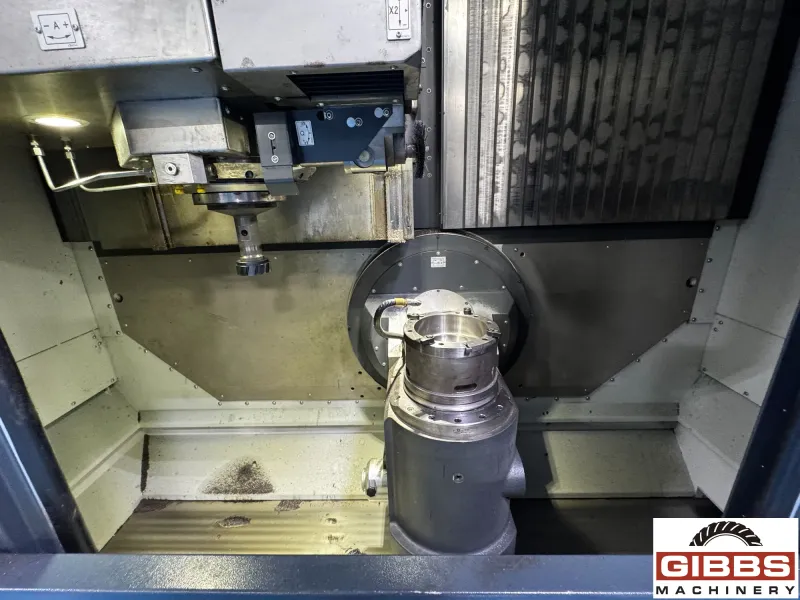

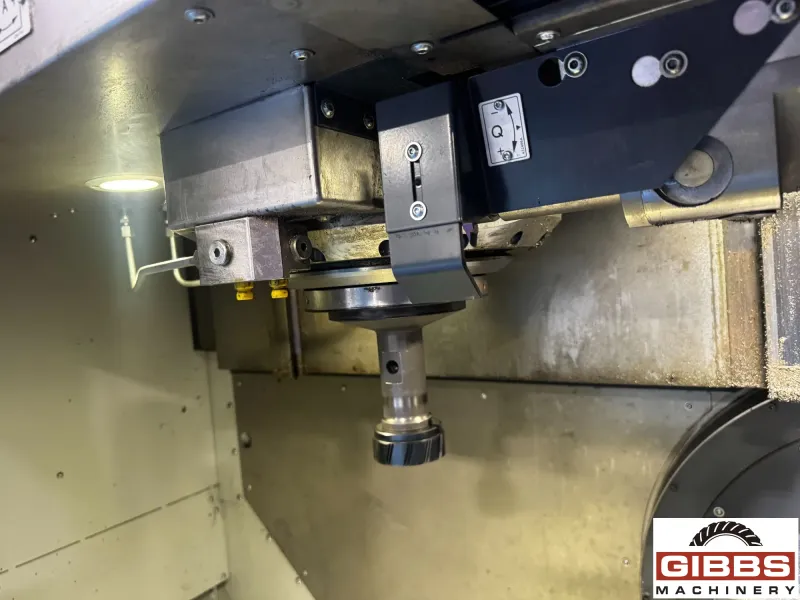

KLINGELNBERG OERLIKON C30 - Spiral Bevel Gear Generator

Manufacturer

KLINGELNBERG OERLIKON

Category

Gear Machines

Type

GEAR GENERATORS, BEVEL, (Spiral/Hypoid)

Stock

25933

Model

C30

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

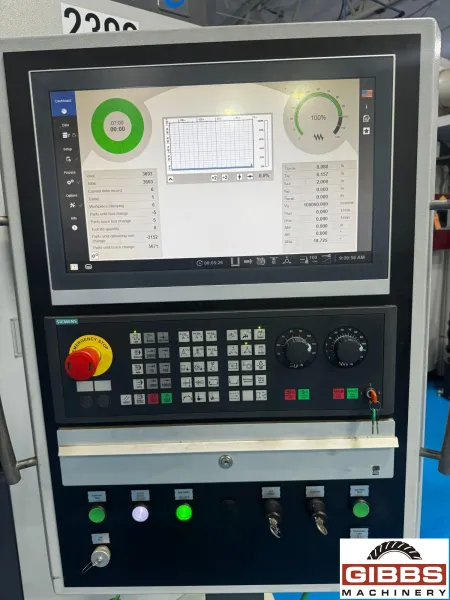

  • Siemens 840D Control
  • Direct Drive Work Spindle
  • Direct Drive Cutter Spindle
  • Auto Door

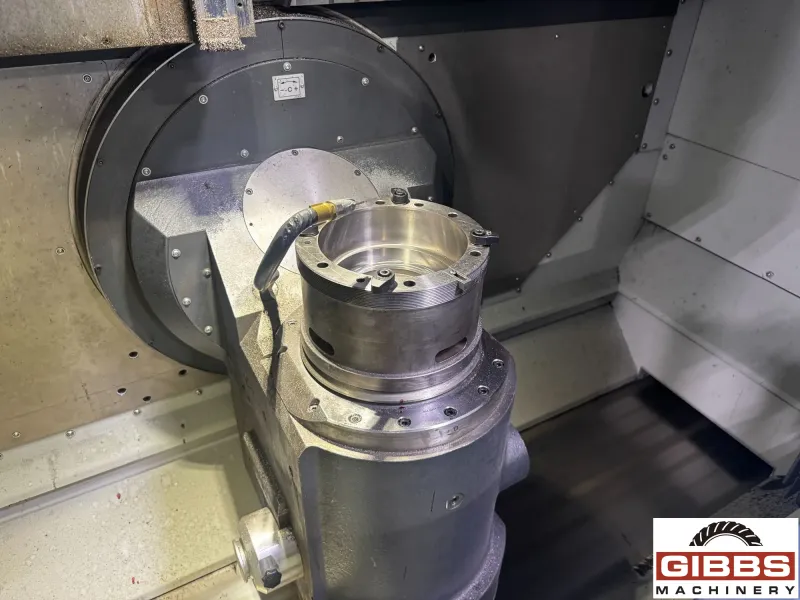

  • Hydraulic Clamping W/Stroke Monitoring

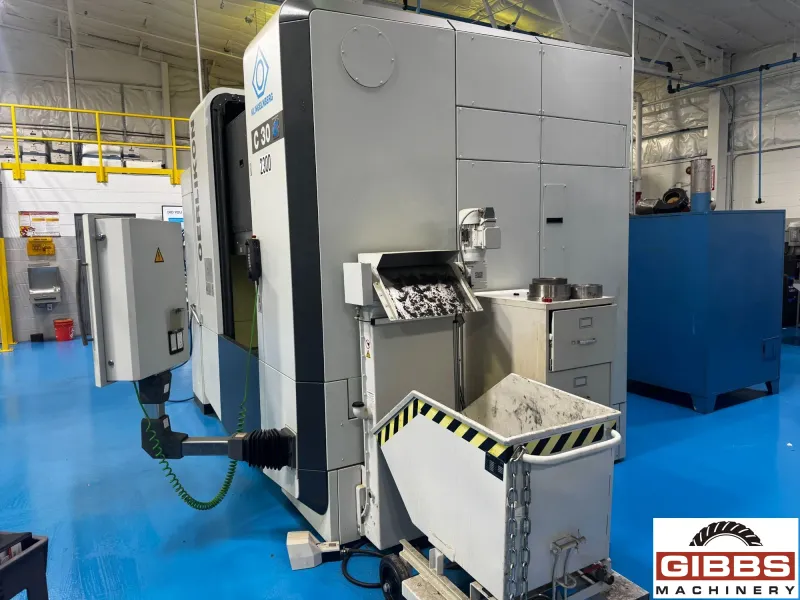

  • Magnetic Chip Conveyor
  • Tooth Thickness Correction
  • Storage and Loading of Master Data
  • Indicator Light
  • One-Pedal Foot Switch for Clamping The Workpiece
  • Chip Container
  • Automatic Gap Finding Device
  • Automatic Cutter Head Clamping System
  • Axial Location Monitoring, Air Gap Control

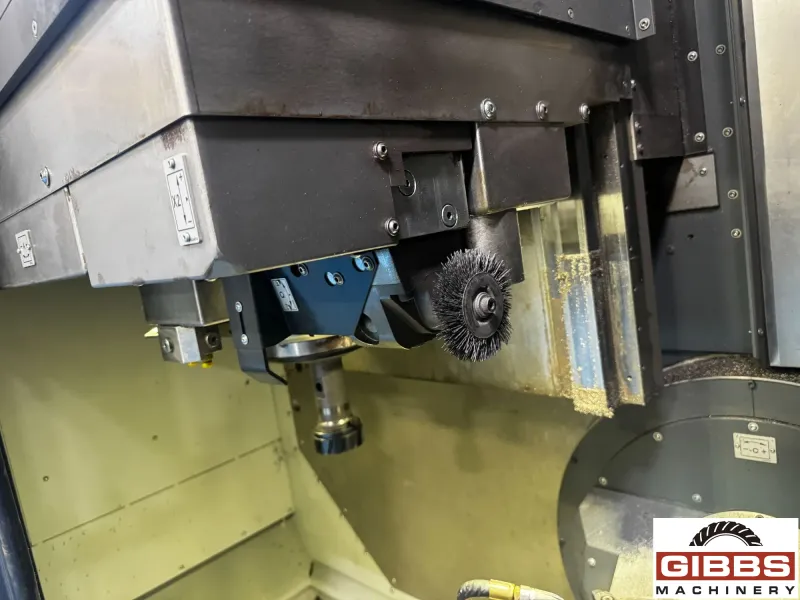

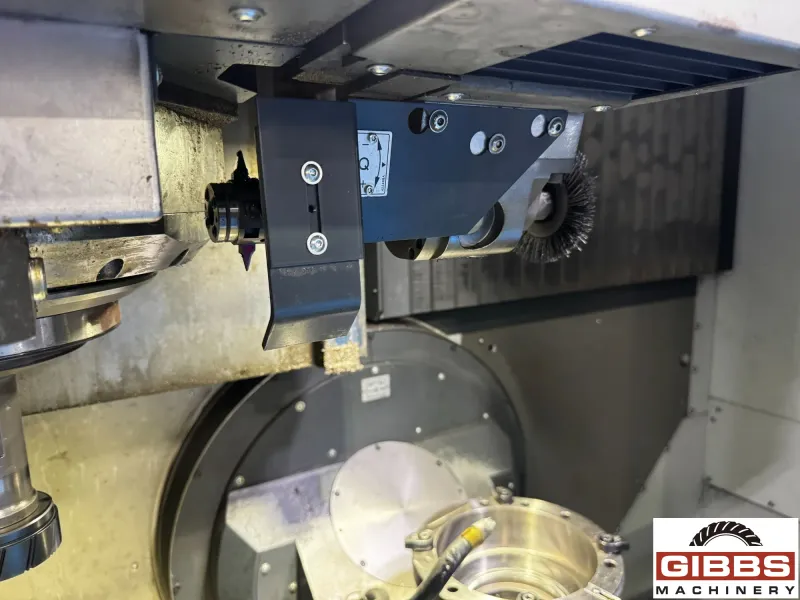

  • Deburring Device for Deburring of Gears and Pinions
  • Deburring Cutter Head
  • Deburring Blade
  • Swivel Device for Cutter Head Loading (Including Dolly)
  • Machine Software and Hardware for Power Skiving
  • Calculation Software Power Skiving for Process & Tool Design & Correction
  • Option Blade Software
  • Gratex Deburr Software
  • Pulsar Deburr Software
  • (2) Arcon 10-6" L II Cutter Heads
  • (2) Arcon 10-6" R II Cutter Heads
  • Approximately (120) 0.4" x 0.5" 3F Carbide Stick Blades
  • Approximately (80) Spacer Plates for Arcon 5" / 6" / 7.5"
  • Universal Aircraft Cutter Arcon 3-3.75" 4.375" / 5" / 6" R II
  • Universal Aircraft Cutter Arcon 6-7.5" / 9" R II
,

Machine Specifications :

  • Year 2018
  • Manufacturer KLINGELNBERG OERLIKON
  • Maximum Diameter Gear 11"
  • Maximum Face Width 2.3"
  • Diametral Pitch 3.9
  • Extreme Ratio 10:1
  • Control Manufacturer Siemens
,

2018 KLINGELNBERG-OERLIKON C30 CNC spiral bevel gear cutting machine available. Siemens 840D control, direct drive spindles, automatic features. Max gear diameter 280mm, face width 58mm. Includes extensive accessories, perfect for precision work.

    Specifications:

  • Maximum Workpiece Diameter: 280 mm
  • Normal Module: 1,5 - 6,5
  • Maximum Face Width: 58 mm (approx)
  • Minimum/Maximum Spiral Angle: 0/60 Degrees
  • Minimum/Maximum Ratio: 1:1/1:10
  • Maximum Cutter Head Spindle Speed: 1500 RPM
  • Workpiece Spindle Through Bore: 93 mm
  • Workpiece Spindle Speed: 1500 RPM

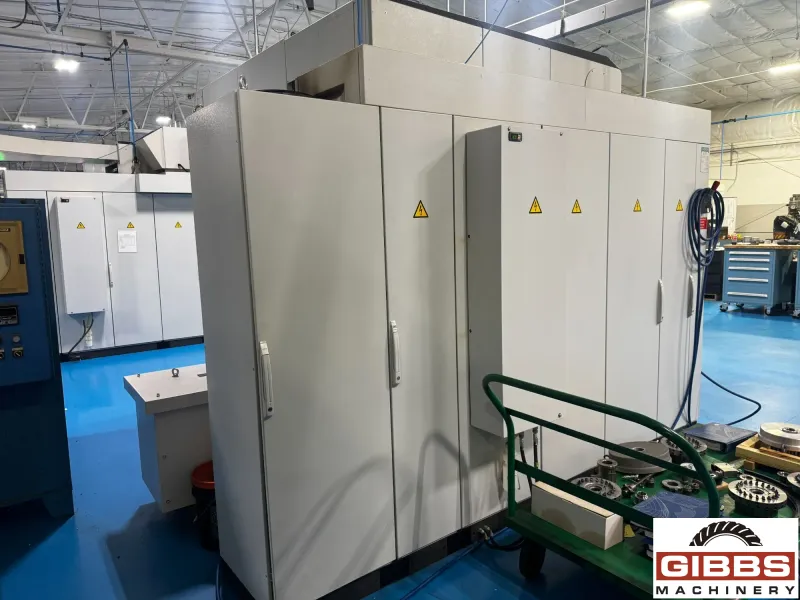

  • Floor Space (LxWxH): 3850 x 2415 x 2900 mm (indluding hydraulic and
  • electrical enclosure W/out platform, service doors closed)
  • Net Weight: 20,000 kg
