2023 Hurco VM15Di CNC Vertical Machining Center

Stock

7612540

Model

VM15DI

Dealer Location

Kentucky

Spec Sheet

Overview

Type:
Vertical Machining Centers
Manufacturer:
HURCO
Model:
VM15DI
Year:
2023
Stock #:
7612540
Status:
For Sale
Serial #:
HV15D0039
Country:
United States

Description

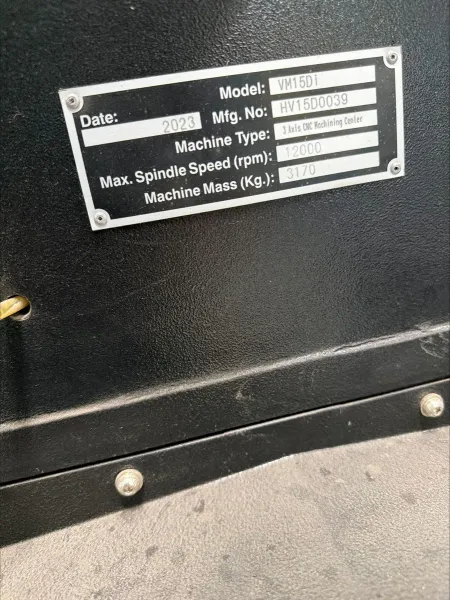

2023 Hurco VM15Di 3-axis CNC vertical machining center equipped with a Hurco WinMax control, 30 in. X, 16 in. Y, and 20 in. Z travels, a 12,000 RPM CAT 40/Big Plus spindle, and a 24-station automatic tool changer. The control displays 154:48 spindle hours. The manufacturer’s plate identifies serial HV15D0039 and a machine mass of 3,170 kg (approximately 6,989 lb).

X30"762 mm
Y16"406.4 mm
Z20"508 mm
Power22.8 hp17 kW
RPM12,000 RPM12,000 RPM
# ATC2424
TaperCAT 40 / Big Plus® (CAT/BT 40)CAT 40 / Big Plus® (CAT/BT 40)
# Axis33
ControlCNC (WinMax)CNC (WinMax)
Weight6,989 lb (3,170 kg)6,989 lb (3,170 kg)

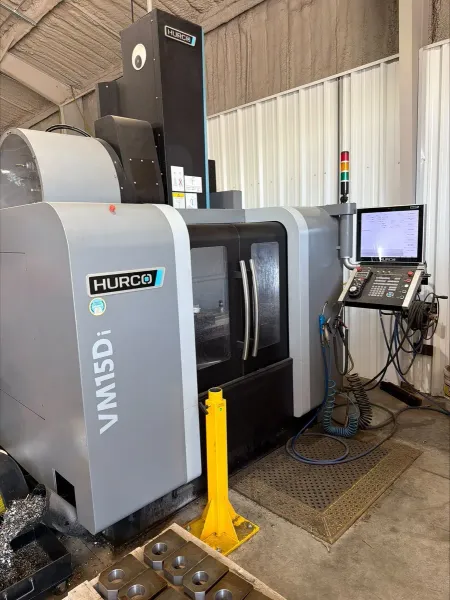

2023 Hurco VM15Di
3-axis CNC vertical machining center
Serial: HV15D0039
Control: Hurco WinMax
X/Y/Z travels: 30 in / 16 in / 20 in
Spindle: 12,000 RPM
Spindle taper: CAT 40 / Big Plus
Automatic tool changer: 24 positions
Spindle power: 22.8 hp
Machine weight: 6,989 lb (3,170 kg)

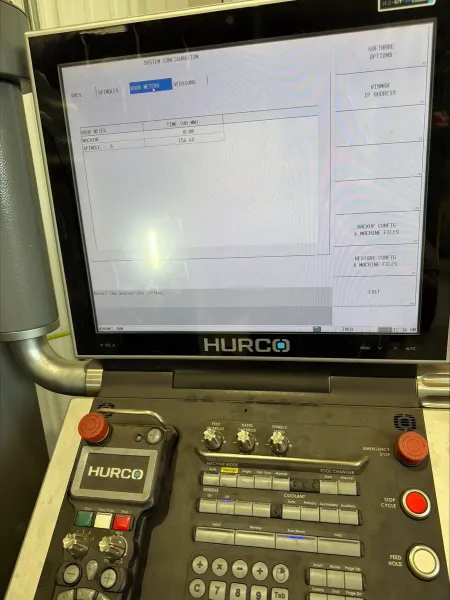

Spindle hours shown: 154:48
Has work probe and tool setter
Chip auger
Work lights
Through spindle Coolant
Coolant ring

- Specifications are believed to be accurate and are to be verified by the buyer.
