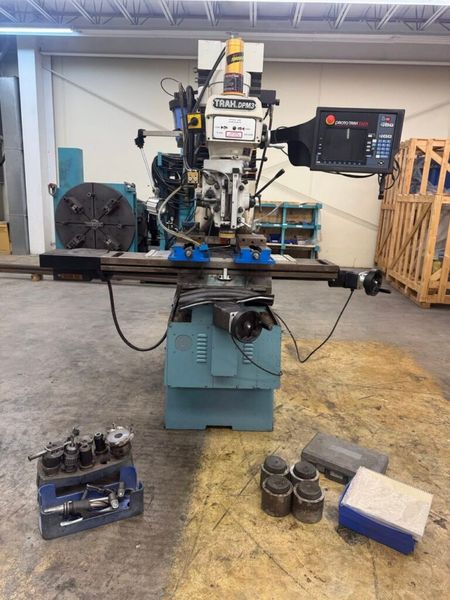

Southwestern Industries Trak DPMSX3P SMX CNC Vertical Milling Machine, Bed Mill

Stock

143260015

Model

DPMSX3P

Dealer Location

Georgia

Spec Sheet

  • Stock #: 143260015
  • Location: IL
  • Brand: Southwestern Industries
  • Model: DPMSX3P
  • Year: 2012
  • Approx. Shipping Weight: 5,000 LBS.
  • Approx. Shipping Dimensions: 84″ L x 84″ W x 86″ H

Specifications

  • Table Size: 50” x 10”
  • Travel (X, Y, Z Axis): 31" x 17" x 23.5″
  • Quill Diameter: 3 15/16″
  • Maximum Quill Travel: 5”
  • Spindle Taper: NMTB 40
  • Max Spindle RPM: 4,200 RPM
  • Spindle Center To Column Face: 19”
  • Spindle Motor Power: 5 HP
  • Maximum Weight Of Workpiece: 1,320 LBS.
  • Max Spindle Nose To Table: 23.5”
  • Footprint Of Machine: 24” x 44”
  • Power Requirements: 220V;3P; 17.5A
  • Power Requirements, Control: 110V; 1P; 10A

Equipped With

Proto Trak Smx Control, Automatic Lubrication System, Coolant Mister System, Qnty 2. Kurt Vises, Power Drawbar, Misc. Tooling
