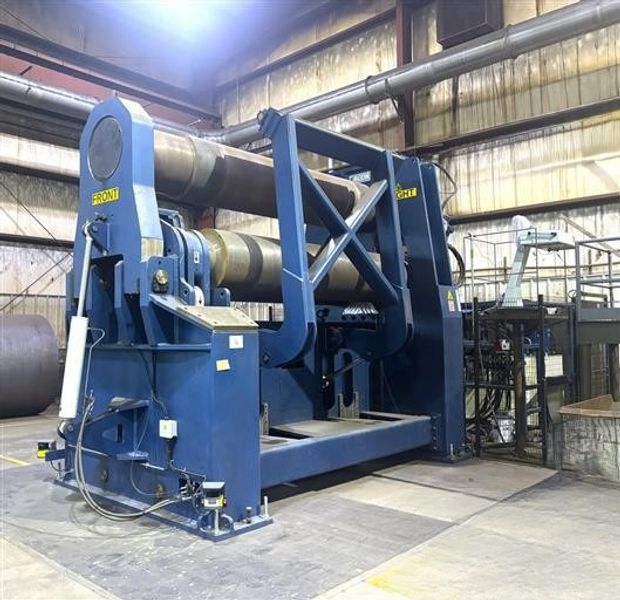

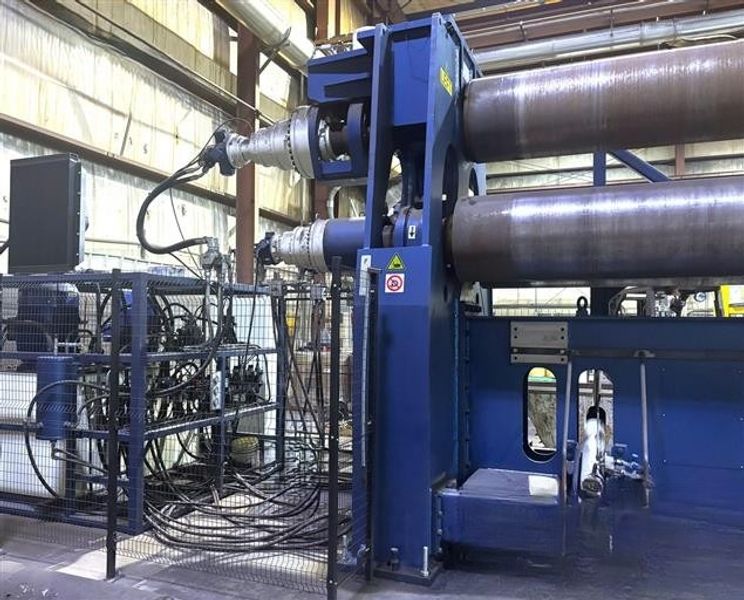

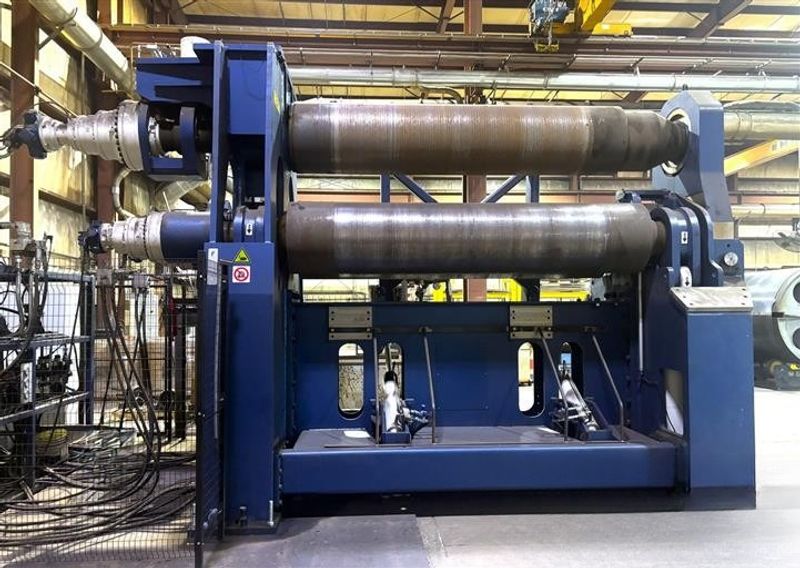

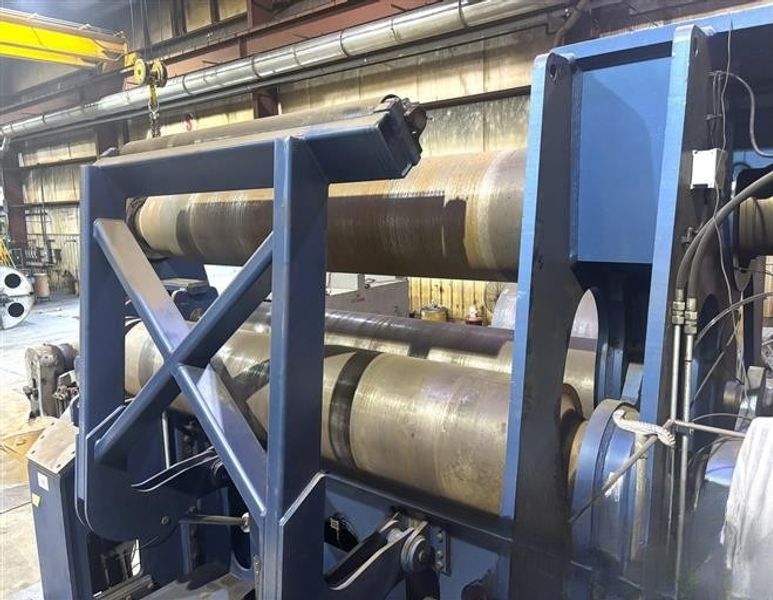

Faccin 3HEP-SX210 3-Roll Planetary Design Plate Bending Roll (2025)

Manufacturer

Faccin

Category

Rolls

Type

ROLLS, BENDING & CURVING

Stock

223260013

Model

3HEP-SX210

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 223260013
  • Brand: Faccin
  • Model: 3HEP-SX210
  • Year: 2025

Specifications

  • Max. Plate Width: 120"
  • Top Roll Diameter: 26"
  • Side Rolls (2) Diameter: 24.8"
  • Max. Rolling Speed: 20 FPM
  • Main Drive Motor: 175 HP
  • Max. Plate Thickness @130" ID (37.7 Ksi): 3" x 120"
  • Max. Plate Thickness @34" ID (37.7 Ksi): 2.5" x 120"
  • Max. Plate Thickness @130" ID (37.7 Ksi): 3.75" x 60"
  • Pre-Bend Max. Plate Thickness @130" ID (37.7 Ksi): 2.5" x 120"
  • Pre-Bend Max. Plate Thickness @34" ID (37.7 Ksi): 2" x 120"
  • Pre-Bend Max. Plate Thickness @130" ID (37.7 Ksi): 3.13" x 60"
  • Max. Plate Thickness @130" ID (52.2 Ksi): 2.5" x 120"
  • Max. Plate Thickness @34" ID (52.2 Ksi): 2.18" x 120"
  • Max. Plate Thickness @130" ID (52.2 Ksi): 3.13" x 60"
  • Pre-Bend Max. Plate Thickness @130" ID (52.2 Ksi): 2" x 120"
  • Pre-Bend Max. Plate Thickness @34" ID (52.2 Ksi): 1.75" x 120"
  • Pre-Bend Max. Plate Thickness @130" ID (52.2 Ksi): 2.5" x 60"

Equipped With

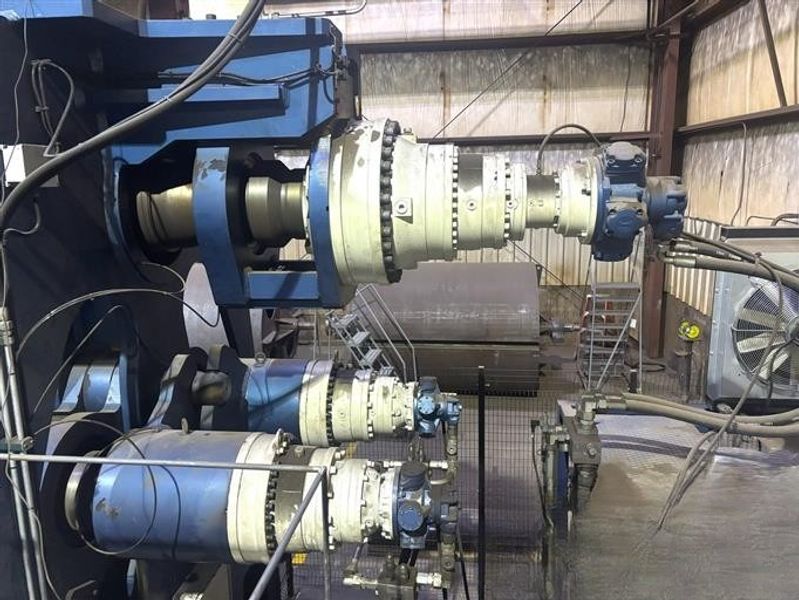

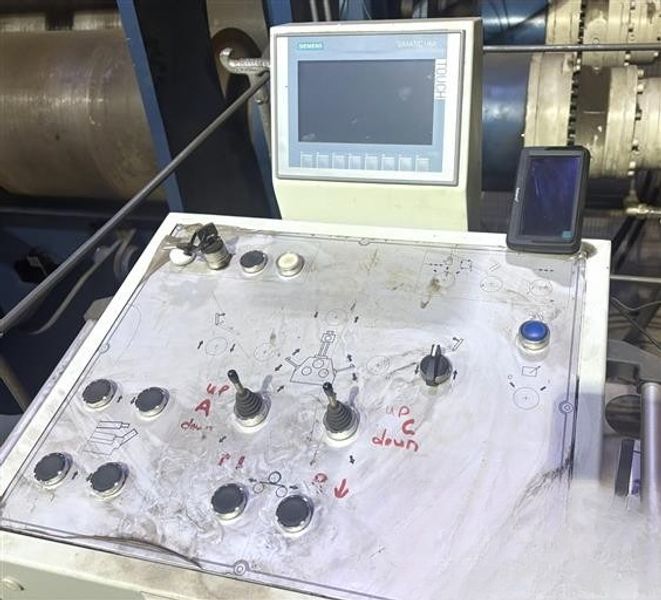

Operators Control Console On Wheels, (2) Electronic Digital Roll Position Readouts, Special Alloyed Rolls For High Surface Hardness Plate Processing., (3) Rolls Independently Motorized For Maximum Torque, Planetary System For Side Rolls Movement, Electronic Balancing System For The Synchronization Of Rolls Movement, Extra-Large Double Shaft Drop End

Additional Info

Inspect In Plant Under Power
