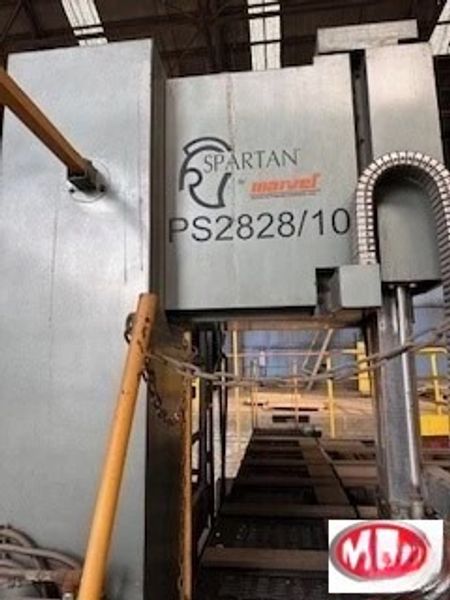

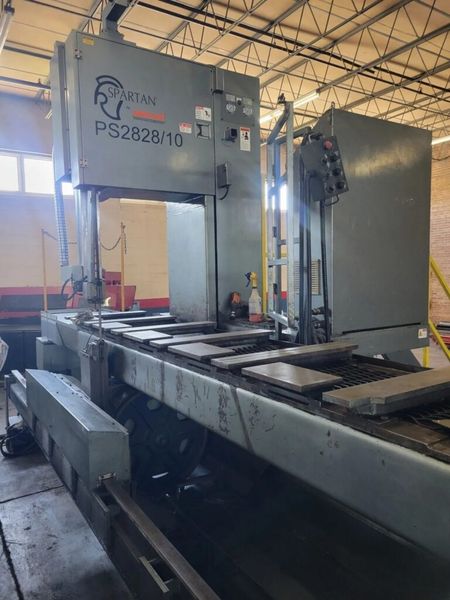

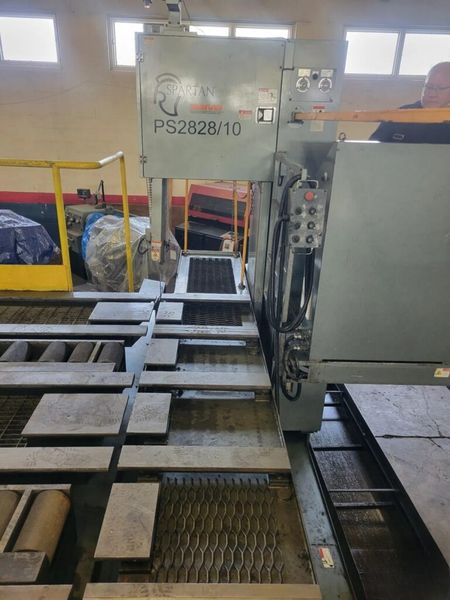

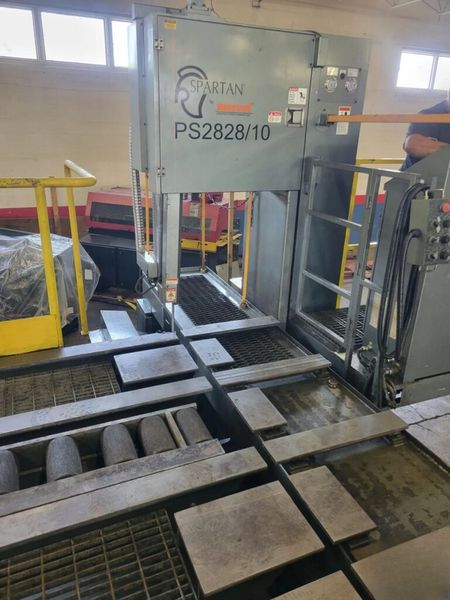

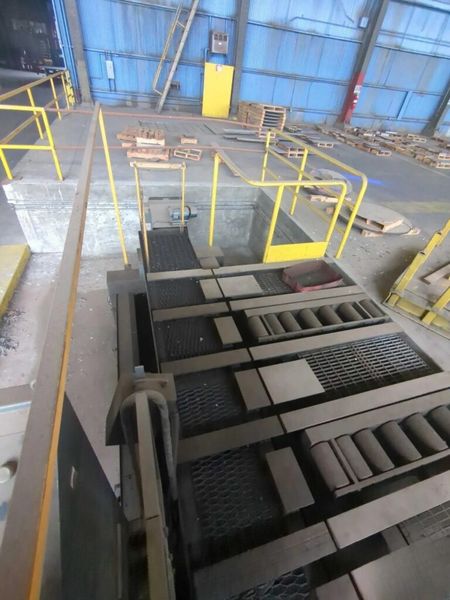

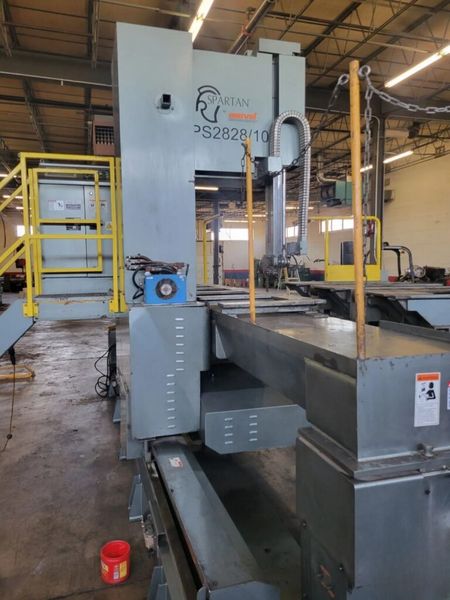

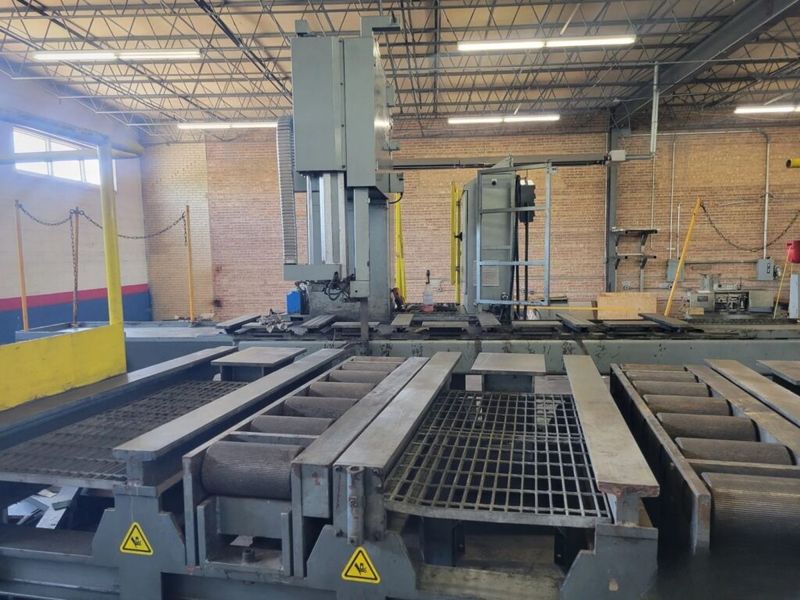

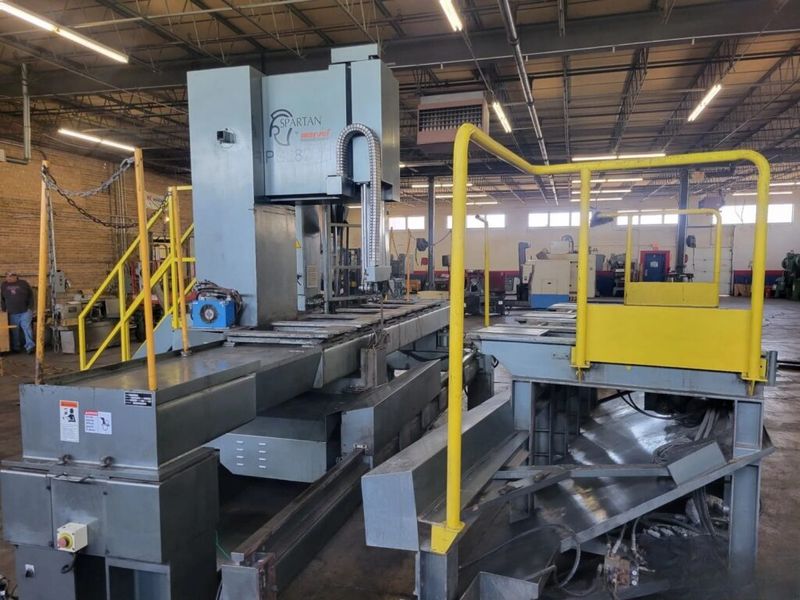

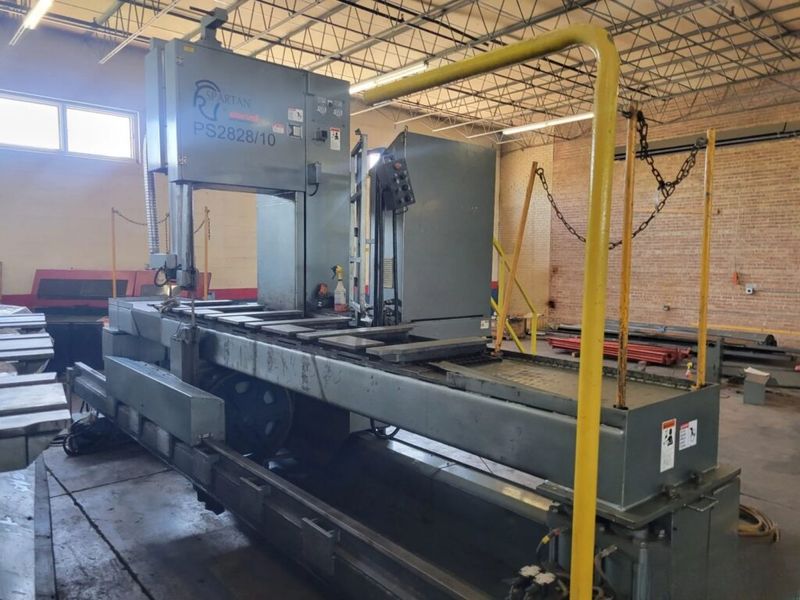

Marvel/Spartan PS2828/10 118″ x 27.5″ Plate Saw

Manufacturer

Marvel/Spartan

Category

Saws

Type

SAWS, GENERAL

Stock

153260050

Model

PS2828/10

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 153260050
  • Brand: Marvel/Spartan
  • Model: PS2828/10
  • Year: 2012
  • Approx. Shipping Weight: 30,500 lbs

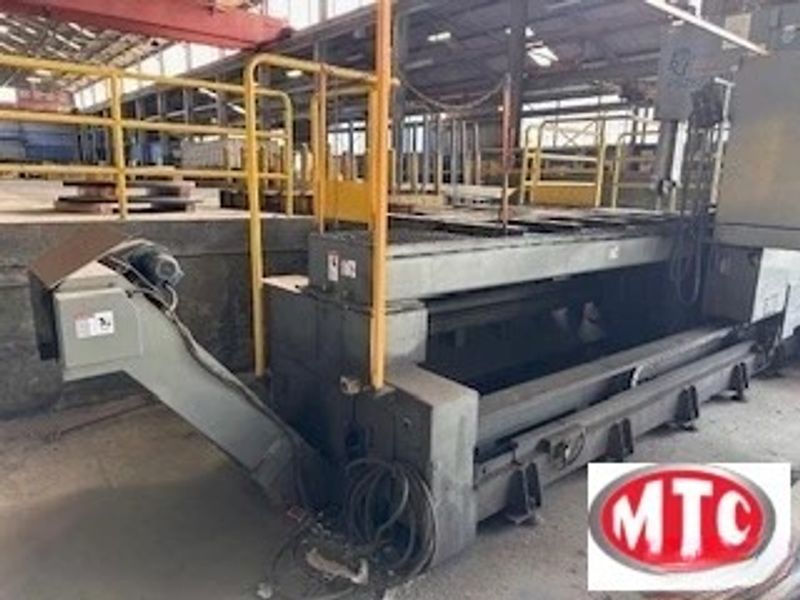

  • Approx. Shipping Dimensions: Main 20’x 66" x 11’6" high, Table 16′ x 66" x 8′ high, Chip conveyor 24′ x 3′ x 5′ High

Specifications

  • Thickness: 27.5"
  • Cut-Width: 118.1"
  • Blade Size: 2” x .063” x 22’ 3.75”
  • Speed: 50-250 fpm (15-75 m/min.)
  • Feed Rate: .080-20”/m (2-500 mm/min.)
  • Blade Drive: 7.5 H.P. (5.5 KW)
  • Hydraulic Pump: 2 H.P. (1.5 KW)
  • Coolant Pump: 1 H.P. (0.7 KW)

Equipped With

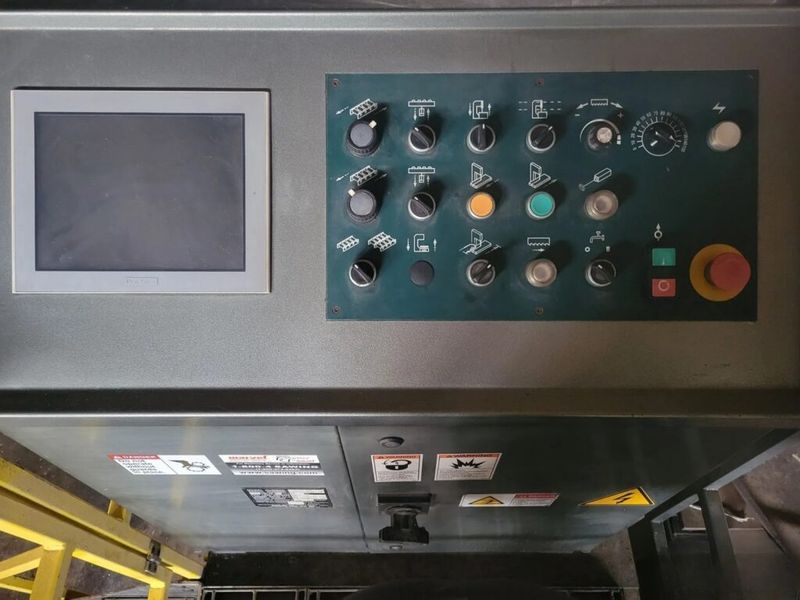

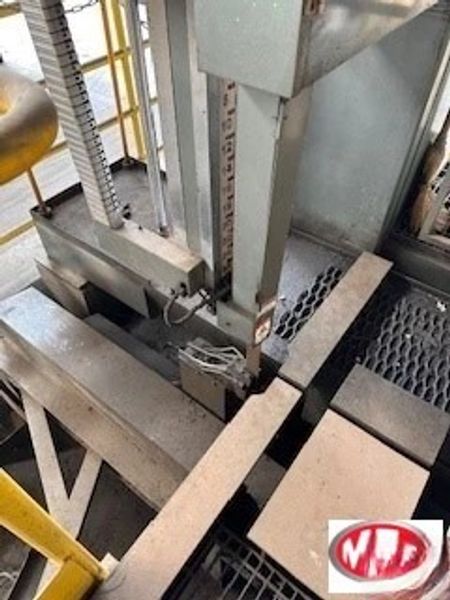

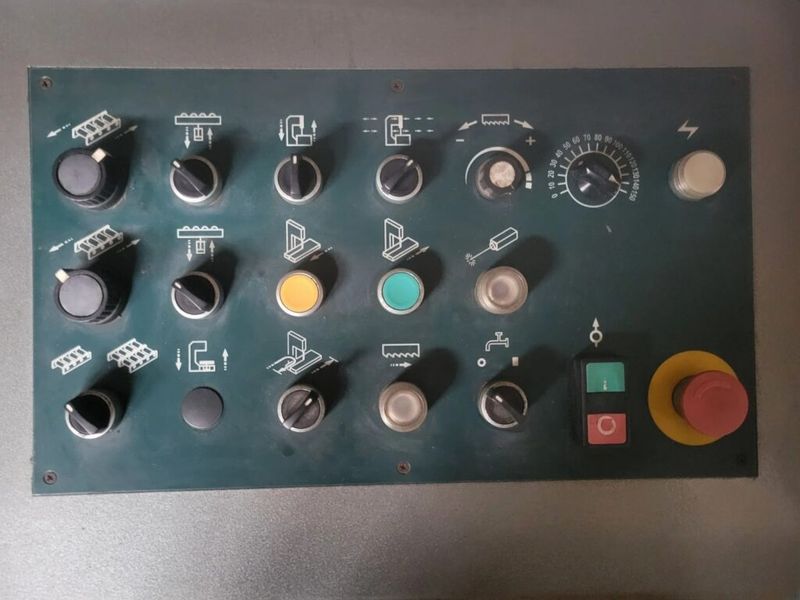

Movement Via Hydraulic Cylinder On Ground Square Ways, Hydraulically Clamped Carbide Blade Guides With Hydraulic Controlled Upper Blade Guide Arm, Space Saving Moveable Saw Head, Saw Head Travels On Ground Square Ways, Built In Positioning Scales On Inner Table, Hydraulically Positioned Guide Arm, Hydraulic Blade Tension, Hydraulic Movement Of Saw Head, Rapid Approach And Return Of Saw Head, Motion Detector For Blade Breakage Or Stalling, Hydraulic Blade Feed With Compensation Valve, Work Light, Hydraulically Clamped Tungsten Carbide Blade Guides, Powered Chip Brush, Independent Control Panel, Inverter Controlled Blade Speeds, Flushing Hose

Additional Info

Saw is in excellent condition
