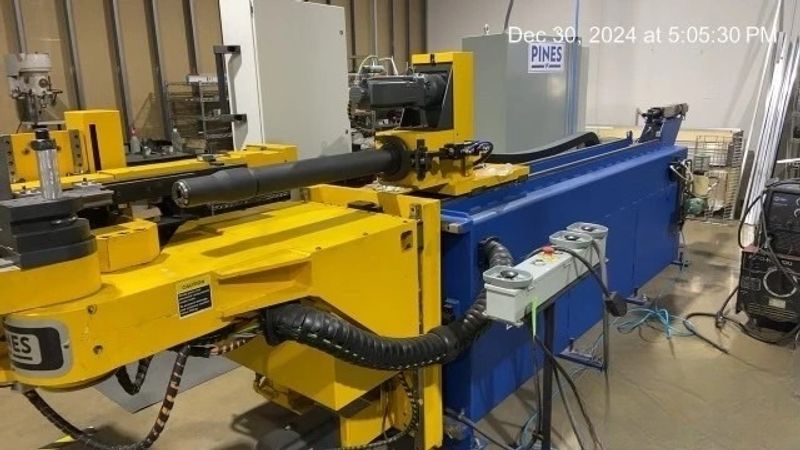

Pines e40 Electric 10-Axis CNC Rotary Bender (2021)

Manufacturer

Pines

Category

Benders

Type

BENDERS, HYDRAULIC

Stock

153260044

Model

e40

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 153260044
  • Brand: Pines
  • Model: e40
  • Year: 2021

Specifications

  • Maximum Radius: 6”
  • Minimum Radius To Diameter Ratio: 1D
  • Programmable Motion: 10-Axis
  • Maximum Bend Angle: 190º
  • Bend Arm Repeatability: +/- 0.05º
  • Carriage Repeatability: +/- .005”
  • Bend Arm Forward Speed: 25 RPM
  • Standard Tube Length Over Mandrel: 13’
  • B-Axis Travel: 360º
  • B-Axis Speed: 60 RPM
  • Y-Axis Travel: 6’
  • Y-Axis Speed: 2000 IPM
  • Working Height: 48.5”
  • Voltage: 480 3 Phase 60 Hz. 50 amp circuit required (220/3/60 @ 80 amps also available)
  • Round Tubing, Mild Steel Y.P. To 40,000 PSI: 1-1/2” x .109”
  • Round Tubing, Non-Ferrous Y.P. To 25,000 PSI: 1-5/8” x .187”
  • Round Tubing, Stainless Steel Y.P. To 60,000 PSI: 1-3/8” x .065”
  • Steel Pipe, Schedule 80: 1”
  • Square Tubing, Mild Steel: 1-1/8“ x .125”
  • Machine Control: Siemens 840D 10-Axis CNC Control SIMATIC IPC 477E. 22" Multitouch neutral. Windows 10 Emb loaded with Sinumerik Operate and WinCC RT software

Equipped With

Counterclockwise Rotation, Servo Controlled Swing Arm, Hitch Feed Capable, Pdi Zone Recapture, In-Line Programable Pressure Die Assist – With Z-Axis Shift, Clamp Die Holder, Electric Swing & Stationary Arms – Quick Change, Programmable Pressure Tooling, Wiper Die Holder, Programable Mandrel Extractor – Tangent Position And Extract Length, Heavy Duty Automatic Mandrel Lubricator, Laser Safety Scanner, Dual Palm Remote Operator Control, Roll Forming (Calendaring) Capability On Top Stack (Additional Tooling Required), Self-Diagnostic Program, Carriage Push For Shorter Grip Lengths, Spring Back Compensation, Servo Drives Power To 10 Axes (Y, B, C, Pda, Pda Z, Mandrel, Nose X, Nose Z, Clamp, And Pressure Die)
