Peddinghaus Peddibot-1200 6-Axis Robotic CNC Thermal Cutting Machine (2022)

Stock

123260005

Model

Peddibot-1200

Dealer Location

Georgia

Spec Sheet

  • Stock #: 123260005
  • Brand: Peddinghaus
  • Model: Peddibot-1200
  • Year: 2022

Specifications

  • Max Profile Dimensions: 48″ x 16.5″
  • Min Profile Dimensions: 3″ x 3″
  • Max Profile Thickness: 2″
  • Min Profile Thickness: 0.1875″
  • Max Profile Weight: 26,455 lbs
  • Max Bevel Angle: 45º
  • Material Processing: 4 Sides
  • Max Plasma Edge Start Thickness: 2″
  • Max Plasma Piercing Thickness: 2″
  • Plasma Processing Speed: 20″/min @ 2″; 70″/min @ 1/4″
  • Torch Amps: 440
  • Plate Width: 7-7/8″ x 48″
  • Plate Thickness: 5/16″ x 1-5/8″
  • Plate Length: 11-13/16″ x 120″
  • Effective Cutting Zone: 48″ x 59″

Equipped With

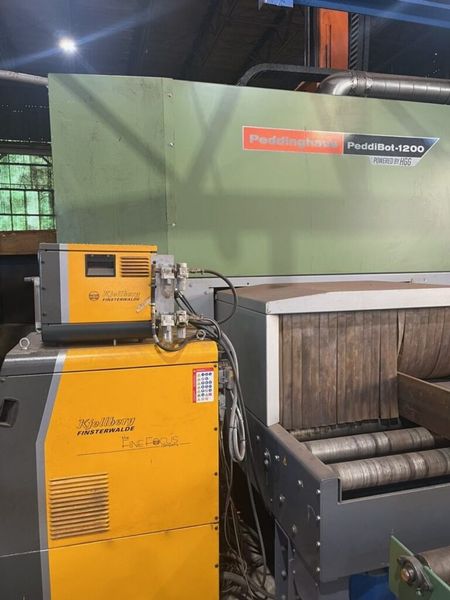

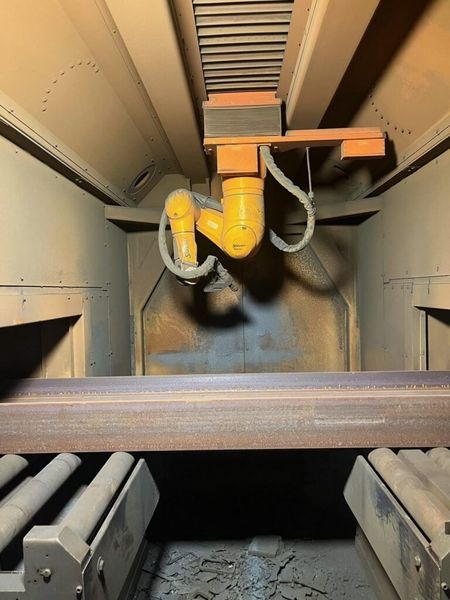

6-Axis StäUbli Robot Arm, Kjellberg Hifocus 440I Plasma Torch, Raptor 3D Cad/Cam Software Integration, Trailing Edge Detection, Machine Housing, Profile Scanning System, 4-Sided Layout Marking

Additional Info

Can be inspected upon request.
