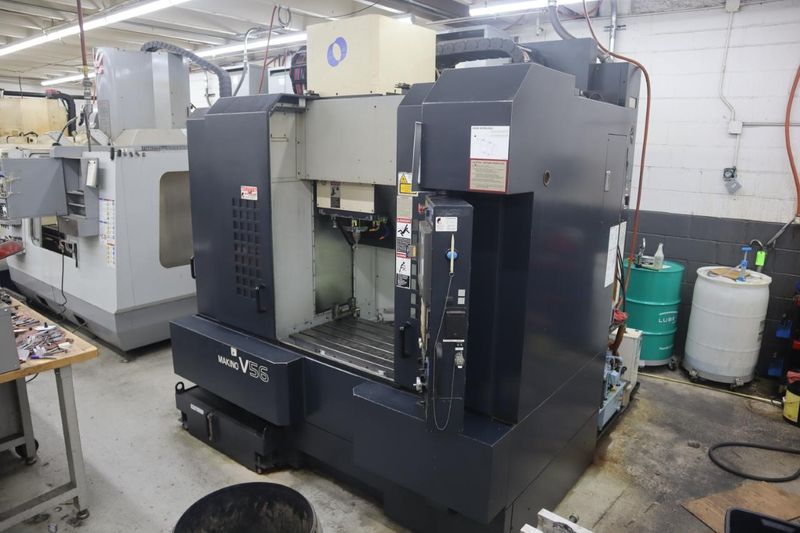

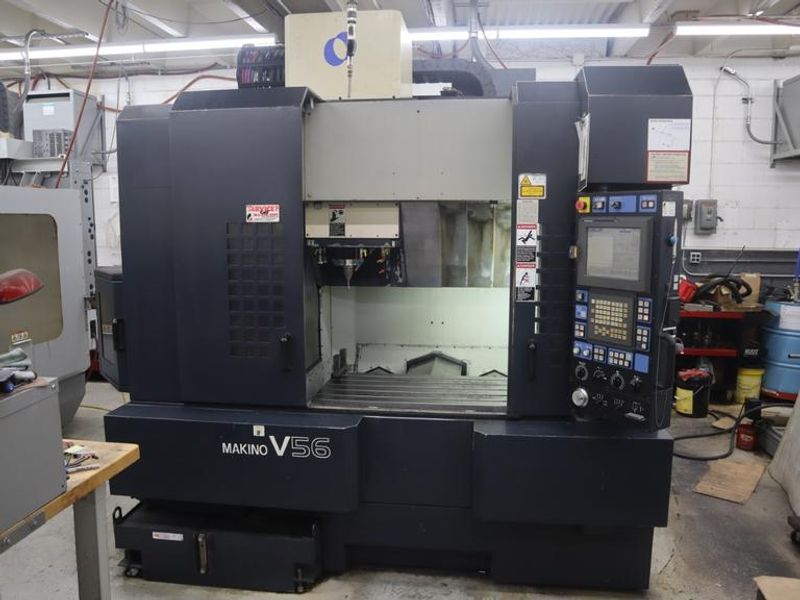

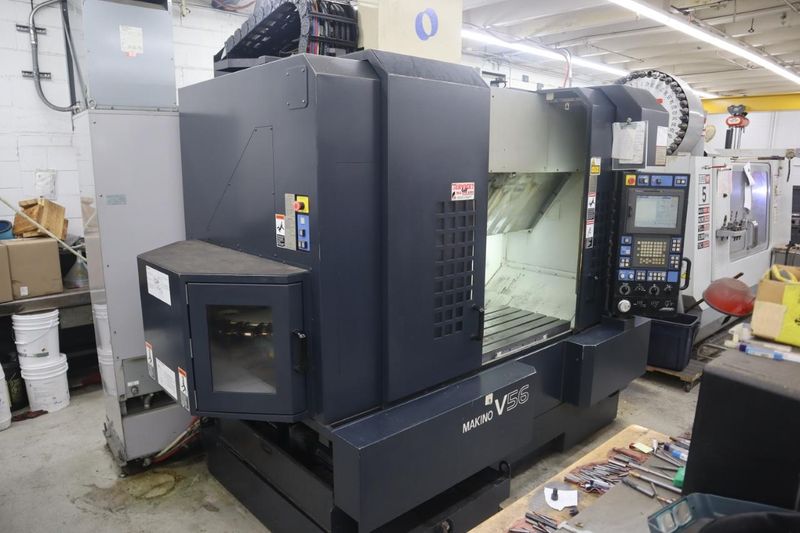

Makino V56 Vertical Machining Center, 30K RPM Spindle, 25 Station ATC, TSC, HSK-63 Taper- Auction Item

Manufacturer

Makino

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

Lot No.: 40

Model

V56

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

View Auction Item at: https://www.machinesused.com/lots/51658" shenjian-bridge-node-id="sjb-1789503797592-682795">,

  • Special Instructions

  • Payment Info

  • Terms

Lot 40: Makino V56 Vertical Machining Center, 30K RPM Spindle, 25 Station ATC, TSC, HSK-63 Taper
Equipped With:

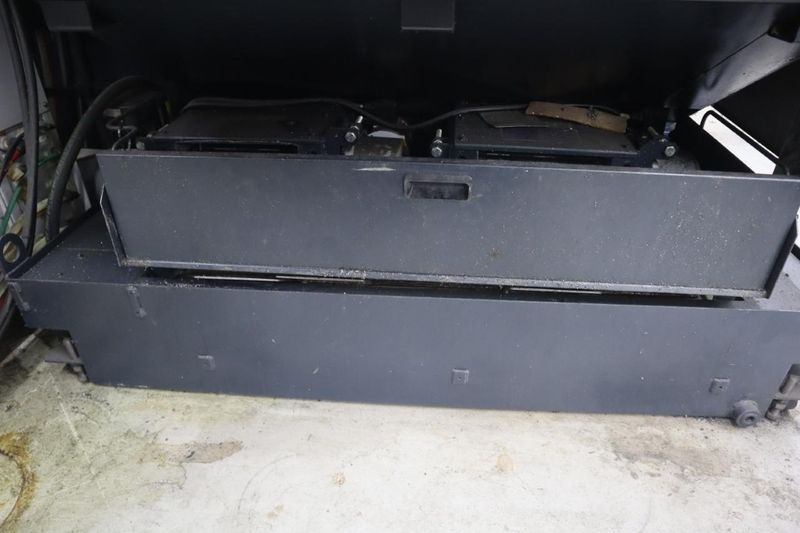

Fanuc Pro 5 CNC Control, 30,000 RPM Spindle, HSK-F63 Taper Spindle, Spindle Orientation, 25 Station Automatic Tool Changer, Through Spindle Air System and Through Spindle Coolant, 2-Built In High Speed Chip Conveyors (non lift up), SMC Air Dryer Unit, Oil Matic Oil Chiller Unit, Laser Tool Measurement Device (Not Operational), Rigid Tapping, 6 Nozzle Coolant System.

NOTE: Z-Axis Motor was diassembled of machine for transport out of sellers facility.  It has been reconnmected at Machinesused.com warehouse but

Description:

Fanuc Pro 5 CNC Control, 30,000 RPM Spindle, HSK-F63 Taper Spindle, Spindle Orientation, 25 Station Automatic Tool Changer, Through Spindle Air System and Through Spindle Coolant, 2-Built In High Speed Chip Conveyors (non lift up), SMC Air Dryer Unit, Oil Matic Oil Chiller Unit, Laser Tool Measurement Device, Rigid Tapping, 6 Nozzle Coolant System.

Electrics:

208 Volt 3 Phase, 142 Apm, 30 Hz

Manufacturer: Makino Model: V56 Year: 2005 Serial Number: 289
Main Unit Approx Weight: 0.00 lbs
Main Unit Dimensions (in inches): Length: 116.00"  Width: 98.00"  Height: 114.00"
Components:

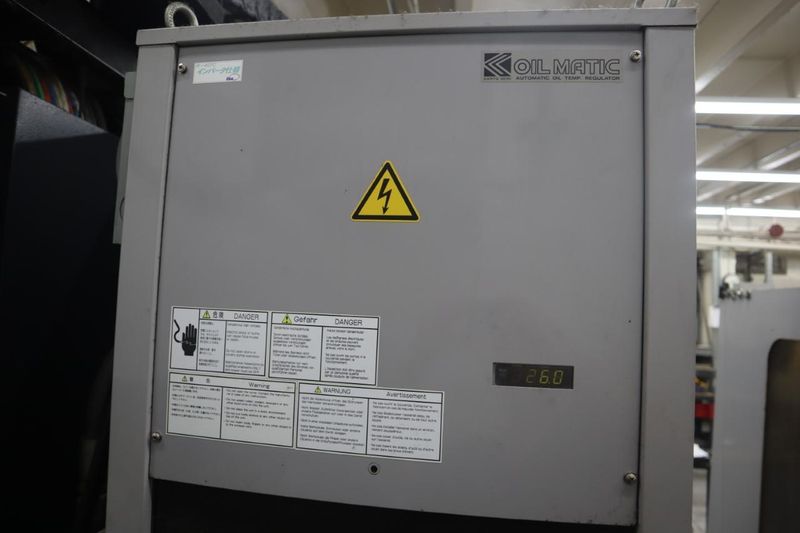

Oil Matic Oil Chiller: Length: 38.00"  Width: 38.00"  Height: 85.00"

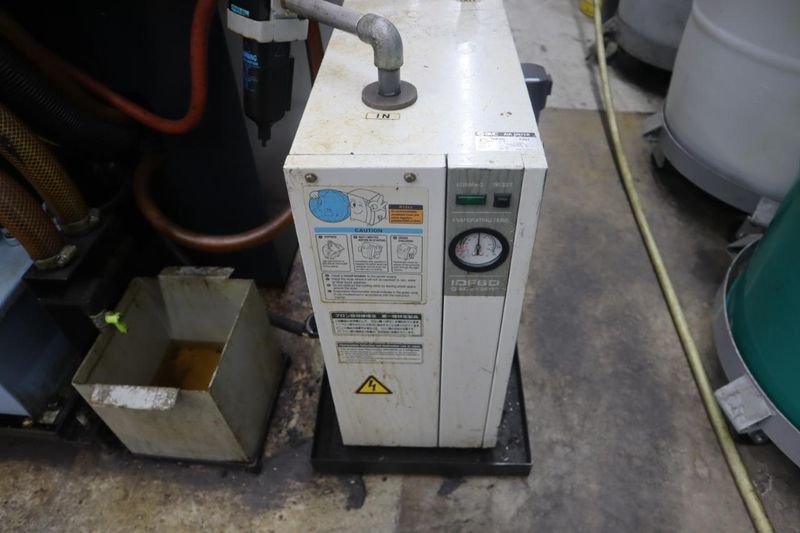

SMC Air Dryer: Length: 12.00"  Width: 32.00"  Height: 30.00"
Specs:

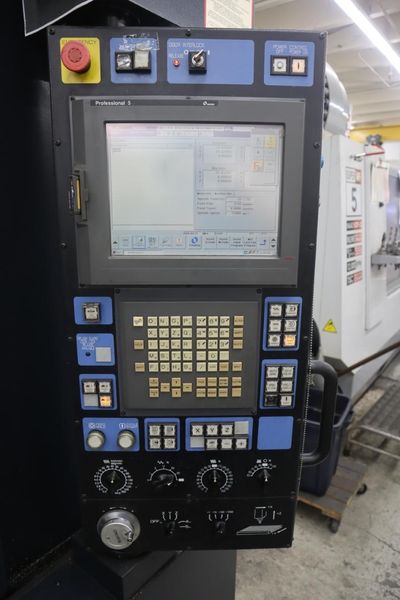

Machine Control: Fanuc Pro 5 CNC Control
Table Size: 1050mm x 550mm
Machine Travels (X/Y/Z): 900mm x 550mm x 450mm
Table Capacity: 800kg
Spindle Taper: HSK-F63 (High Speed)
Spindle Speeds: 30,000 Max RPM
Rapid Traverse Rate (X/Y/Z): 20,000 mm/min
Maximum Cutting Feed Rate: 1-20,000 mm/min

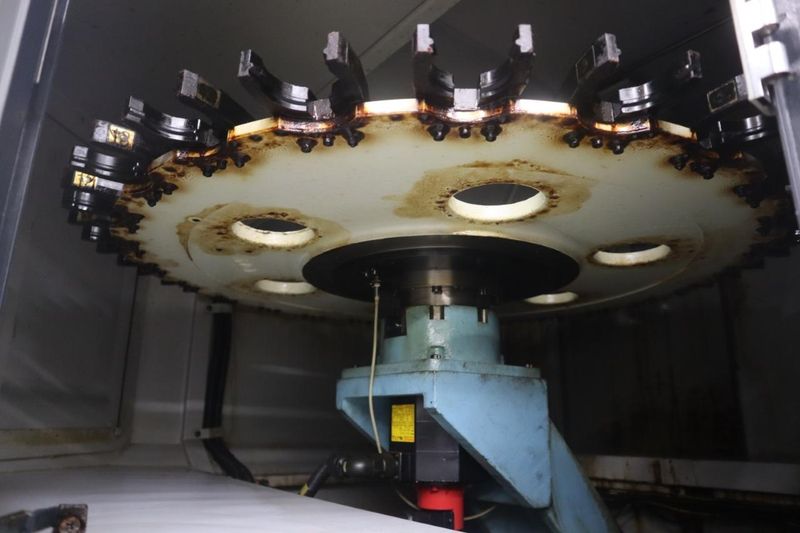

Tool Changer Style: Carousel
Tool Changer Capacity: 25 Stations
Max Tool Length: 300mm
Max Tool weight: 8kg
Spindle Drive: 25HP
Power Requirement: 208 Volt 3 Phase, 142 Amp
Seller Company: Northland Aluminum
Seller Contact: Auctions Machinesused.com Phone: (763) 745-1166
Item Location: Northland Aluminum, 2410 Niagara Lane North , Plymouth, MN 55447
Location Contact: Auctions Machinesused.com Phone: (763) 745-1166
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Removal Dates and Times: This item must be removed between Wednesday, October 21, 2026 and Friday, October 30, 2026

No Video Available
