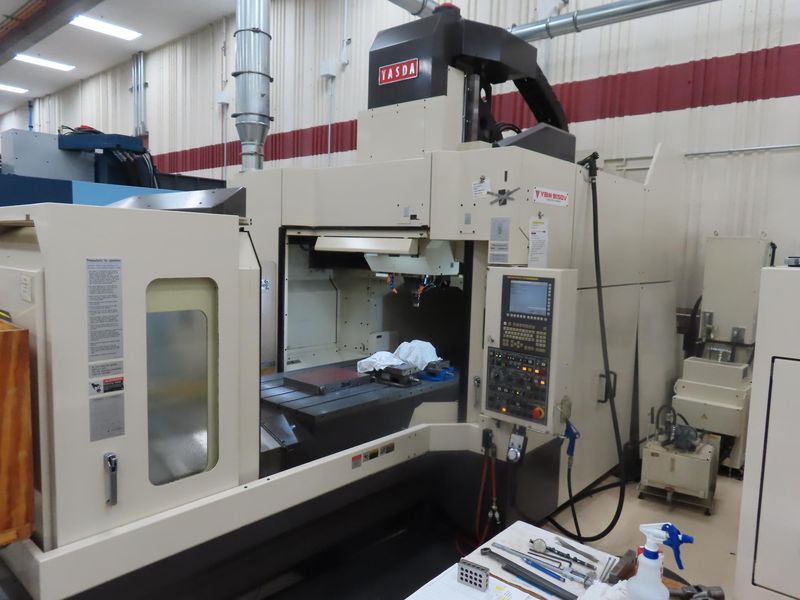

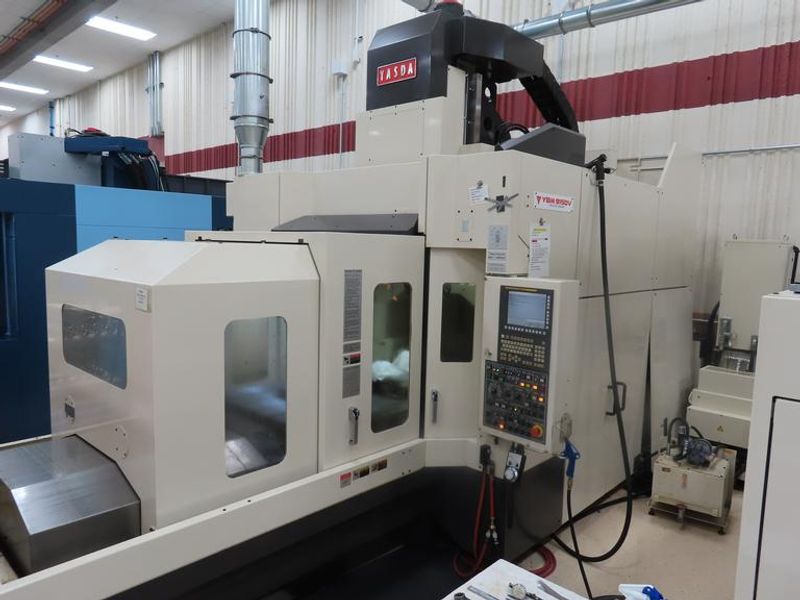

Lot 1: Yasda YBM-9150V Bridge-Type CNC Vertical Machining Center (CNC Jig Borer), Fanuc 31i, Probing, 24K RPM, 60 ATC
Equipped With:

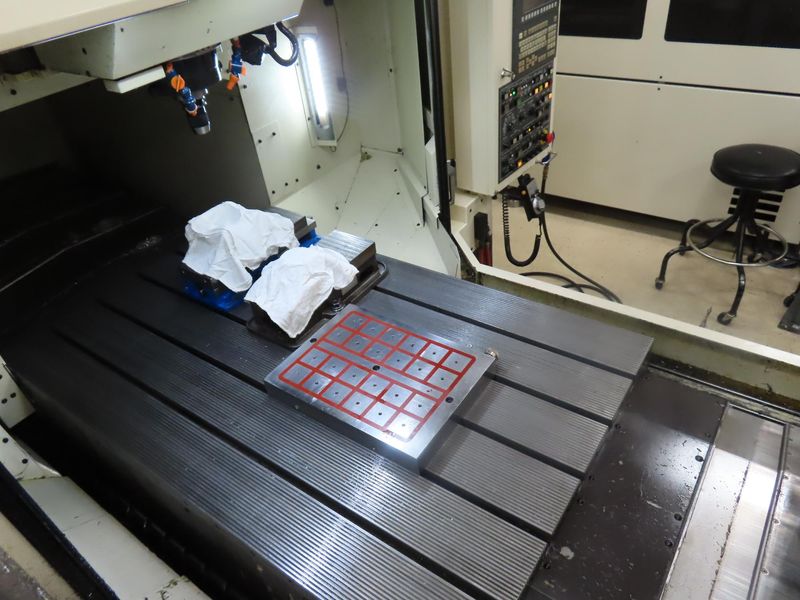

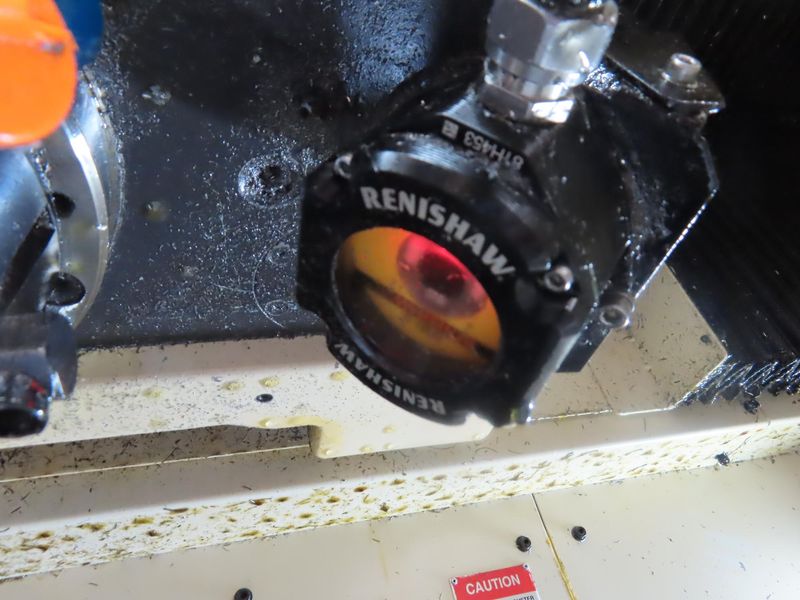

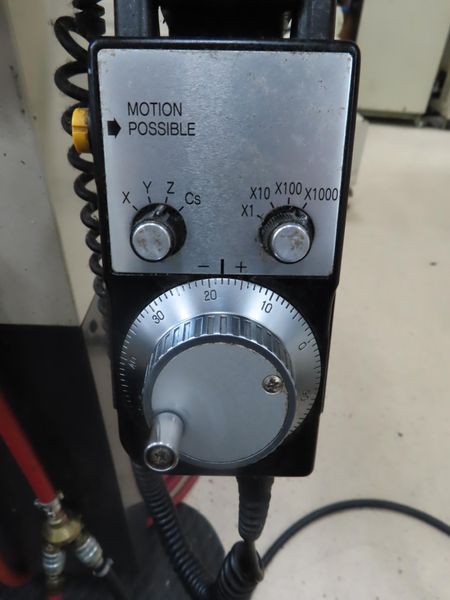

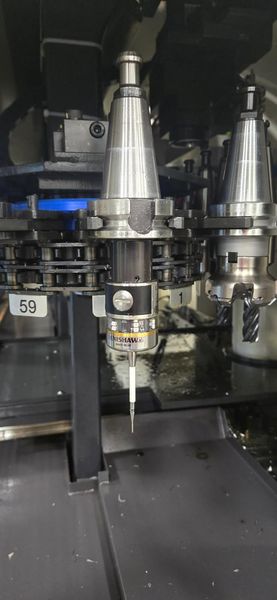

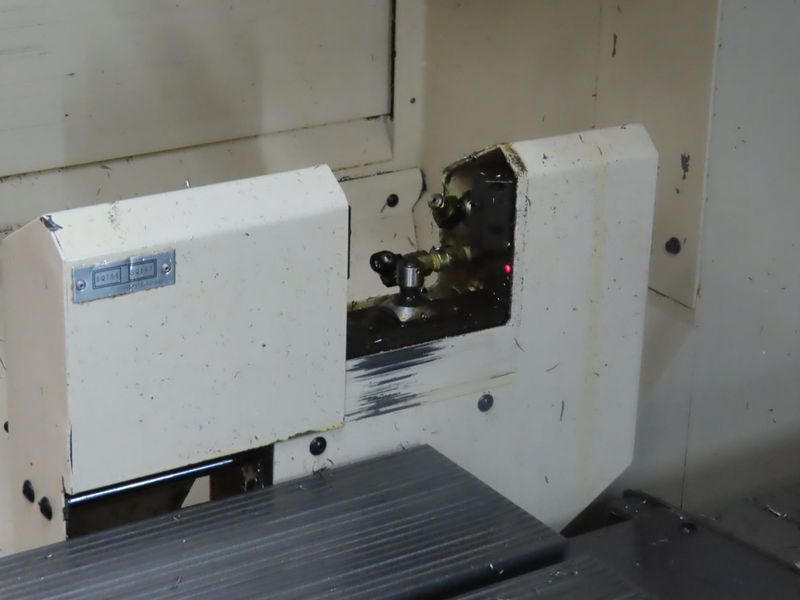

Fanuc 31i Model B5 CNC Control, 24,000 RPM Maximum Spindle Speeds, Renishaw Probing System with Parts Probe and Tool Setter, Dual Internal Chip Augers, 60-Station Twin Arm Automatic Tool Changer, Remote Jog Handle, Coolant Tank and Pump, Daikin Inverter Spindle Chiller, Oilmatic Spindle Chiller, Hydraulic Tank, Leveling Pads, Manuals and Documentation. NOTE:  Tool holders, vises and magnetic chuck in pictures and video are NOT included.

Description:

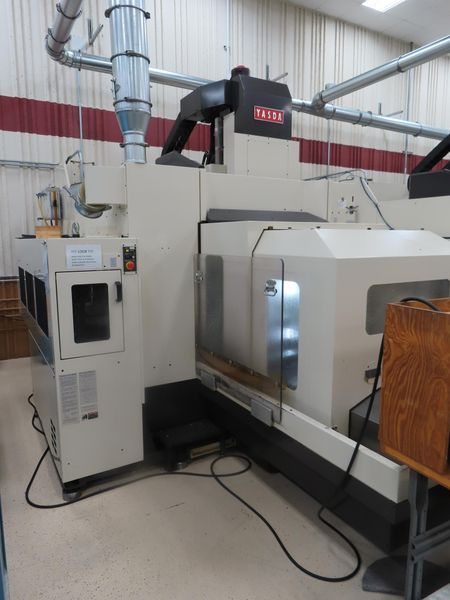

YASDA YBM-9150V is a world-class, ultra-precision CNC vertical machining center designed for demanding mold, die, aerospace, medical, and high-accuracy production applications. Renowned for its exceptional rigidity, thermal stability, and positioning accuracy, the YBM-9150V delivers micron-level machining performance while accommodating large workpieces. Its integrated bridge-style construction, hand-scraped box ways, and high-speed spindle make it one of the most respected precision machining platforms in the industry.
Electrics:

208 Volts, 3 Phase

Manufacturer: Yasda Model: YBM-9150V Year: 2012 Serial Number: 12-VP2230
Main Unit Approx Weight: 35200.00 lbs
Main Unit Dimensions (in inches): Length: 197.00"  Width: 96.00"  Height: 134.00"
Components:
Daikin Chiller: Length: 24.00"  Width: 18.00"  Height: 44.00"
Oilmatic Chiller: Length: 43.00"  Width: 21.00"  Height: 78.00"
Hydraulic Tank: Length: 20.00"  Width: 20.00"  Height: 20.00"
Coolant Tank: Length: 72.00"  Width: 36.00"  Height: 24.00"
Automatic Tool Changer: Length: 112.00"  Width: 40.00"  Height: 72.00"
Specs:

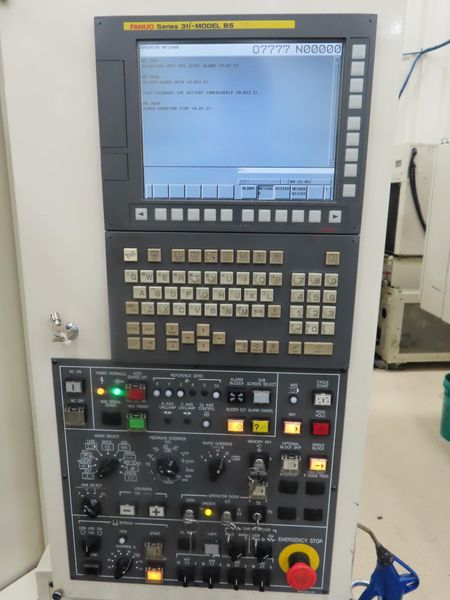

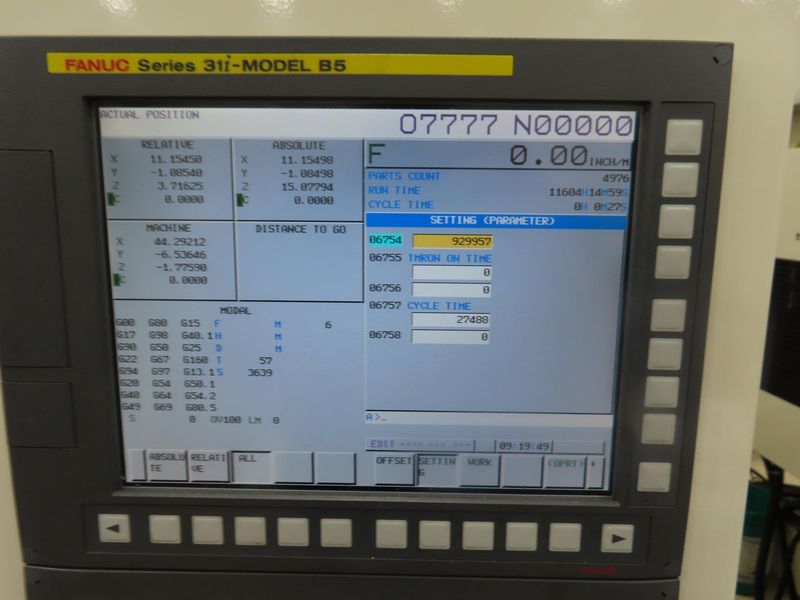

Control: Fanuc 31i Model B5 CNC Control

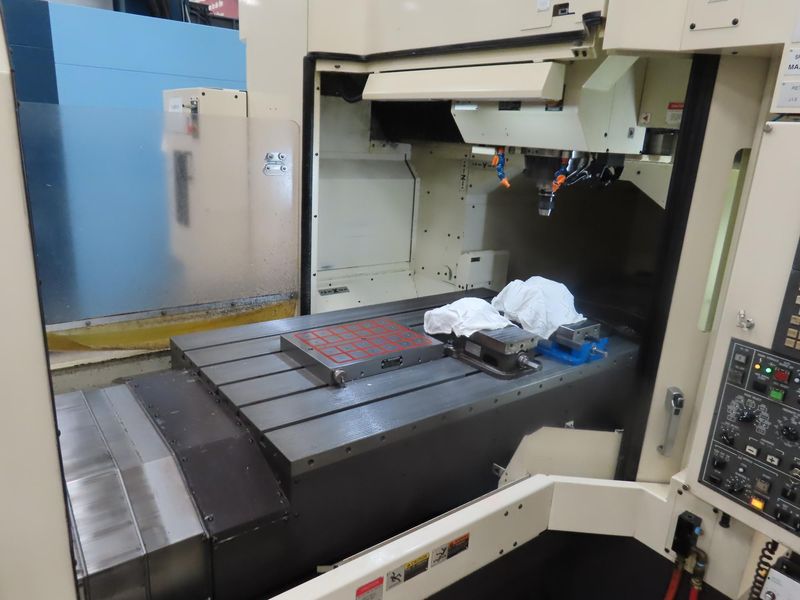

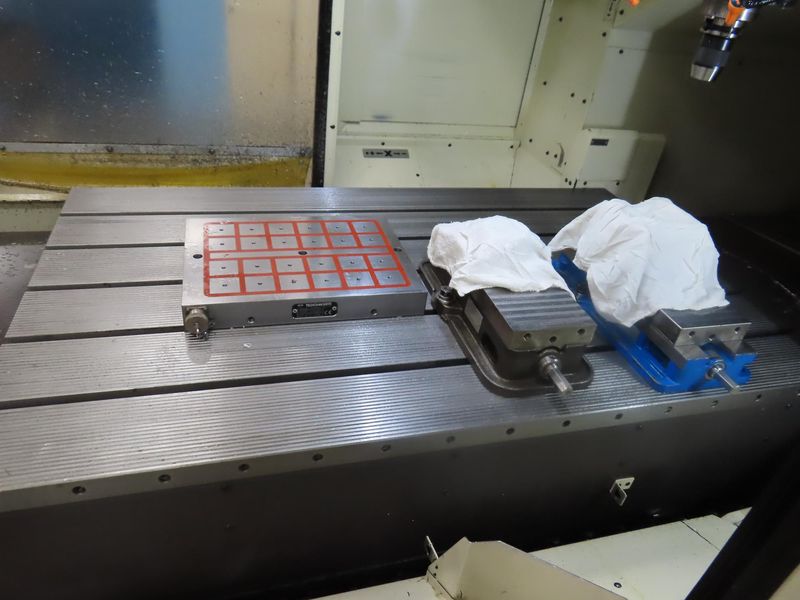

Table Size: 59.05" x 35.43"
Max Table Load: 6,660 LBS
Machine Travels: 59.05" x 35.43" x 17.71"
Distance Spindle to Table: 5.9" - 23.62"
Spindle Taper: BT-40
Spindle Speeds: 100 - 24,000 RPM
Cutting Feed Rate X/Y/Z: 197 IPM
Rapid Traverse Rate X/Y/Z: 787 IPM
Tool Changer Capacity: 60 Tools
Max Tool Weight: 15.4 LBS
Max Tool Diameter/Length: 3.93" / 11.81"
Spindle Drive Motor: 30/25 HP
Seller Company: Velosity (Formerly Custom Mold & Design)
Seller Contact: Eric Amunson Phone: (651) 757-4033
Item Location: Velosity (Formerly Custom Mold & Design), 22455 Everton Avenue North, Forest Lake, MN 55025
Location Contact: Eric Amunson Phone: (651) 757-4033
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Dock Door: 12/ x 12/ Ground Level Door
Loading Dock: Ground Level Paved Lot
Removal Dates and Times: This item must be removed between Monday, October 12, 2026 and Friday, October 16, 2026
