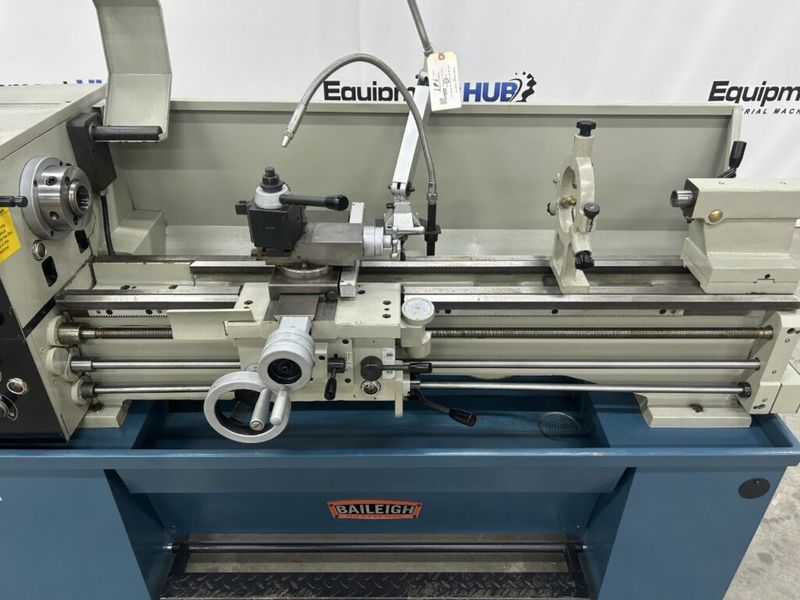

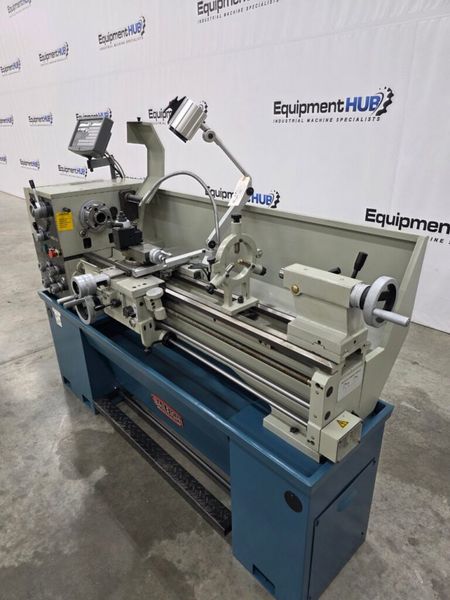

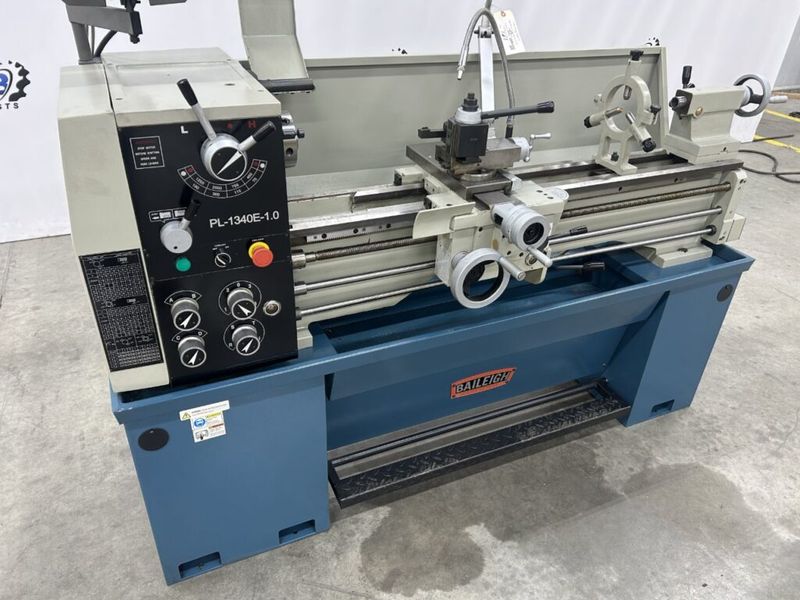

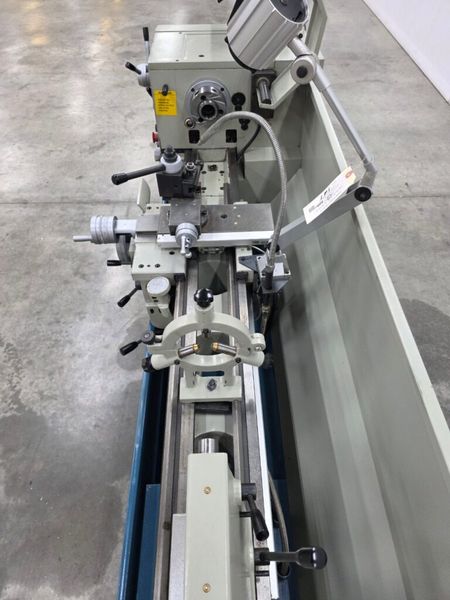

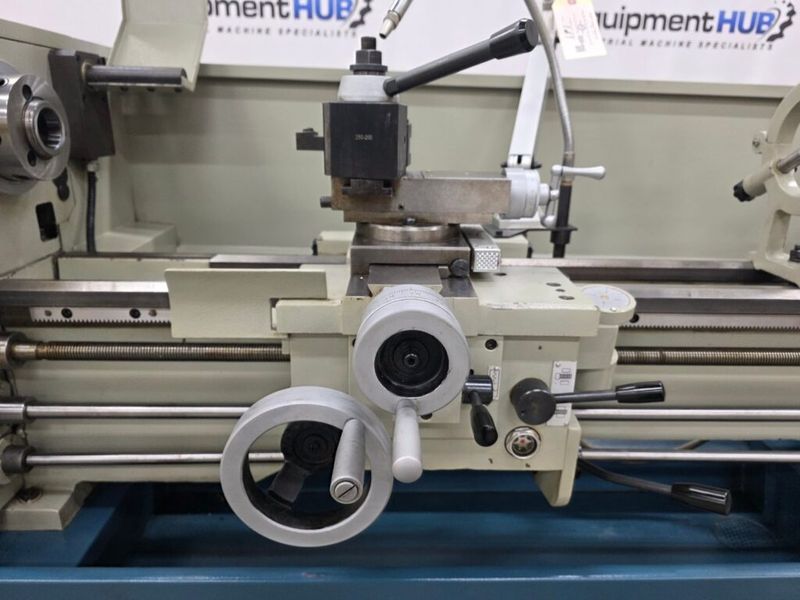

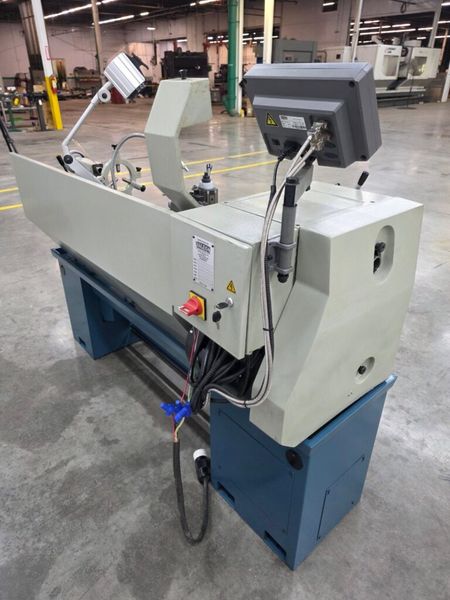

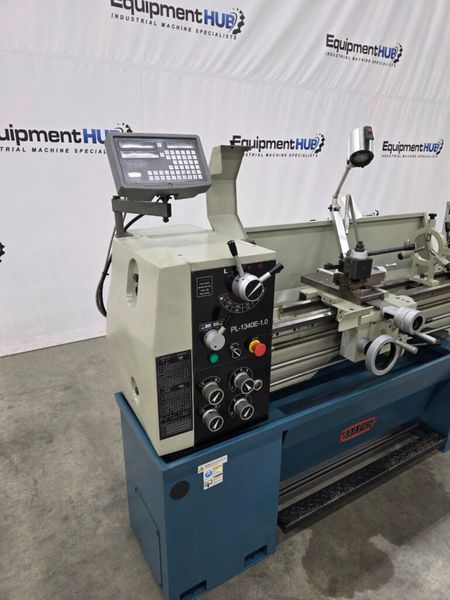

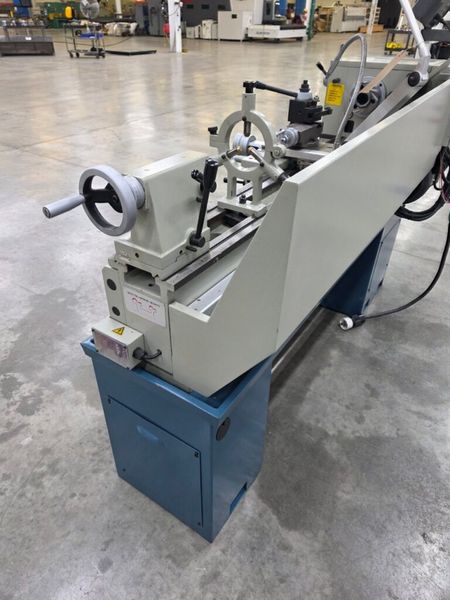

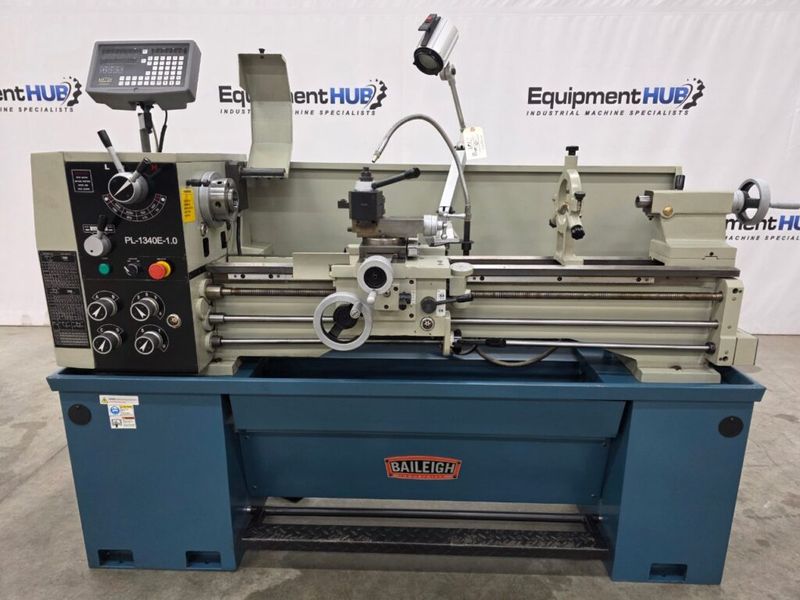

Baileigh PL-1340E-1.0 13″ x 40″ Engine Lathe w/ DRO (2019)

Manufacturer

Baileigh

Category

Lathes

Stock

190260067

Model

PL-1340E-1.0

Dealer Location

Georgia

Spec Sheet

  • Stock #: 190260067
  • Location: Decatur, GA
  • Brand: Baileigh
  • Model: PL-1340E-1.0

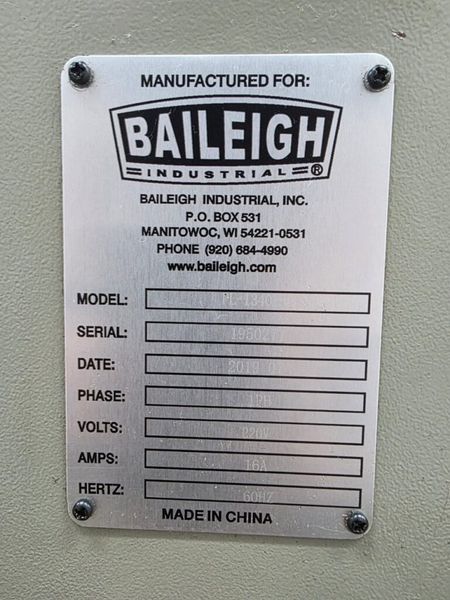

  • Serial #: 1950271
  • Year: 2019
  • Approx. Shipping Weight: 1750 Lbs.
  • Approx. Shipping Dimensions: 6′ L x 4′ W x 5′ H
  • Skidding Fee: $200

Specifications

  • Swing Over Bed: 13.7"
  • Distance Between Centers: 39.3"
  • Swing Over Cross Slide: 8.26"
  • Spindle Bore: 1.5"

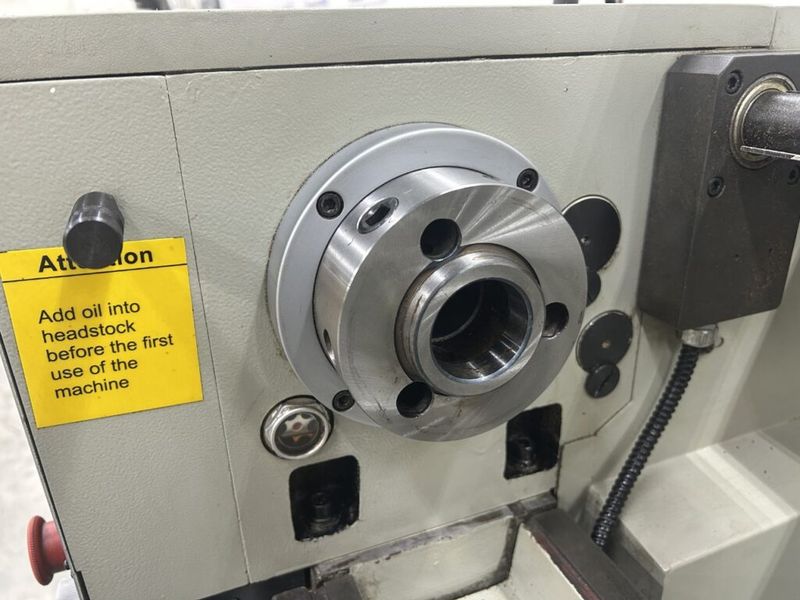

  • Spindle Nose: D1-4 Camlock
  • Spindle Taper: MT5
  • Spindle Speed Range: 70–2,000 RPM
  • Number Of Spindle Speeds: 8
  • Cross Slide Travel: 6.69"
  • Compound Rest Travel: 3.54"
  • Tailstock Taper: MT3
  • Tailstock Barrel Travel: 3.94"
  • Lead Screw: 8 TPI
  • Inch Thread Range: 2.25–56 TPI
  • Metric Thread Range: 0.4–10 mm
  • Bed Ways: Induction Hardened

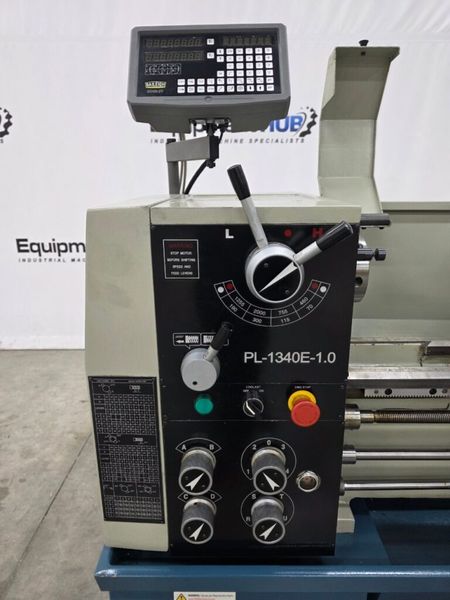

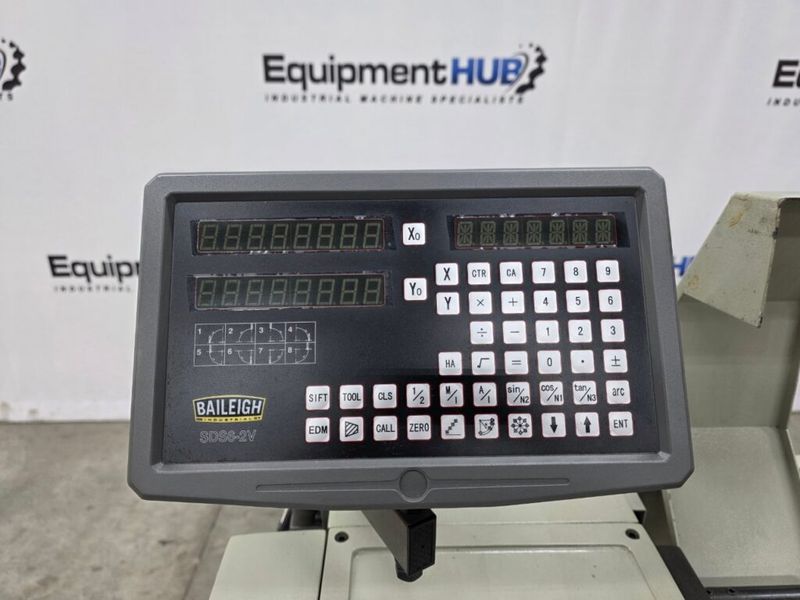

  • Control: Baileigh SDS6-2V 2-Axis DRO
  • Spindle Motor: 2 HP
  • Electrical: 220 V / 1 PH

Equipped With

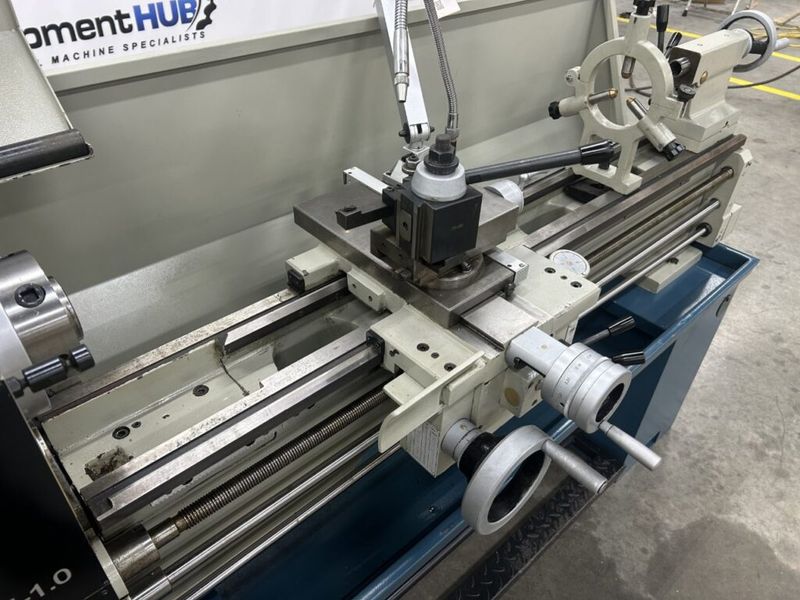

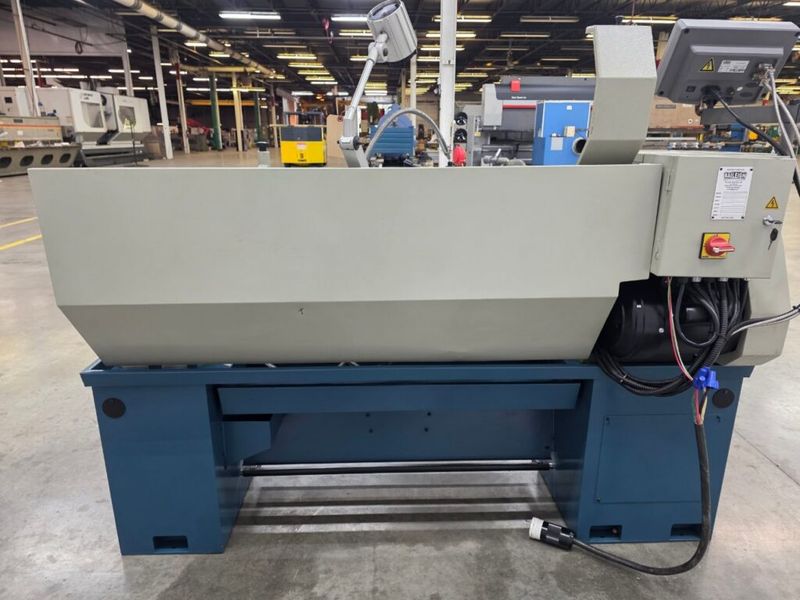

Baileigh Sds6-2V 2-Axis DRO, 4-Way Tool Post, Steady Rest, Coolant System, Work Light, Rear Splash Guard, Carriage-Mounted Dial Indicator

Additional Info

The machine can be demoed upon request, check out the video on the listing to see it in operation.
