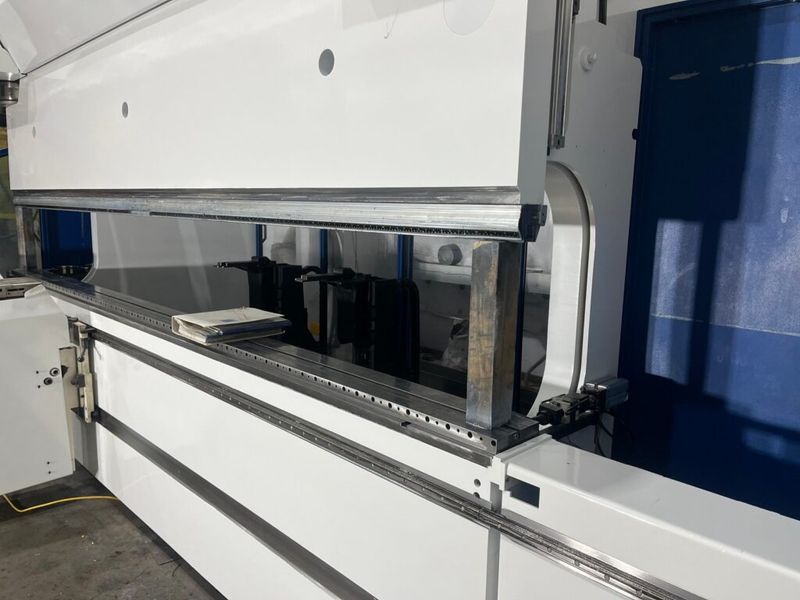

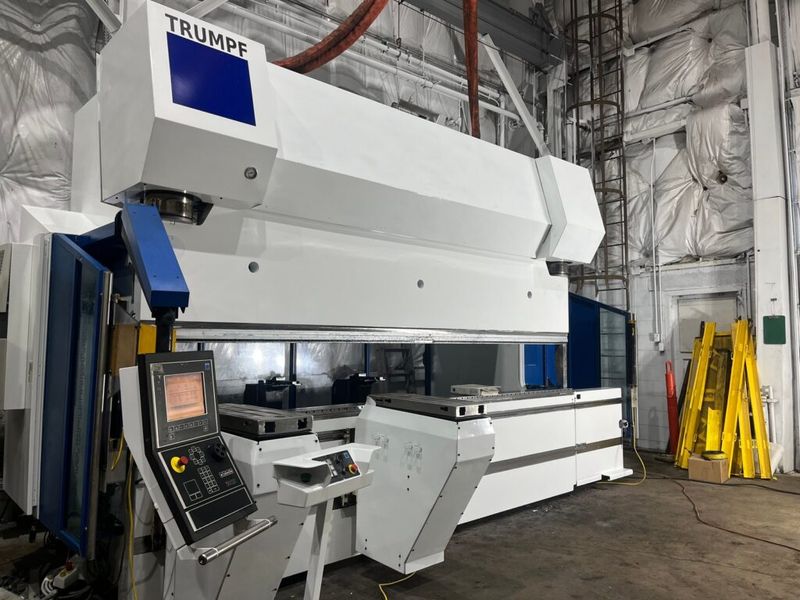

Trumpf Trumabend V320 352 Ton x 14′ CNC Hydraulic Press Brake

Manufacturer

Trumpf

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

153260058

Model

Trumabend V320

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 153260058
  • Brand: Trumpf
  • Model: Trumabend V320
  • Year: 2006
  • Approx. Shipping Weight: 53900 lbs.
  • Approx. Shipping Dimensions: 212” L X 109”W X 126” H

Specifications

  • Capacity: 352 US Tons
  • Overall Length Of Bed And Ram: 174”
  • Distance Between Housings: 145”
  • Stroke: 14”
  • Max Open Height: 25”
  • Effective Open Height: 21”
  • Ram Inclination: +/- 0.4”
  • Throat Clearance: 16”
  • Speeds Approach: 354” Per Minute
  • Form: 2-24” Per Minute
  • Return: 320” Per Minute
  • Distance Floor To Top Of Bed: 41”
  • Width At Top Of Bed: 8”
  • Operating Height: 41”
  • Oil Capacity: 133 US Gallons
  • Main Motor Horsepower: 50 230/460/3/60

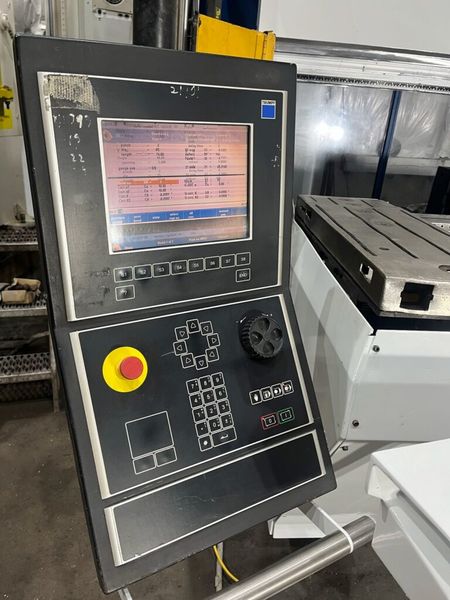

  • Control: Trumpf Delem DA-69TW Multi-Axis Control (Y1,Y2,X , R, I )

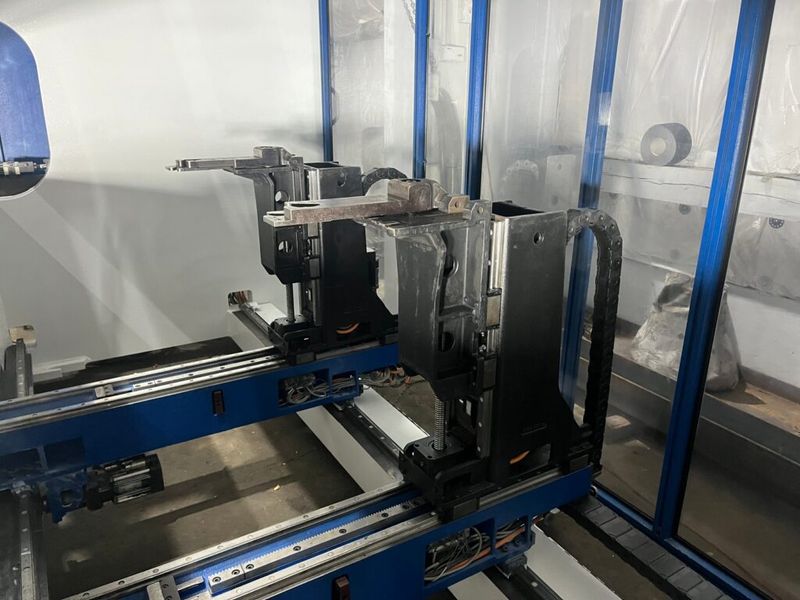

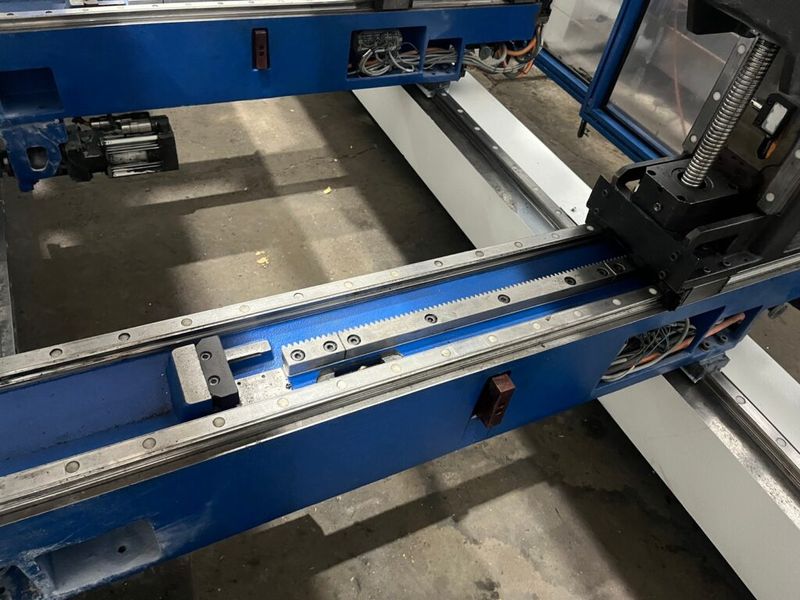

  • X-Axis: X1, X2 Max Distance 34.6” Travel 19.6” Max Speed 13” Per Min
  • R-Axis: R1, R2 Travel 13.3” Max Speed 3.9”
  • Z-Axis: Z1, Z2

Equipped With

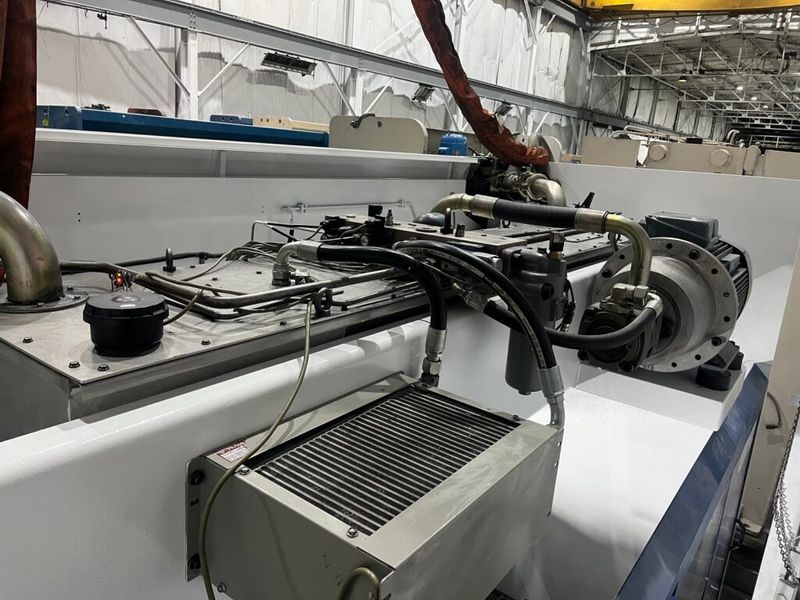

Automatic Crowning, I-Axis Die Shift, Isb Merlin Light Curtains, Ram Inclination In Y1 –Y2, Upper & Lower Hydraulic Tool Clamping, Self-Active Crowning, Self Centering Tooling Adaptor, Precision Ram Leveling With Dual Linear Glass Scale Encoders, Oil Cooler, Electric Foot Switch
