Coe Press Equipment 15,000 lbs. x 24 inch Coil Feed Line - High Precision Coil Handling System

Manufacturer

COE

Category

Coil Processing Equipment

Type

COIL PREFEEDERS

Stock

3036

Model

CPR-PO-15024 / CPPS-350-24 / CPRF-424

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Coil Weight - 15000 pounds
Coil Width - 24 inches
Coil Thickness - .125 inches


24 Inch Coe Press Equipment Coil Feed Line For Sale

Models CPR-PO-15024 / CPPS-350-24 / CPRF-424


Preliminary Specifications
15,000 lbs. Max Coil Weight
24" Maximum Coil Width
.125" Maximum Coil Thickness at Full Width (Mild Cold Roll Steel)
.100" @ 24" Wide ~ 60,000 PSI Yield
.025" Minimum Thickness
.210" Maximum Coil Thickness
72" Max. Coil O.D.
19-24" I.D. Expansion Range
0-80 FPM Line Speed
Right To Left Feed Direction

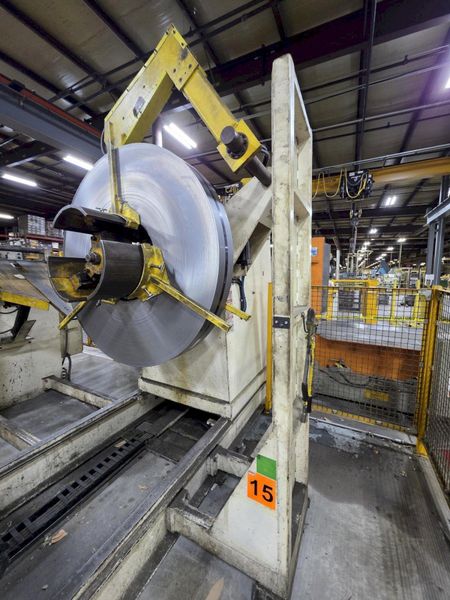

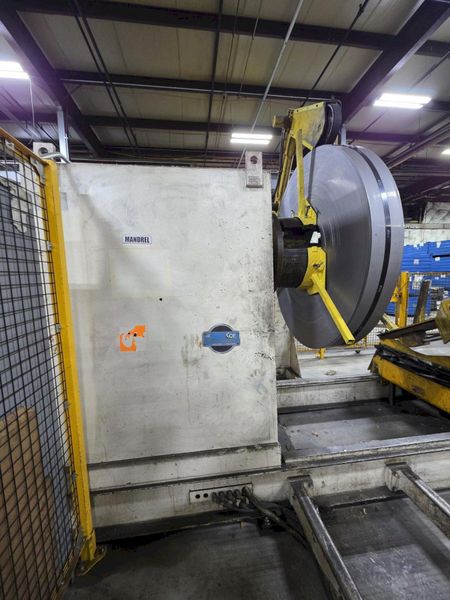

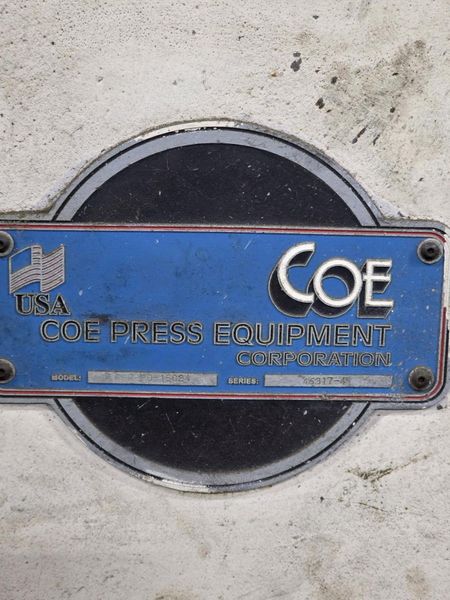

Coe Press Pull Off Coil Reel Uncoiler Model No. CPR-PO-150-24 SN/ 46317-4
Three leaf mandrel
Hydraulic wedge type madrel expansion
Adjustable coil keeper arms
Hold Down Arm with Motorized End Wheel
Thread drive for jog forward and reverse
Air brake mounted on main spindle
Adjustable tensioning
Self contained hydraulic unit
Traveling coil load car
Powered lift and travel

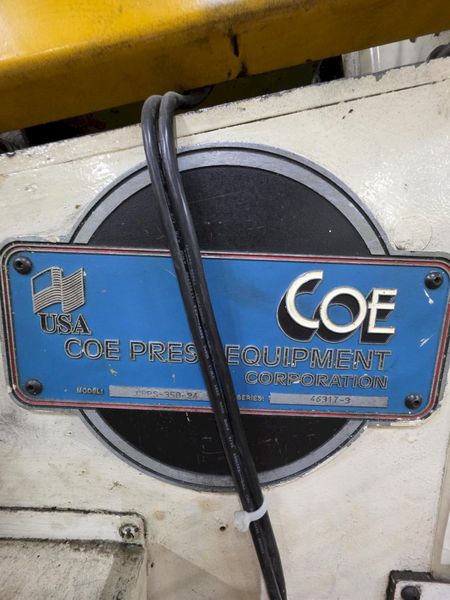

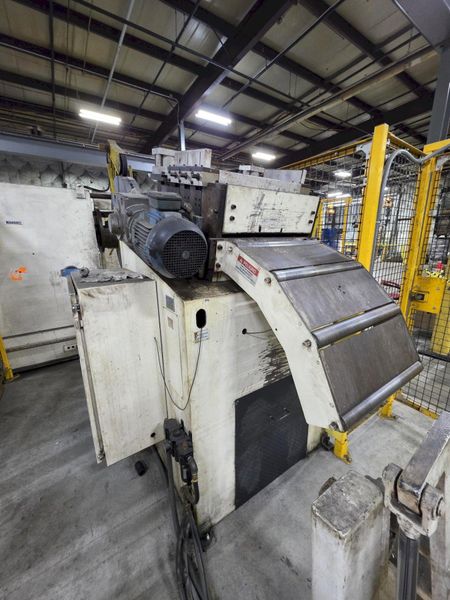

Coe Press Powered Straightener Model CPPS-350-24 SN/ 46317-3
Entry and exit pinch rolls with air operated upper pinch roll adjustments
Seven straightening rolls x 3.5 inch diameter
Individual upper straightening roll adjustments via screw jacks
Adjustable stock width edge guides Inclined head with exit cascade loop support rollers
Stock peeler - threading - debending station (PTH)
Air operated coil hold down arm with motorized end wheel
Air operated peeler table with spade extension
Out board lubrication points
Outboard air pressure regulator and gauges

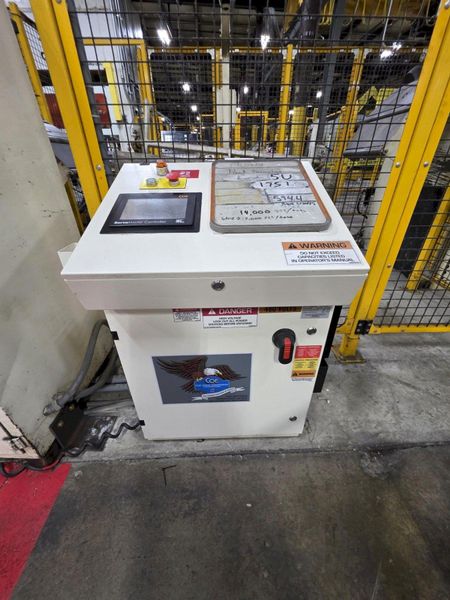

Common operator's station for control functions
Hand held pendant for Jog forward and reverse
Auto / Run cycle Loop control

Coe Press Exit Thread Table
Bomb bay style design

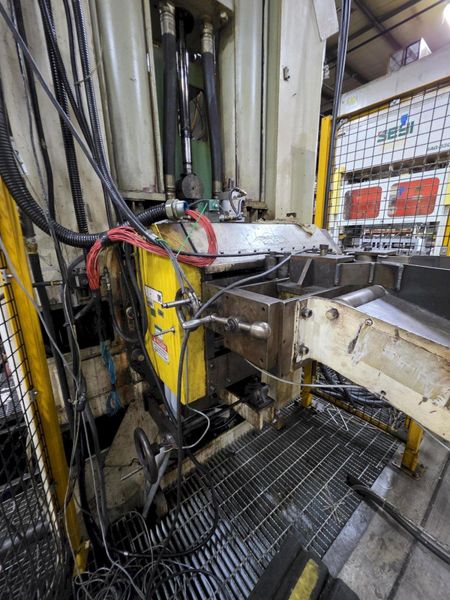

Coe Press Servo Roll Feed Model CPRF-S324, Series 3
Three inch diameter feed rolls
Matte chrome finish on upper and lower feed rolls
55" Passline Height +/- 3" adjustment
Precision cluster gear driven feed rolls
Clock spring Guard
Pivoting upper feed roll assures gear mesh
Air operated upper roll adjustment / pilot
Heavy duty adjustable stock width edge guides
Cascade loop support rollers
Press mounted with heavy duty pass line adjustment
AC Servo drive and controls

Can be seen under power in the S&G Press and Machinery Warehouse!

This heavy-duty 24-inch Coe Press Equipment conventional coil feed line is available for sale and can be inspected under power in the S&G Press and Machinery warehouse. Engineered for demanding metal stamping applications, this complete system handles material up to 24 inches wide, 0.187 inches thick at full width, and coil weights up to 15,000 lbs. The line includes a Coe CPR-PO-15024 pull-off reel featuring a traveling coil load car, hydraulic wedge-type mandrel expansion, and a powered thread drive. Material is expertly prepped by the Coe CPPS-350-24 power straightener, which utilizes a seven-roll setup, an integrated stock peeler-debender station, and air-operated pinch rolls. Precise material feeding is delivered by the Coe CPRF-324 servo roll feed, featuring matte chrome-finished rolls, precision cluster gear drive, AC servo controls, and heavy-duty pass-line adjustment. Contact us today to learn more or request pricing.
