ZEATZ PT2 ACNE 2300 CNC Tilting Rotary Table #8376 #1

Manufacturer

ZEATZ

Category

Tables

Type

TABLES, ROTARY

Stock

8376

Model

PT2 ACNE 2300

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
TABLES, ROTARY
Manufacturer:
ZEATZ
Model:
PT2 ACNE 2300
Stock #:
8376
Status:
For Sale

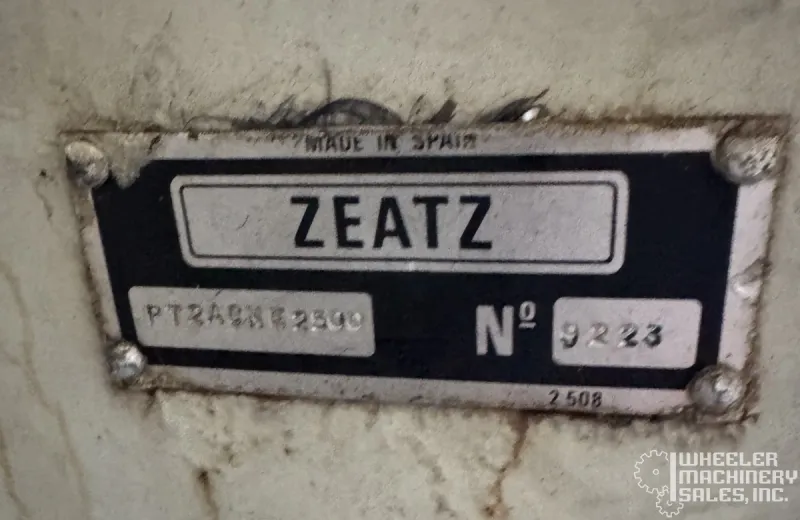

Serial #:
9223
Country:
United States

Description

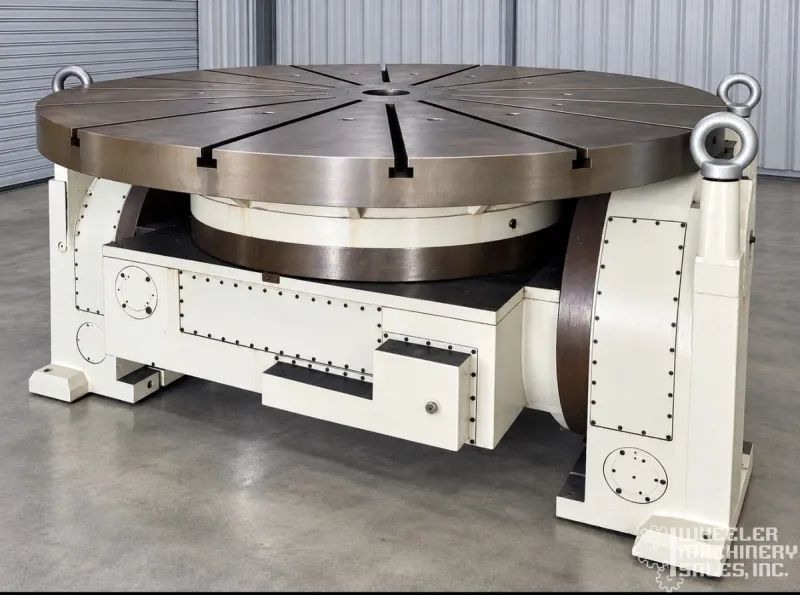

ZEATZ PT2 ACNE 2300 CNC rotary table, used but in good shape. Ideal for precision engineering tasks, this tilting model combines robust design with reliable performance. Perfect for enhancing CNC machining efficiency.

ZEATZ PT2 ACNE 2300 CNC Tilting Rotary Table #8376 #1

SPECIFICATIONS:

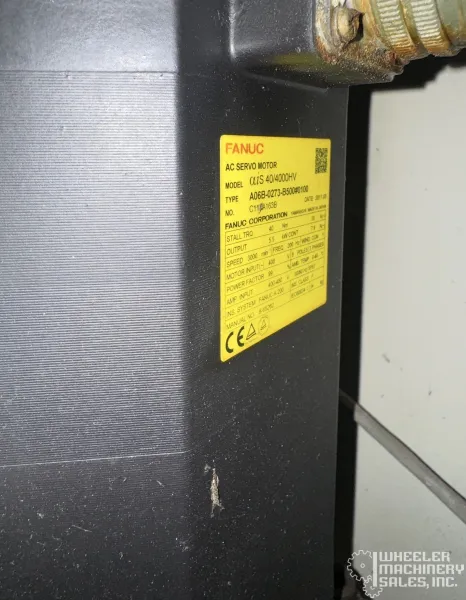

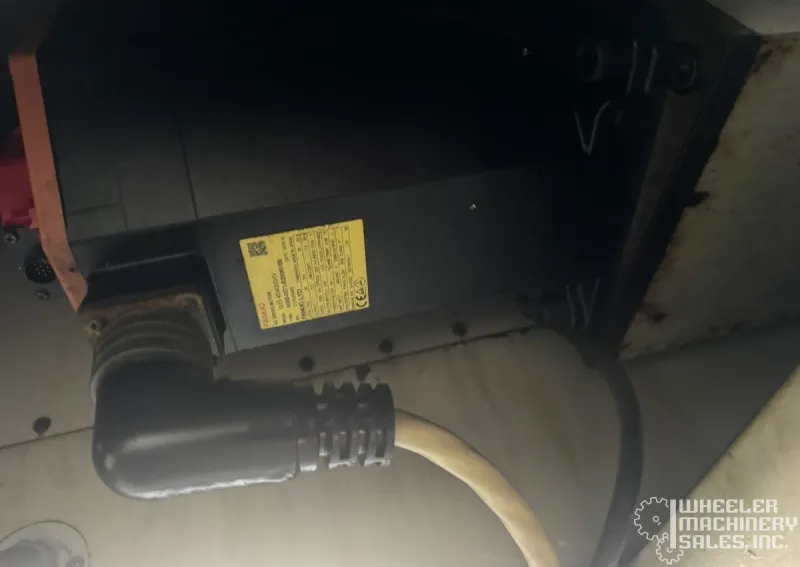

Type: CNC Powered Rotary & Tilting Table (Fanuc Drives)
Number of controlled axes: 2 - rotation & tilt
Table rotation: 360° continuous
Tilt range: +90° to 30°
Rotary drive: Worm / worm-wheel type; ZEATZ PT design uses Dual Lead
Clamping: Automatic hydraulic
CNC capability: Yes
Encoder: CNC position-feedback encoder; Fanuc
Table size: 2300 mm / 90.55”
Maximum workpiece diameter: 2500 - 2800 mm / 98” – 110”
Load capacity: 17,600 to 33,000 lbs.
Rotation speed: 1 - 3 RPM
Tilt speed: 0.5 - 1.5 RPM
Braking / locking: Hydraulic clamping on rotary/tilting axes
