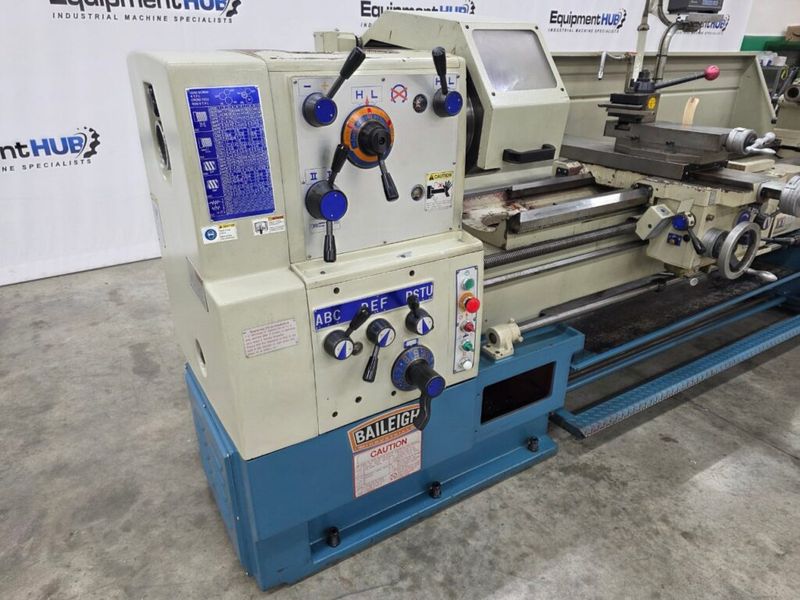

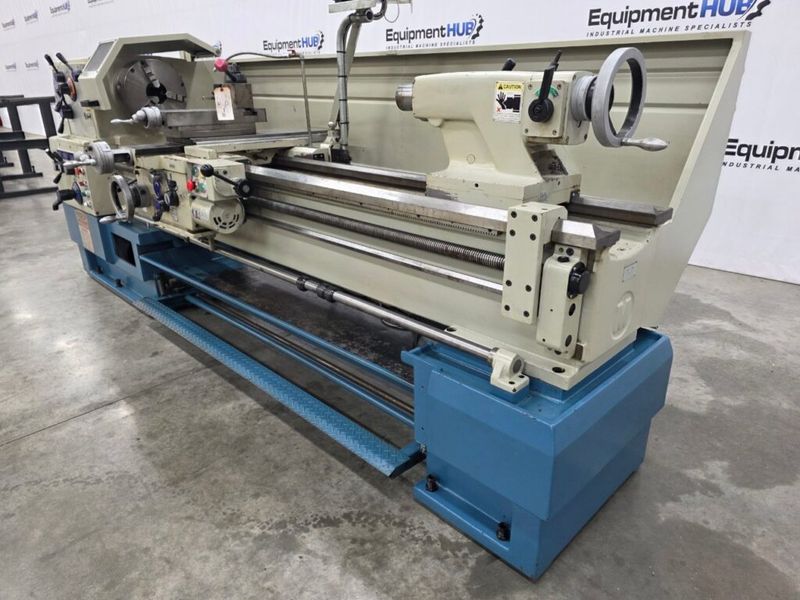

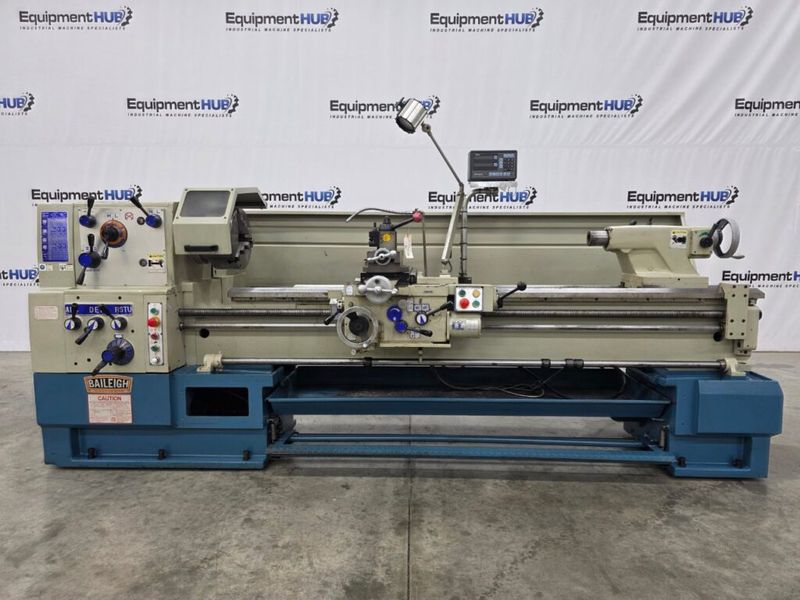

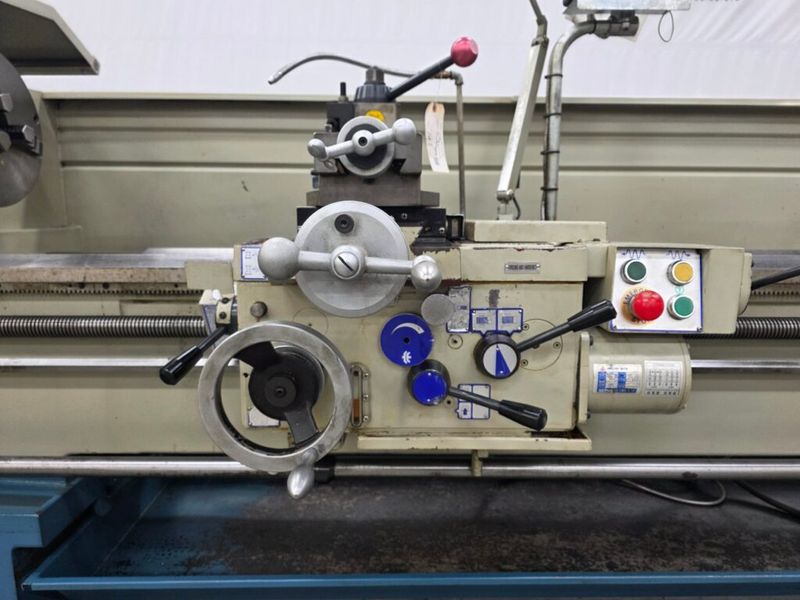

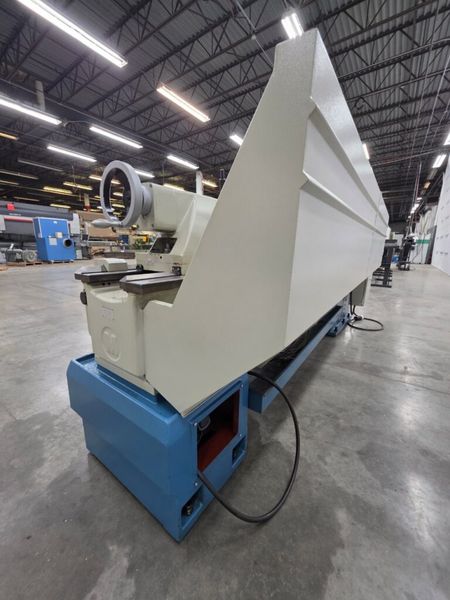

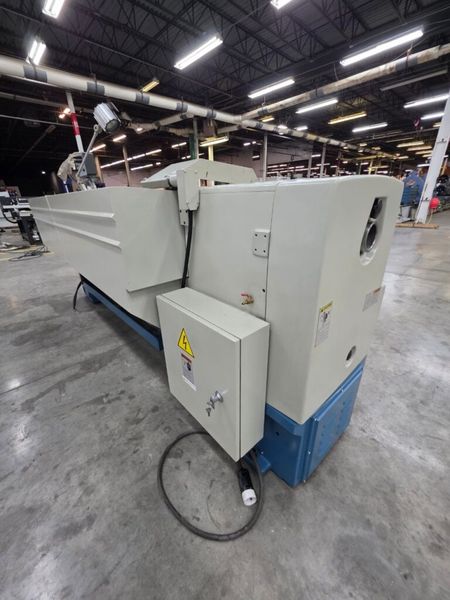

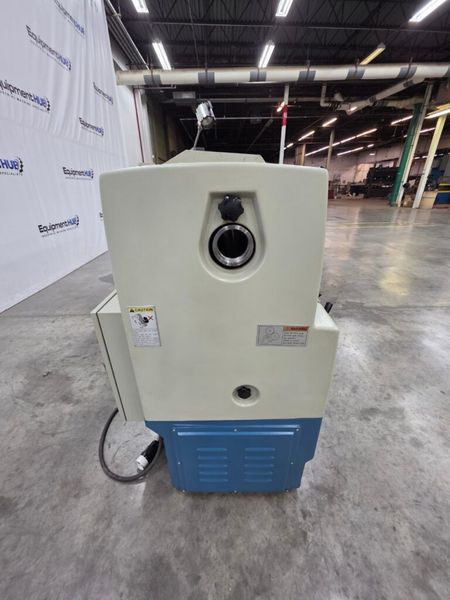

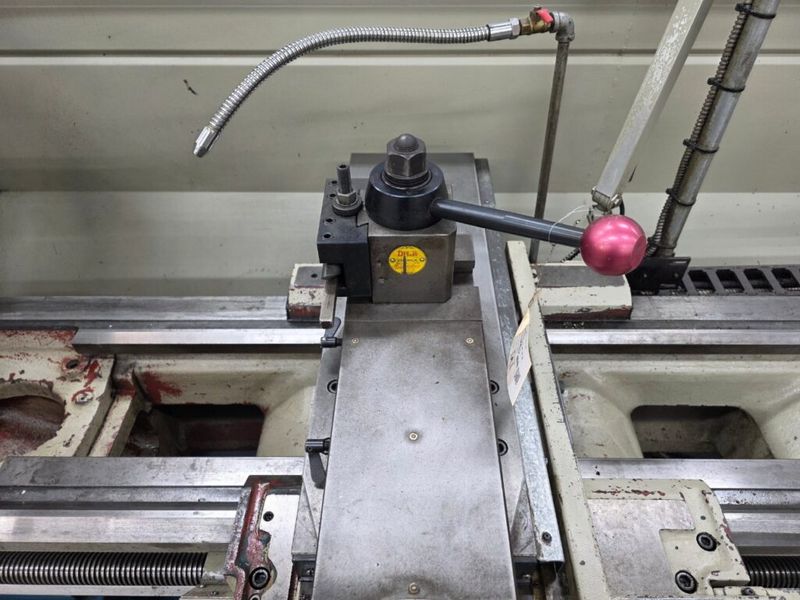

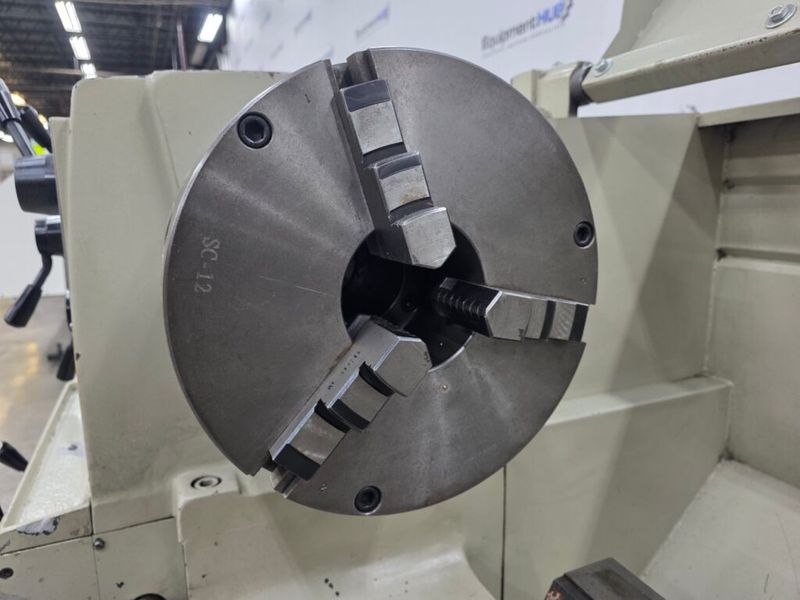

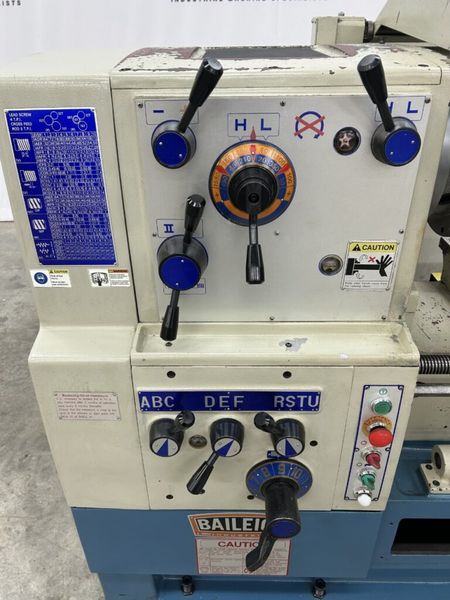

Baileigh PL-2080 20″ x 80″ Engine Lathe

Manufacturer

Baileigh Industrial

Category

Lathes

Type

LATHES, PRODUCTION, CNC

Stock

190260065

Model

PL-2080

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 190260065
  • Brand: Baileigh Industrial
  • Model: PL-2080
  • Approx. Shipping Weight: 6050 lb
  • Approx. Shipping Dimensions: 121" x 54" x 67"
  • Location : Decatur, GA
  • Year: 2015

Specifications

  • Speed: 20 – 1550 rpm
  • Spindle Bore: 3.125"
  • Spindle Nose: D1-8"

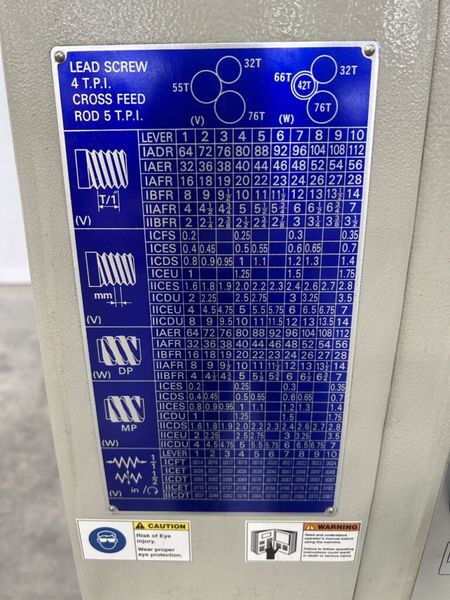

  • Threads Diametrical Qty Speed: 50 / 4-112 D.P.
  • Threads Imperial Qty Speed: 60 / 2-112 T.P.I
  • Threads Metric Qty Speed: 60 / .2-14 mm pitch
  • Threads Module Qty Speed: 50 / .2-7 M.P
  • Spindle Taper Speed: Morse #5
  • Spindle Taper Nose: Morse #7
  • Tailstock Quill Diameter: 2.9375"
  • Tailstock Quill Taper: Morse #5
  • Tailstock Quill Travel: 6.3125"
  • Compound Rest Travel: 10"
  • Center Length: 80.313"
  • Center Height: 10"
  • Bed Width: 16.125"
  • Longitudinal Feeds Metric Qty Speed: 50 / .037 – .983 mm / rev.
  • Main Motor: 15 HP
  • Longitudinal Feeds Imperial Qty Speed: 50 / .0014" – .0387" / rev.
  • Lead Screw Diameter: 1.5"
  • Lead Screw Thread Pitch: 4 T.P.I
  • Max. Swing In Gap Length: 7.0625"
  • Max. Swing Over Bed: 20"
  • Max. Swing Over Cross Slide: 13"
  • Max. Swing In Gap Dia.: 26.375"
  • Cross Feeds Imperial Qty Speed: 50 / .0007" – .01935" / rev.
  • Cross Feeds Metric Qty Speed: 50 / .0185 – .52 mm / rev.
  • Cross Slide Travel: 12.5"
  • Distance Between Centers: 80"
  • Power: 220V / 3-Phase

Equipped With

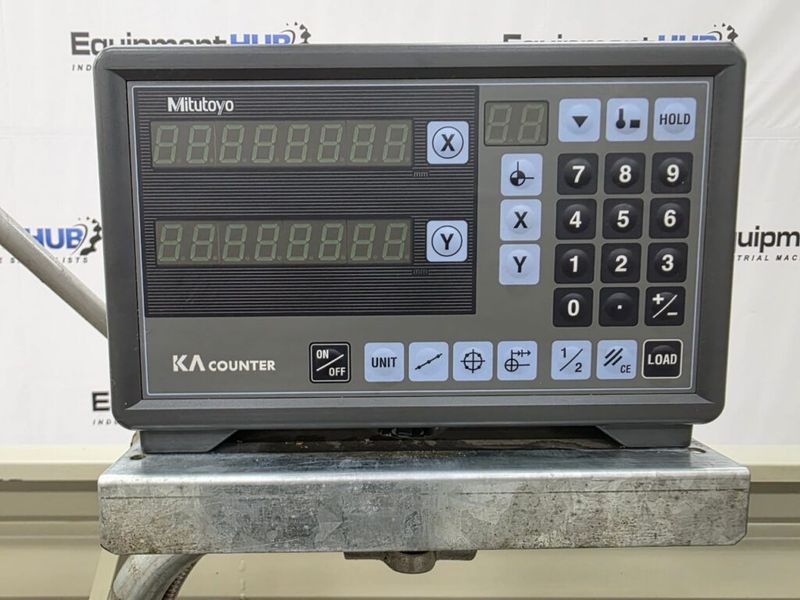

Mitutoyo Digital Readout, Steady Rest, Coolant Pump, Work Light, Headstock Chuck Guard

Additional Info

This Baileigh Precision Metal Lathe PL-2080 can be inspected upon request.
