CWP COIL REEL AND POWERED STRAIGHTENER COMBINATION - 10,000 LB X 24" WIDE

Manufacturer

COOPER WEYMOUTH PETERSON

Category

Coil Processing Equipment

Type

COIL REELS & STRAIGHTENERS (Combination)

Stock

3033

Model

4.5R-24 & SE24C

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Coil Weight - 10000 pounds
Coil Width - 24 inches
Coil Thickness - .187 inches


10,000 lbs x 24" Wide
CWP Coil Reel and Powered Straightener Combination
For Metal Stamping

Standard Specifications:
Coil weight capacity: 10,000 Lbs.
Coil width capacity: 24"
Stock thickness capacity: .187" x 24" Wide
Expansion range: 18 – 22”
Coil O.D. capacity: 60"

CWP Coil Reel and Powered Straightener Combination Equipment and Features:

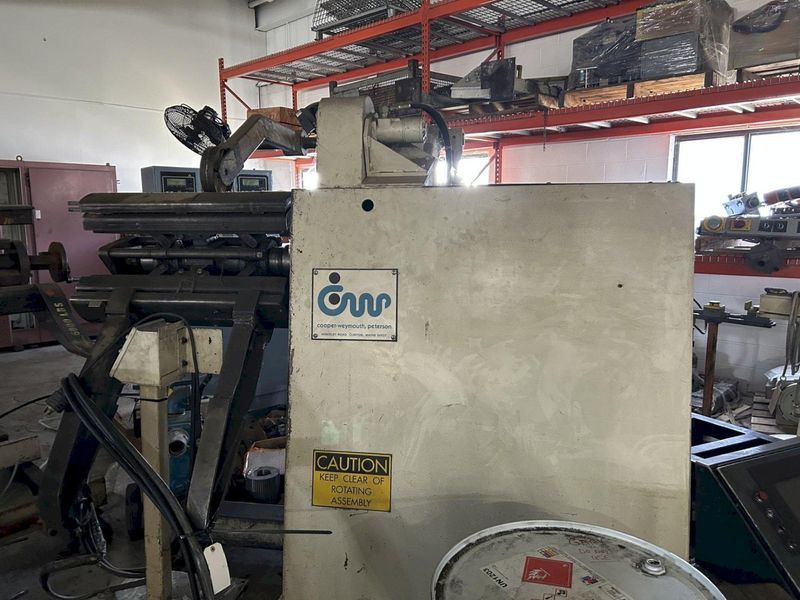

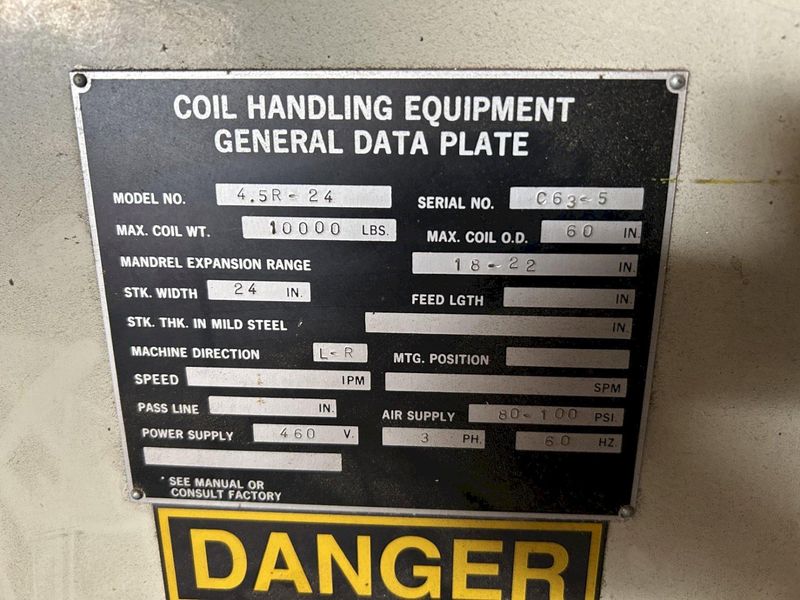

CWP Pull Off Coil Reel Uncoiler Model No.: 4.5R-24, Serial No.: C63-5
Three leaf mandrel coil reel
Hydraulic coil reel mandrel expansion
Hydraulic thread drive for jog forward/reverse
Adjustable coil reel keeper arms
Air operated coil hold down arm
Air drag brake mounted on main spindle
Adjustable drag brake pressure - pull off tension
Operators pedestal controls for expansion and jog functions

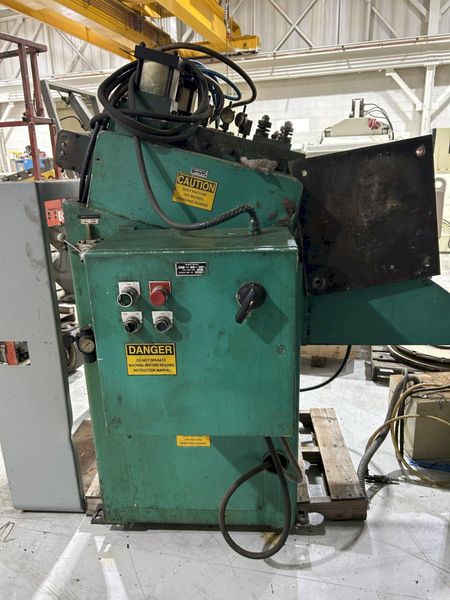

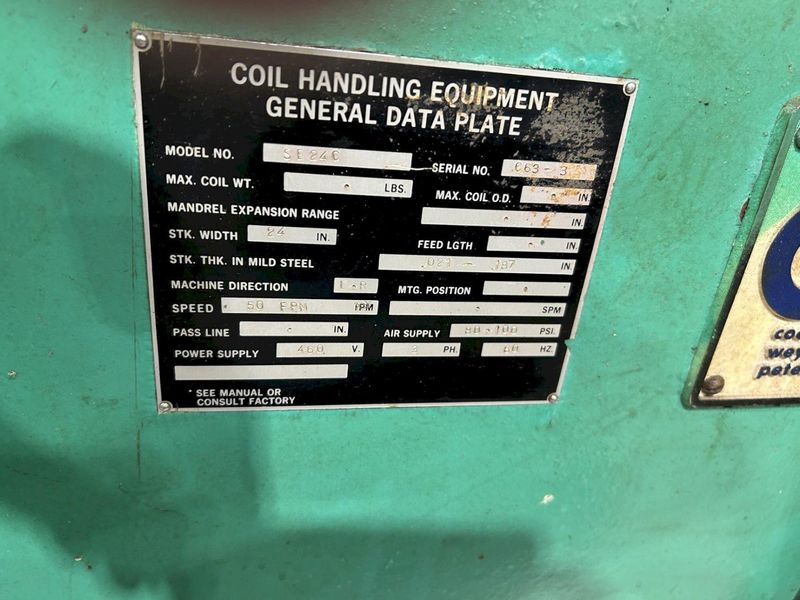

CWP Powered Coil Straightener Model No.: SE24C, Serial No.: C63-3
Entry and exit powered coil pinch rolls
Air operated entry upper pinch roll adjustment
Manual adjustable upper exit pinch
Seven coil straightening rolls x 2.75" diameter
Manual individual upper coil straightening roll adjustments
Dial depth indicators for upper straightener roll depth
Entry stock width edge guides
Manual lubrication system
Jog forward and reverse
Variable speed drive system
Exit cascade loop support rollers
Loop control


Optimize your metal stamping line with this heavy-duty used Cooper Weymouth Peterson (CWP) 10,000 lbs x 24" Coil Reel and Powered Straightener Combination. Built for high-capacity coil processing, this system features a 10,000 lb uncoiler (Model 4.5R-24) with hydraulic mandrel expansion, an air-operated hold-down arm, and adjustable drag braking.

Paired with a 7-roll powered straightener (Model SE24C) handling up to .187" thick stock, it includes powered pinch rolls, variable speed drive, and precise dial depth indicators. Reliable equipment ready for production.
