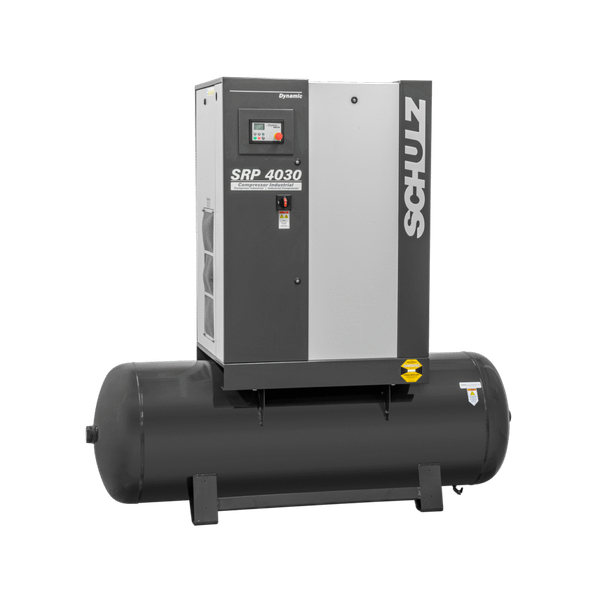

Schulz SRP 4030E Dynamic 30 HP Rotary Screw Air Compressor

Manufacturer

Schulz

Category

Air Compressors

Type

AIR COMPRESSORS, PARTS, TOOLING & ACCESSORIES

Stock

970.3907-0

Model

SRP 4030E Dynamic

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 970.3907-0
  • Brand: Schulz
  • Model: SRP 4030E Dynamic
  • Approx. Shipping Weight: 1187 lbs. / 539 Kg
  • Approx. Shipping Dimensions: 82″ x 30.3″ x 68″ / 2.08m x 0.77m x 1.73m

Specifications

  • Motor Horsepower: 30 HP / 22.37 KW
  • Voltage: 208-230 V / Three Phase
  • Max Operating Pressure: 125 PSI / 8.62 bar
  • Free Air Delivery @ 125 PSI: 117 CFM / 3313 L/min
  • Theoretical Displacement: N/A
  • Number of Stages: 1
  • Tank Capacity: 120 Gallons / 454 L
  • Tank Type: Horizontal
  • Lubrication: Oil-Lubricated
  • Pump Material: Steel

Equipped With

Standard Accessories: TEFC IP55 high efficiency electric motors, Automatic starters with phase and sequence failure detection, Lubricated rotary screw air-end, Thermostatic valve for working temperature control, Top-mounted coolers for heat recovery, Low maintenance costs design, Low oil consumption, Oversized cooling system, Robust belts, Oversized separator elements, Easy access to components, Low noise level foam coated steel cabinet (~70 dBA), Low discharge temperature, Preparation for higher ambient temperatures up to 113°F, Longer oil and separator lifetime, Belt guard, 24V command panel, Fault and sequence phase relay, High temperature protection, Fully computerized controls with auto start/stop, load/unload, remote/local mode, auto restart, maintenance timers, pressure/temperature monitoring, error messages, ASME certified 120 gallon horizontal air receiver, Pressure gauge, Manual condensate drain, Oil sight glass
