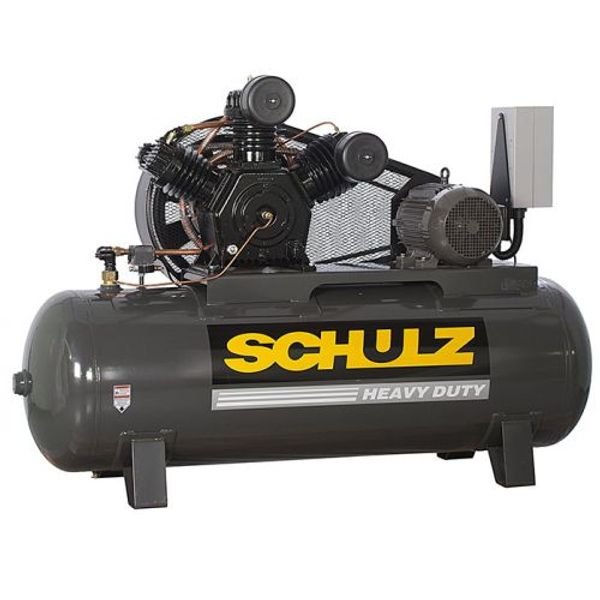

Schulz 15120HW60X-3 15 HP Piston Air Compressor

Manufacturer

Schulz

Category

Air Compressors

Type

AIR COMPRESSORS, PARTS, TOOLING & ACCESSORIES

Stock

932.9337-0

Model

15120HW60X-3

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 932.9337-0
  • Brand: Schulz
  • Model: 15120HW60X-3
  • Approx. Shipping Weight: 1100 lbs. / 499 Kg
  • Approx. Shipping Dimensions: 78.3″ x 28″ x 51.2″ / 1.99m x 0.71m x 1.30m

Specifications

  • Motor Horsepower: 15 HP / 11.19 KW
  • Voltage: 208-230/460 V / Three Phase
  • Max Operating Pressure: 175 PSI / 12.07 bar
  • Free Air Delivery @ 175 PSI: 60 CFM / 1699 L/min
  • Theoretical Displacement: N/A
  • Number of Stages: 2
  • Number of Pistons: 2 (V-Series)
  • Tank Capacity: 120 Gallons / 454 L
  • Tank Type: Horizontal
  • Lubrication: Oil-Lubricated (Splash)
  • Pump Material: Cast Iron

Equipped With

Standard Accessories: WEG TEFC electric motor, V-Series cast iron pump with space between cylinders for cooler operation, Deeper cylinder fins for enhanced heat dissipation, Oversized main bearings for durability, Swedish steel valves for efficiency, CNC machined components for precise fit and performance, Notched belts, Enclosed metal belt guard, Powder coated components to resist rust and corrosion, Magnetic starter mounted and wired, Auto start/stop pressure switch operation, Powder coated ASME certified receiver, Pressure gauge, Manual condensate drain, Oil sight glass
