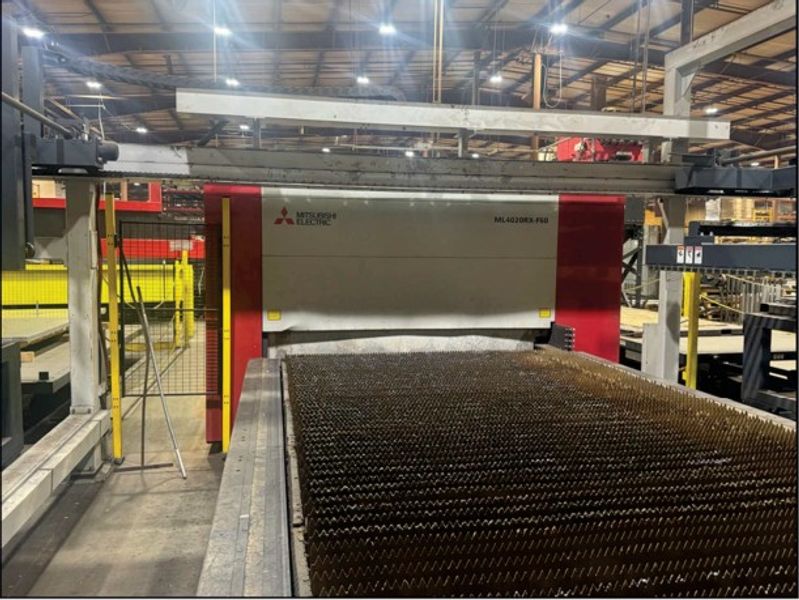

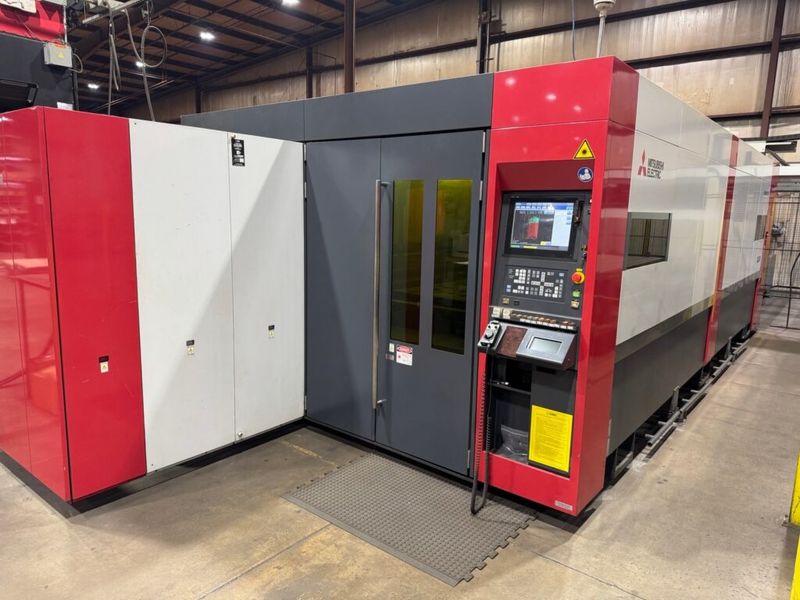

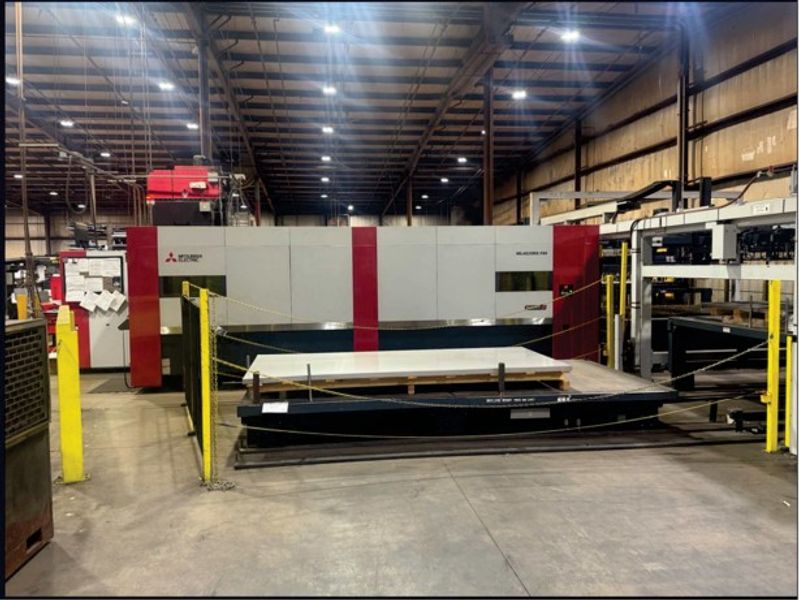

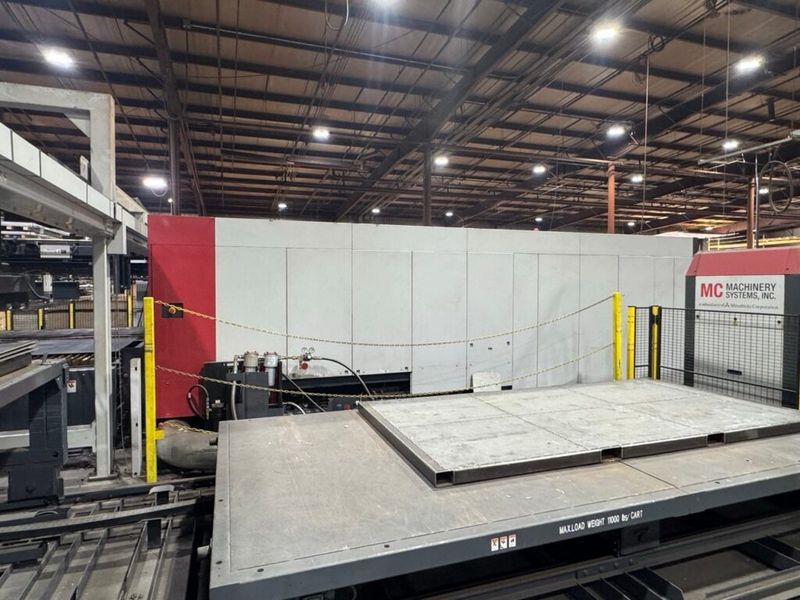

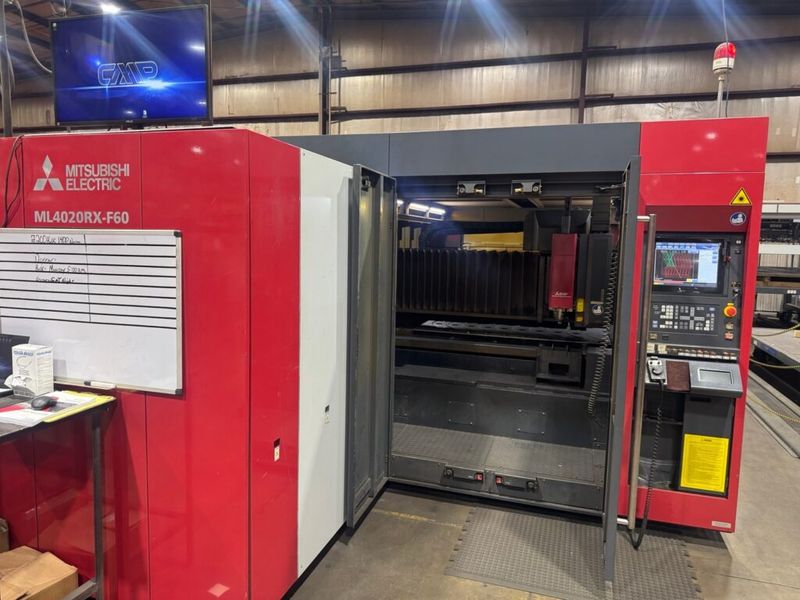

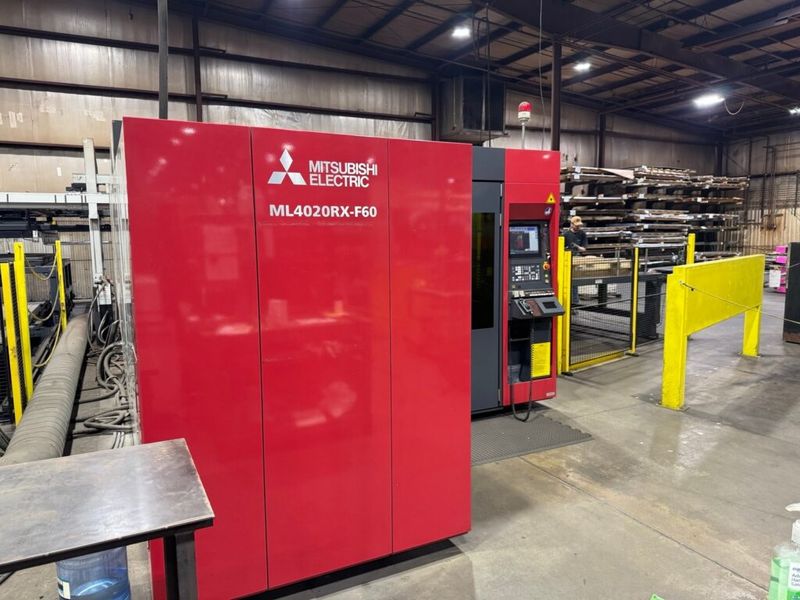

Mitsubishi ML4020RX-F60 6kW 6′ x 12′ CNC Fiber Laser (2020)

Manufacturer

Mitsubishi

Category

Laser Cutting

Type

LASERS

Stock

163260044

Model

ML4020RX-F60

Dealer Location

Georgia

Spec Sheet

  • Stock #: 163260044
  • Brand: Mitsubishi
  • Model: ML4020RX-F60
  • Year: 2020
  • Approx. Machine Weight: 33,000 lbs
  • Approx. Pallet Changer Weight: 11,000 lbs

Specifications

  • Laser Power: 6,000 Watts
  • Laser Source: 6 kW Fiber Laser
  • Table Size: 6′ x 12′
  • Maximum Sheet Size: 159.4″ x 81.1″
  • Maximum Workpiece Weight: 3,638 LBS.
  • X-Axis Travel: 161.4″
  • Y-Axis Travel: 82.7″
  • Z-Axis Travel: 5.9″
  • Rapid Traverse: Up to 459 IPM / 140 M/min
  • Maximum Processing Feed Rate: Up to 2,756 IPM / 70 M/min
  • Positioning Accuracy: ±0.002″ / 500 mm
  • Repeatability: ±0.0004″

Equipped With

Automatic Dual Pallet Changer, Mitsubishi Full Touch Screen Control, Zoom Processing Head, Intelligent AC Servo Drive System

Additional Info

Low Hours (18,219 Discharge). Machine has already been decommissioned and is currently in storage ready for shipment.
