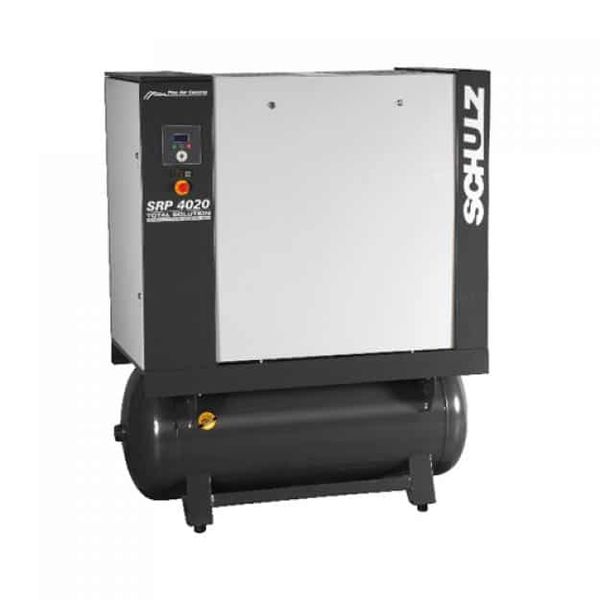

Schulz SRP 4020E Flex 20 HP Rotary Screw Air Compressor

Manufacturer

Schulz

Category

Air Compressors

Type

AIR COMPRESSORS, PARTS, TOOLING & ACCESSORIES

Stock

970.4049-0

Model

SRP 4020E Flex

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 970.4049-0
  • Brand: Schulz
  • Model: SRP 4020E Flex

Specifications

  • Motor Horsepower: 20 HP / 14.91 KW
  • Voltage: 208-230/460/480 V / Three Phase
  • Max Operating Pressure: 125 PSI / 8.62 bar
  • Free Air Delivery @ 125 PSI: 74 CFM / 2095 L/min
  • Theoretical Displacement: N/A
  • Number of Stages: 1
  • Tank Capacity: 120 Gallons / 454 L
  • Tank Type: Horizontal
  • Lubrication: Oil-Lubricated (Synthetic Oil)
  • Pump Material: Steel (Lubricated Air-End)

Equipped With

Standard Accessories: Danfoss Variable Speed Drive (VSD), TEFC IP55 high efficiency electric motors, Automatic starters with phase and sequence failure detection, Lubricated air-end, Thermostatic valve for working temperature control, Top-mounted coolers for heat recovery, Low maintenance costs design, Low oil consumption, Modern design components, Oversized cooling system, Robust belts, Oversized separator elements for low ppm and longer lifetime, Easy access to components, Low noise level foam coated steel cabinet, Low discharge temperature (around 10°C above ambient), Preparation for higher ambient temperatures up to 113°F, Longer oil and separator lifetime, Belt guard, 24V command panel, Fault and sequence phase relay, High temperature protection, Fully computerized controls with auto start/stop, load/unload operation, remote/local mode, auto restart, maintenance timers, pressure/temperature monitoring, error messages for overloads, phase faults, emergency, high pressure/temperature, Microprocessed electronic controller, Pressure gauge, Manual condensate drain
