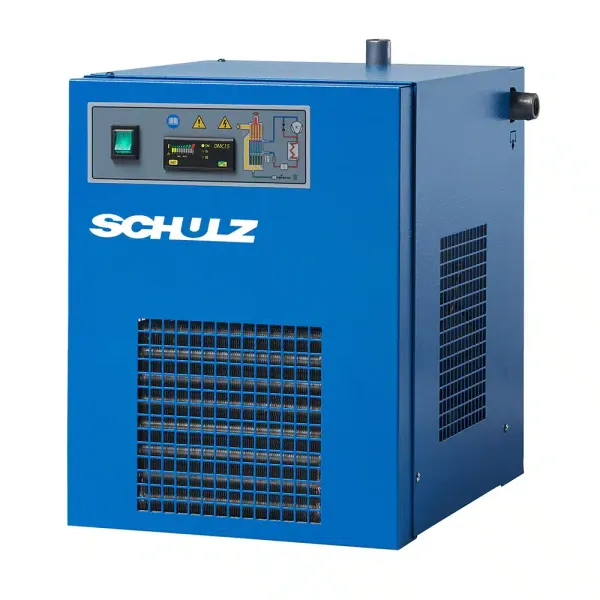

Schulz ADS-75-UP 75 CFM Refrigerated Air Dryer

Manufacturer

Schulz of America

Category

Air Compressors

Type

AIR COMPRESSORS, PARTS, TOOLING & ACCESSORIES

Stock

ADS75-UP

Model

ADS-75

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: ADS75-UP
  • Brand: Schulz of America
  • Model: ADS-75
  • Approx. Shipping Weight: 75 lbs. / 34 Kg
  • Approx. Shipping Dimensions: 30″ x 14″ x 16″ / 0.76m x 0.36m x 0.41m

Specifications

  • Capacity: 75 CFM / 2124 L/min
  • Voltage: 115 V / Single Phase
  • Rated Pressure: 100 PSI / 6.9 bar
  • Maximum Pressure: 203 PSI / 14 bar
  • Dryer Type: Non-Cycling Refrigerated
  • Refrigerant: R134a
  • Inlet/Outlet Connection: 1″ NPTF
  • Power Consumption: Approx. 5.1 A
  • Frequency: 60 Hz

Equipped With

Standard Accessories: Electronic controller with LED indicators for temperature and dew point monitoring, Quick-connected electronic automatic drain valve (timer-controlled, easy to clean without special tools), High-efficiency refrigerant compressor, Removable panels for easy maintenance access, Advanced refrigeration technology for consistent dry air supply, Designed for high ambient/inlet temperatures up to 100°F, Energy-efficient operation matching compressor displacement, Digital display for temperature and dew point, Non-cycling design for reliable performance in sensitive applications
