720 TON 168 OZ NISSEI FVX660III-400L HYBRID INJECTION MOLDING MACHINE, 2017

720 TON 168 OZ NISSEI FVX660III-400L HYBRID INJECTION MOLDING MACHINE, 2017

Name: 720 TON 168 OZ NISSEI FVX660III-400L HYBRID INJECTION MOLDING MACHINE, 2017
Brand: NISSEI
SKU: 53403

Manufacturer

NISSEI

Spec Sheet

Specifications:
TONNAGE 720 T
SHOT SIZE 168 oz
SCREW DIAMETER 3.94 in
PLATEN DIMENSIONS 60.6" x 60.6"
TIE BAR SPACING 43.3" x 43.3"
CLAMP STROKE 37.4"
DAYLIGHT MIN/MAX 75.2"
MIN/MAX MOLD HEIGHT 17.7" - 37.4"
EJECTOR STROKE 7.9
Dimensions 385.8" × 86.4" × 88.8"
Weight 60,407 Lbs

Equipped With:

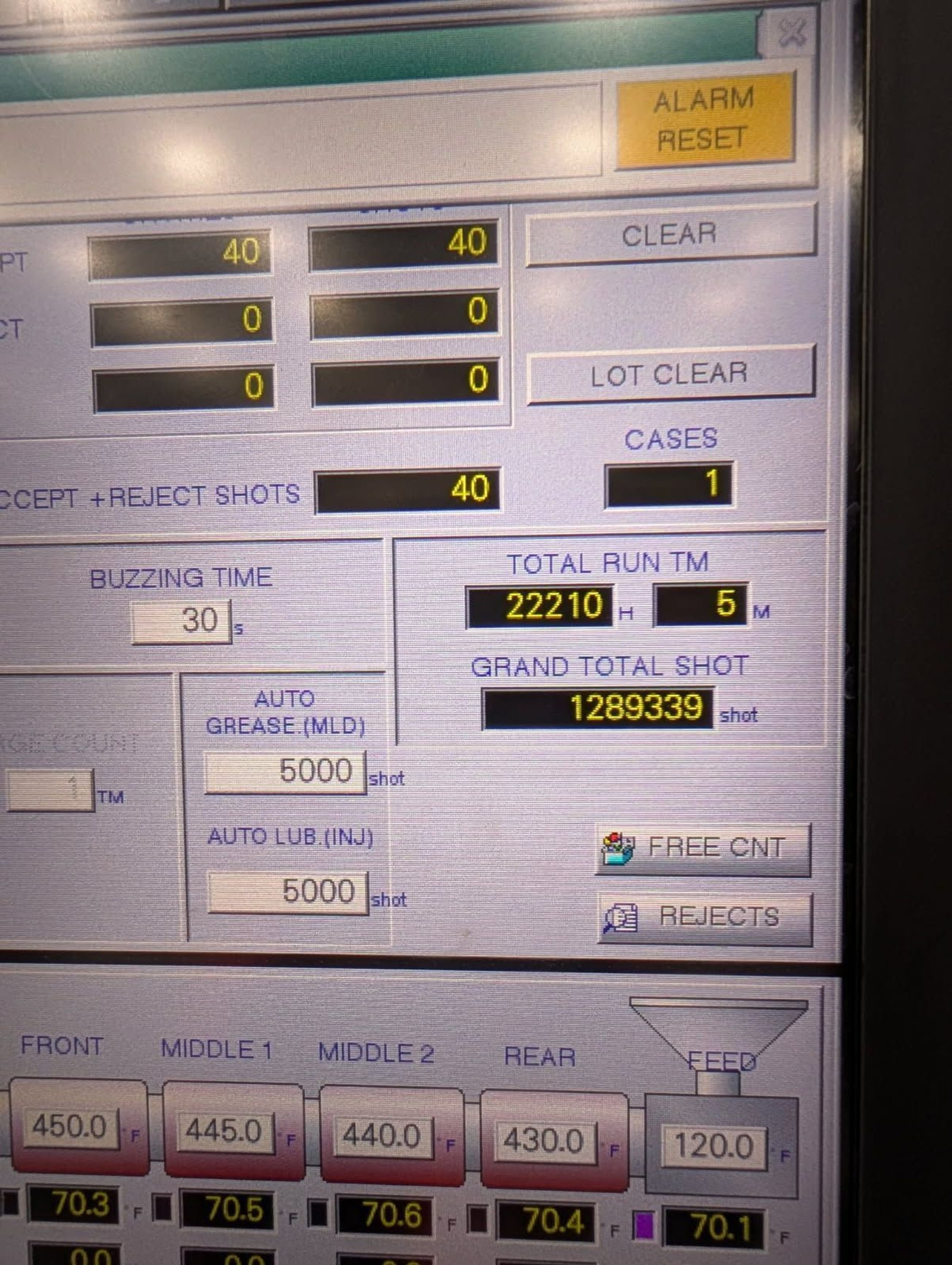

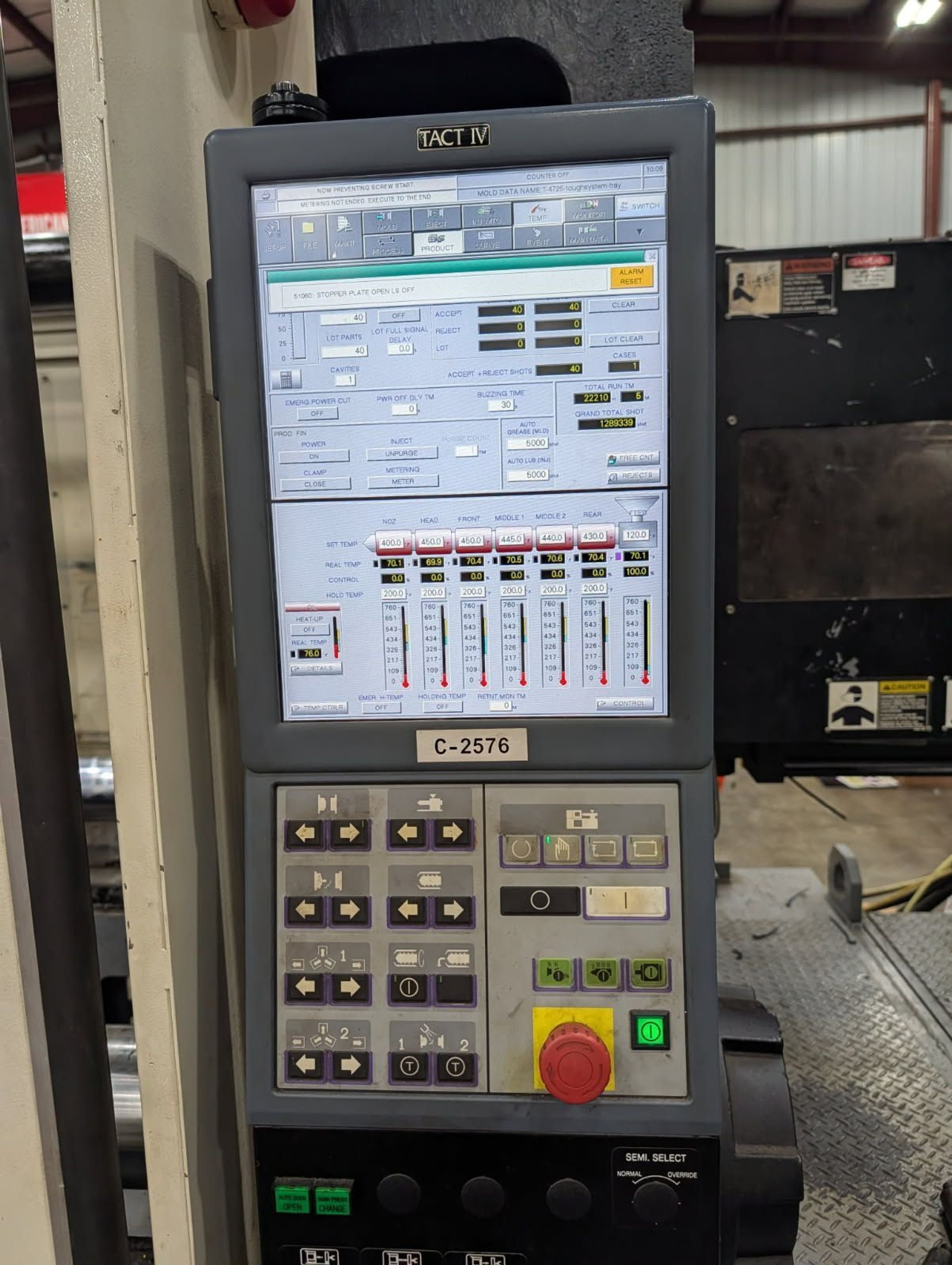

TACT IV CONTROL
APPROX 22,210 HOURS
CORE PULL

** ALSO AVAILABLE 720 TON NISSEI MFG IN YEAR 2015 AND YEAR 2007 - PLEASE CALL FOR DETAILS
