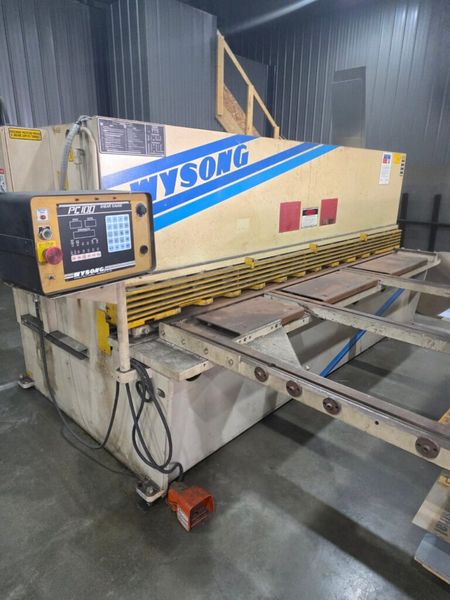

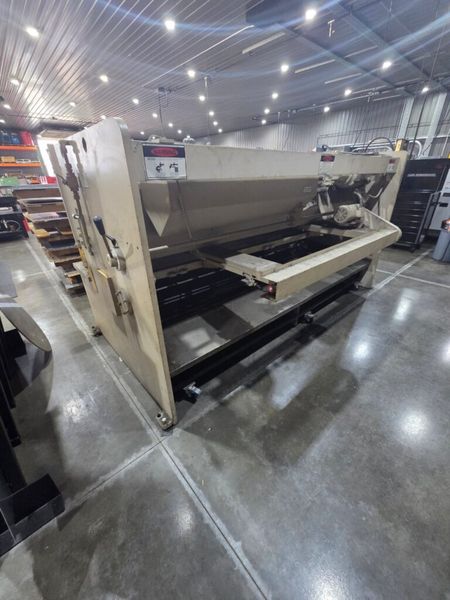

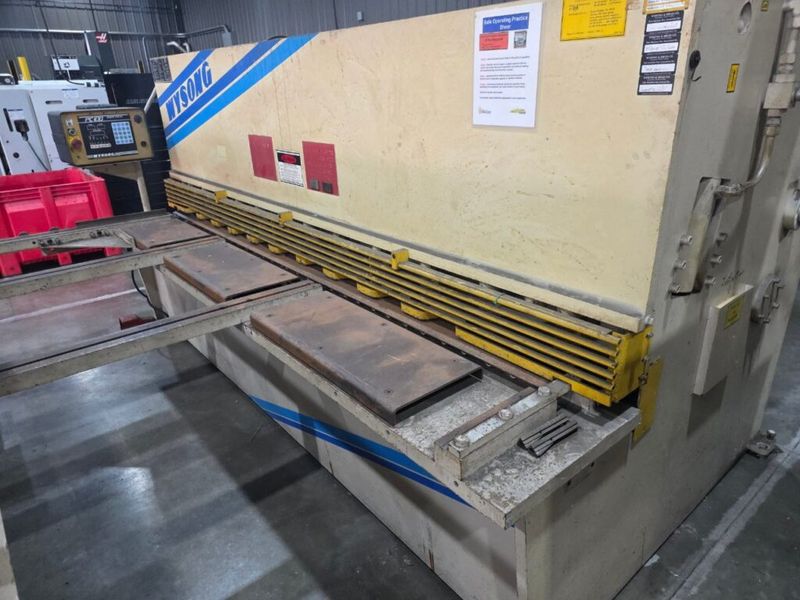

Wysong H-2510 10′ x 1/4″ CNC Hydraulic Power Squaring Shear

Manufacturer

Wysong

Category

Shears

Stock

211260036

Model

H-2510

Dealer Location

Georgia

Spec Sheet

  • Stock #: 211260036
  • Location: Stone Mountain, GA
  • Brand: Wysong
  • Model: H-2510

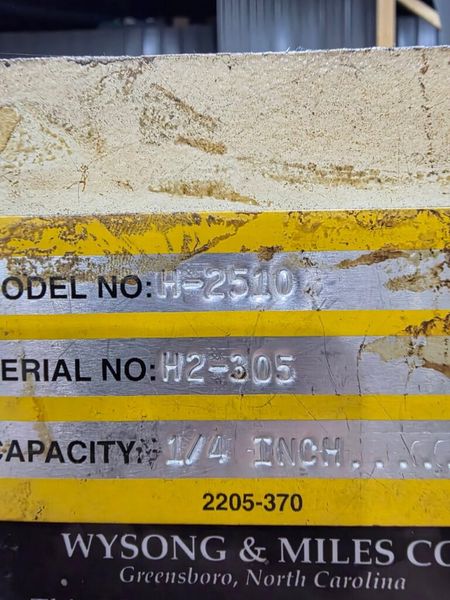

  • Serial Number: H2-305
  • Approx. Shipping Weight: 20,000 Lbs.
  • Approx. Shipping Dimensions: 14′ L x 7′ W x 6.5′ H

Specifications

  • Shearing Capacity, Mild Steel: 10′ x 1/4"
  • Shearing Capacity, Stainless Steel: 10′ x 7 GA
  • Throat Depth: 3"
  • Rake Angle Inch Per Foot: 5/16"
  • Number Of Holddowns: 13
  • Strokes Per Minute, Full Capacity Full Length: 21 SPM
  • Strokes Per Minute, Full Capacity Short Stroke: 45 SPM
  • Strokes Per Minute, Reduced Cap Full Length: 40 SPM
  • Strokes Per Minute, Reduced Cap Short Stroke: 60 SPM
  • Main Motor, Horsepower: 20 HP
  • Electrical: 460V/3PH

Equipped With

Wysong "Pc100" 3-Axis CNC Control W/ 36" Backgauge, (2) Front Arm Supports

Additional Info

The Wysong Shear can be demoed upon request. Rigging Required.
