Inovatech SteelPRO 600 PythonX SPG Robotic Welding Cell (2017)

Manufacturer

Inovatech

Category

Welding Machines

Type

WELDING MACHINE TOOLS

Stock

173260025

Model

SteelPRO 600 PythonX SPG

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 173260025
  • Year: 2017
  • Brand: Inovatech
  • Model: SteelPRO 600 PythonX SPG
  • Approx. Shipping Weight: 12000 lbs (5444 kg)

Specifications

  • Beam (Web Height): Min-4″ (100mm) Max-44” (1016mm)
  • Beam (Flange Height): Min-4″ (100mm) Max-17″ (430mm)
  • Hss: Min-3″X3″ (76mm X 76mm) Max-24″X20″ (609mm X 508mm)
  • Channel (Height): Min-3″ (76mm) Max-18″ (457mm)
  • Channel (Width): Min-1 1/4″ (31.75mm) Max-5″ (127mm)
  • Angle: Min-3″X3″ (76mm X 76mm) Max-8″X8″ (203mm X 203mm)
  • Flat Bar: Min-3″X3/8″ Thick (76mm X 76mm) Max-13.780″ (350mm)
  • Bulb Flat: Min-6.3″X0.275″ (160mm X 7mm) Max-13.4″X0.47″ (340mm X 12mm)

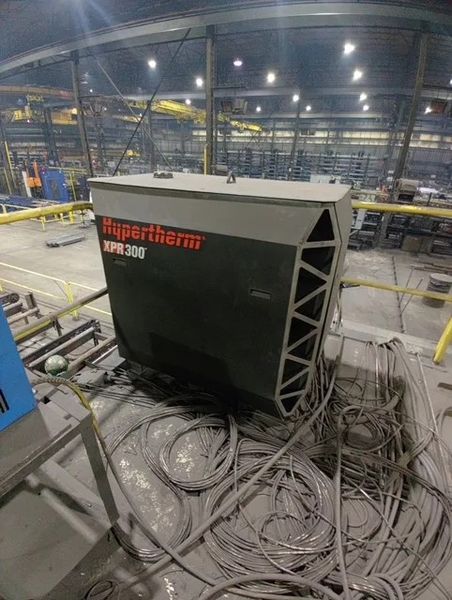

  • Power Source: Hypertherm XPR 300
  • Power Requirement: Input Voltage +/- 10% 415 / 460 / 575, Input Amperes 32 / 27 / 22, Frequency (Hz) 50 / 60
  • Amp Power Source: 300A, 100% Duty Cycle

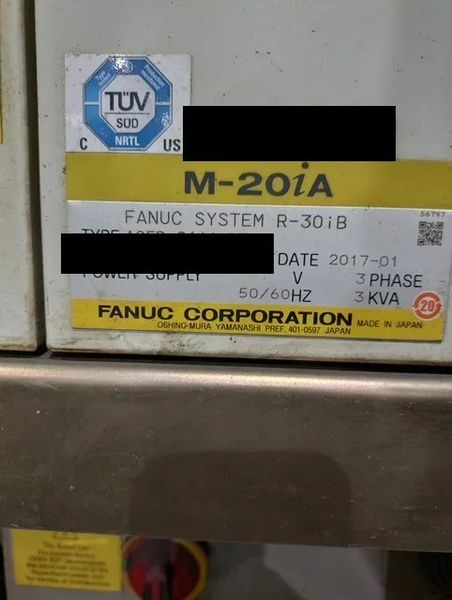

  • Control: FANUC Robot Controller With PythonX Director
  • Cutting Capacity: Pierce Capacity 1.75 in [44 mm], Severance Capacity 3 in [76 mm]
  • Max Material Thickness: 1.75 [44] Pierce
  • Table Height: Pass-Line Height 35 in (889 mm)
  • Note: Maximum Stock And Part Length 65 ft (19.8 M), Torch Tilts Up To 55° For Beveling

Equipped With

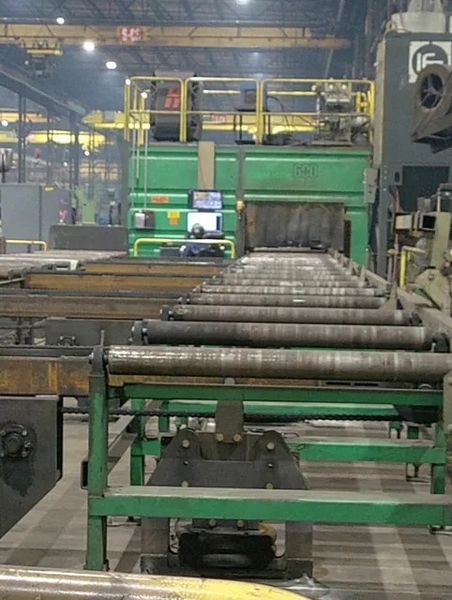

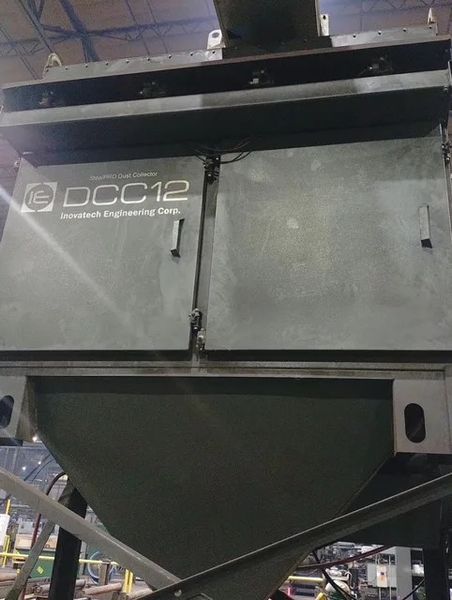

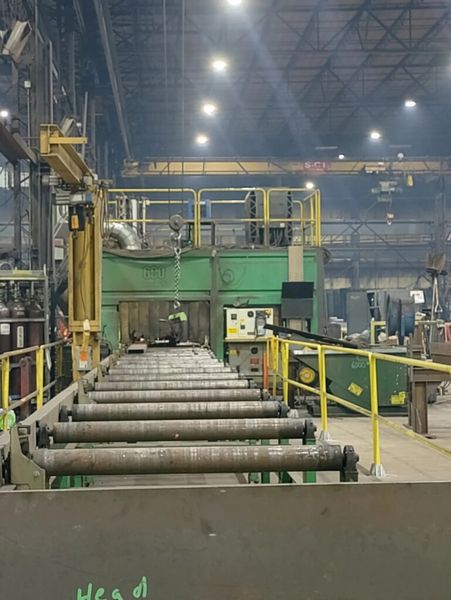

Airpack, Conveyor: 60Ft Infeed / 40Ft Outfeed, Fanuc Arcmate 120ID Robot (M-20ID/25), Fineline 300Hd Plasma, Steelpro Dust Collector Dcc12, Measuring Cart

Additional Info

Machine is under power and available for inspection.
