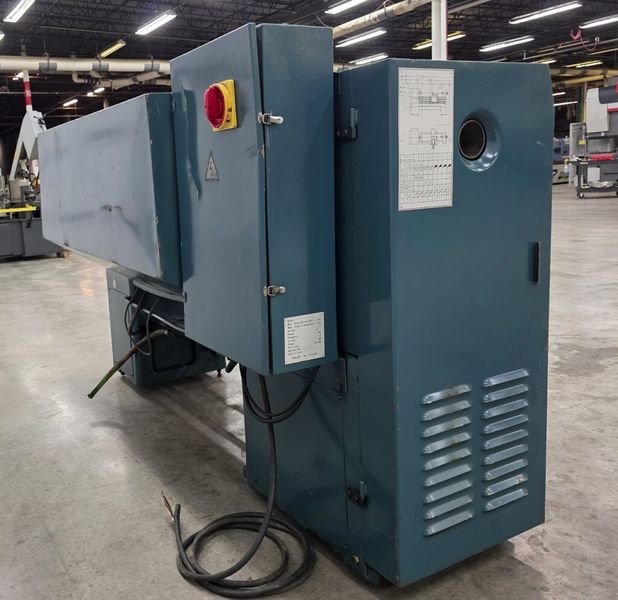

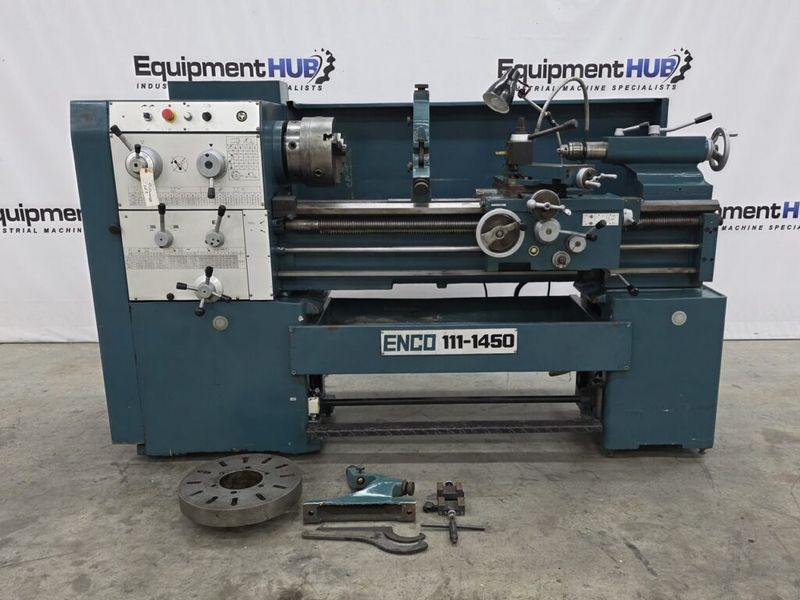

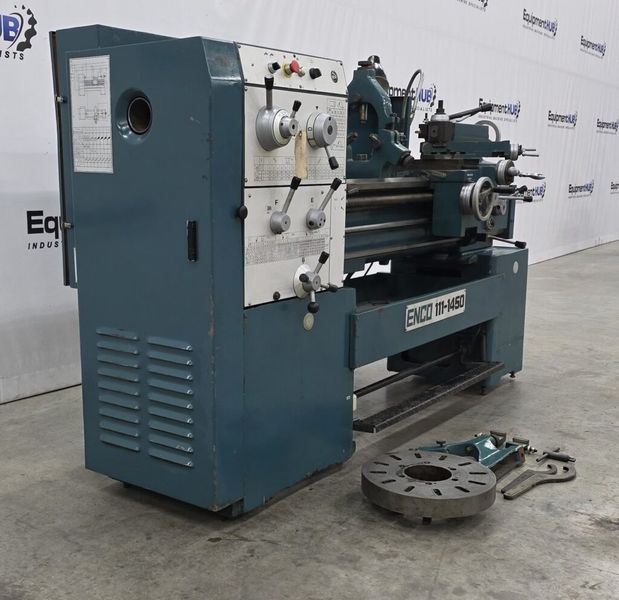

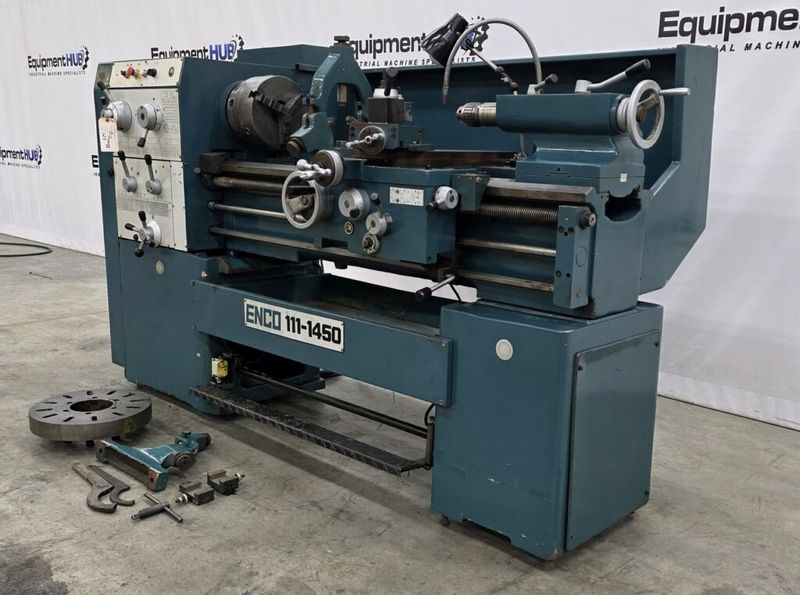

Enco 111-1450 14″ x 40″ Gap Bed Geared Head Engine Lathe

Manufacturer

Enco

Category

Lathes

Type

LATHES, PRODUCTION, CNC

Stock

140260001

Model

111-1450

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 140260001
  • Location: Decatur, GA
  • Brand: Enco
  • Model: 111-1450
  • Serial Number: 991891
  • Year: 1999
  • Approx. Shipping Weight: 4,000 Lbs.
  • Approx. Shipping Dimensions: 8′ l x 4′ W x 5′ H

Specifications

  • Swing Over Bed: 14"
  • Swing In Removable Gap: 19-1/4"
  • Length Of Gap: 10"
  • Swing Over Cross Slide: 8"
  • Hole Through Spindle: 3"
  • Spindle Nose: D1-8 Camlock
  • Distance Between Centers: 40"
  • Spindle Speed Range (15): 24-1600 RPM
  • Longitudinal Feed Range: 0.0027-.150 IPR
  • Cross Feed Range: 0.0013-0.0375 IPR
  • Inch Threading Range (66): 1-56 TPI
  • Metric Threading Range(29): 0.5-28mm

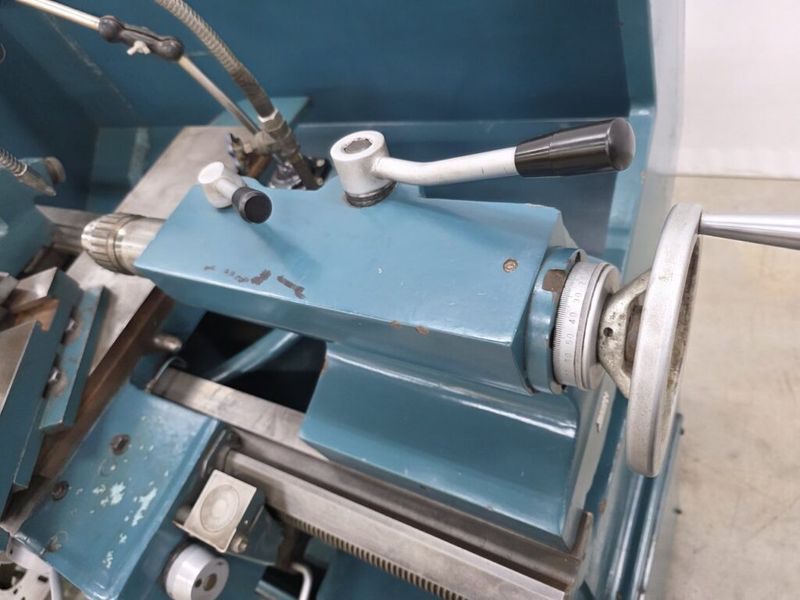

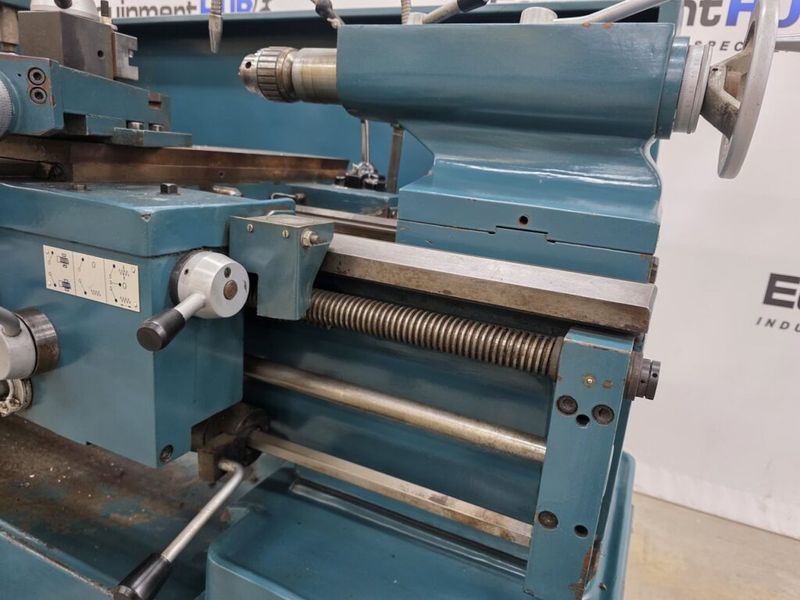

  • Tailstock Spindle Travel: 5"
  • Tailstock Spindle Taper: #3 MT
  • Electrical: 220V/3PH
  • Motor HP: 5.4

Equipped With

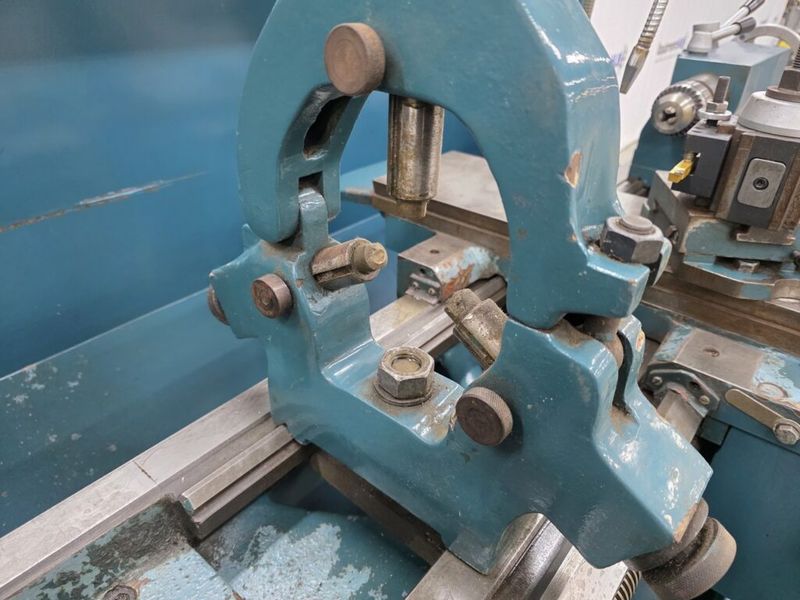

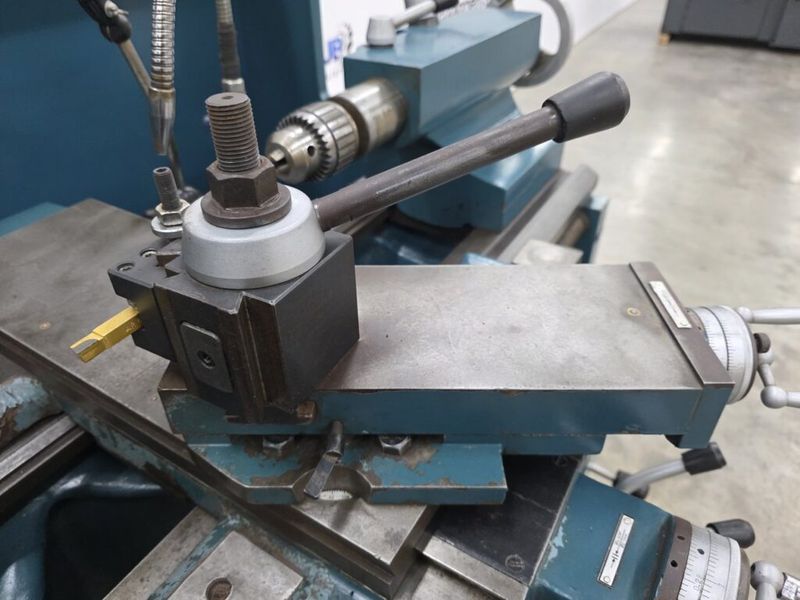

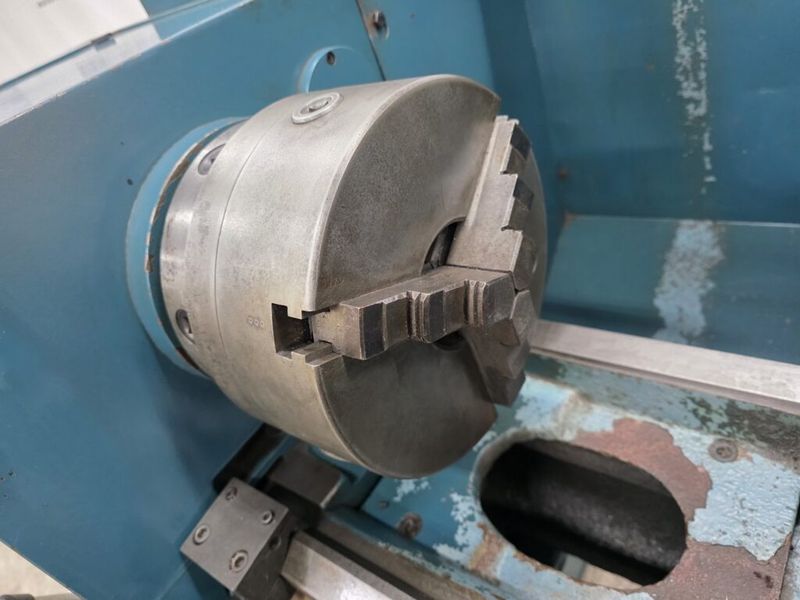

10" 3 Jaw Chuck, 15" Face Plate, Steady Rest, Follow Rest, Quick Change Tool Post, Work Light, Coolant System With Splash Guard, Foot Brake

Additional Info

Machine can be demoed upon request.
