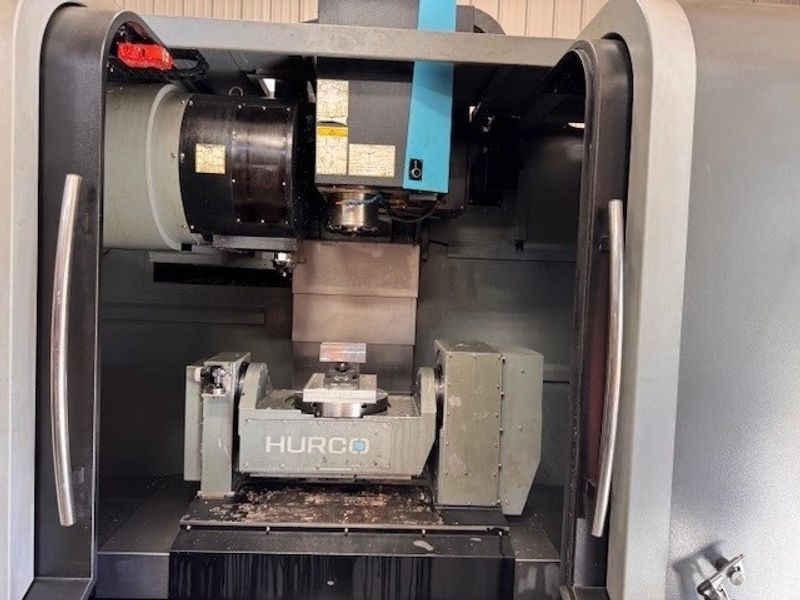

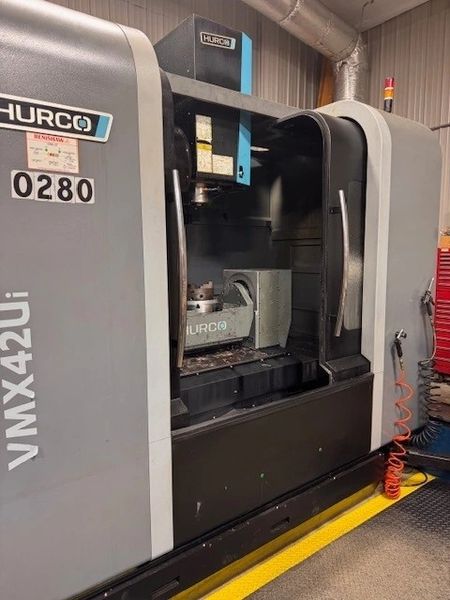

Hurco VMX42UI 5-Axis CNC Vertical Machining Center (2015)

Manufacturer

Hurco

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

143260020

Model

VMX42UI

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 143260020
  • Brand: Hurco
  • Model: VMX42UI
  • Year: 2015
  • Approx. Shipping Weight: 15,752 LBS.
  • Approx. Shipping Dimensions: 192"L x 102"W x 115"H

Specifications

  • X: 42"
  • Y: 24"
  • Z: 20.5"

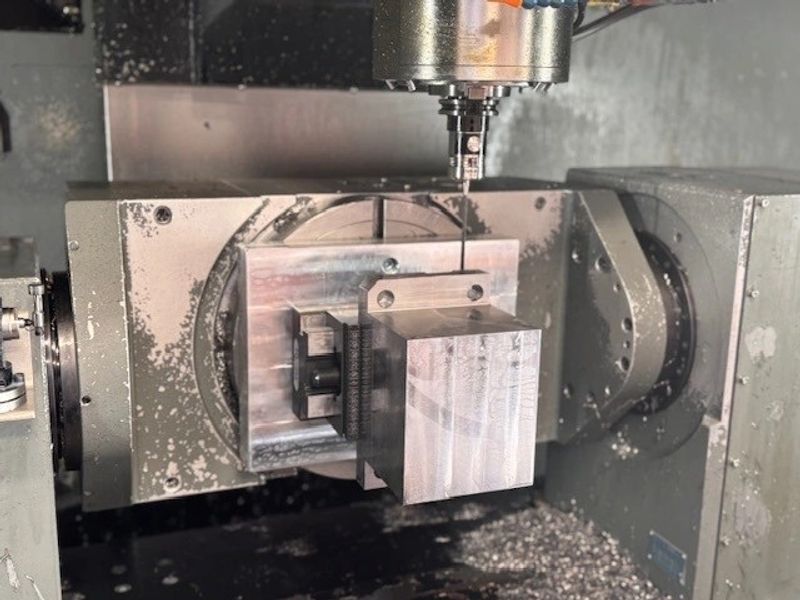

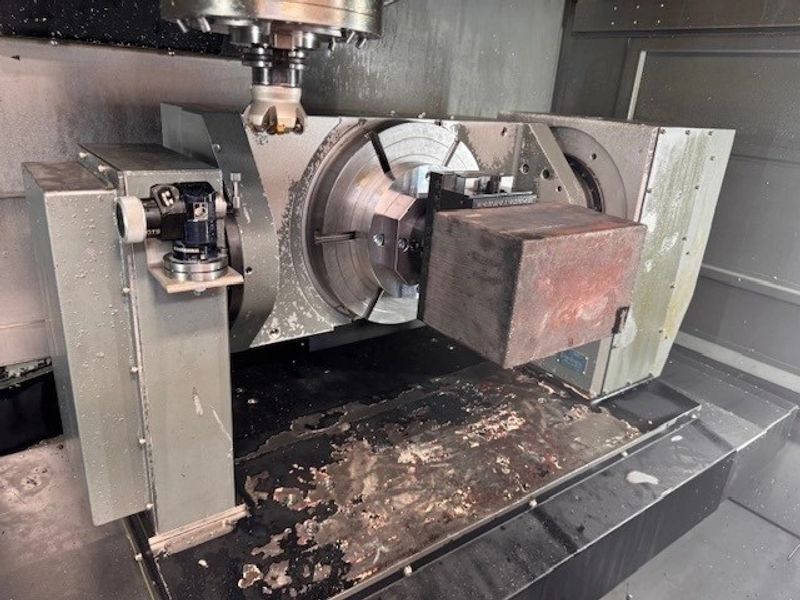

  • A-Axis Travel: +30°/-110°
  • C-Axis Travel: 360°
  • Power: 24 hp
  • RPM: 12,000 RPM
  • Spindle Nose To Table (Min-Max): 3.5 in – 24 in
  • Table Diameter: 15.7 in
  • Max Weight On Rotary/ Trunnion Table: 550 lbs
  • T-Slot Size: 6 x .48 in x 60°

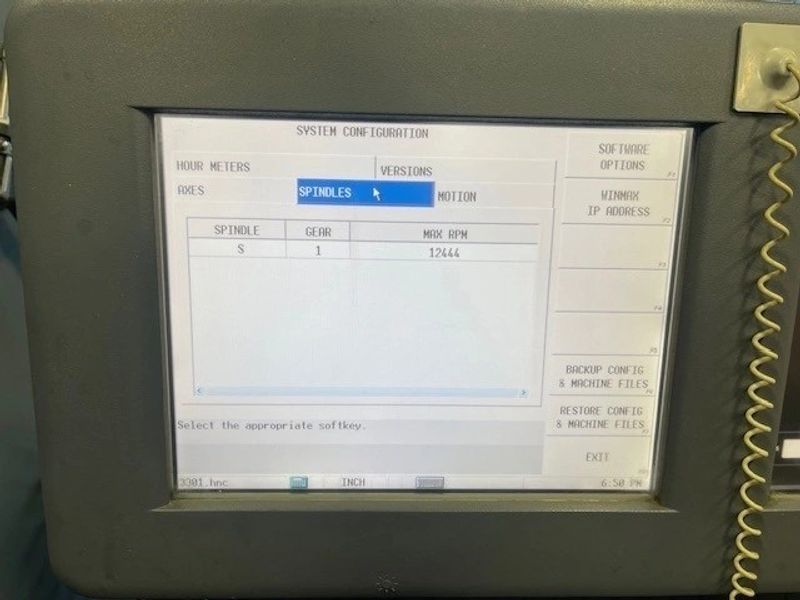

  • Max. Spindle Speed: 12,000 rpm
  • Peak Spindle Motor: 20 hp
  • Spindle Torque (Peak – 1 Min): 176.1 ft. lbs @ 720 rpm
  • Tool Type: CAT 40
  • Number Of Tools: 40
  • Max Tool Diameter: 3.0 in
  • Max Tool Length: 11.8 in
  • Max Tool Weight: 15.4 lb
  • Rapid Traverse X,Y,Z Axis: 1,496, 1,496, 1,260 in/min
  • Max Programmable Feedrate: 1,260 in/min
  • Rapid Traverse A, C Axis: 25 rpm

Equipped With

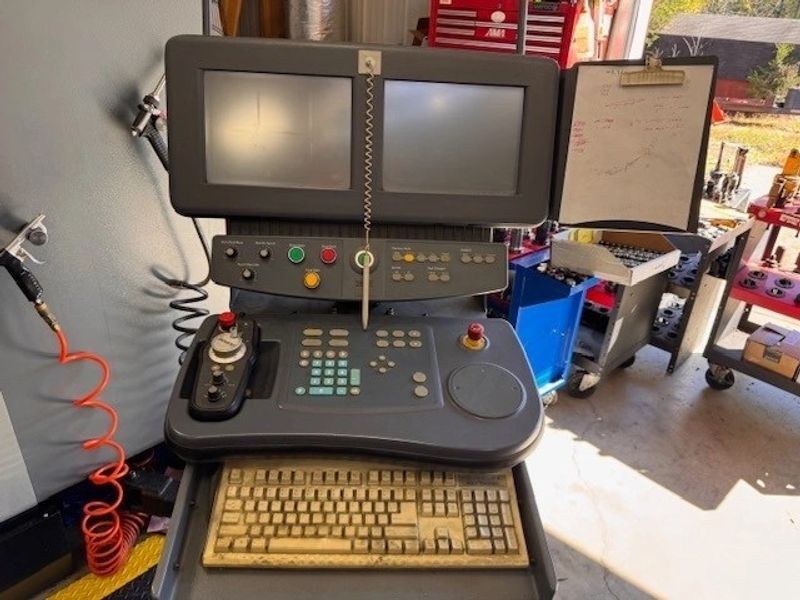

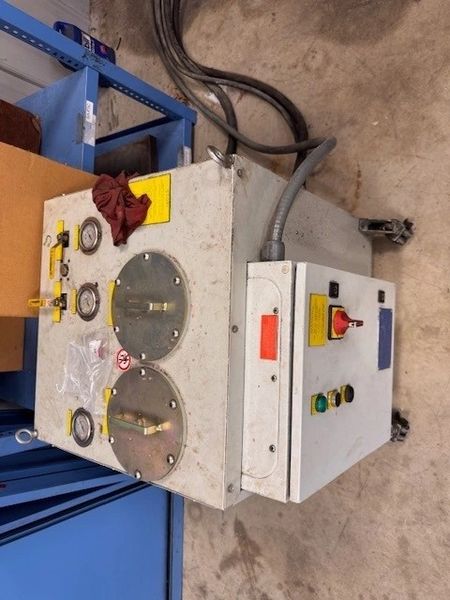

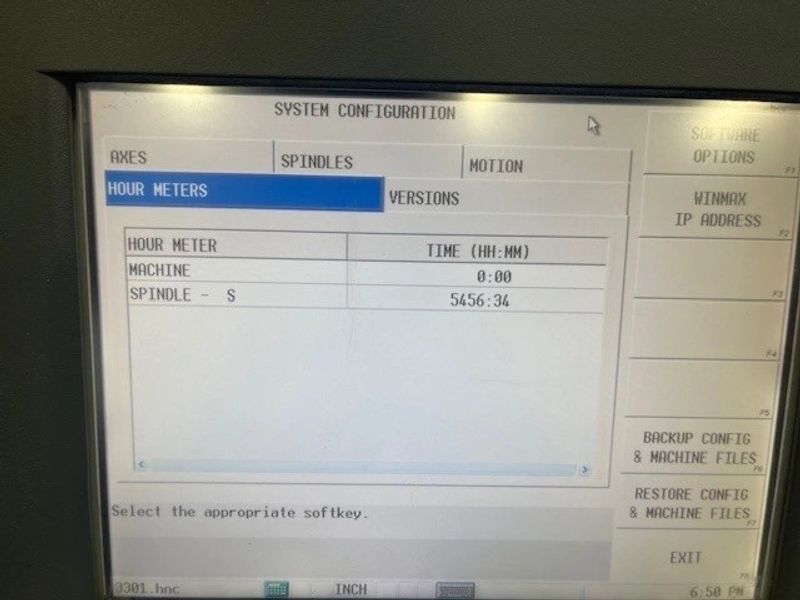

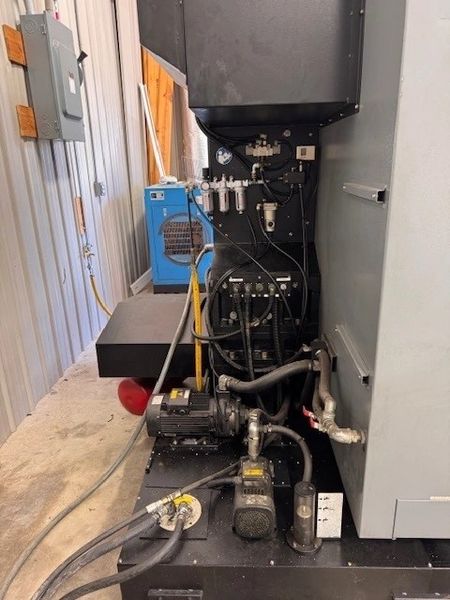

Hurco Winmax Dual-Screen Control, Renishaw Wireless Tool Presetter And Spindle Probe, High Pressure Coolant Pump, Chip Conveyor
