2022 FICEP Energy 3202GDX Beam/Drill Lines #8391

Manufacturer

FICEP

Stock

8391

Model

Energy 3202GDX

Dealer Location

California

Spec Sheet

Overview

Type:
Beam Lines/ Drill Lines
Manufacturer:
FICEP
Model:
Energy 3202GDX
Year:
2022
Stock #:
8391
Status:
For Sale
Country:
United States

Description

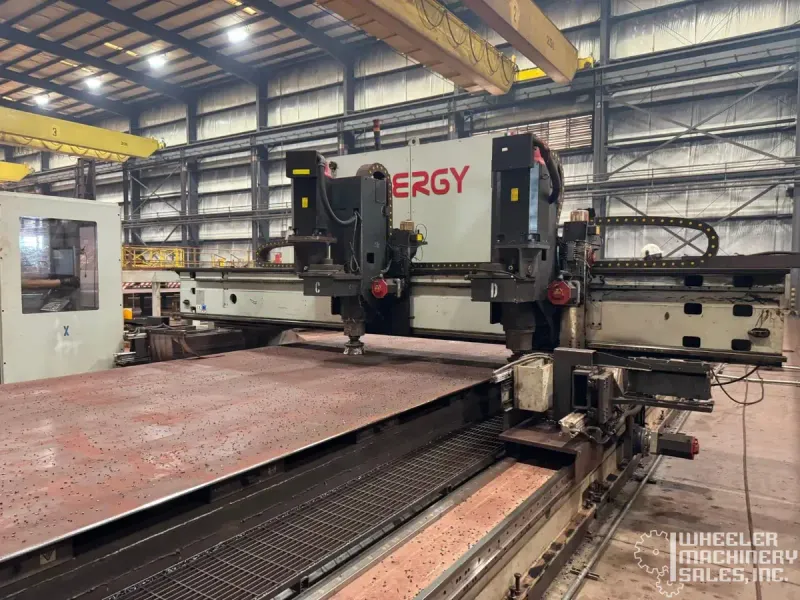

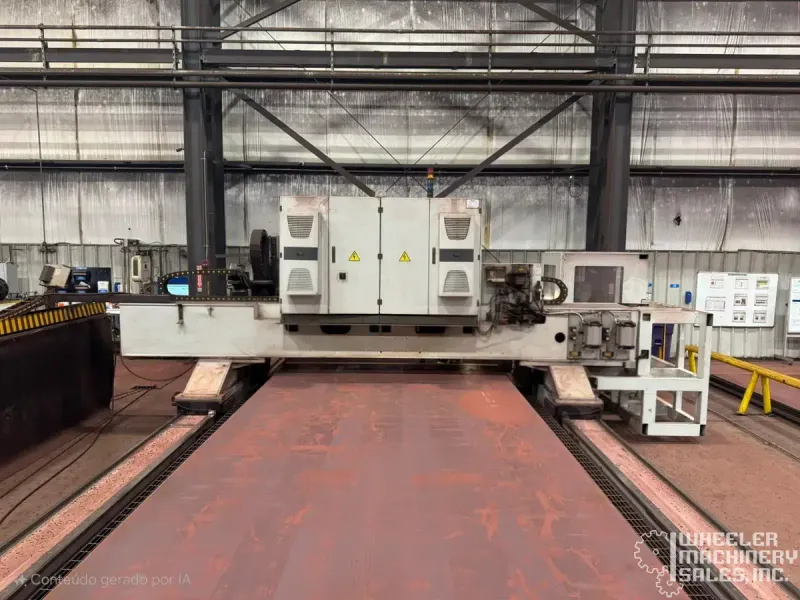

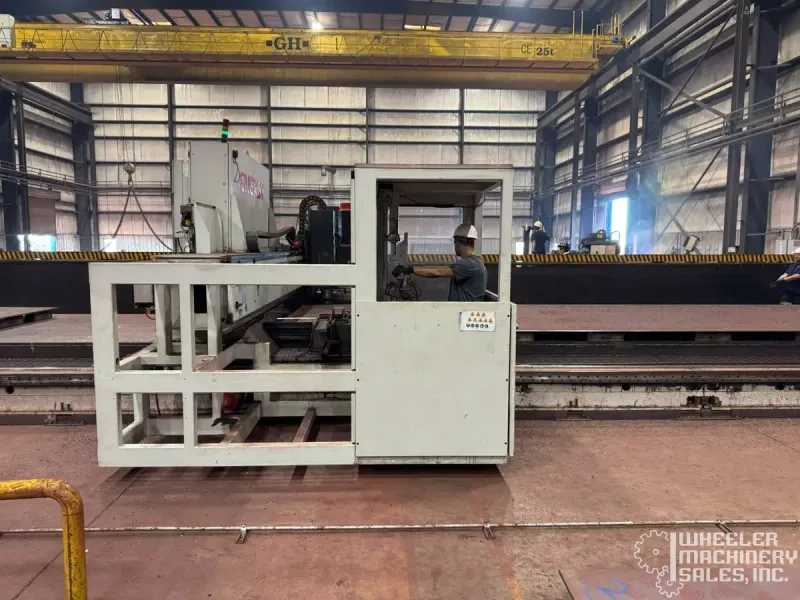

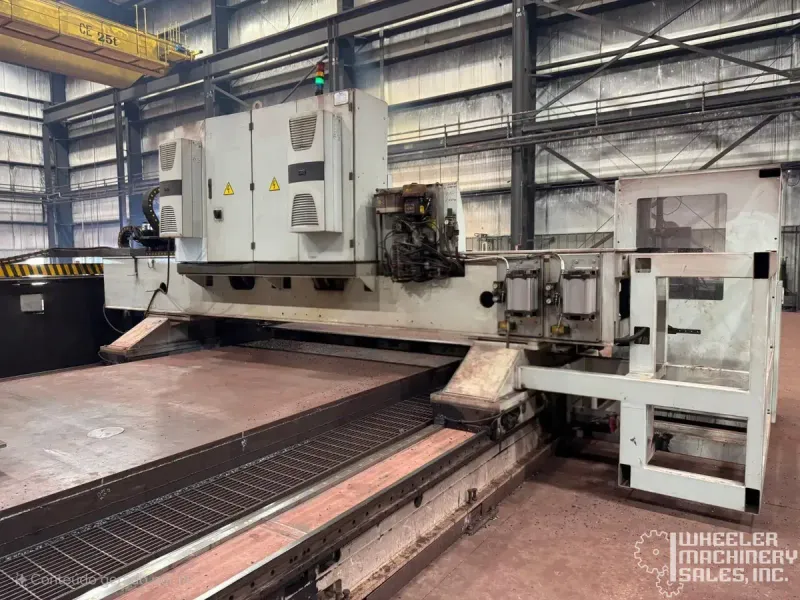

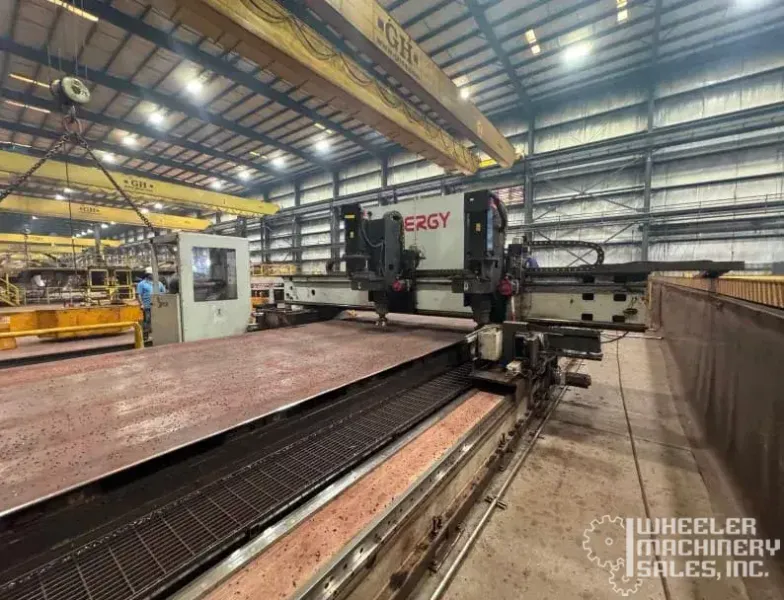

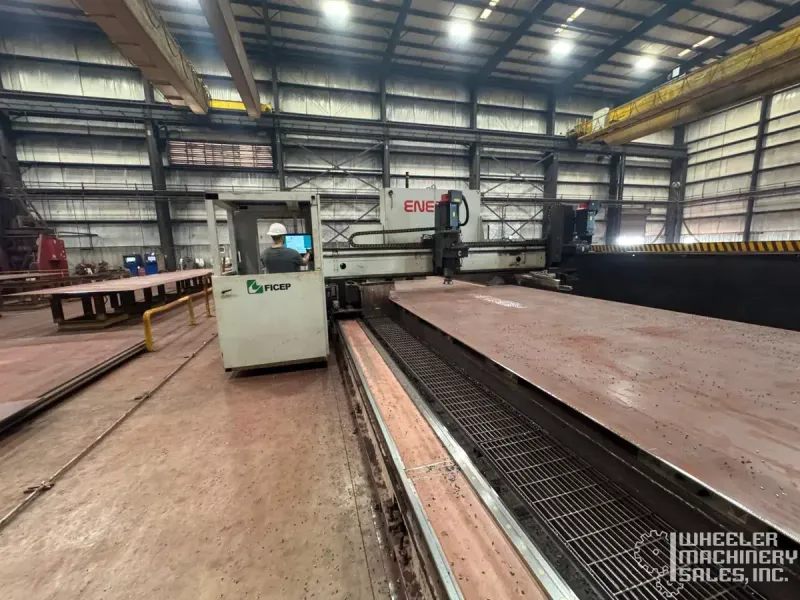

2022 FICEP Energy 3202GDX Beam Line, pre-owned and professionally maintained. Ideal for industrial applications, this machine offers advanced features and reliable performance for efficient beam processing. Excellent choice for robust production needs.

2022 FICEP Energy 3202GDX Beam/Drill Lines #8391

SPECIFICATIONS :

Plate Thickness: 10 - 140 mm
Spindle Drill Feed Rate: 40 - 1000 mm/min
Plate Width: 100 - 3200 mm
Spindle Fast Approach/Return Speed: 20 m/min
Plate Max Length: 28000 mm
C-Frame Max Longitudinal Speed: 30 m/min

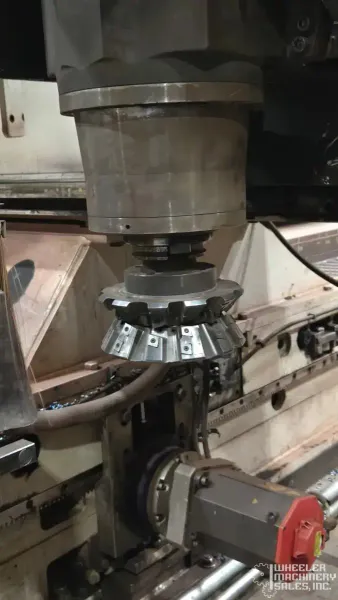

Max Diameter of Milling Tools: 300 mm
Mill Heads Cross Positioning Speed: 30 m/min
Max Drilling Thickness: 140 mm
Machine Weight: 25000 Kg
Spindle Drive Performance (S1): 40 kW
Power Requirement: 400V - 50Hz - 3 Ph
Spindle Rotation Speed: 5000 RPM

EQUIPPED WITH :

1 Spindle Per Vertical Drill Head

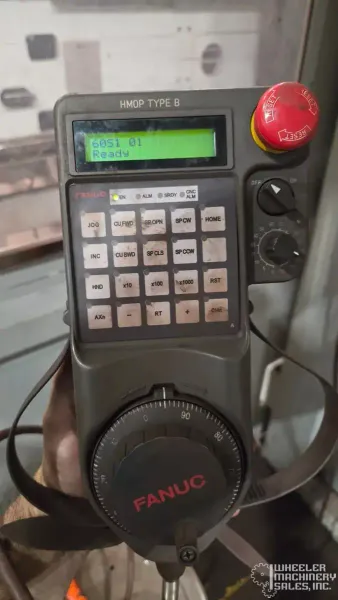

Ficep Pegaso Control

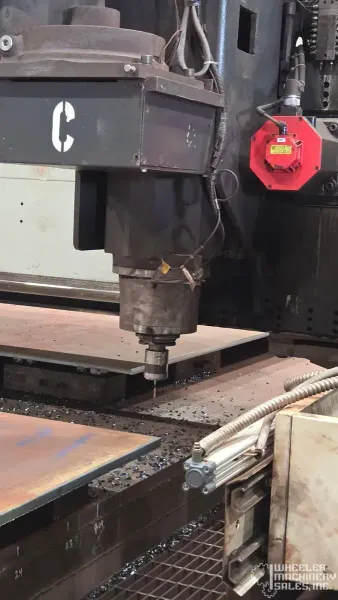

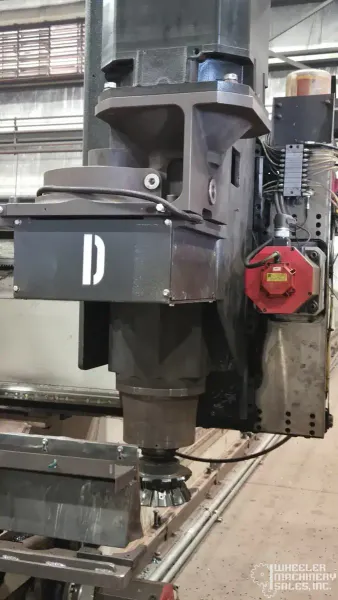

2 Vertical Milling/Drilling Heads
ISO 50 Big Plus Toolholder
3D Graphics
On Board Distribution System
Automatic Device to Detect Piece Plate Orientation
Tool Change Systems with 3 Positions
Drilling Programming
Windows 10 Operative System
