BRIDGEPORT EZ TRAK 2-AXIS TOOLROOM MILLING MACHNE 9" X 42" #8389 #1

Manufacturer

BRIDGEPORT

Category

Milling Machines

Type

MILLERS, VERTICAL

Stock

8389

Model

EZ TRAK

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
MILLING MACHINES, VERTICAL
Manufacturer:
BRIDGEPORT
Model:
EZ TRAK
Stock #:
8389
Status:
For Sale
Serial #:

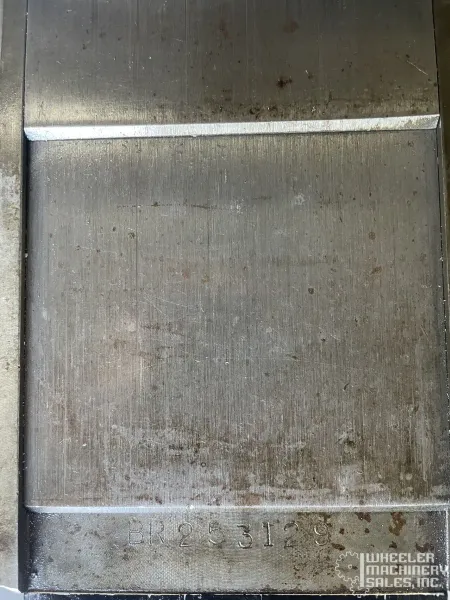

BR253129
Country:
United States

Description

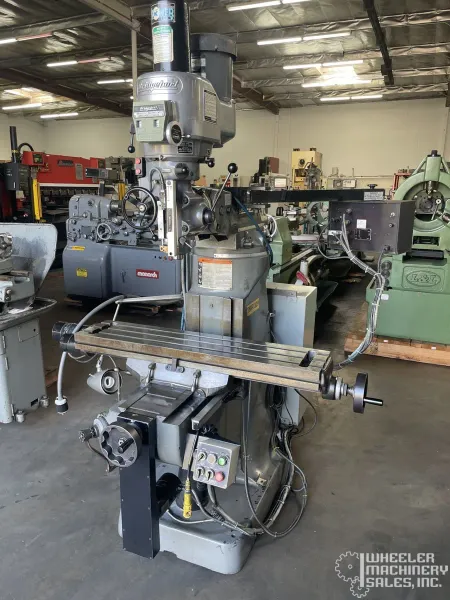

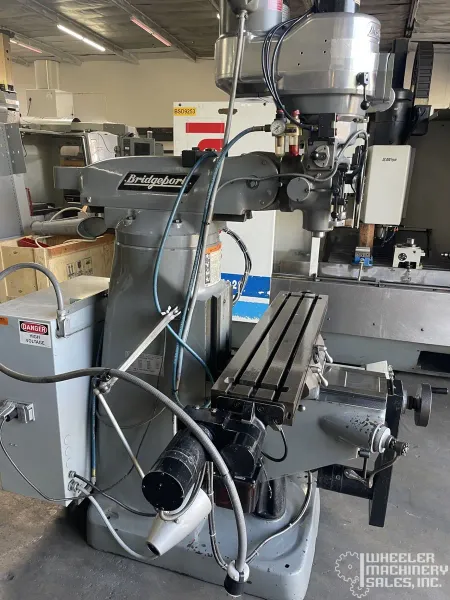

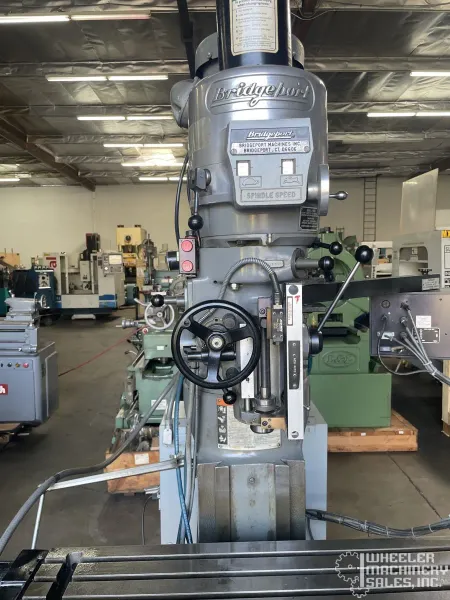

Used Bridgeport 2-AXIS EZ Trak Toolroom Milling Machine, 9" x 42". Variable spindle speeds (60-4200 RPM), and R-8 spindle taper.

BRIDGEPORT 2-AXIS EZ TRAK TOOLROOM MILLING MACHNE 9" X 42" #8342

SPECIFICATIONS:

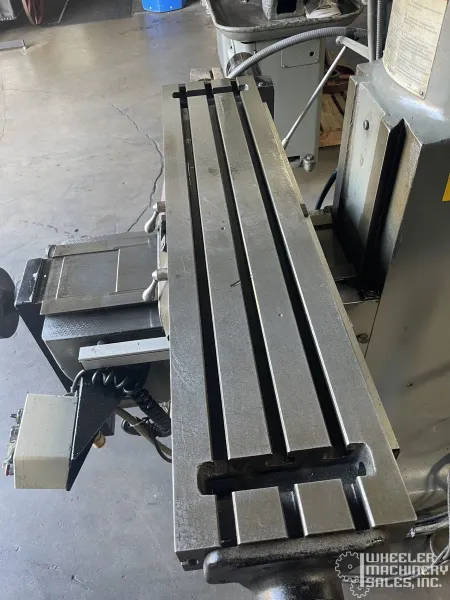

Table Size 9" x 42"
Longitudinal Travel 30"
Cross Travel 12"
Vertical Knee Travel 16"
Spindle Speeds (Variable) 60-4200 RPM
Spindle Taper R-8
Spindle Quill Travel 5"
Positioning Speed (X-Y Axis) 100 IPM
Feed Rate (X-Y Axis, Variable) 0.1-100 IPM
Spindle Quill Feeds (3) 0.0015" - 0.003" - 0.006"
Ram Travel 12"
Distance, Table To Spindle Nose 2 1/2" - 18 1/4"
Throat Distance 6 3/4" - 18 3/4"
Weight 2300 Lbs.

EQUIPPED WITH:

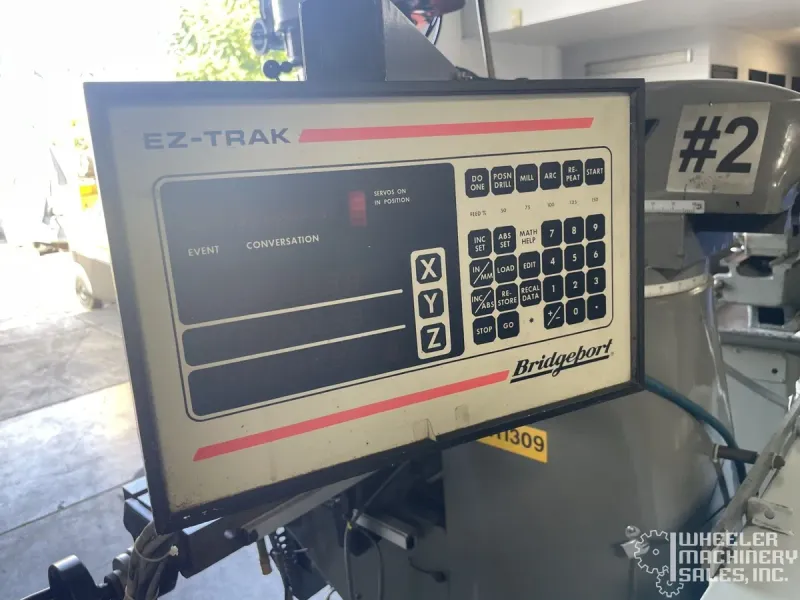

Bridgeport EZ TRAK Control
Bijur Spray Mist Coolant System
Auto-Lube System
Chrome Ways
2 H.P. Motor
