FADAL VMC-2016L Vertical Machining Center #8385 #1

Manufacturer

FADAL

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

8385

Model

VMC-2016L

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
MACHINING CENTERS, VERT., N/C & CNC
Manufacturer:
FADAL
Model:
VMC-2016L
Stock #:
8385
Status:
For Sale
Serial #:
012003105744
Country:
United States

Description

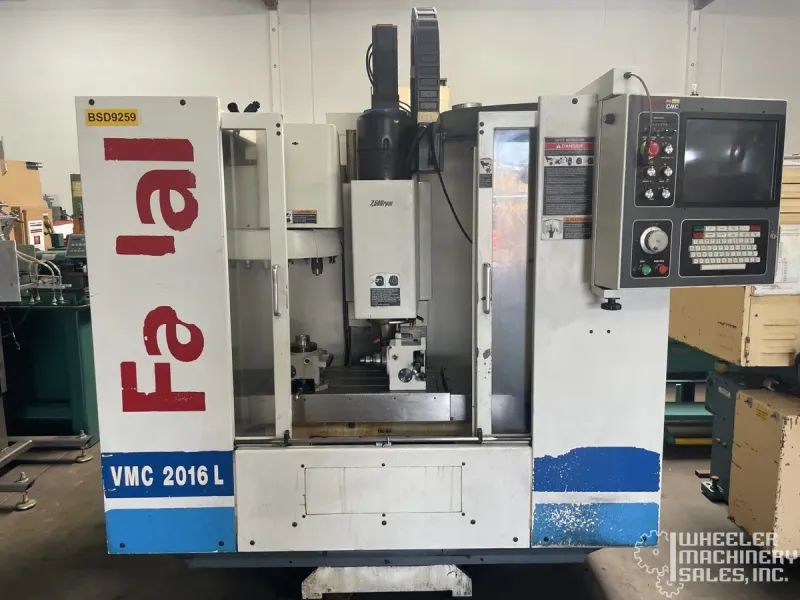

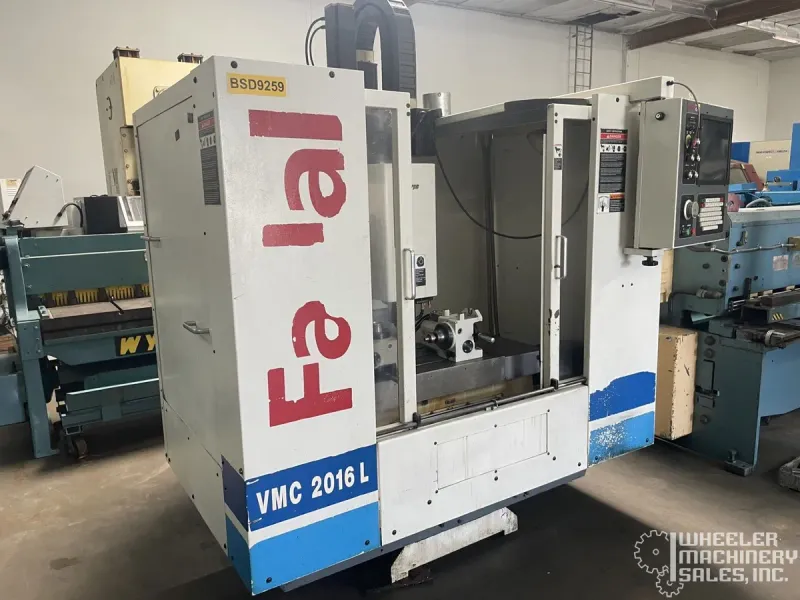

FADAL VMC-2016L Vertical Machining Center: X/Y/Z travel 20"/16"/28", 15 HP motor, spindle speed 10-15,000 rpm, spindle taper 40, auto tool changer 20+1. Table holds up to 2,000 lbs. Equipped with Fadal CNC 32MP Control.

FADAL VMC-2016L Vertical Machining Center #8385 #1

SPECIFICATIONS:
Longitudinal (X Axis) Travel: 20″
Cross (Y Axis) Travel: 16″
Vertical (Z Axis) Travel: 28″
Table Size: 29.5″ x 16″
Floor to Table: 30.5″
Cutting Feed Rate: 0.01-250 ipm (375 @ 150%)
Rapid Feed Rate (X/Y/Z): 500 ipm (X/Y/Z)
Max. Weight on Table: 2,000 lbs.

Spindle Nose to Table: 4″- 32″
Spindle Center to Column Ways: 17″
Main Motor (Auto 2 Speed Vector): 15 HP, 11.2 KW
Spindle Speed 10 – 15,000 rpm
Spindle Taper: 40
Auto Tool Changer: 20 + 1
ATC, Tool Selection: Random, Bi-directional
Max. Tool Diameter: 3″ (4.5″ w/o adjacent tools)

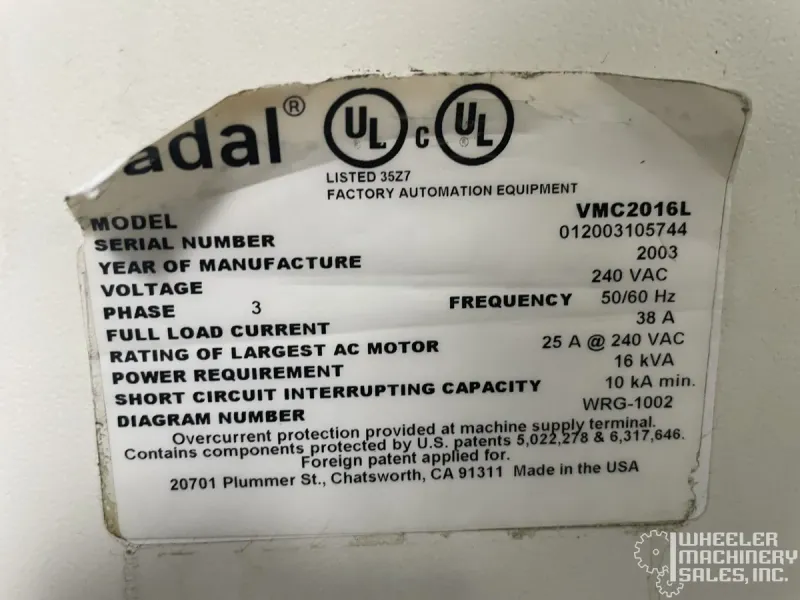

Power: 230/440 VAC, 3 Ph, 60 Hz
Air required (Momentary): 120 psi, 15 scfm
Machine Dimensions (l x w x h): 77″ x 75″ x 101″
Machine Weight 5,800 lbs.

EQUIPPED WITH:

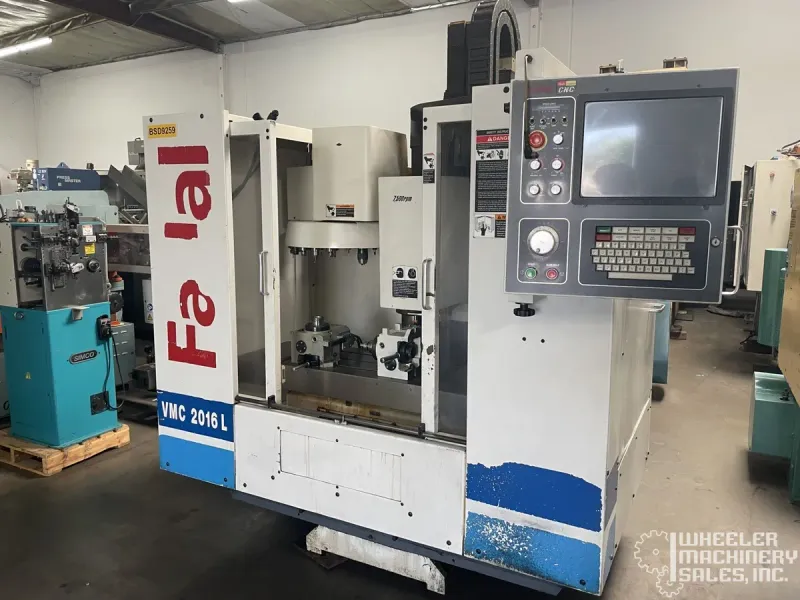

Fadal CNC 32MP Control
Extended Z Axis
15,000 RPM Spindle
Automatic 2 Speed Vector Drive
Linear Ways
