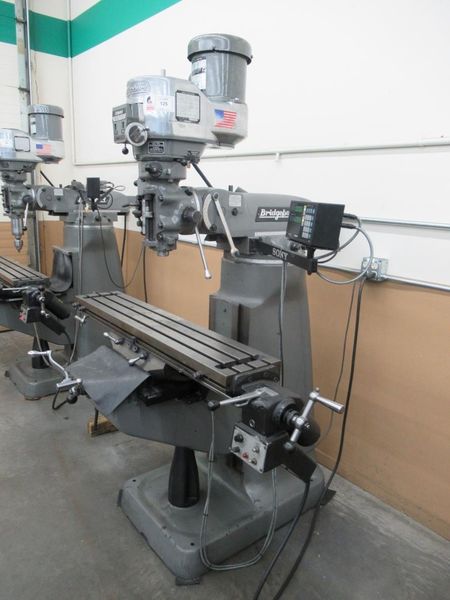

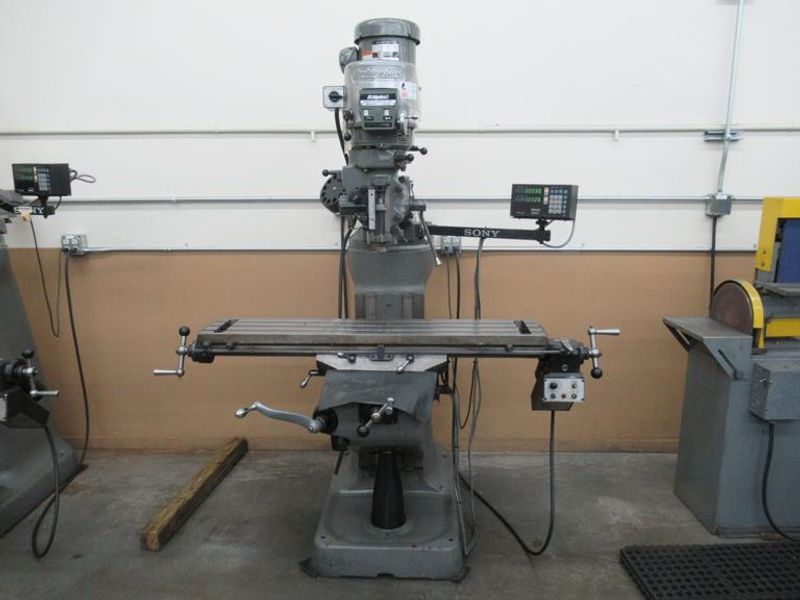

Bridgeport Series I-2HP Vertical Knee Mill, Sony Millman 2-Axis DRO, 9"x 48" Table, X-Axis Power Feed, Power Quill Feed, Chrome Ways- Auction Item

Manufacturer

Bridgeport

Category

Milling Machines

Type

MILLERS, KNEE, CNC

Stock

Lot No.: 125

Model

Series I

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

View Auction Item at: https://www.machinesused.com/lots/51815" shenjian-bridge-node-id="sjb-1790953682155-87942">,

  • Payment Info

  • Terms

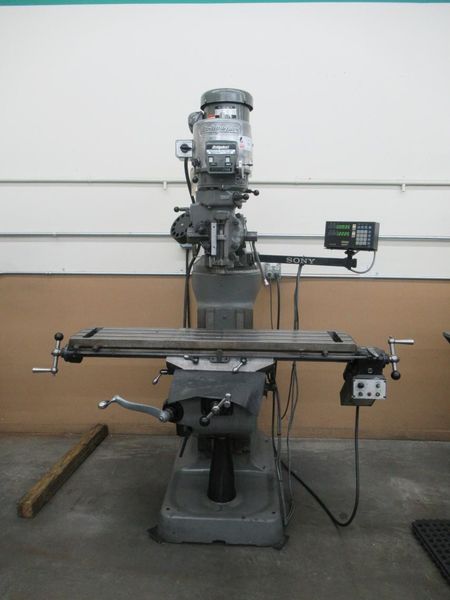

Lot 125: Bridgeport Series I-2HP Vertical Knee Mill, Sony Millman 2-Axis DRO, 9"x 48" Table, X-Axis Power Feed, Power Quill Feed, Chrome Ways
Equipped With:

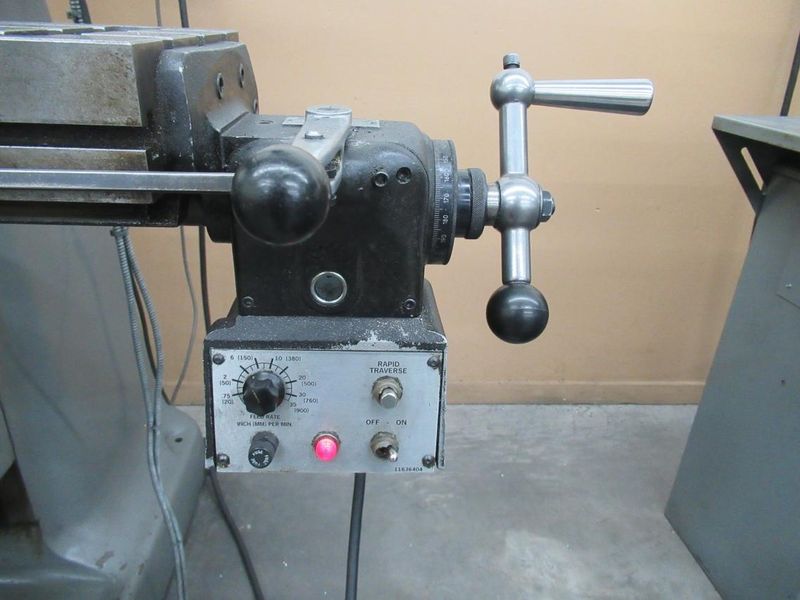

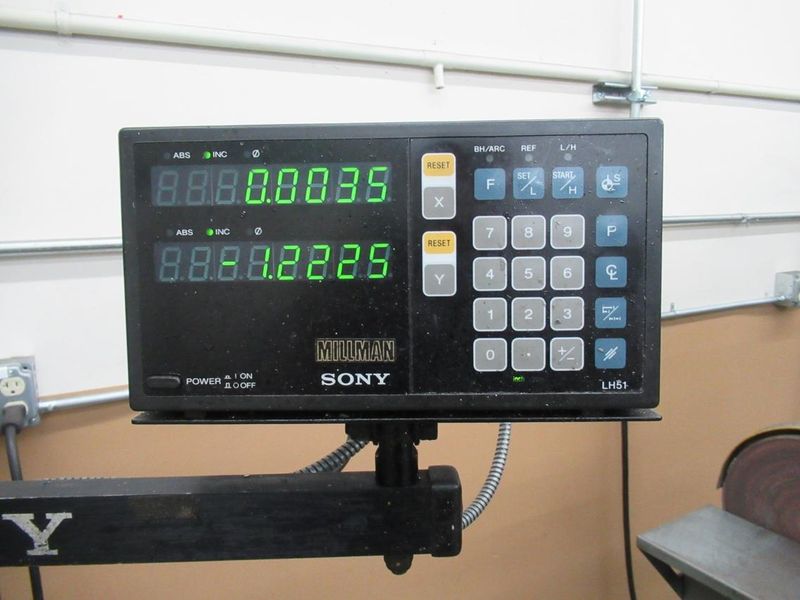

Sony Millman 2-Axis DRO, 9" x 48" T-Slotted Table, Bridgeport Variable Speed X-Axis Powerfeed, Variable Speed, Power Quill Feed, Chrome Ways, Bijur Lube Pump

Description:

The Bridgeport Series I Knee Mill is one of the most iconic manual milling machines ever produced. Renowned for its versatility, durability, and precision, the Series I has been the backbone of toolrooms and maintenance departments for generations. Its variable-speed head, rigid knee design, and wide selection of available tooling make it suitable for drilling, boring, slotting, and light production milling operations.

Used Bridgeport Series I knee mills remain in high demand due to their long service life, ease of operation, and adaptability across industries ranging from aerospace and defense to education and general manufacturing. MachinesUsed.com regularly buys, sells, and consigns Bridgeport Series I mills in a variety of configurations and conditions.

Electrics:

230/460 Volt, 3 Phase

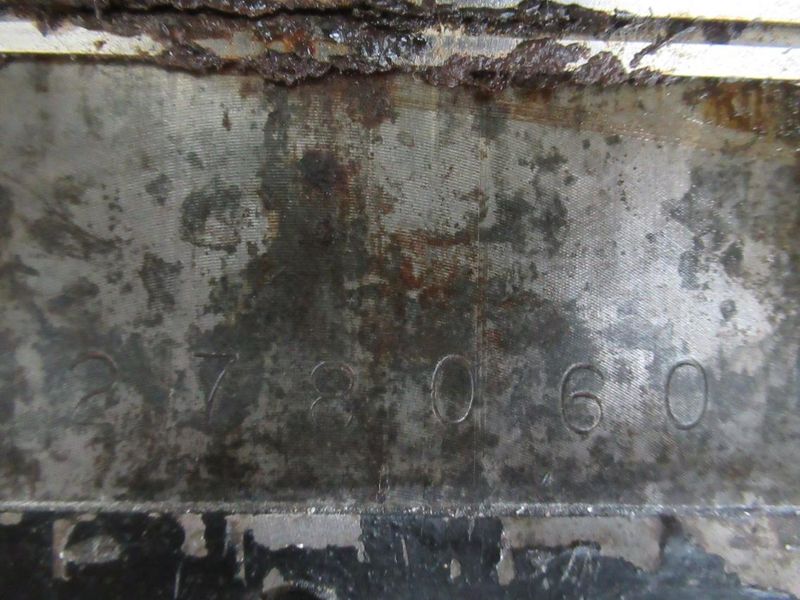

Manufacturer: Bridgeport Model: Series I Year: 1998 Serial Number: 278060
Main Unit Approx Weight: 2500.00 lbs
Main Unit Dimensions (in inches): Length: 58.00"  Width: 65.00"  Height: 78.00"
Specs:

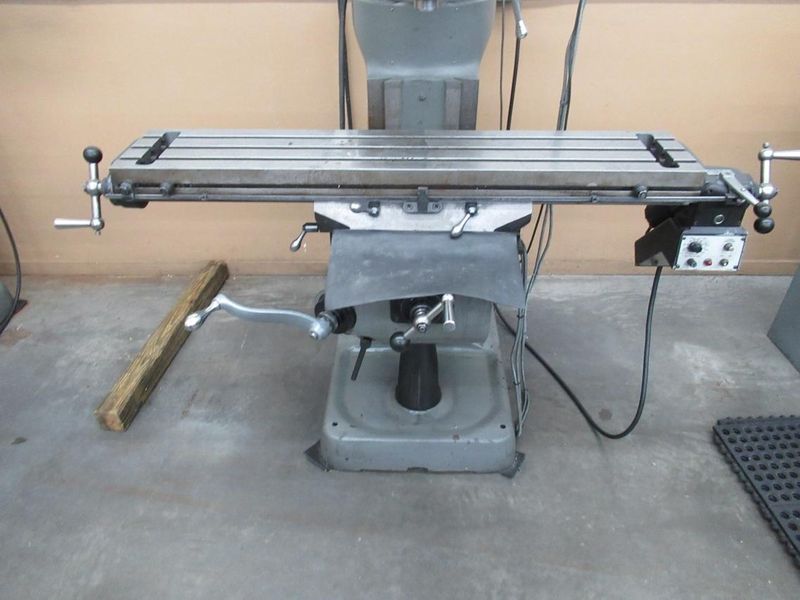

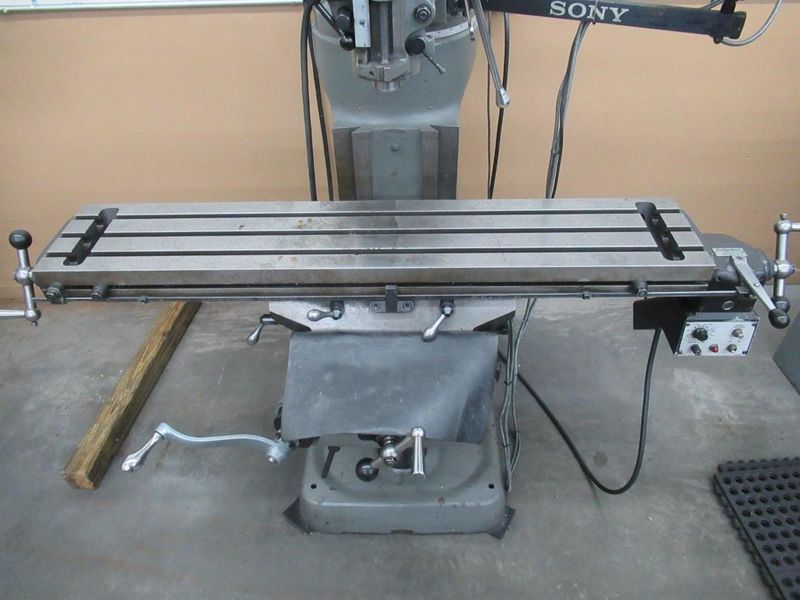

Table Size: 9" x 48"
Longitudinal Travel: 36" for 48" Table
Cross Travel: 12"
Quill Travel: 5" Power Feed
Knee Travel: 16"
Power Quill Feeds: (3) .0015 / .003 / .006 IPR
Spindle Taper: R-8

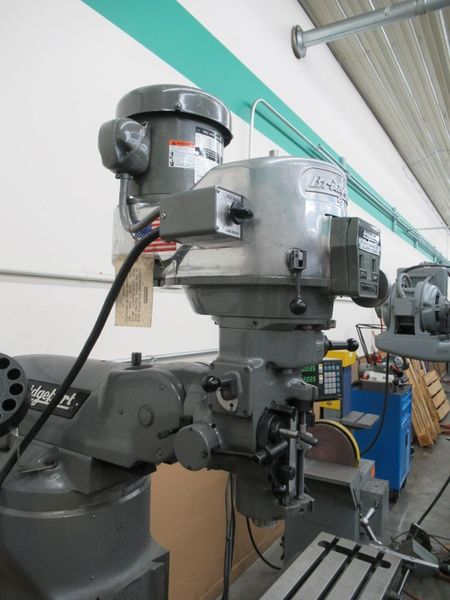

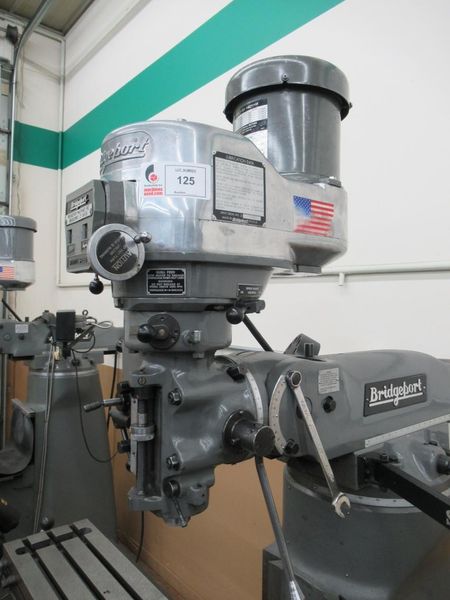

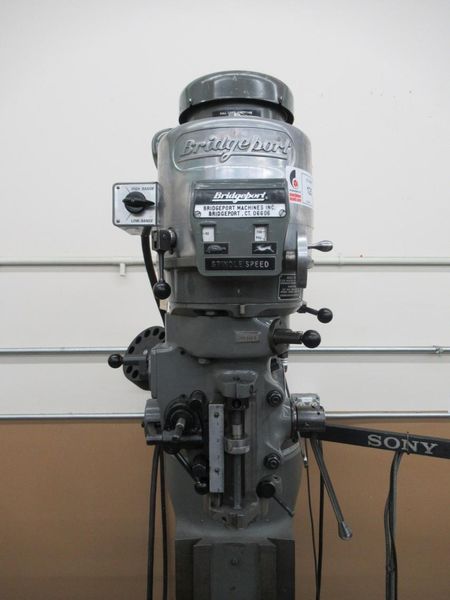

Spindle Speeds: 60-4200 RPM Variable
Spindle Nose to Table Min-Max: 2.5" - 18.75"
Spindle Drive: 2 HP
Spindle Center to Column Distance: 6.75" - 18.75"
Overarm Ram Adjustment: 12" Manual Adjustment
Max Table Load: 750 Lbs.
Head Swivel Left to Right: +/- 90 Degrees
Head Tilt Front to Back: +/- 45 Degrees
Seller Company: Paradigme Engineering - A Velosity Company
Seller Contact: Machinesused.com Phone: (763) 745-1166
Item Location: Paradigme Engineering - A Velosity Company, 14085 Commerce Drive, Becker, MN 55308
Location Contact: Machinesused.com Phone: (763) 745-1166
Inspection Date & Time: Friday, October 23, 2026 9AM-4PM
Dock Door: 12' x 12' Ground Level Door
Loading Dock: 8' x 8' Loading Dock
Removal Dates and Times: This item must be removed between Monday, November 2, 2026 and Thursday, November 5, 2026
