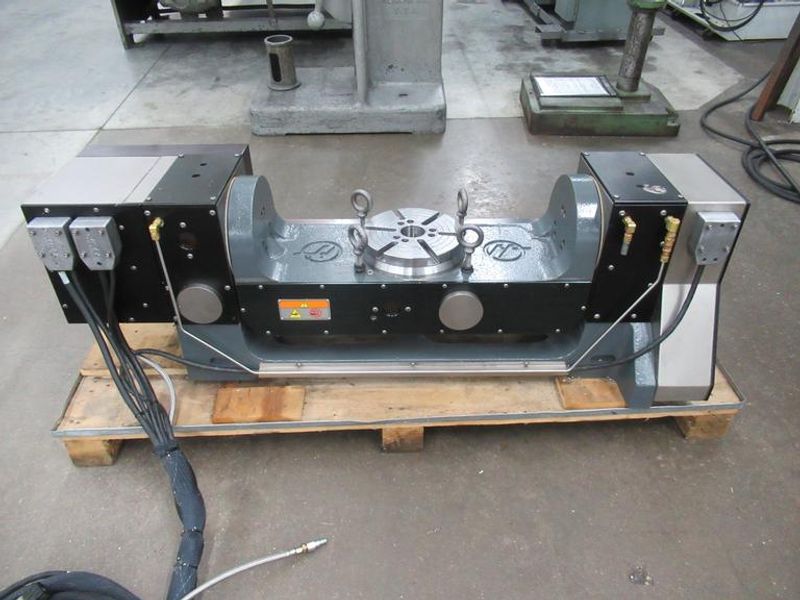

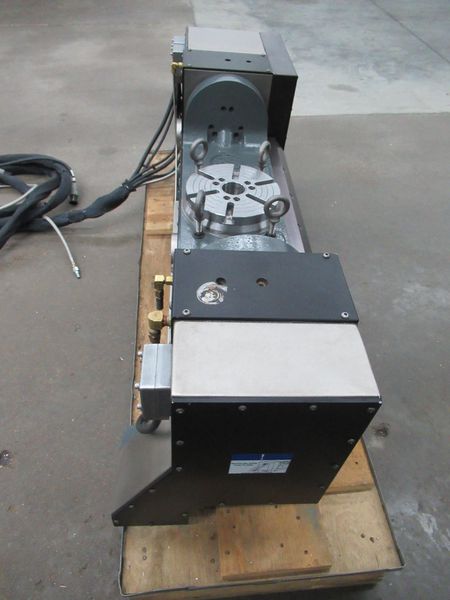

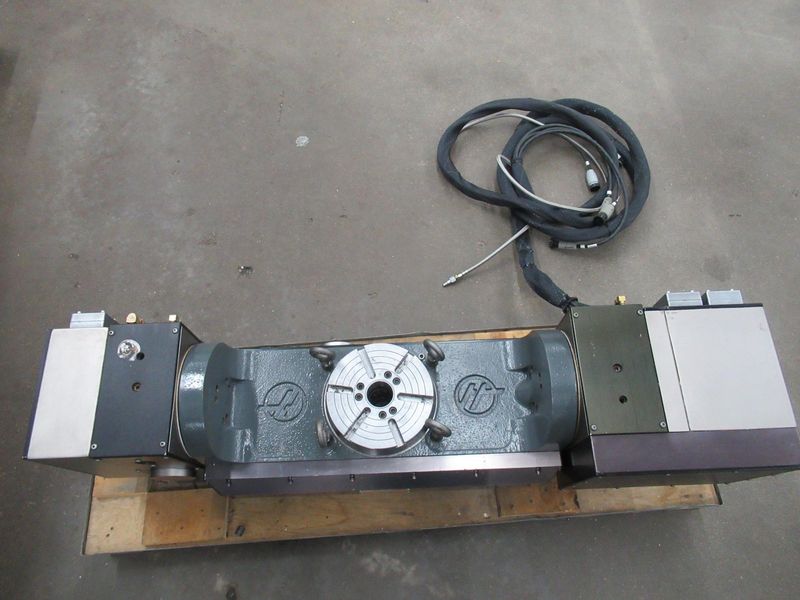

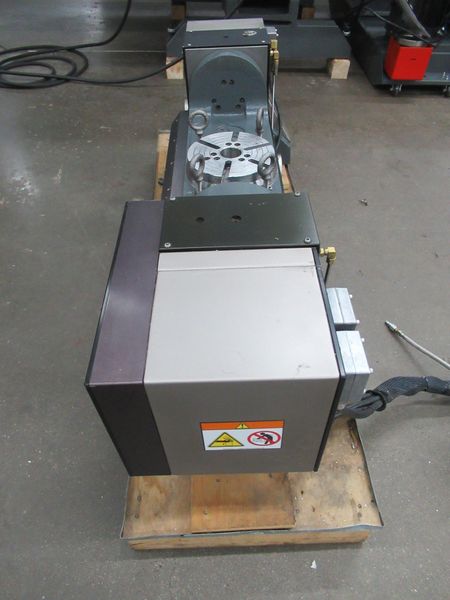

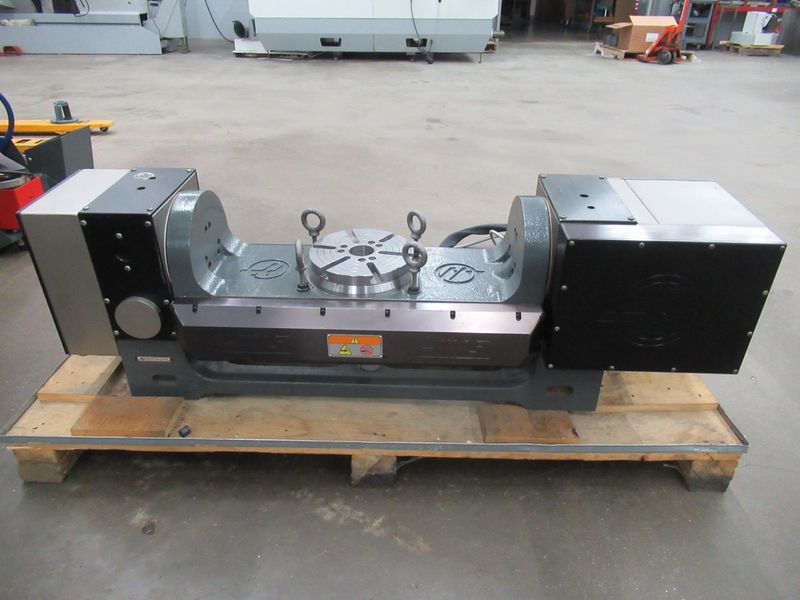

Haas TR-210 Trunnion Type 2-Axis Rotary Table 8.25" Diameter Platen, Sigma-5 Brushless Servo Motors

Manufacturer

Haas

Category

Tooling & Accessories

Type

ROTARY TABLES

Stock

7428

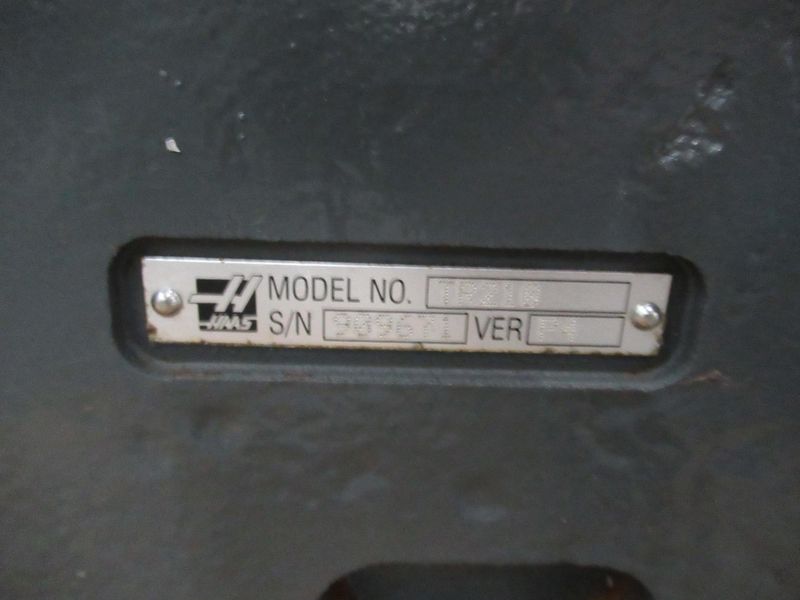

Model

TR210

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

A Axis (Tilt) Max Speed: 60 Degrees per Second

A Axis (Tilt) Max Torque: 300 ft-lbf

A Axis (Tilt) Gear Ratio: 90:1

A Axis (Tilt) Brake Torque: 400 ft-lbf

B Axis (Rotary) # of Heads / Platens: 1

B Axis (Rotary) Max Speed: 60 Degrees per Second

B Axis (Rotary) Max Torque: 210 ft-lbf

B Axis (Rotary) Gear Ratio: 90:!

B Axis (Rotary) Resolution: 0.001 Degree

Platter Diameter: 8.30"

Max Weight on Platter: 200lb

Part Swing Max: 23.5"

A Axis (Tilt) Indexing Max Rotation/Step: +/- 120 Degrees

A Axis (Tilt) Indexing Resolution: 0.001 Degree

A Axis (Tilt) Indexing Accuracy: +/- 15 Arc Second

Description:
The Haas TR-210 is a compact dual-axis trunnion rotary table designed to add full 4th and 5th-axis machining capabilities to compatible Haas vertical machining centers. Ideal for complex part production, it provides accurate positioning, reduced setups, and improved machining efficiency.
Equipped With:

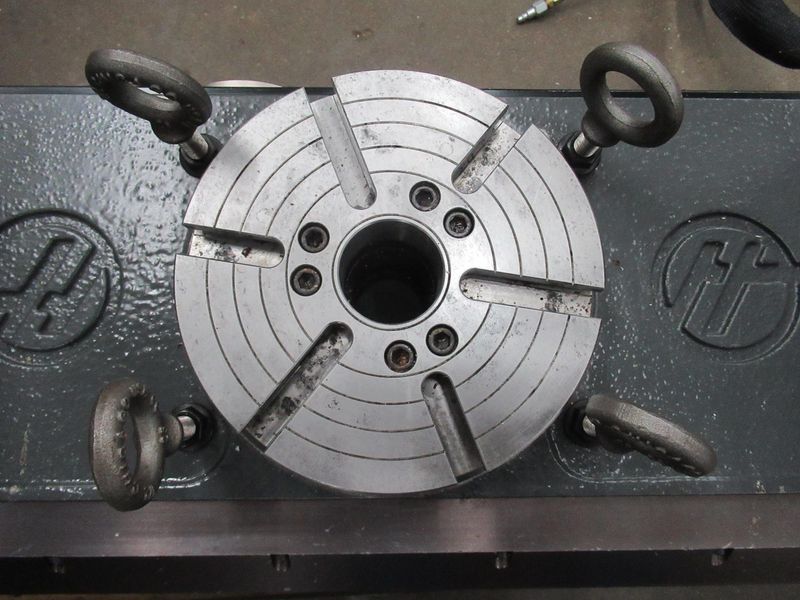

120mm Work Platen (8.25") Brushless Sigma 5 Servo Motor, Cables and Connectors

Electrics:

115 Volt, Single Phase
