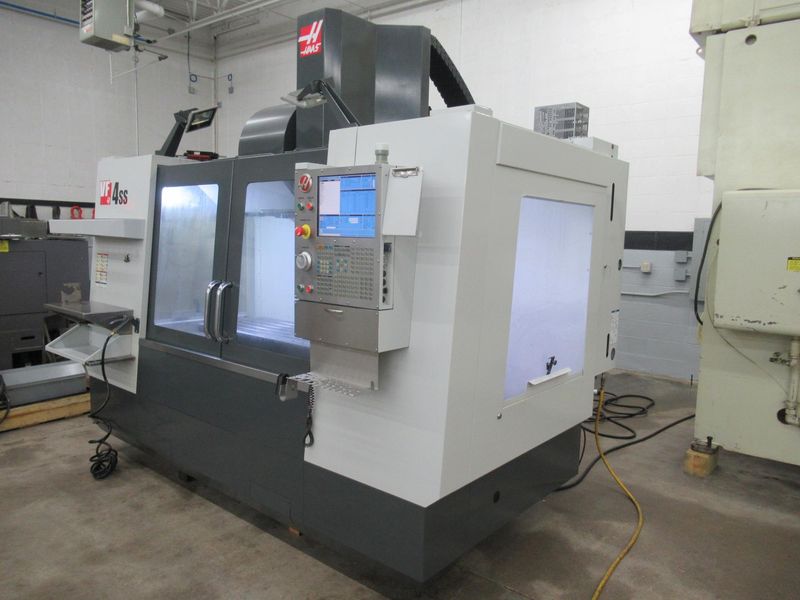

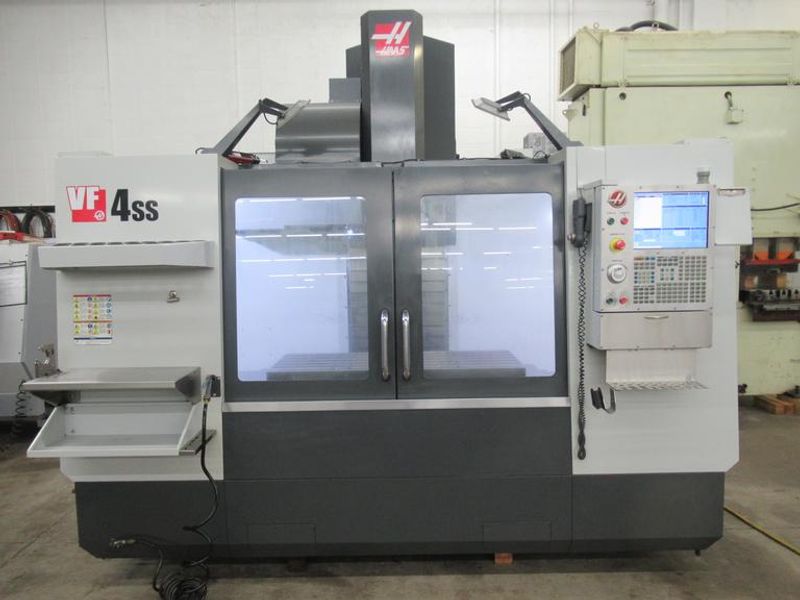

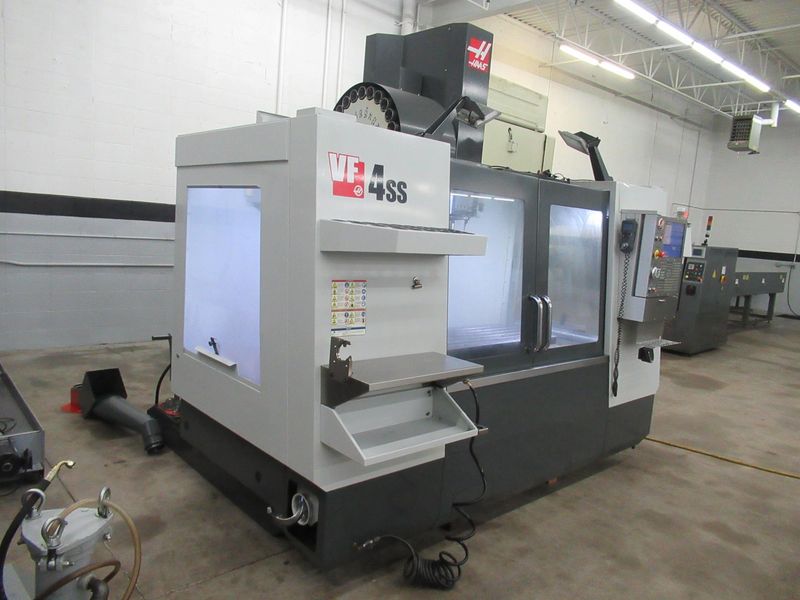

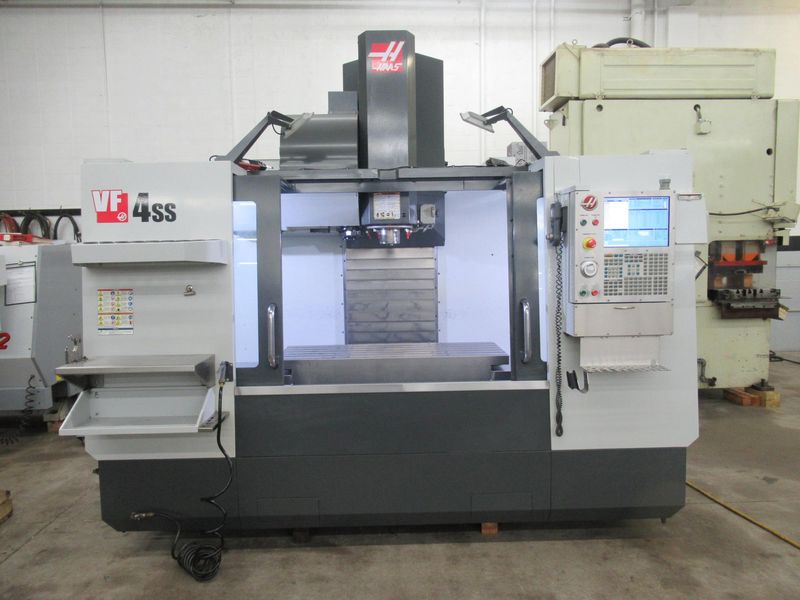

Haas VF-4SS CNC Vertical Machining Center, 50"x20"x25", 12K Spindle, Chip Auger, 4th Axis, 24 ATC

Manufacturer

Haas

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

7419

Model

VF-4SS

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

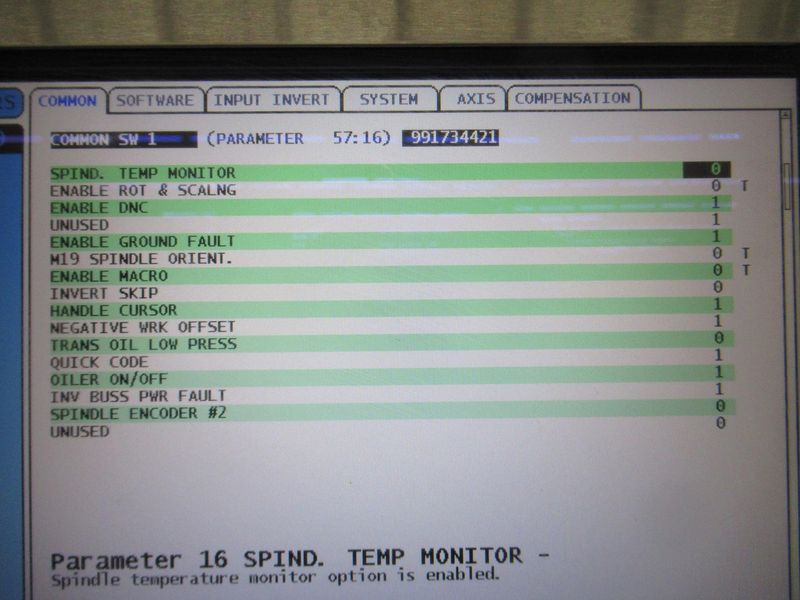

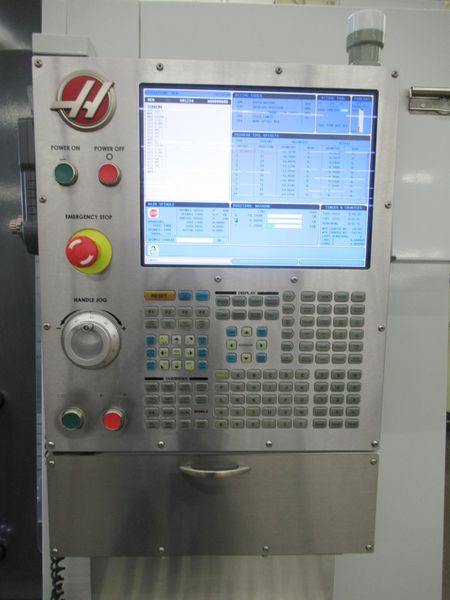

Machine Control: Haas MainCon CNC Control

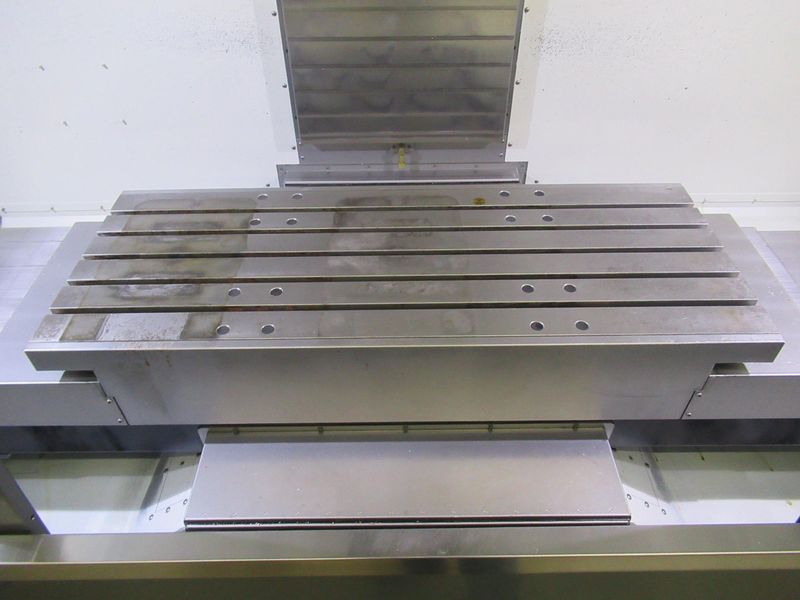

Table Size: 52" x 19.5"

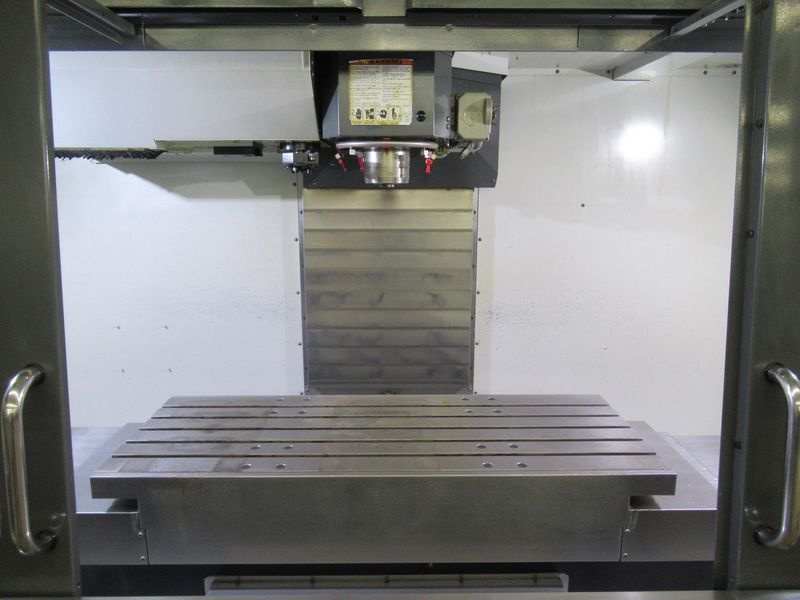

Machine Travels (X/Y/Z): 50" x 20" x 25"

Spindle To Table Distance: 4" - 29"

Table Capacity: 1,750 Lbs.

Rapid Traverse Rate (X/Y/Z): 1,400 IPM

Maximum Cutting Feed Rate: 833 IPM

Spindle Taper: Cat 40

Spindle Speeds: 12,000 Max RPM

Transmission: Direct Inline Drive

Tool Changer Style: Side-Mount Twin-Arm

Tool Changer Capacity: 24+1 Stations

Tool Change Time: 1.6 Seconds Tool to Tool

Max Tool weight: 12 Lbs.

Spindle Drive: 30 HP Vector Drive

Description:
Used Haas VF-4SS Vertical Machining Centers are known for their speed, reliability, and exceptional machining performance. Designed for manufacturers seeking increased productivity, the VF-4SS combines a spacious work envelope with fast rapids and high spindle speeds. Browse MachinesUsed.com's inventory of Haas VF-4SS CNC mills and find quality used equipment for your machining operation.
Equipped With:

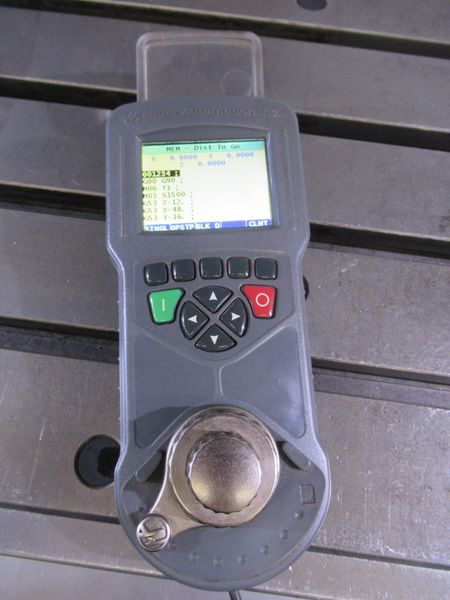

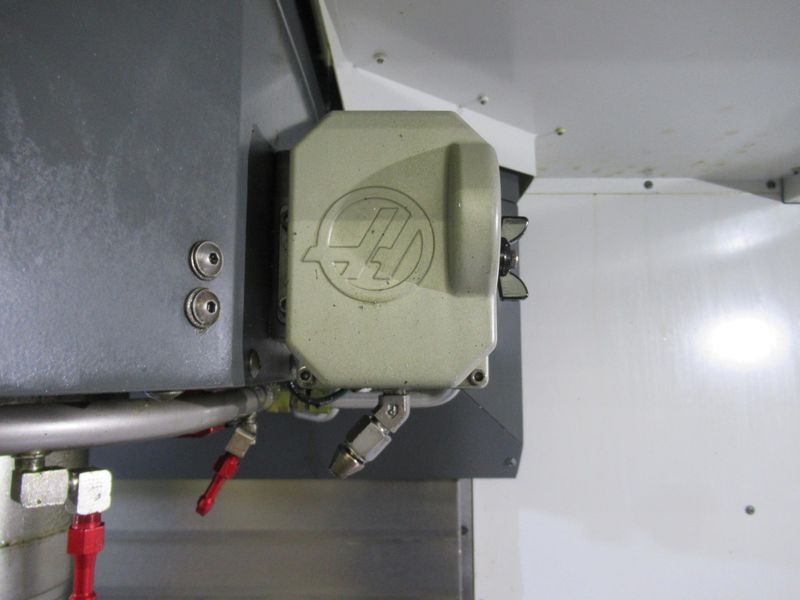

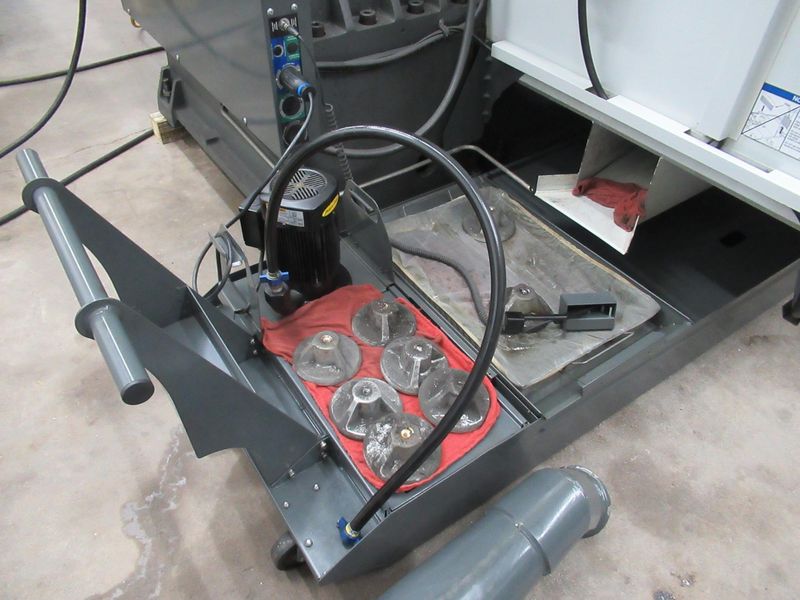

Haas MainCon CNC Control, 12,000 RPM Max Spindle Speed, CT40 Spindle Taper, 24 Station Side-Mount Twin-Arm Automatic Tool Changer, 4th Axis Brushless Drive and Interface (Sigma 1), Remote Jog Handwheel, Thr-Spindle Coolant Ready, Rigid Tapping, Programmable Coolant Nozzle, Chip Auger, Coolant Pump and Tank, 6 Machine Pads

Electrics:

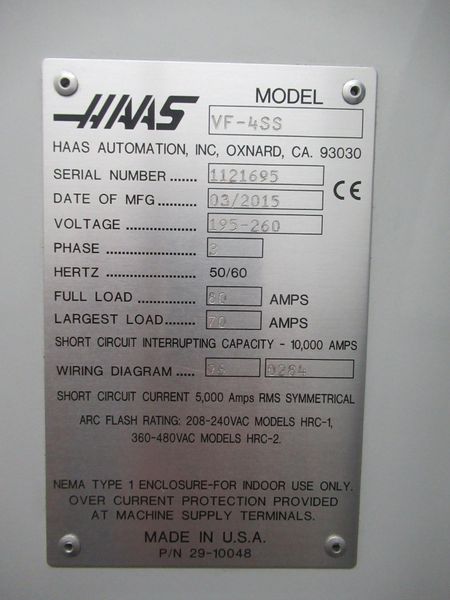

195-260 Volt, 3 Phase
