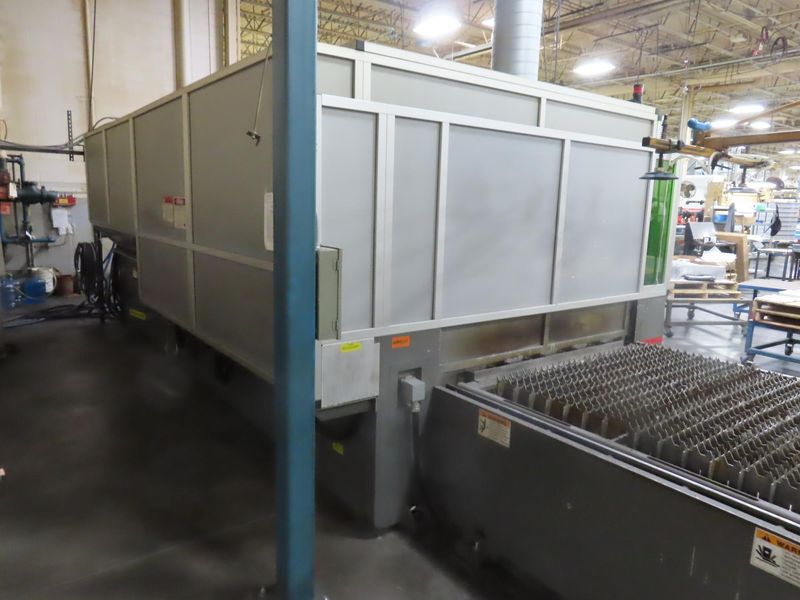

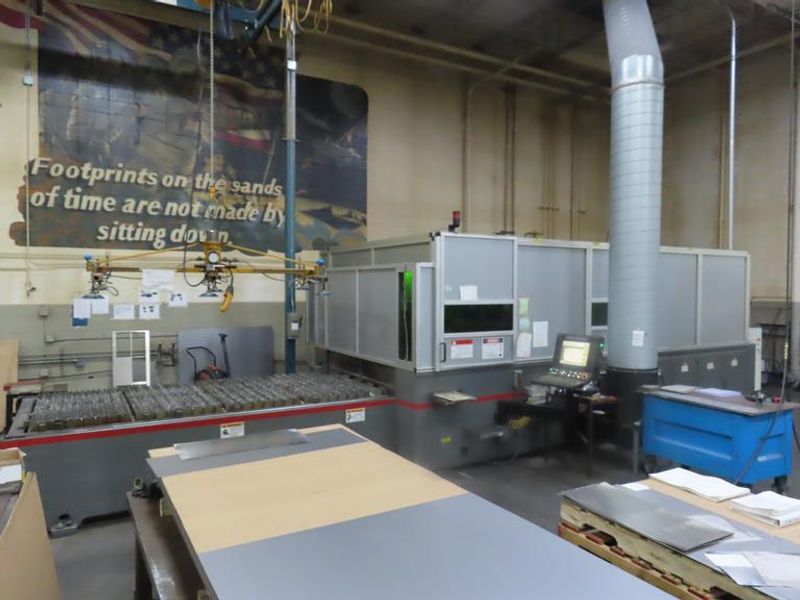

Lot 160: Cincinnati CL-940 4000 Watt Fiber Laser Cutting System, IPG YLS-4000, Automatic Pallet Shuttle, Chiller
Equipped With:

Cincinnati CNC Control, IPG YLS-4000, Automatic Pallet Changer, IPG LC170.01.A.3.5/6 Chiller, Blower Exhaust Fan, Transformer, Assorted Consumables, Manuals and Documentation.

Description:

The Cincinnati CL-940 Fiber Laser delivers fast, accurate, and cost-effective sheet metal processing with the power of a 4,000-watt fiber resonator. Designed for high-production environments, this machine combines excellent cutting performance with low operating costs, making it ideal for fabricators working with mild steel, stainless steel, aluminum, and other metals. Equipped with an automatic pallet shuttle system, the CL-940 minimizes downtime by allowing operators to load and unload material on one pallet while cutting continues on the other. This significantly increases productivity and keeps throughput high throughout the workday.

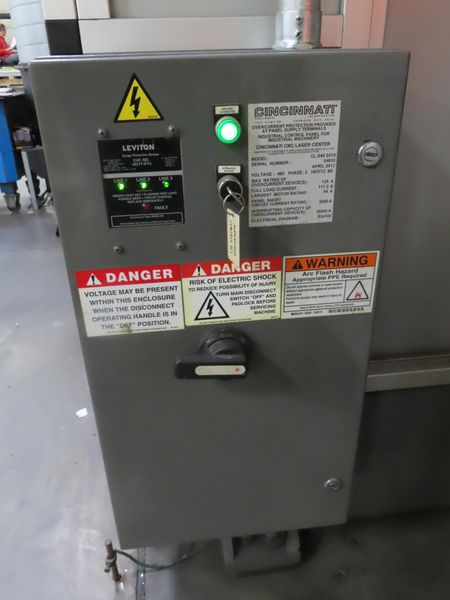

Electrics:

460 Volt, 3 Phase

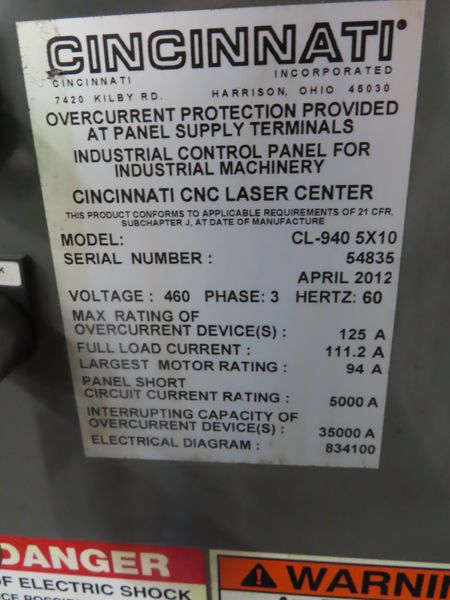

Manufacturer: Cincinnati Incorporated Model: CL-940 Year: 2012 Serial Number: 54835
Main Unit Approx Weight: 0.00 lbs
Main Unit Dimensions (in inches): Length: 0.00"  Width: 0.00"  Height: 0.00"
Components:

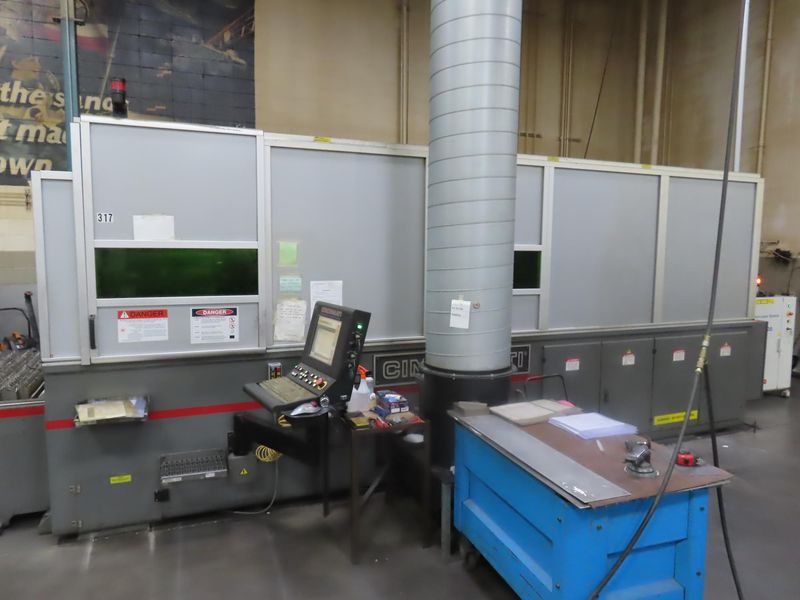

Machine: Length: 237.00"  Width: 120.00"  Height: 96.00"

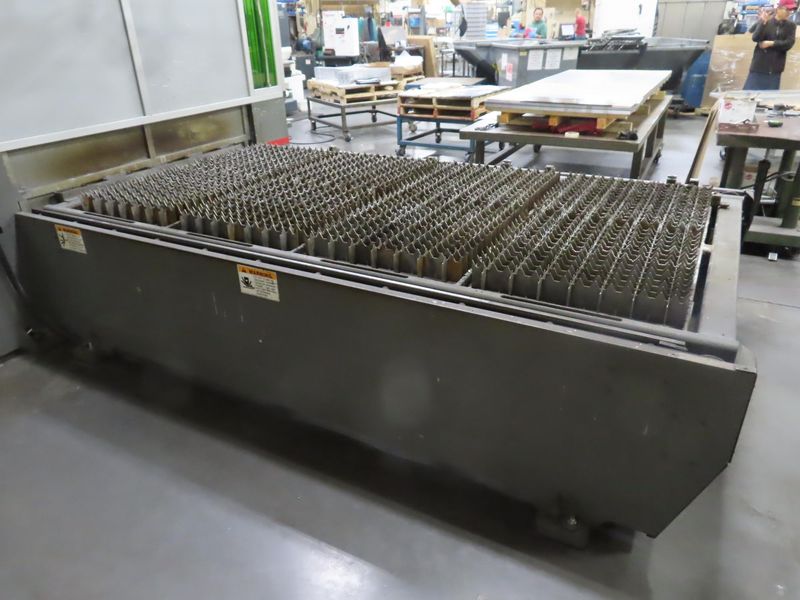

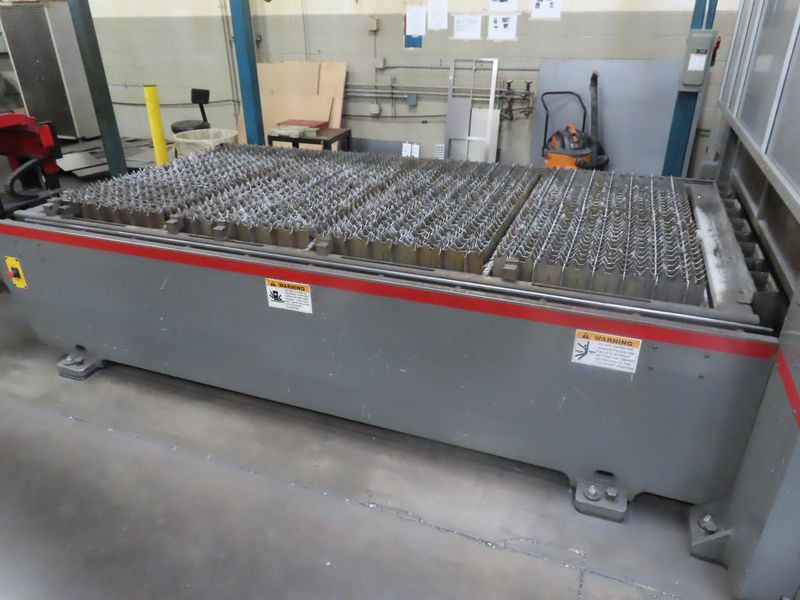

Pallet Shuttle: Length: 132.00"  Width: 86.00"  Height: 43.00"

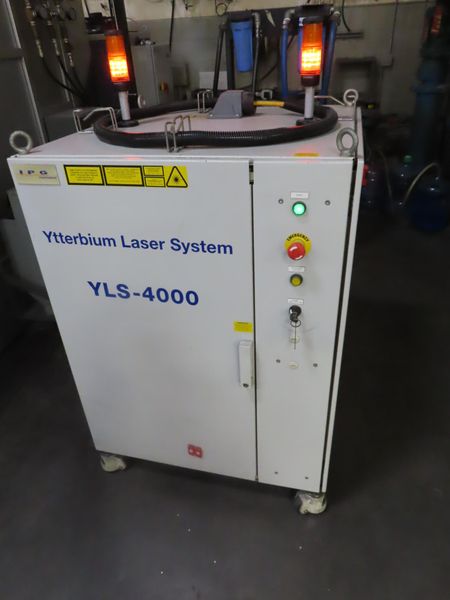

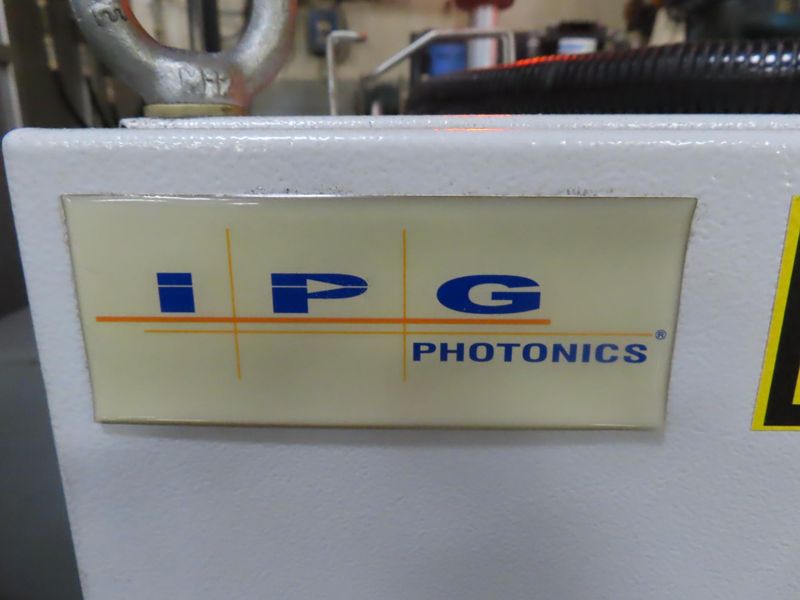

YLS-4000: Length: 39.00"  Width: 35.00"  Height: 58.00"

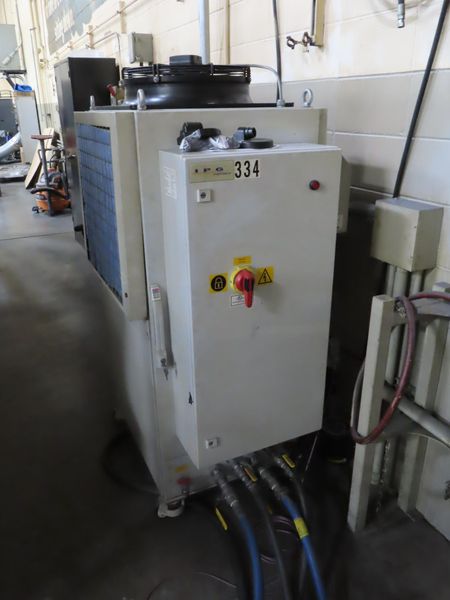

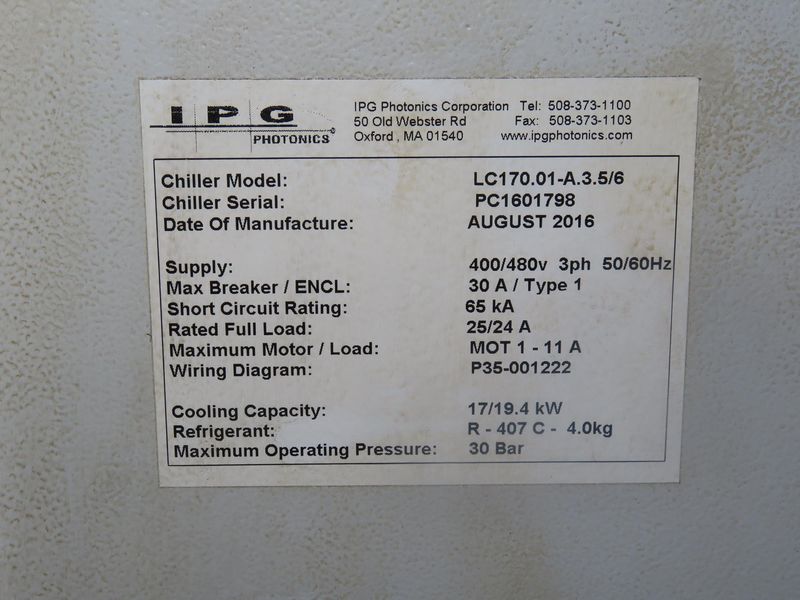

Chiller: Length: 30.00"  Width: 42.00"  Height: 68.00"

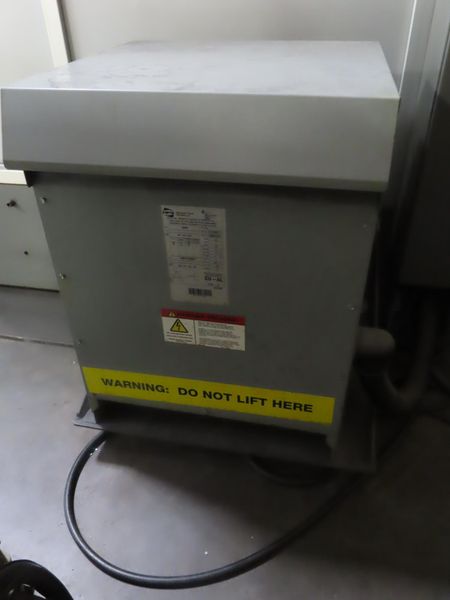

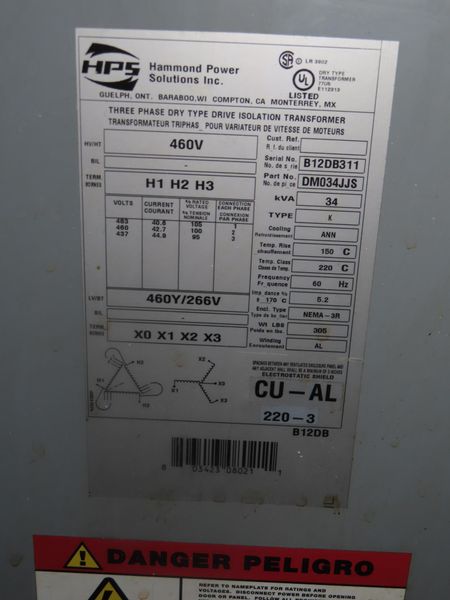

Transformer: Length: 22.00"  Width: 22.00"  Height: 34.00"
Exhaust Fan: Length: 28.00"  Width: 38.00"  Height: 43.00"
Specs:
Control: Cincinnati CNC Control
Maximum Workpiece Dimensions: 60" x 120"
Laser Power: 4000 Watt (Fiber)
Max Recommended Plate Thickness: 3/4" Mild Steel, 1/2" Stainless Steel, 1/4" Aluminum
Machine Travels X / Y / Z: 121" / 61" / 10"
Rapid Traverse Rates X / Y: 8,500 IPM
Max Feed Rate : Simultaneous X&Y Axes: 12,020 IPM
Z-Axis Speeds: 1,700 IPM
Number of Pallets: 2
Seller Company: Assurance Manufacturing Co
Seller Contact: MIKE REINKE Phone: (763) 780-4252
Item Location: Assurance Manufacturing Co, 9010 Evergreen Blvd., Coon Rapids, MN 55433
Location Contact: MIKE REINKE Phone: (763) 486-7823
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Removal Dates and Times: This item must be removed between Wednesday, October 21, 2026 and Friday, October 30, 2026
