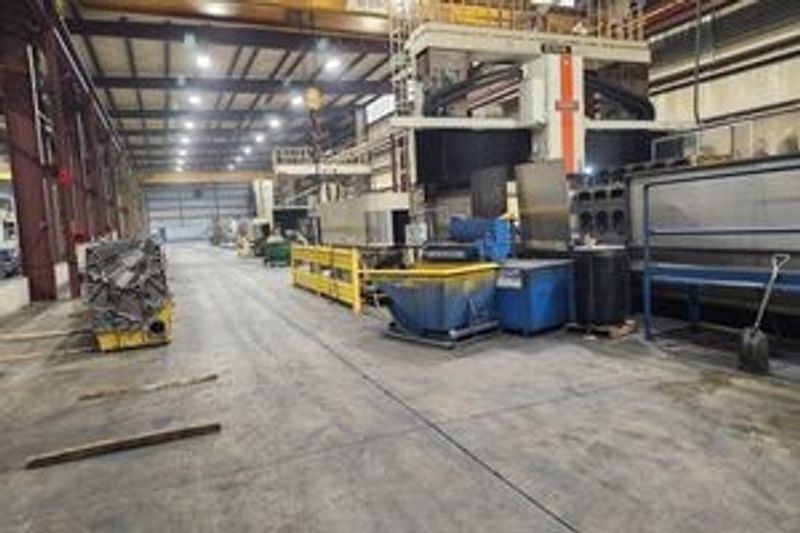

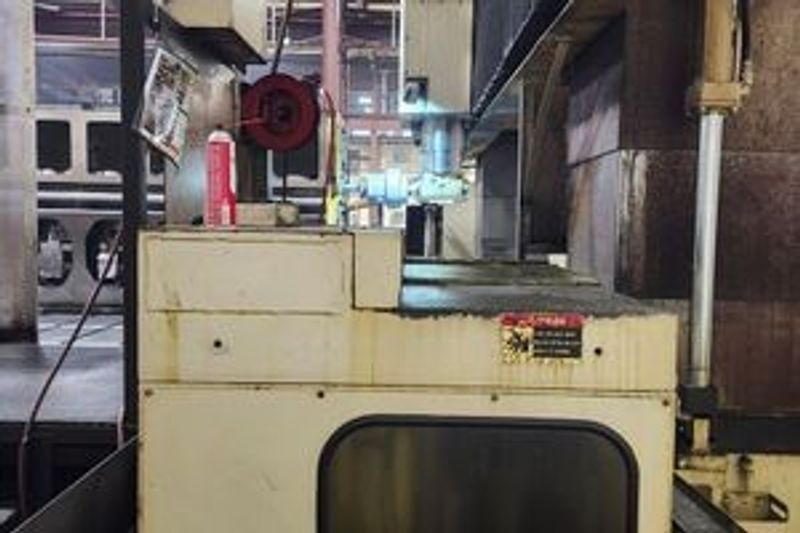

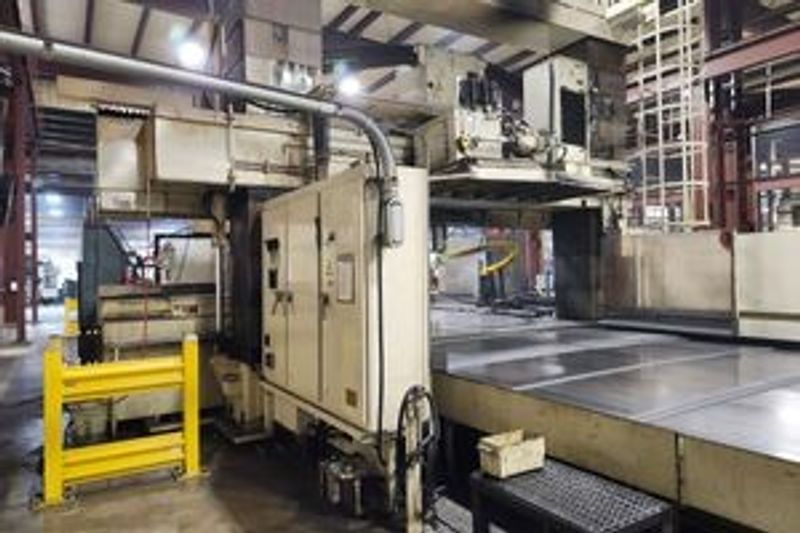

SNK RB 7VM CNC Vertical Machining Center

Manufacturer

Snk

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

163260048

Model

RB 7VM

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 163260048
  • Brand: Snk
  • Model: RB 7VM
  • Year: 2006
  • Location: MI

Specifications

  • Manufacturer: Shin Nippon Koki (SNK)
  • Model: RB-7VM
  • Year: 2006
  • Serial: B7K4050

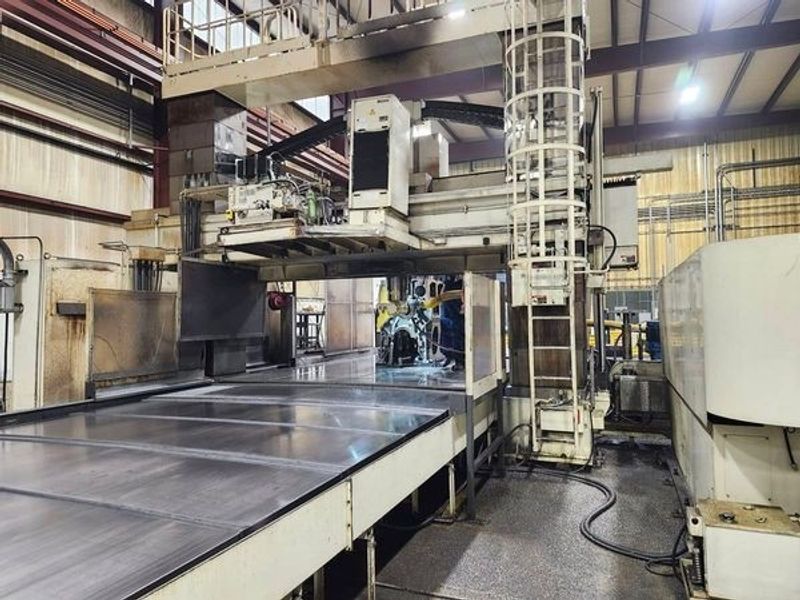

  • Machine Type: Double-column bridge / gantry, 5-face machining

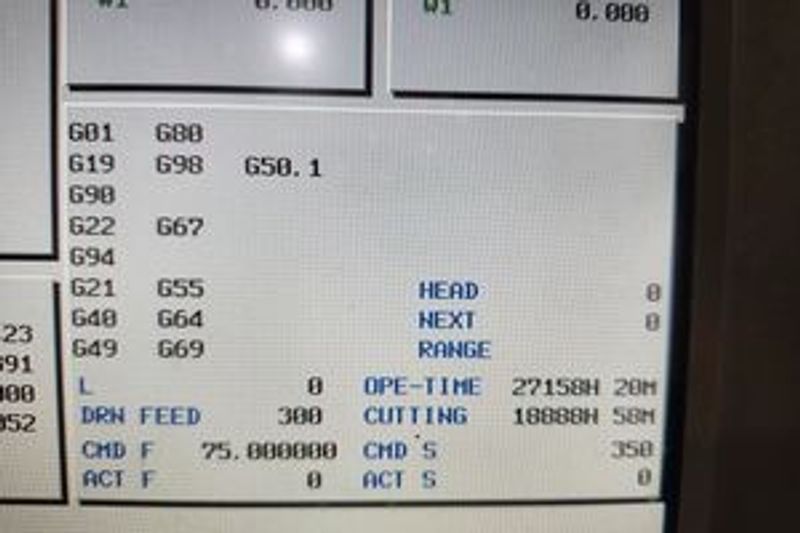

  • Control: FANUC 31i-B

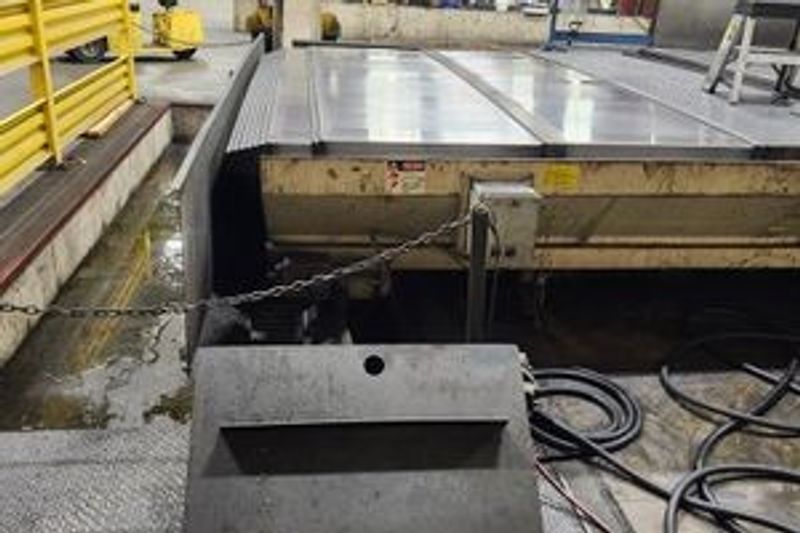

  • Table: 3,500 × 8,000 mm (137.8" × 314.9")
  • Table Capacity: 30 metric tons
  • Between Columns: 4,100 mm (161.4")
  • X Travel: 8,250 mm (324.8")
  • Y Travel: 4,500 mm (177.1")
  • Z Travel: 600 mm (23.6")
  • W / Crossrail Travel: 2,100 mm (82.7")
  • Z + W Combined: 2,700 mm
  • Table-To-Spindle-End Range: 0–2,500 mm
  • Spindle / Quill Diameter: 90 / 300 mm
  • Spindle Taper: ISO No. 50 / BT50
  • Spindle Speed: 8,000 RPM
  • Gear Ranges: 2
  • Spindle Motor, Low: AC 22/26 kW
  • Spindle Motor, High: AC 22/30 kW
  • Approx. Main Motor: 40 HP
  • Rapid X: 15 m/min (591 IPM)
  • Rapid Y: 15 m/min (591 IPM)
  • Rapid Z: 8 m/min (315 IPM)
  • Rapid W: 4 m/min (157 IPM)
  • Cutting Feed X/Y/Z: 1–6,000 mm/min
  • Cutting Feed W: 1–4,000 mm/min
  • ATC: 60 Tools
  • Tool Max. Diameter: 9.13"
  • Tool Max. Length: 15.7" / 399 mm
  • Tool Max. Weight: 44 lb / 20 kg

Equipped With

Machine Comes With A 90-Degree Head And A Universal Head. Has Probe Capability, Fanuc 15I Controller
