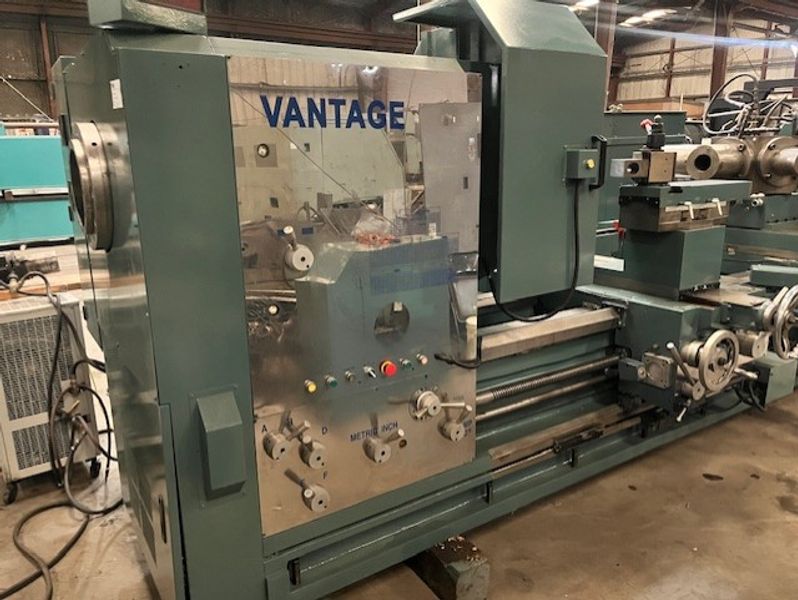

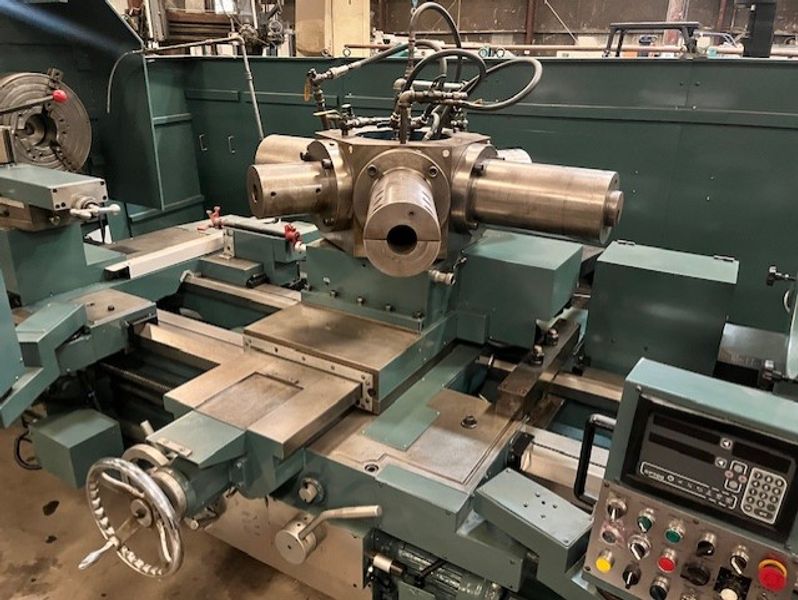

Vantage PB-50 50″ x 152″ Twin-Carriage Engine Lathe, 9″ Spindle Bore

Manufacturer

Vantage

Category

Lathes

Stock

141260015

Model

PB-50

Dealer Location

Georgia

Spec Sheet

  • Stock #: 141260015
  • Location: Houston, TX
  • Brand: Vantage
  • Model: PB-50
  • Approx. Shipping Weight: 38,000 LBS.

Specifications

  • Swing Over Bed: 50″
  • Swing Over Cross-Slide: 37″
  • Center Distance (Spindle Nose to Hex Turret Vertical Surface): 152″
  • Weight Capacity between Centers: 9,600 LBS.
  • Spindle Bore: 9.05″
  • Spindle Speed: 0-700 RPM
  • Spindle Nose: A2-15
  • Spindle Motor HP: 50 HP
  • Threading: Inch / Metric

Equipped With

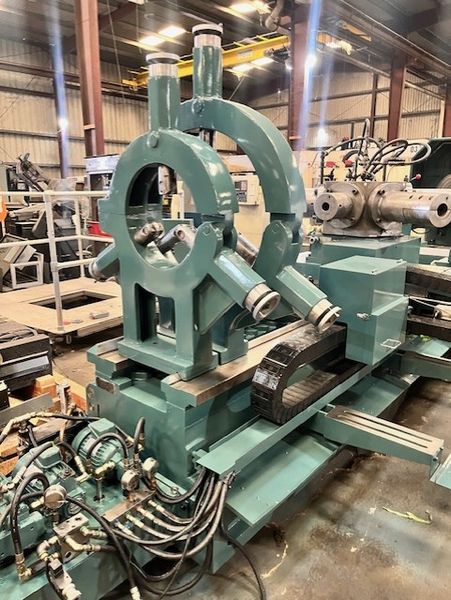

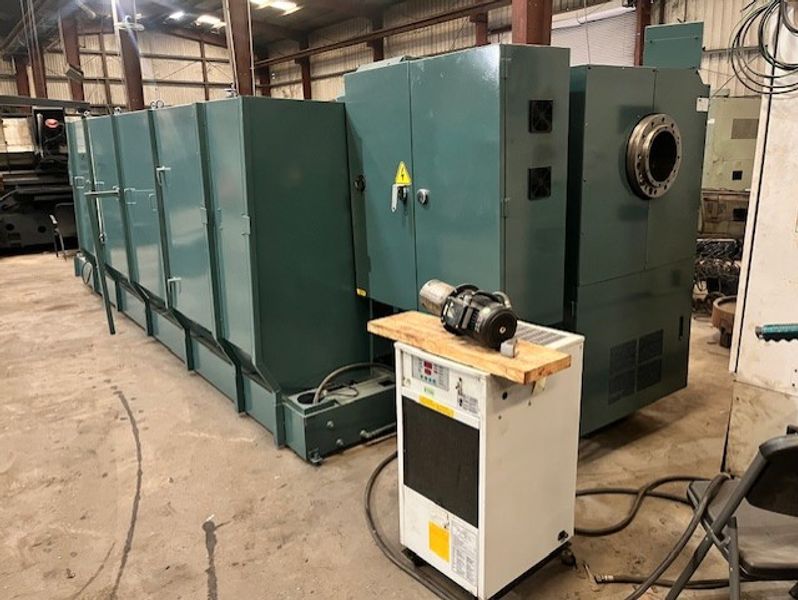

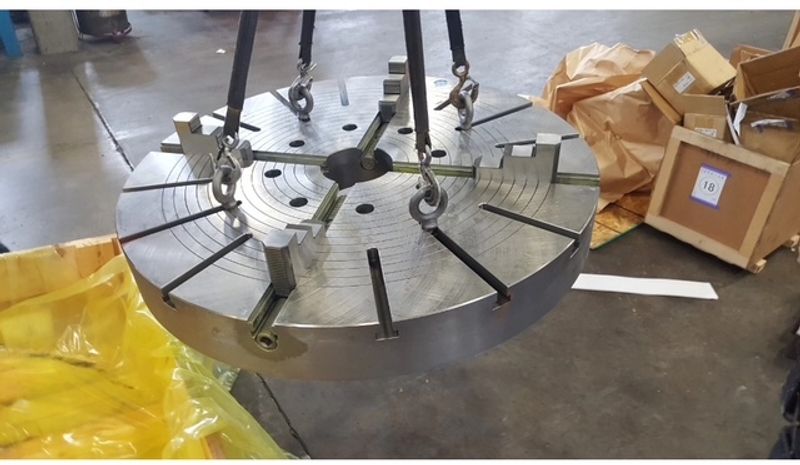

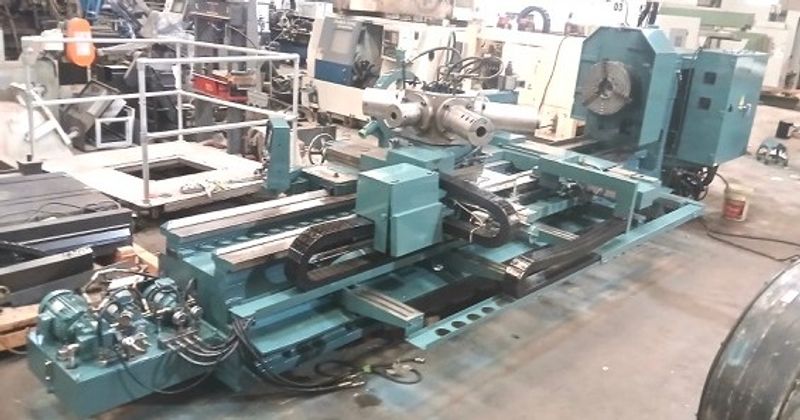

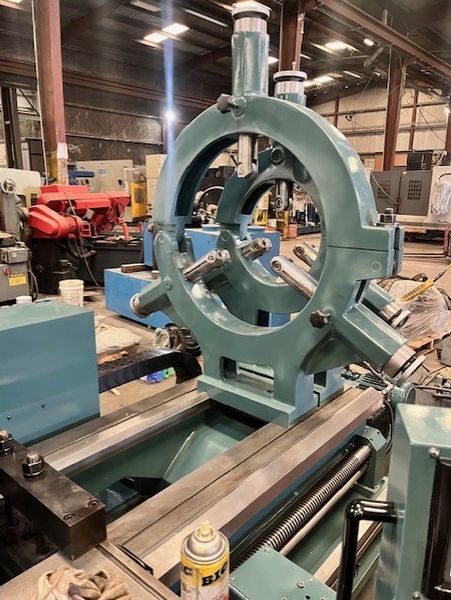

Twin Carriages w/ DROs (Carriage 1: Standard w/ Compound / Carriage 2: Horizontal Turret (Can Double as Tailstock)), Variable Speed Spindle w/ 4 Speed Ranges, Quick Change Tool Post, 3-Jaw Chuck, Optional 44″ 4-Jaw Chuck, Auto Lubrication System, Chuck Guard, Constant Surface Feed on Both Carriages, Thread Dial, Coolant System w/ High Pressure Coolant Pump , Work Light on Front Carriage, Chip Conveyor, Steady Rest (1″-14″), Steady Rest (14″-32″), Hydraulic Tracer Attachment on Both Carriages, Semi-Auto Threading on Front Carriage
