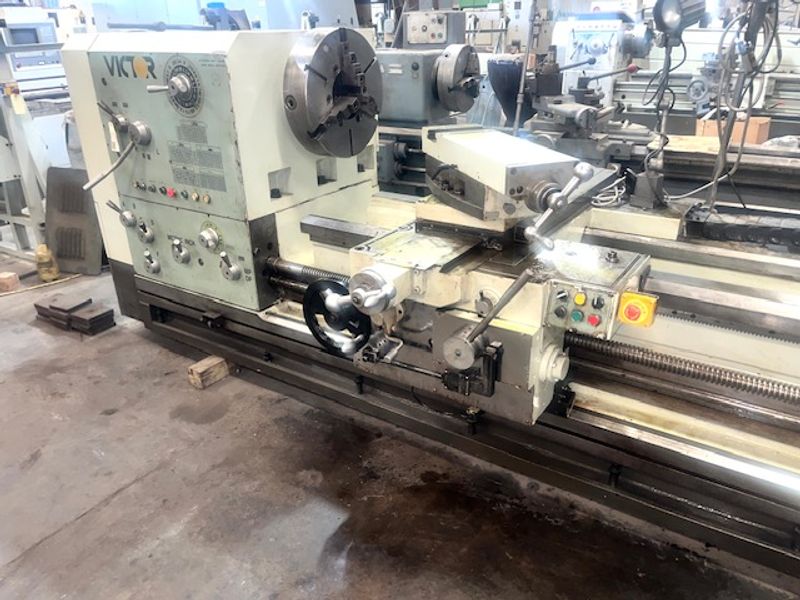

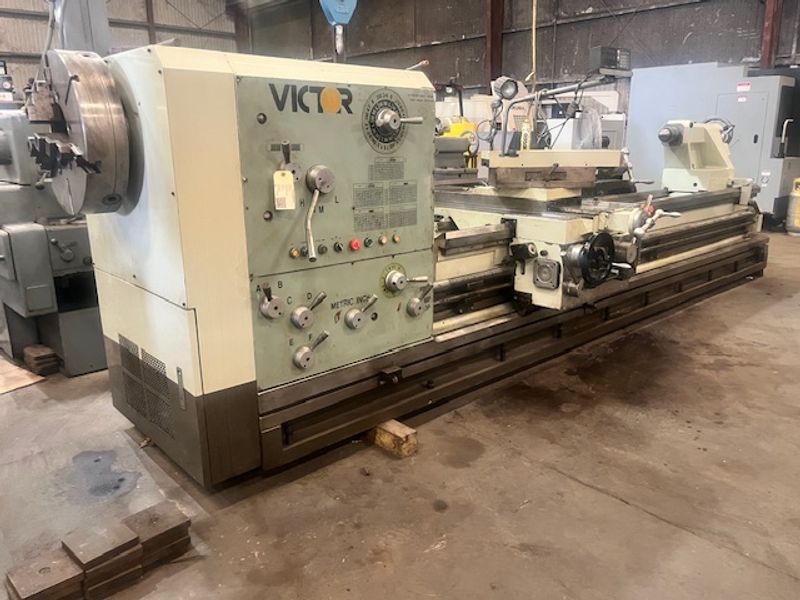

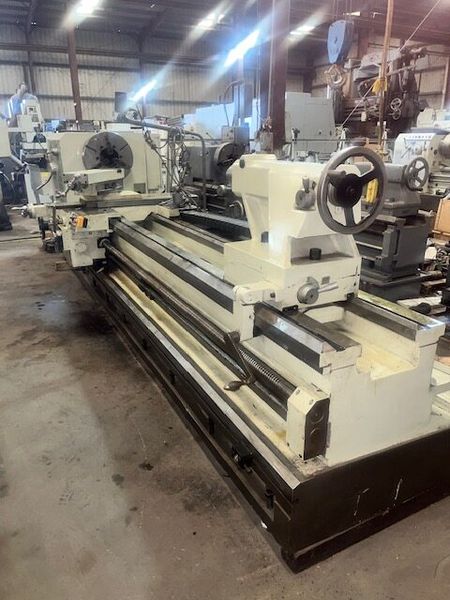

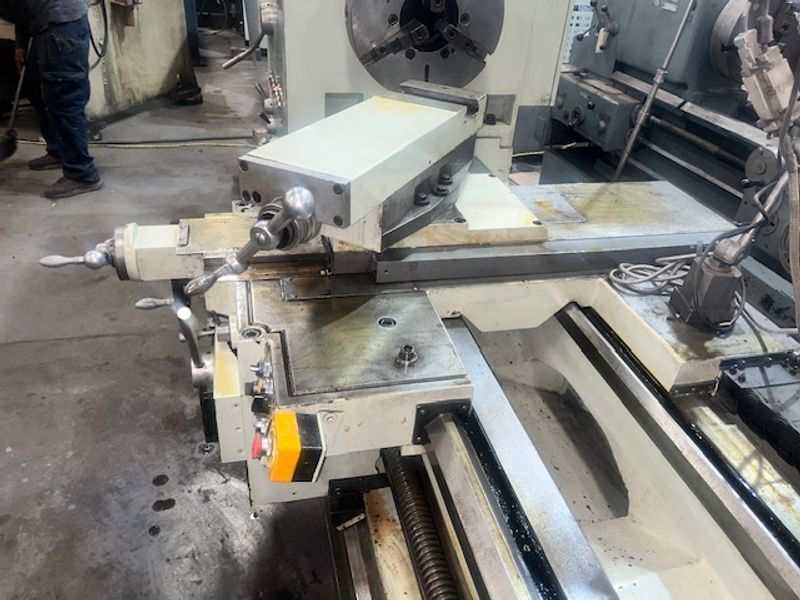

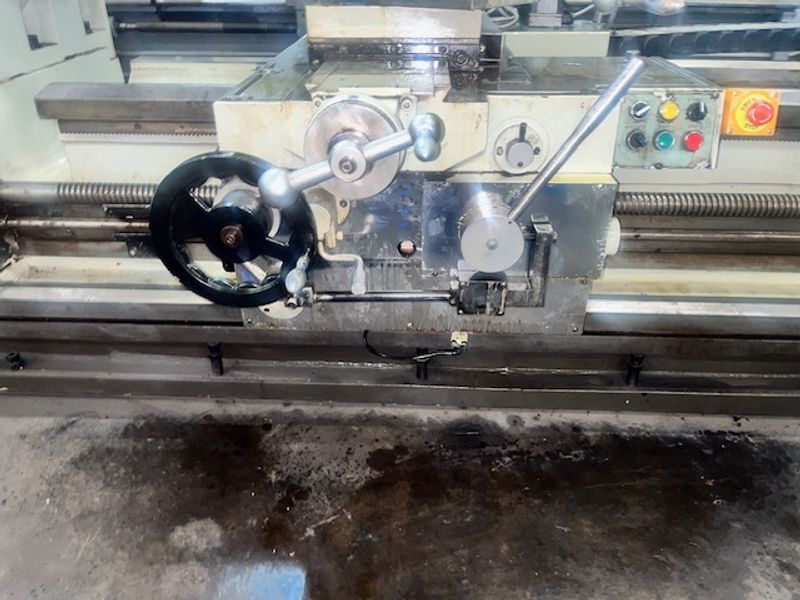

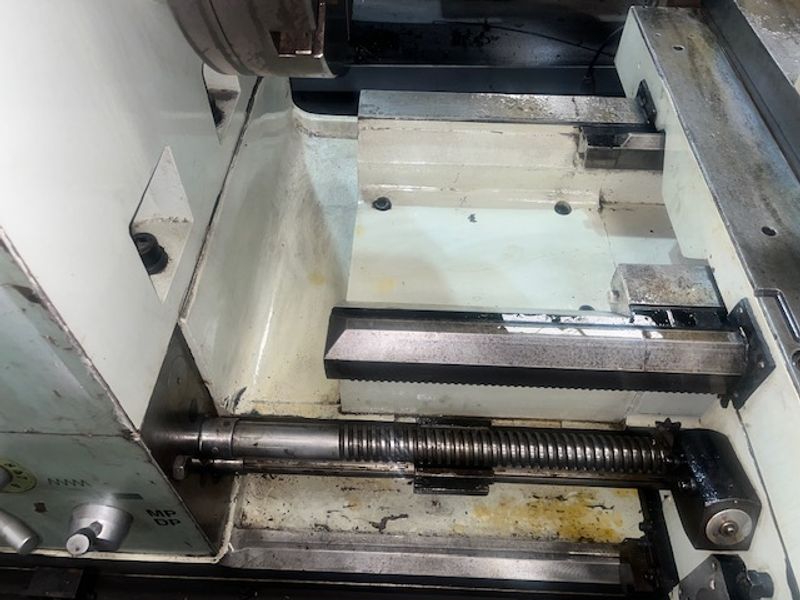

Victor PA-35 35″ x 120″ Oil Country Engine Lathe, 6″ Spindle Bore

Manufacturer

Victor

Category

Lathes

Stock

141260014

Model

PA-35

Dealer Location

Georgia

Spec Sheet

  • Stock #: 141260014
  • Location: Houston, TX
  • Brand: Victor
  • Model: PA-35
  • Approx. Shipping Weight: 25,500 LBS.
  • Approx. Shipping Dimensions: 217″L x 77″W x 57″H
  • Skidding Fee: Skidding Unavailable

Specifications

  • Swing Over Bed: 35″
  • Swing Over Cross Slide: 24″
  • Swing In Gap: 53″
  • Distance on Centers: 120″
  • Spindle Thru Bore: 6″
  • Spindle Nose: A2-15
  • Spindle Speeds (18): 16-700 RPM
  • Spindle Motor HP: 30 HP
  • Threading: Inch / Metric
  • Tailstock Taper: #6 MT
  • Electrical: 440V / 3PH

Equipped With

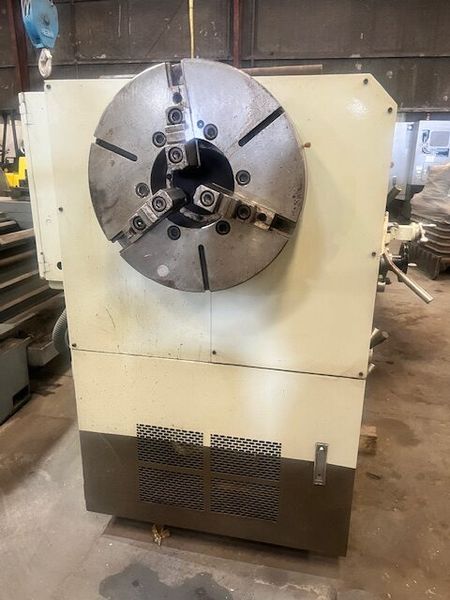

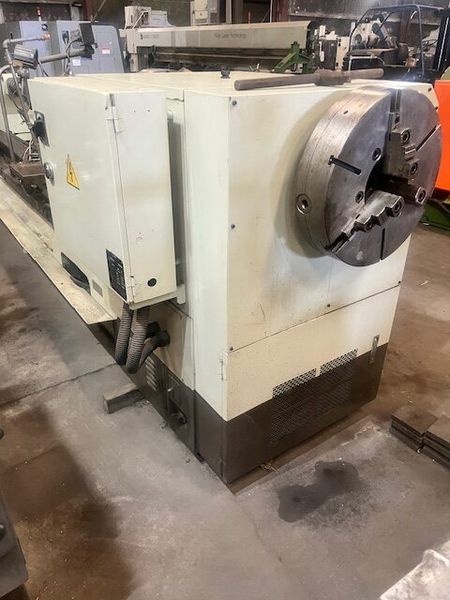

Front and Rear Mounted 3-Jaw Chucks, Power Compound, (6) Way Power Feed, (6) Way Rapid Traverse, Hardened And Ground Tri-Way Bed System, Electric Spindle Brake, (2) Speed Tail Stock, Automatic Lubrication, Thread Dial, Work Light, Plates for Leveling
