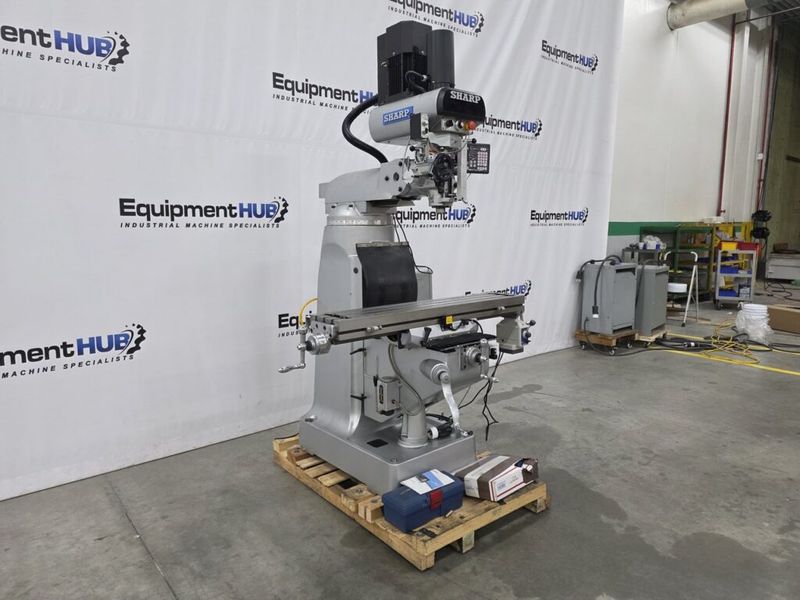

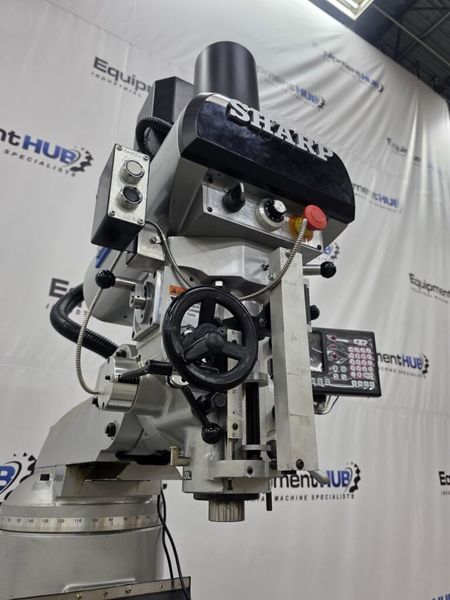

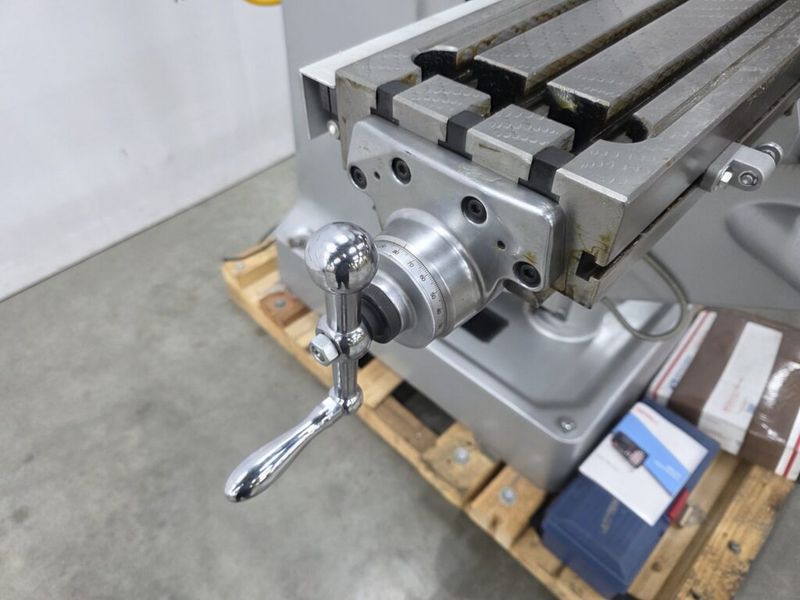

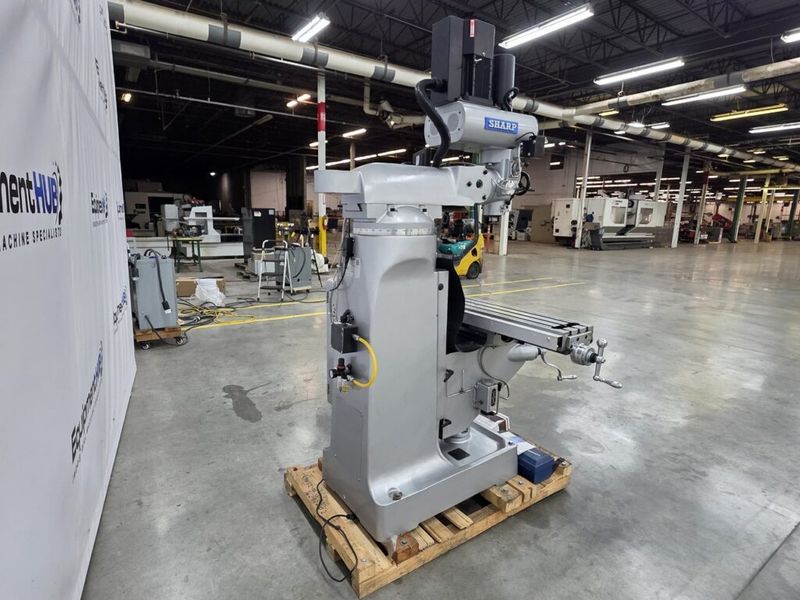

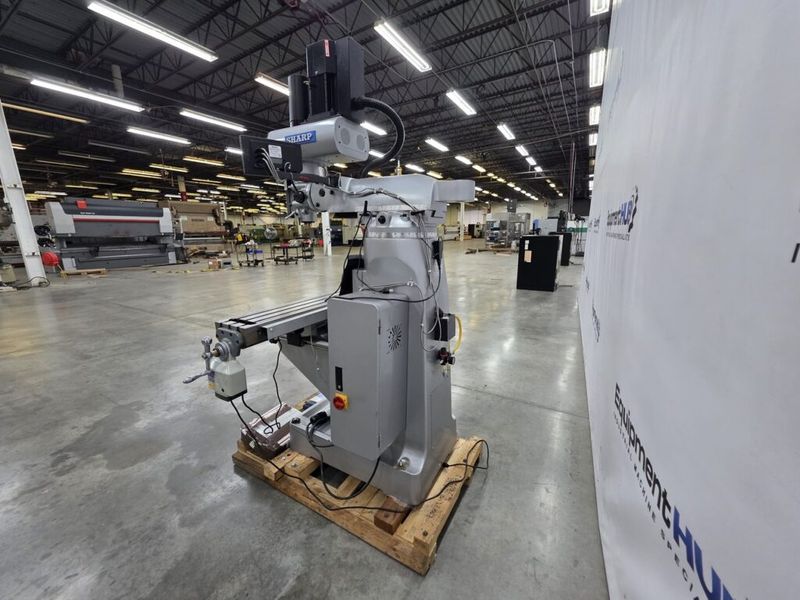

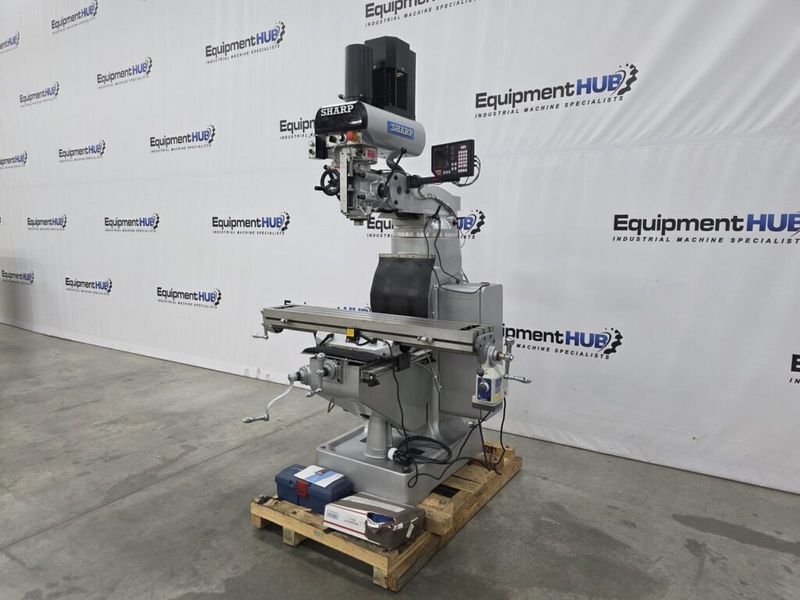

Sharp LMV-49-SMD Vertical Milling Machine (New)

Manufacturer

Sharp

Category

None

Type

MILLING MACHINES, ATTACHMENTS & ACCESSORIES

Stock

Sharp-LMV-49-SMD_Demo

Model

LMV-49-SMD

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: Sharp-LMV-49-SMD_Demo
  • Location: Decatur, GA
  • Brand: Sharp
  • Model: LMV-49-SMD
  • Serial Number: 250202
  • Year: 2025
  • Approx. Shipping Weight: 2,100 lbs. / 952 Kg
  • Approx. Shipping Dimensions: 5′ L x 6′ W 8′ H

Specifications

  • Table Size: 9 x 49 in. / 228.6 x 1,244.6 mm
  • Longitudinal Travel (X): 36.6 in. / 929.64 mm
  • Cross Travel (Y): 12 in. / 304.8 mm
  • Vertical Quill Travel (Z): 5 in. / 127 mm
  • Knee Travel: 16 in. / 406.4 mm
  • Ram Travel: 12 in. / 304.8 mm
  • Spindle Nose To Table: 2.125 – 18 in. / 53.975 – 457.2 mm
  • Spindle Speeds: 65 – 4500 rpm
  • No. Of Spindle Speeds: Variable (Digital)
  • Spindle Nose: R-8
  • Quill Diameter: 3.375 in. / 85.7 mm
  • Quill Travel: 5 in. / 127 mm
  • Quill Center Taper: R-8
  • Quill Feeds (3 Speeds): 0.0015, 0.003, 0.006 in./rev
  • Head Swivel: 360°
  • Head Tilt (Left/Right): 45°
  • Head Tilt (Up/Down): 45°
  • Spindle Motor: 11 HP / 8.2 KW
  • Voltage: 220V/440V
  • Phase: 3 phase

Equipped With

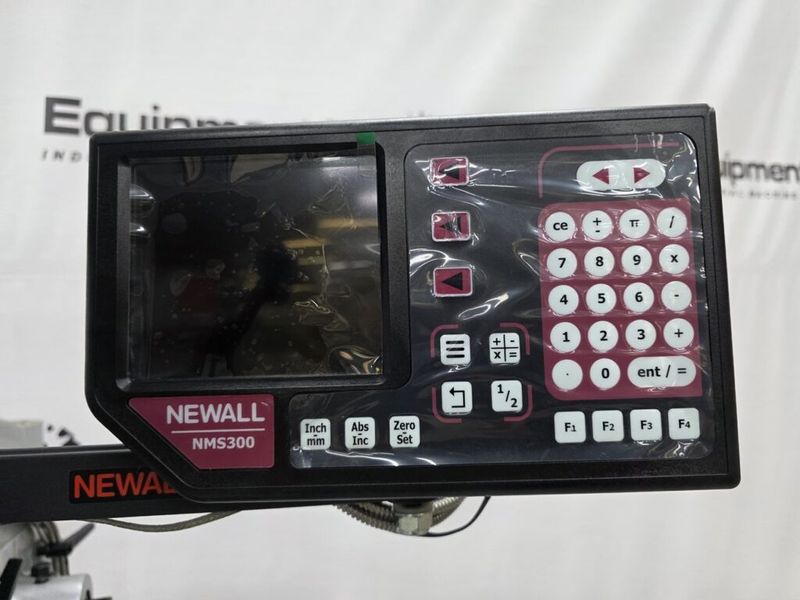

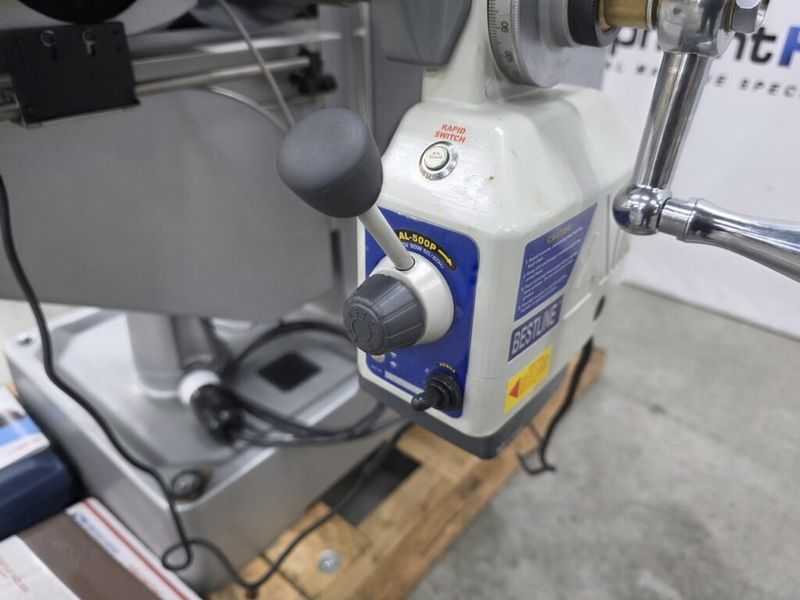

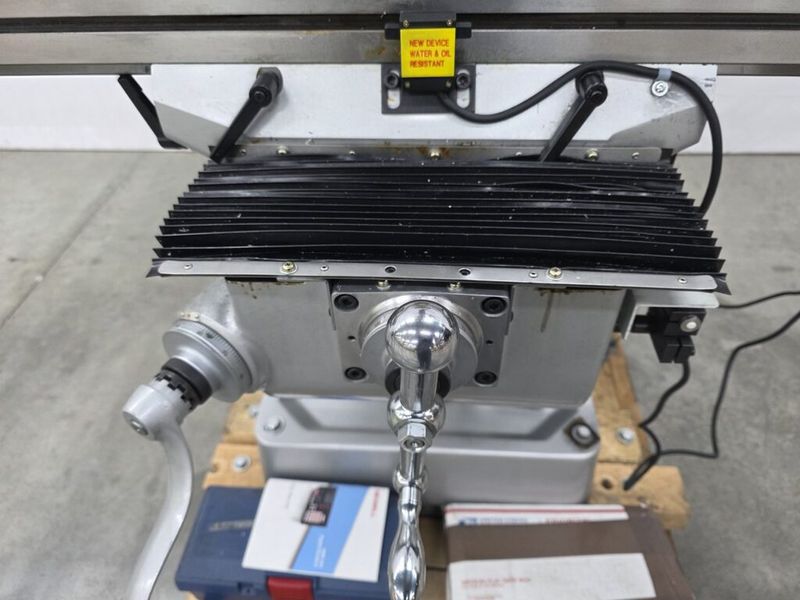

Standard Accessories: Servo Motor Drive, Digital Variable Speed Spindle, Load Meter For Real-Time Spindle Power Monitoring, Power Draw Bar, Meehanite Casting, Front & Rear Way Covers, One Shot Lubrication System, Transformer In Electrical Control Cabinet For 110V Power To DRO Or X, Y, Z-Knee Power Feeds, Hardened & Ground Slideways With Turcite-B Coating, Precision Quill With 5 In. Travel, Hard Chrome-Plated, Mounted On High Precision Angular Contact Bearings, Backlash Elimination Through Double-Nut Design, Patented Knuckled Head Design With Six Bolts Fitted Into Circular T-Slots, Precision Thrust Bearings At Table End To Eliminate End Play, Digital Display For Spindle Speed

Additional Info

This machine has not been used in any production. Has been a demo machine in our new equipment showroom. Can be demoed upon request.
