3690012
NFX400A
Kentucky

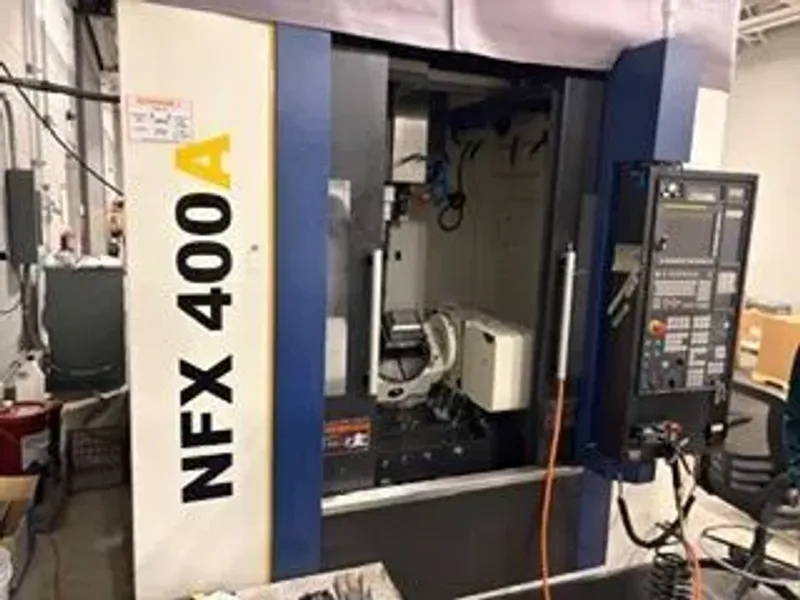

2021 YCM NFX400A CNC vertical machining center built for high-speed, high-precision milling applications. Features a rigid casting design, fast tool changes, and excellent accuracy for production or job shop work. Ideal for machining a wide range of materials with consistent repeatability. Clean, late-model machine ready for immediate use.
| X | 650" | 16,510 mm |
| Y | 520" | 13,208 mm |
| Z | 480" | 12,192 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | BBT40 | BBT40 |
| Control | CNC (FANUC 31i-MB5) | CNC (FANUC 31i-MB5) |
| Dimensions | 86" x 136" x 125" | 86" x 136" x 125" |
| Weight | 13670 | 13670 |
Chip Blaster D30-70 1000 PSI
Royal Mist Collector

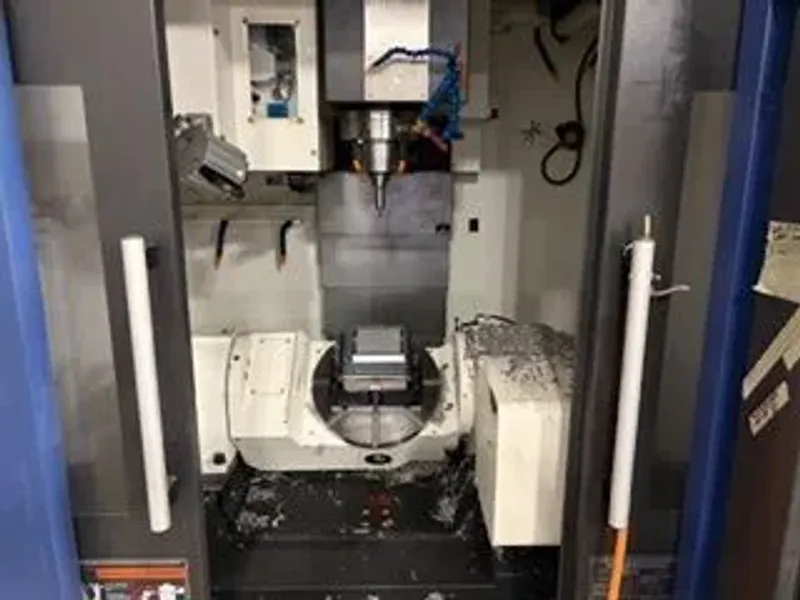

5th Axis Work holding package
No Video Available
