Mazak Quick Turn 450

Manufacturer

MAZAK

Category

Lathes

Type

LATHES, CNC

Stock

7612565

Model

QUICK TURN 450

Dealer Location

Kentucky

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
CNC Lathes
Manufacturer:
MAZAK
Model:
QUICK TURN 450
Stock #:
7612565
Status:
For Sale

Description

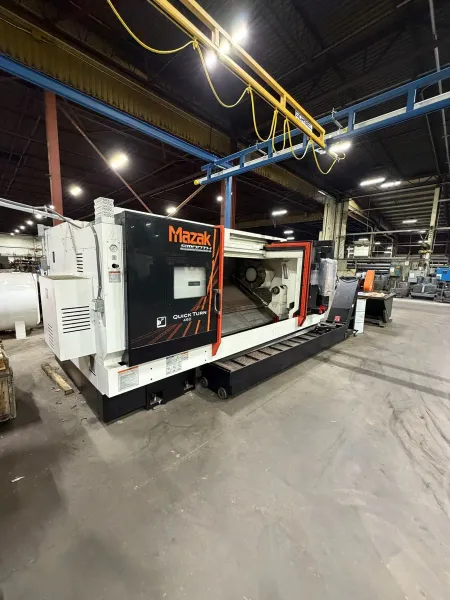

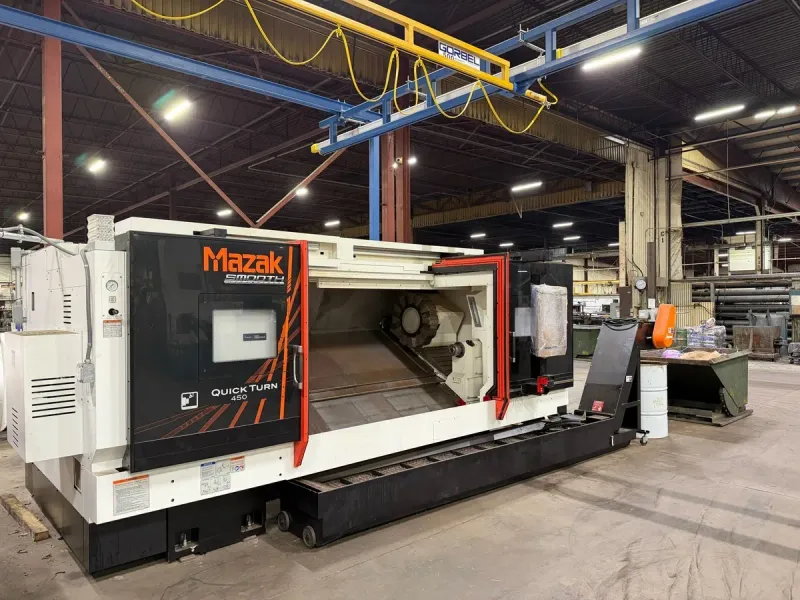

Mazak Quick Turn 450/2000 CNC lathe, identified as OP20, with Mazatrol SmoothG control. Documented 80-inch/2000U configuration with 50 HP main spindle, 1,600 RPM maximum speed and 185 mm spindle bore. Supplied OP20 control photo shows 488:56:25 power-on time and 40:06:52 total cutting time; photographed readings are not independently verified lifetime totals. Offered individually. Final installed workholding and included options require confirmation.

Swing33.27"845.06 mm
Machining Length80"2,032 mm
# Axis22
Chuck Size18"457.2 mm
Bar Capacity7.2"182.88 mm
Power50 hp37.3 kW
Max RPM1,600 RPM1,600 RPM
Turning Dia22.83"579.88 mm
TailstockYesYes
Live ToolingNoNo
Sub SpindleNoNo
ControlCNC (SmoothG)CNC (SmoothG)

MAZAK QUICK TURN 450/2000 - OP20
Documented configuration:
Nominal bed designation: 80 in. / 2000U
Control: Mazatrol SmoothG CNC with 19-inch touchscreen
Main spindle: 50 HP / 37 kW
Maximum spindle speed: 1600 RPM
Spindle bore: 185 mm / 7.28 in. (not bar capacity)
Spindle nose: A2-15

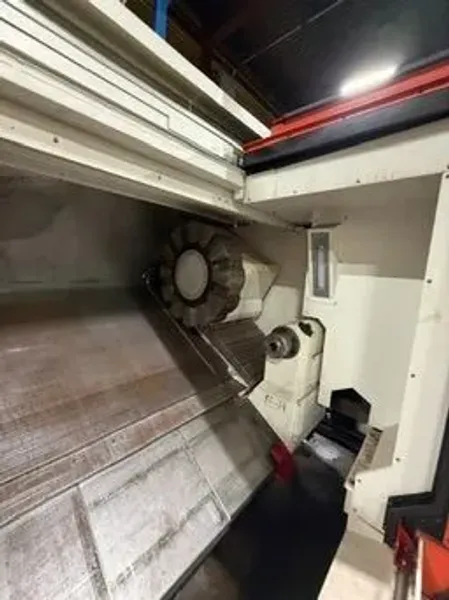

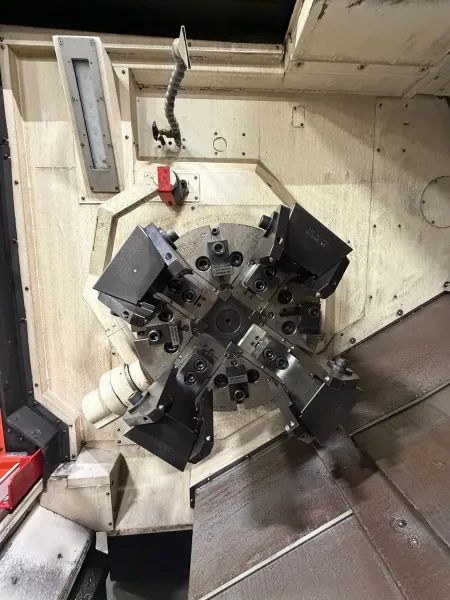

Turret: 12D/24-position drum turret, 2-axis bolt-on
Programmable tailstock: MT5 built-in center
Automatic tool eye

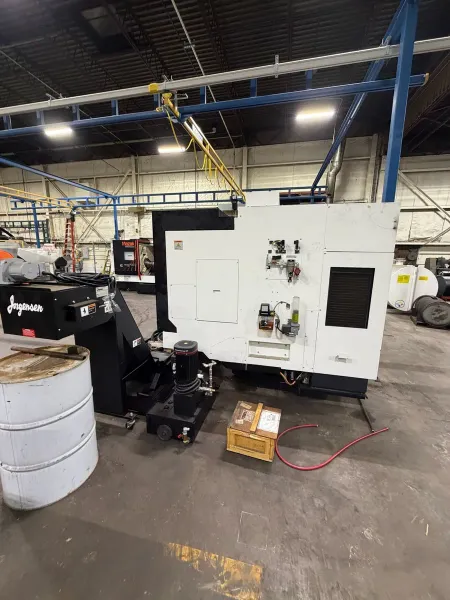

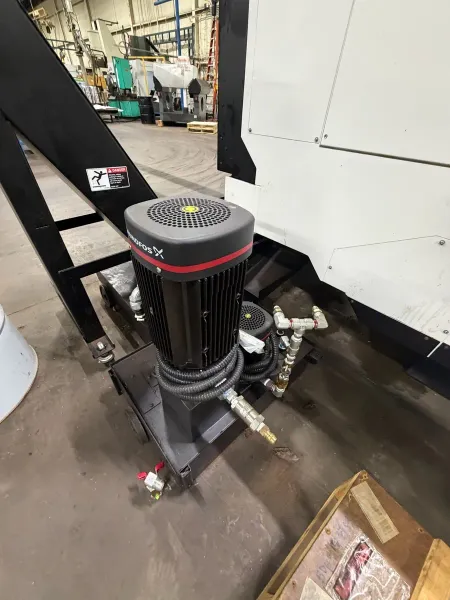

Quoted options include side-discharge hinged chip conveyor, 213 PSI coolant, robot interface and dual servo auto doors; installed options and current workholding must be verified.

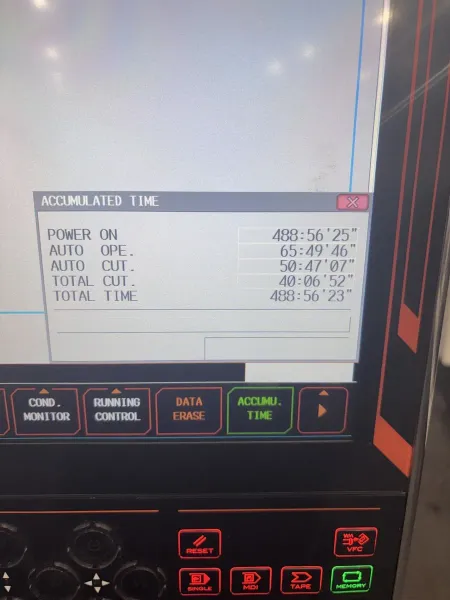

Photographed OP20 readings: Power on 488:56:25; Auto operation 65:49:46; Auto cutting 50:47:07; Total cutting 40:06:52; Total time 488:56:23.

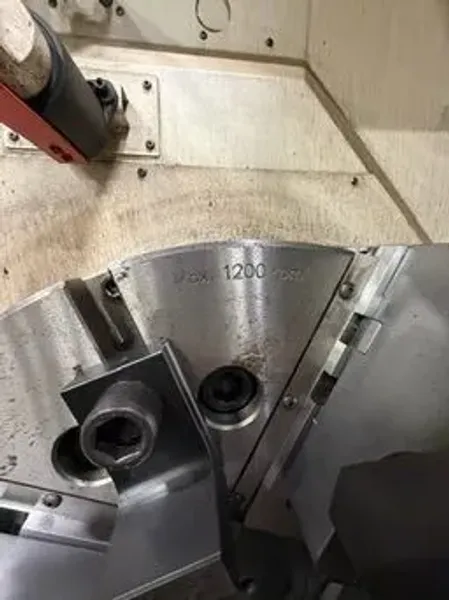

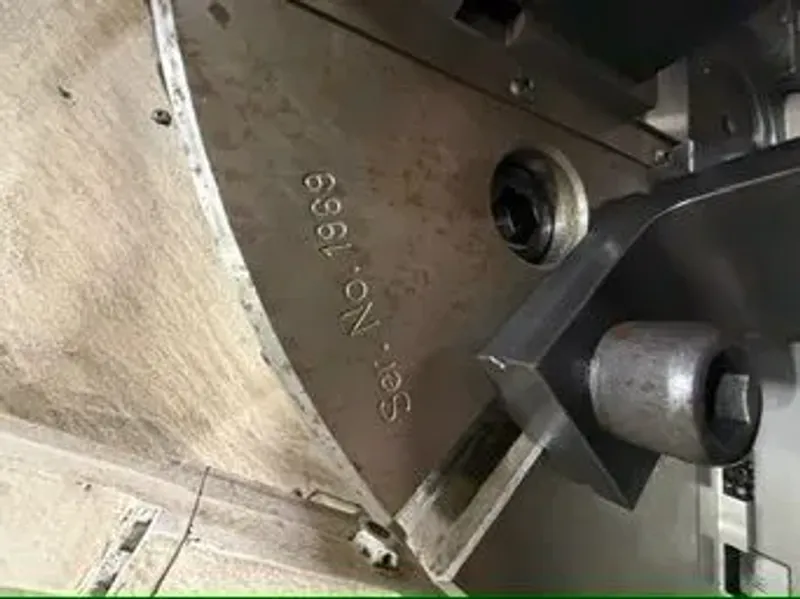

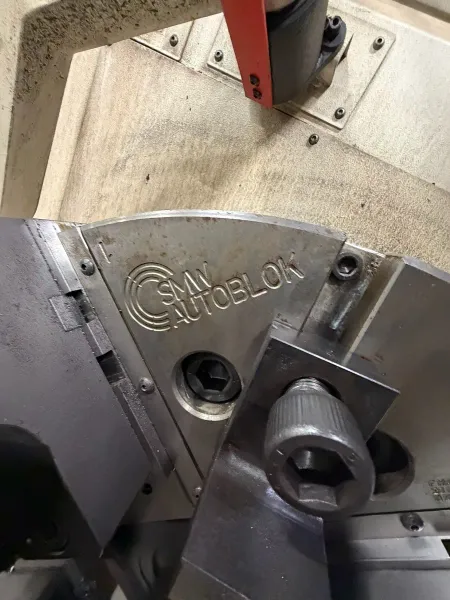

These machines have custom chucks, so all specifications are to be verified by the buyer.
These are photo readings, not verified lifetime totals.

- Specifications are believed to be accurate and are to be verified by the buyer.
