2007 DOOSAN Lynx 220A CNC Lathe #8404 #2

Manufacturer

DOOSAN

Category

Lathes

Type

LATHES, SLANT BED, CNC

Stock

8404

Model

LYNX 220A

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
LATHES, SLANT BED, N/C & CNC
Manufacturer:
DOOSAN
Model:
LYNX 220A
Year:
2007
Stock #:
8404
Status:
For Sale
Serial #:
L2202076
Country:
United States

Description

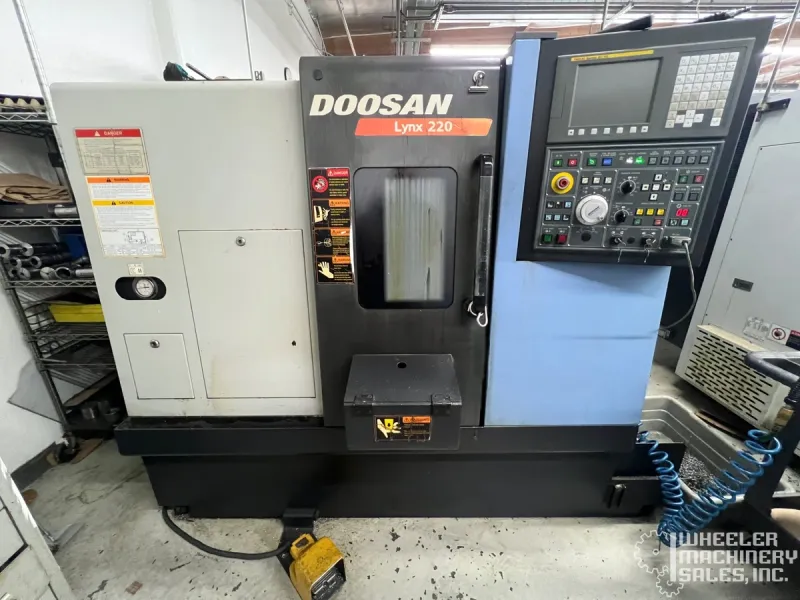

2007 DOOSAN Lynx 220A CNC Lathe available. Features include 20.1" swing, 12.7" machining length, 6.5" chuck, and 1.81" bar capacity. Powered by 20 hp and reaches up to 6,000 RPM with a turning diameter of 12.6". Used condition.

2007 DOOSAN Lynx 220A CNC Lathe #8404 #2

SPECIFICATIONS:
Capacity & Cutting Dimensions
Max Swing Over Bed: 20.1 inches (510 mm)
Max Turning Diameter: 12.6 inches (320 mm)
Max Machining Length: 12.7 inches (322 mm)
Max Bar Capacity: 1.8 inches (45 mm)
Chuck Size: 6 inches to 6.5 inches (hydraulic 3-jaw)

Spindle Specifications
Spindle Speed: 60 – 6,000 RPM
Spindle Motor: 20 HP (15 kW)
Spindle Bore: 2.1 – 2.2 inches (approx. 53 mm – 55 mm)
Spindle Nose: A2-5

Travels & Feedrates
X-Axis Travel: 6.9 inches (175 mm)
Z-Axis Travel: 12.6 to 13 inches (330 mm)
X-Axis Rapid Traverse: 1,181 IPM (30 m/min)
Z-Axis Rapid Traverse: 1,417 IPM (36 m/min)

Turret & Tooling

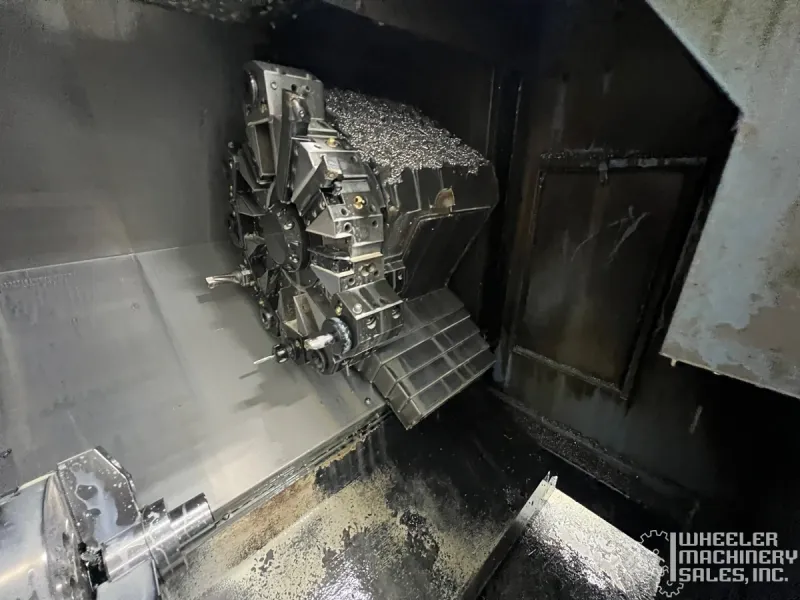

Turret Stations: 12 positions
Turret Index Time: ~0.15 seconds (single step)

Size & Weight
Machine Dimensions: Approx. 91" – 101" L x 63" W x 63" – 65" H (2,311 x 1,600 x 1,650 mm)
Machine Weight: Approx. 6,400 – 7,700 lbs (2,900 kg)

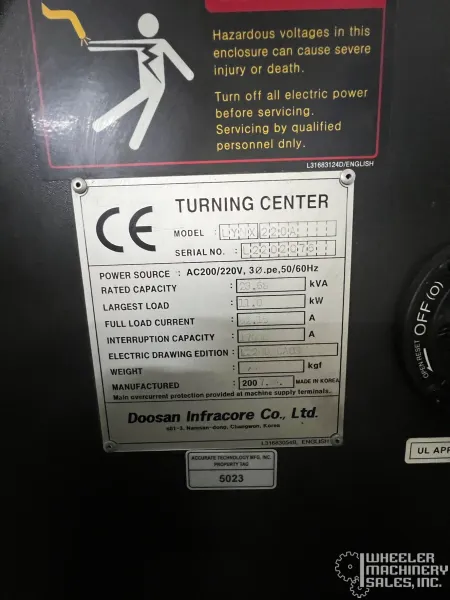

Electrical Requirements: 220V / 3-Phase / 50-60 Hz (~23.7 KVA, 62.15 Amps)

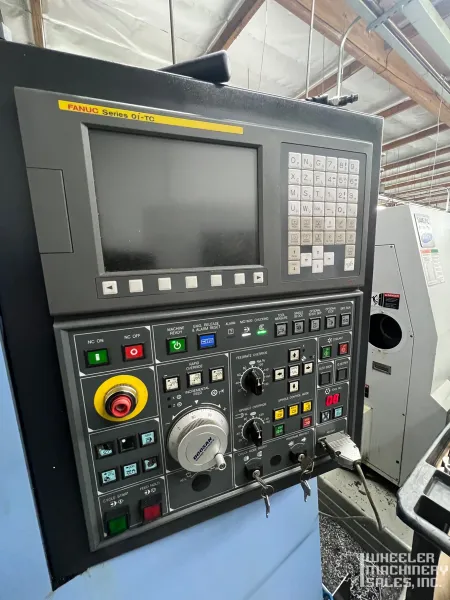

CNC Control: Fanuc i Series
