2024 DN Solutions Lynx 2100LSYB CNC Turning Center

Manufacturer

DN SOLUTIONS

Category

Lathes

Stock

7612560

Model

LYNX 2100LSYB

Dealer Location

Kentucky

Spec Sheet

Overview

Type:
CNC Lathes
Manufacturer:
DN SOLUTIONS
Model:
LYNX 2100LSYB
Year:
2024
Stock #:
7612560
Status:
For Sale
Serial #:
ML0406-001403
Country:
United States

Description

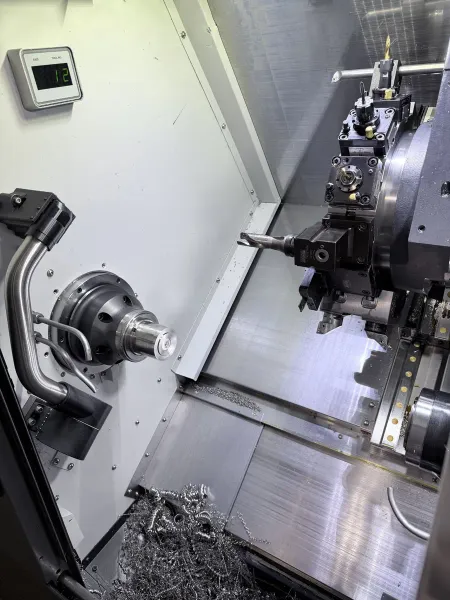

2024 DN Solutions Lynx 2100LSYB CNC turning center with sub-spindle, Y-axis, and live tooling. Equipped with a FANUC CNC control. Manufactured August 2024. Serial number ML0406-001403. Contact Machine Tool Emporium at (502) 802-4008 for pricing and additional information.

Swing23.622"600 mm
Machining Length20.079"510.01 mm
# Axis44
Chuck Size8"203.2 mm
Bar Capacity2.559"64.999 mm
Power20.1 hp15 kW
Max RPM4,500 RPM4,500 RPM
Turning Dia11.811"300 mm
TailstockNoNo
Live ToolingYesYes
Sub SpindleYesYes
ControlCNC (Fanuc)CNC (Fanuc)
Dimensions2880 x 1711 x 1921 mm2880 x 1711 x 1921 mm
Weight4200 kg4200 kg

Manufacturer: DN Solutions
Model: Lynx 2100LSYB
Year: 2024
Manufactured: August 2024
Serial number: ML0406-001403

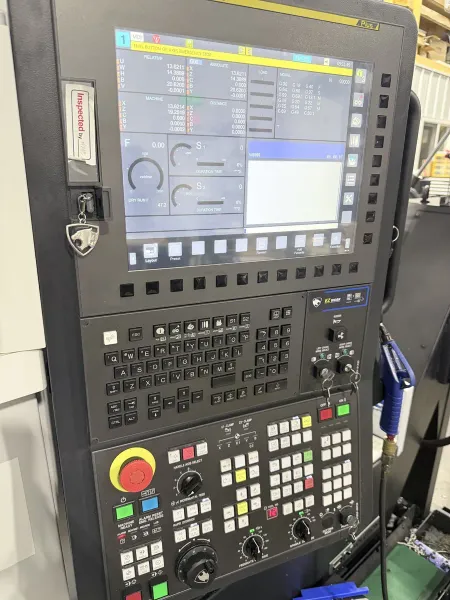

Control: FANUC CNC with i Plus interface

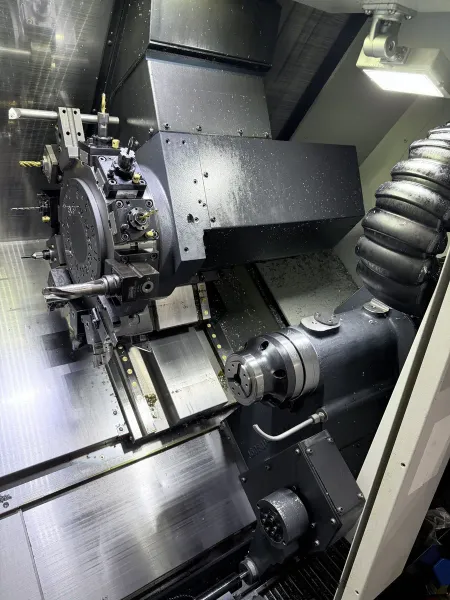

Configuration: X/Y/Z and C-axis machining, Y-axis, live tooling, sub-spindle
Swing over bed: 600 mm (23.62 in)
Swing over saddle: 400 mm (15.75 in)
Maximum turning diameter: 300 mm (11.81 in)
Maximum turning length: 510 mm (20.08 in)
Main chuck size: 8 in
Main spindle bar capacity: 65 mm (2.56 in)
Main spindle maximum speed: 4,500 rpm
Main spindle motor: 15 kW (20.1 hp) maximum
Sub-spindle maximum speed: 6,000 rpm
Live tooling maximum speed: 6,000 rpm
Turret: 12-station BMT45
X-axis travel: 205 mm (8.07 in)
Y-axis travel: 105 mm total (+/-52.5 mm; 4.13 in total)
Z-axis travel: 560 mm (22.05 in)
Sub-spindle B-axis travel: 560 mm (22.05 in)
Tailstock: No; sub-spindle configuration

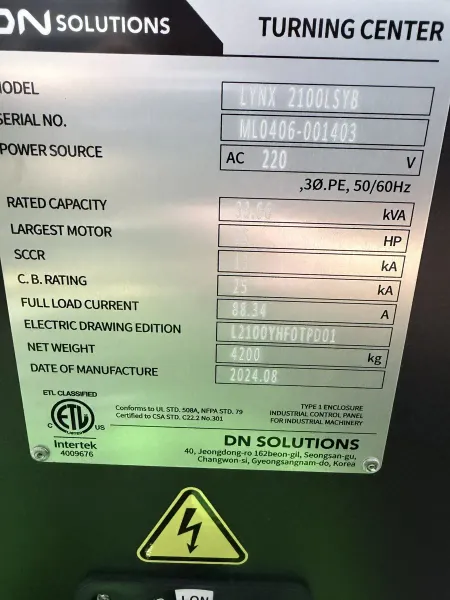

Power supply: 220 V AC, 3-phase, 50/60 Hz
Rated capacity: 33.66 kVA
Full-load current: 88.34 A
Net weight: 4,200 kg (9,259 lb)
Overall dimensions (L x W x H): 2,880 x 1,711 x 1,921 mm (113.39 x 67.36 x 75.63 in)

- Specifications are believed to be accurate and are to be verified by the buyer.
