2025 DN Solutions NHP 4000 Horizontal Machining Center

Stock

7612561

Model

NHP 4000

Dealer Location

Kentucky

Spec Sheet

Overview

Type:
Horizontal Machining Centers
Manufacturer:
DN SOLUTIONS
Model:
NHP 4000
Year:
2025
Stock #:
7612561
Status:
For Sale
Serial #:
MH0028-000613
Country:
United States

Description

2025 DN Solutions NHP 4000 CNC horizontal machining center with FANUC Series 31i-MODEL B Plus control and 400 mm pallet platform. X/Y/Z travels: 560/640/660 mm (22.047/25.197/25.984 in.). 60 position ATC. Full B-Axis, 15,000 RPM Spindle, 300 PSI through spindle coolant, chip conveyor. Manufactured May 2025; serial MH0028-000613. Electrical supply: 220V, three-phase, 50/60 Hz. Contact Machine Tool Emporium at (502) 802-4008 for pricing and additional details.

60 position ATC
Full B-Axis
15,000 RPM Spindle
300 PSI through spindle coolant
chip conveyor

X22.047"559.99 mm
Y25.197"640 mm
Z25.984"659.99 mm
RPM15,000 RPM15,000 RPM
# ATC6060
TaperISO #40ISO #40
Pallet-W15.748"400 mm
Pallet-L15.748"400 mm
# Axis44
ControlCNC (Fanuc)CNC (Fanuc)
Dimensions4950 x 2300 x 2690 mm (L x W x H)4950 x 2300 x 2690 mm (L x W x H)
Weight9700 kg (21385 lb)9700 kg (21385 lb)

2025 DN Solutions NHP 4000
CNC horizontal machining center
Serial number: MH0028-000613
Manufactured: May 2025
Control: FANUC Series 31i-MODEL B Plus

Travels and pallet
X travel: 560 mm (22.047 in.)
Y travel: 640 mm (25.197 in.)
Z travel: 660 mm (25.984 in.)
Pallet size: 400 x 400 mm (15.748 x 15.748 in.)
Axes: X, Y, Z and B rotary table
Tool taper: ISO #40
Maximum workpiece weight: 400 kg (882 lb)
Rapid traverse, X/Y/Z: 60 m/min (2362 IPM)

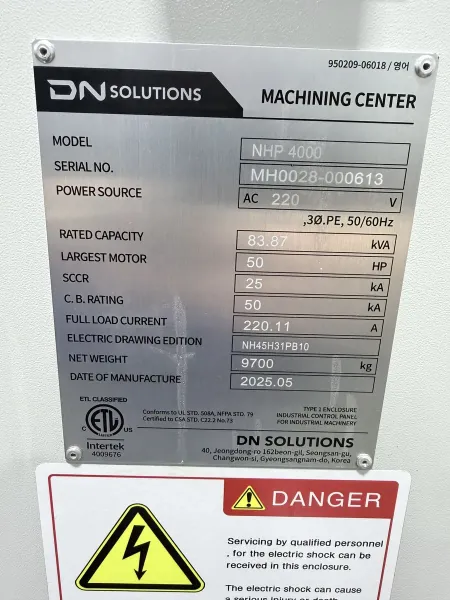

Electrical and physical data
Supply: AC 220V, three-phase, 50/60 Hz
Rated capacity: 83.87 kVA
Largest motor nameplate rating: 50 HP
Full-load current: 220.11 A
Net weight: 9700 kg (21385 lb)
Machine dimensions: 4950 x 2300 x 2690 mm (L x W x H)

Contact Machine Tool Emporium: (502) 802-4008

- Specifications are believed to be accurate and are to be verified by the buyer.
