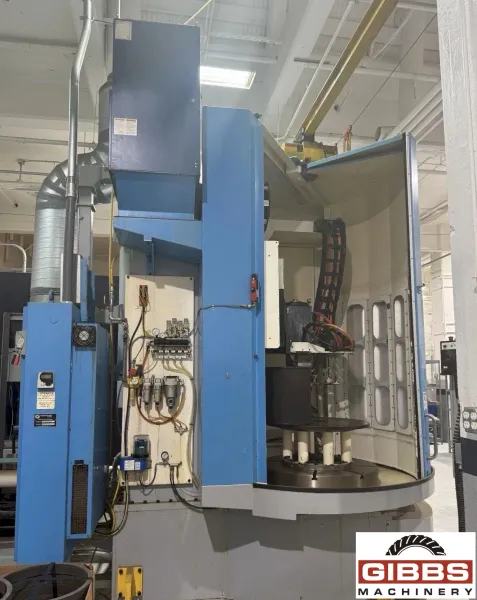

CAMPBELL 750-36-36-36/42 - Internal Grinder

Manufacturer

CAMPBELL

Category

Grinding Machines

Type

GRINDERS, VERTICAL UNIVERSAL

Stock

25969

Model

750-36-36-36/42

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

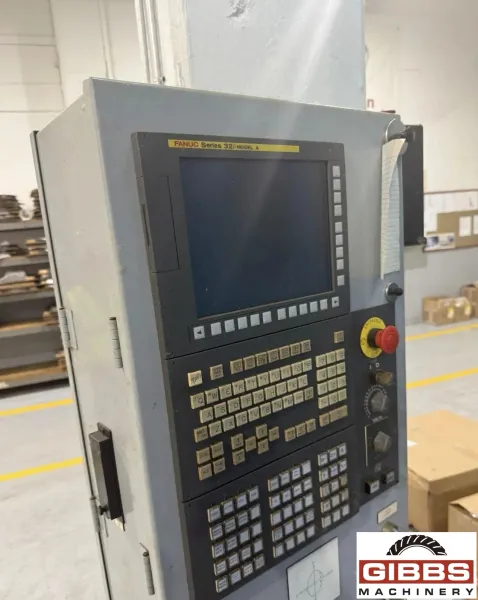

  • Fanuc 31i-ModelA CNC Control

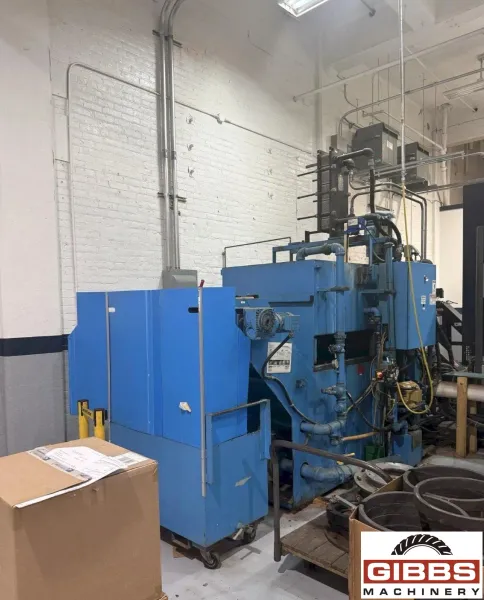

  • Coolant Filtration Unit
  • Chiller

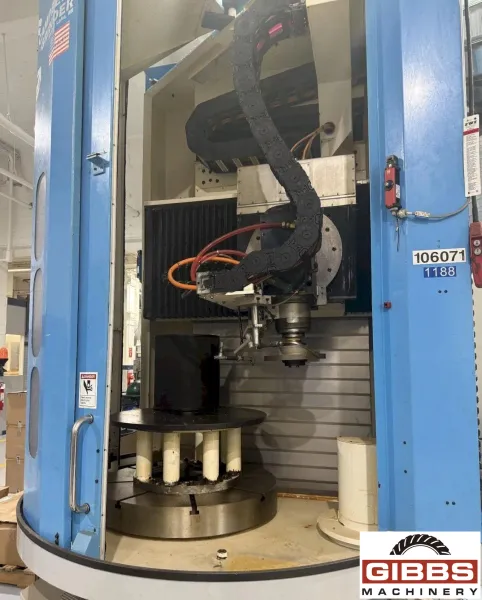

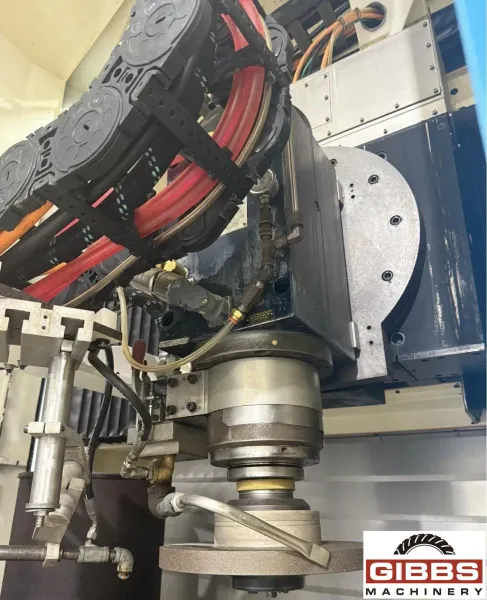

  • Servo Driven Rotary Axis for Spindle Swivel Up to 180 Degrees

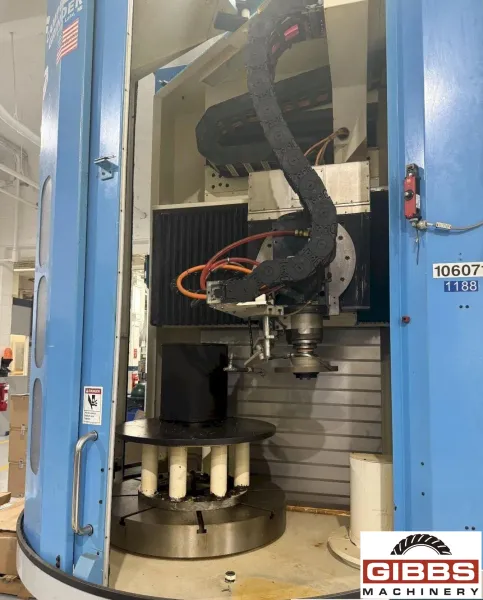

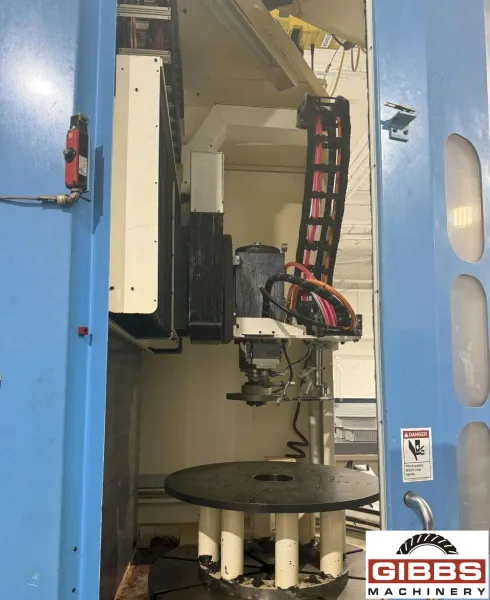

  • 36" T-Slotted Table
,

Machine Specifications :

  • Year 2016
  • Manufacturer CAMPBELL
  • Table Dia 35.43"
  • Swing 43.3"
  • RPM 7,200 RPM
,

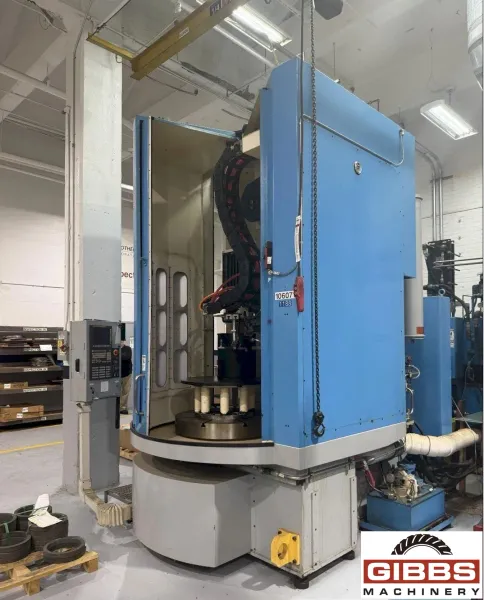

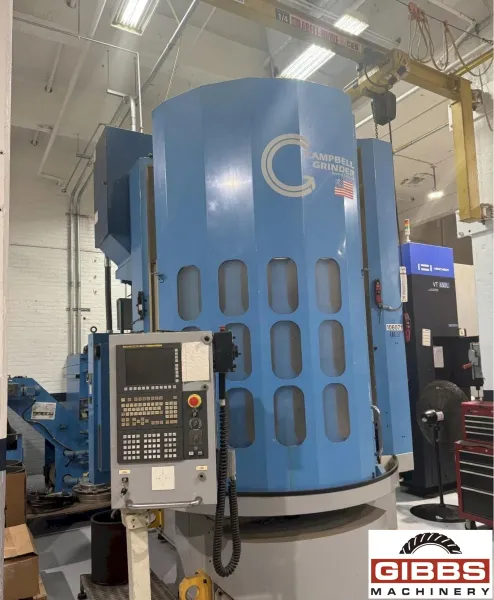

The Campbell Model 750-36-36-36/42 is a heavy-duty, high-precision CNC Vertical Universal Grinder engineered primarily for demanding industrial inner diameter (ID), outer diameter (OD), face, and cylindrical grinding applications. Built by the Campbell Grinder Company, this machine features a robust vertical spindle configuration that allows for highly efficient part loading and precise grinding of flat or cylindrical components.

    Specifications:

  • Swing: 43.3"
  • Table Diameter: 35.43"
  • Maximum Part Height: 24"
  • Table Speeds: 150 RPM
  • Grinding Wheel Speed: 1,500 - 7,200 RPM
  • X-Axis Travel: 36"
  • Z-Axis Travel: 36"
  • B-Axis Swivel: +/-180 Degrees
  • C-Axis: Yes
  • Dimensions: (F-B x L-R x H): 161" x 142" x 141"
  • Approximate Weight: 21,000#
