Used 2023 KUKA KR210 R3100 Ultra F

Manufacturer

KUKA

Category

Miscellaneous Machines

Type

ROBOTS, (Including CNC)

Stock

7612556

Model

KR210 R3100 Ultra F

Dealer Location

Kentucky

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
robot
Manufacturer:
KUKA
Model:
KR210 R3100 Ultra F
Year:
2023
Stock #:
7612556
Status:
For Sale
Country:
United States

Description

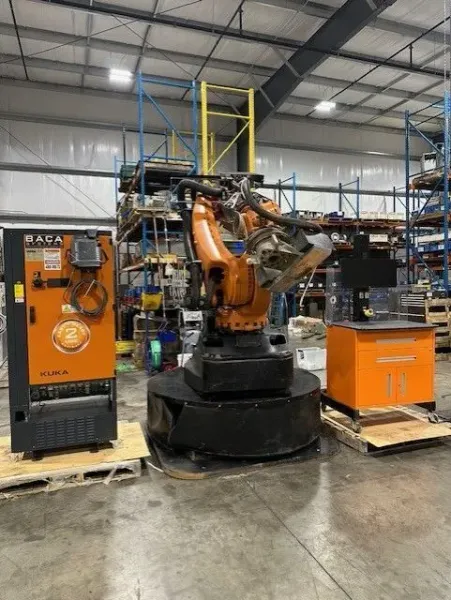

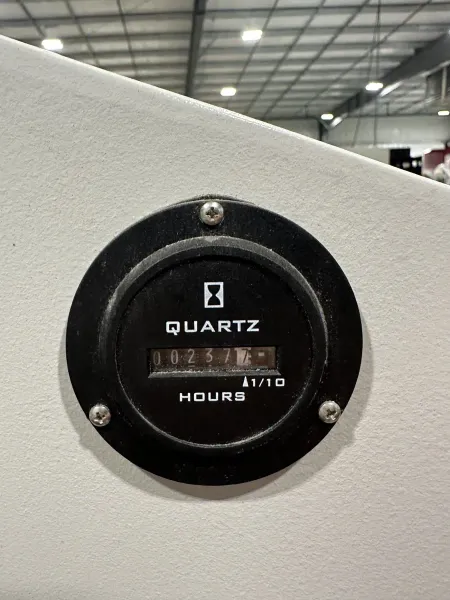

200 HOURS. KUKA KR210 R3100 Ultra F 6-axis industrial robot configured as part of a BACA Systems robotic saw/waterjet cutting system.The system includes the KUKA robot, BACA control equipment, H2O Jet high-pressure waterjet pump, Koolant Koolers chiller, abrasive pressure vessel, operator station, control pendant, and related hoses, cabling, plumbing, and interface components shown in the photos.

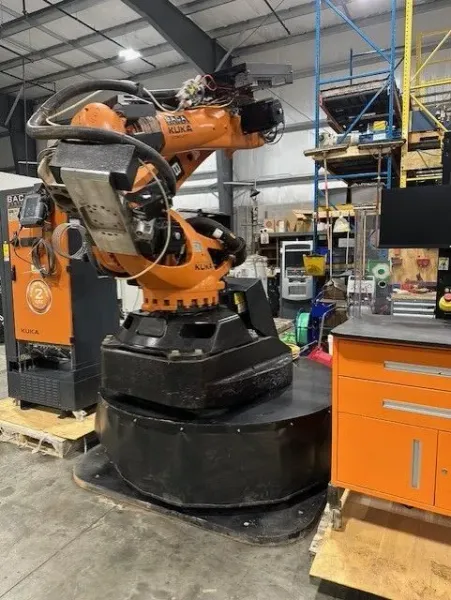

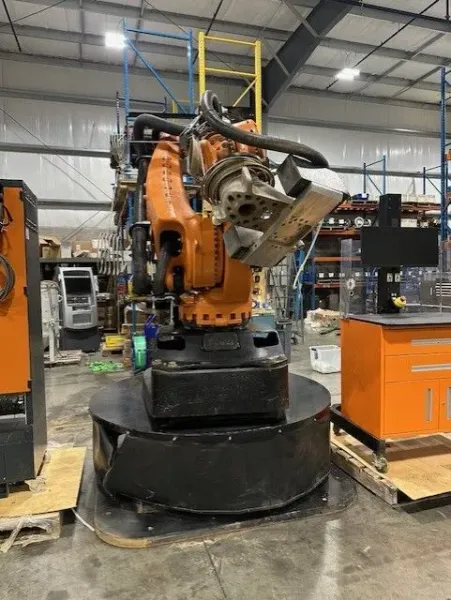

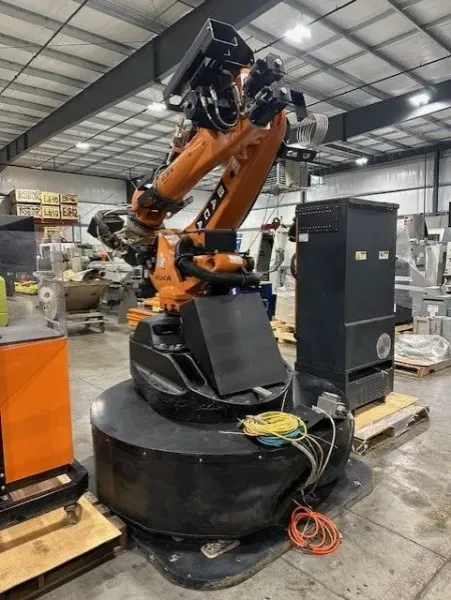

**KUKA Robot**
- Manufacturer: KUKA
- Model: KR210 R3100 Ultra F
- 6-Axis Industrial Robot
- Year: 2021
- Load Capacity: 210 kg / approximately 463 lb
- Reach: 3,095 mm / approximately 121.9 in
- Robot Weight: approximately 1,172 kg / 2,584 lb
- Made in Germany
- Heavy-duty rotating robot base/pedestal
- Integrated cutting-head assembly
- Large industrial cable and hose routing package

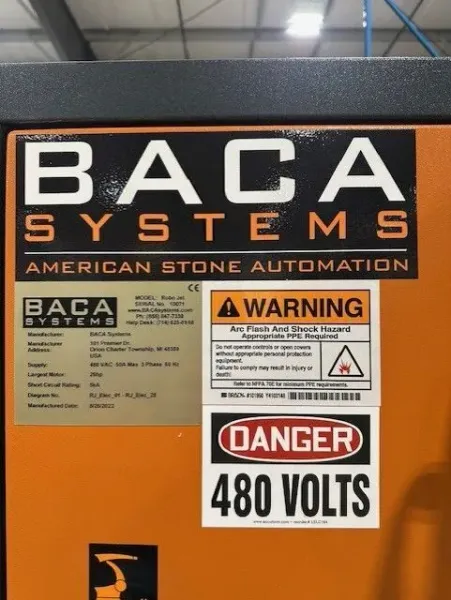

**BACA Systems Equipment**
- BACA Systems / American Stone Automation control package

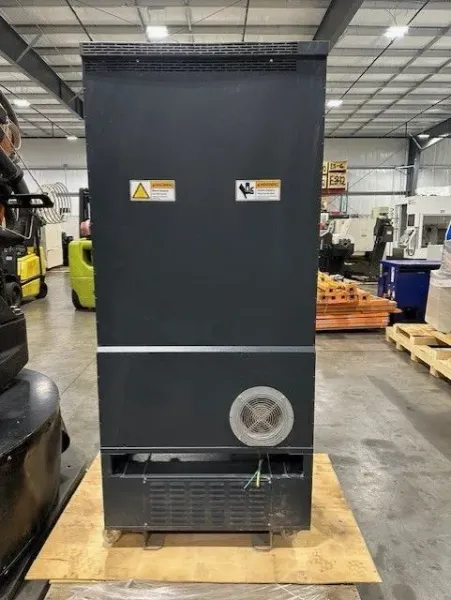

- KUKA control cabinet

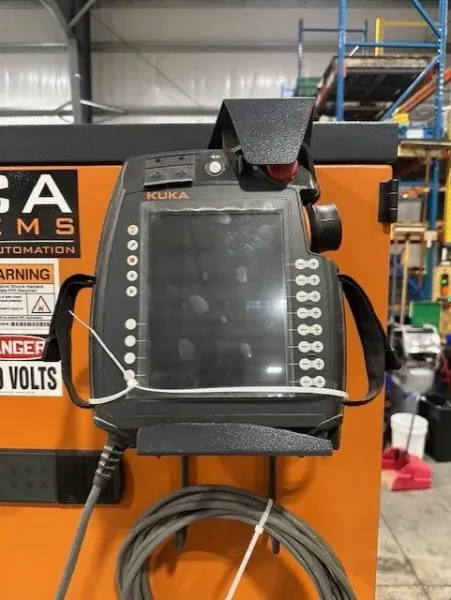

- KUKA smartPAD teach pendant

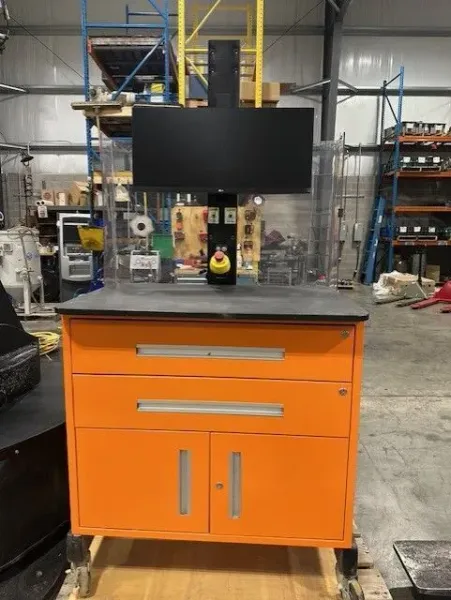

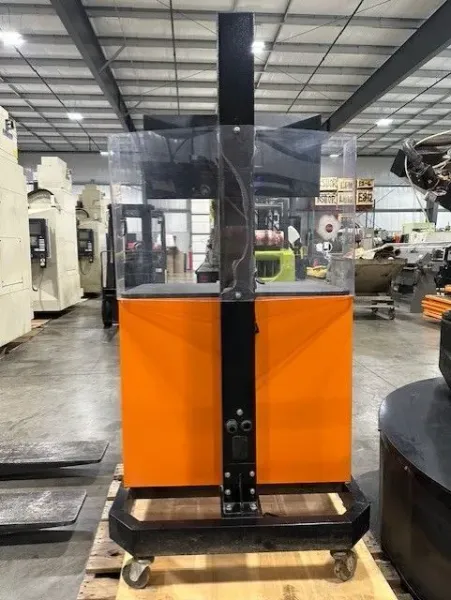

- Operator control station with large monitor
- Emergency stop controls
- Industrial control buttons and switches
- 480V system labeling visible
- Multiple machine interface connections
- Electrical and communication connections shown

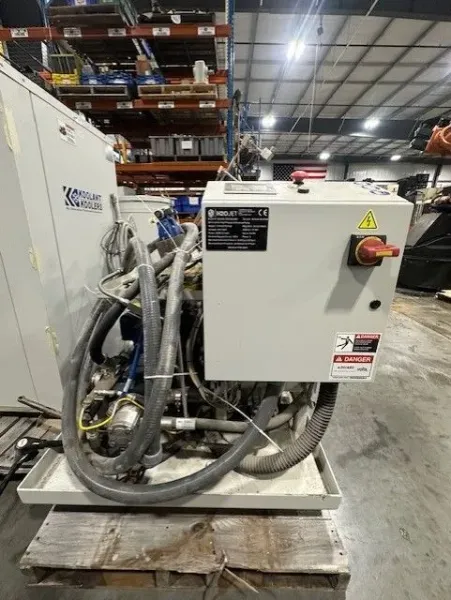

**H2O Jet High-Pressure Waterjet Pump**
- Manufacturer: H2O Jet
- Model: 921414-CD34BA1B2
- Serial Number: 921414-923028
- Date of Manufacture: 03/21/2023
- Description: High Pressure Waterjet Pump
- Power: 50 HP / 37 kW
- Voltage: 380 / 480 VAC
- Phase: 3 Phase
- Frequency: 50 / 60 Hz
- Rated Current: 75 / 60 A
- Maximum Supply Circuit: 125 A
- Maximum Hydraulic Pressure: 3,000 PSI / 207 bar
- Maximum Water Pressure: 60,000 PSI / 4,137 bar
- Weight: 1,705 lb / 773 kg
- Made in USA
- Emergency stop
- Main electrical disconnect
- High-pressure hoses and plumbing shown

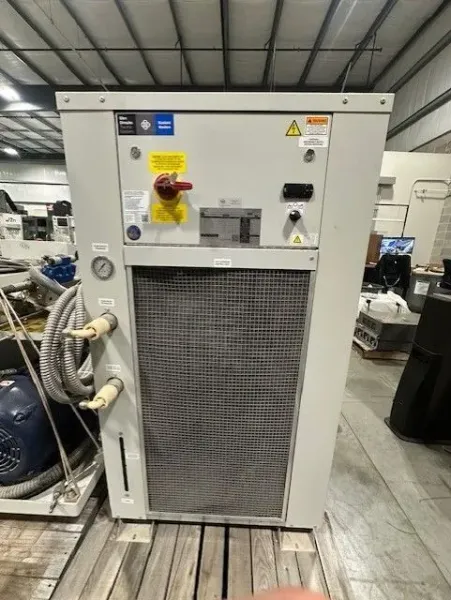

**Koolant Koolers Chiller**
- Industrial coolant/chiller unit
- Koolant Koolers branded
- 460V
- 3 Phase
- 60 Hz
- Air-cooled heat exchanger
- Large cooling fan
- Industrial electrical enclosure
- Multiple coolant connections and hoses
- Approximate 2022 manufacture date visible on identification plate

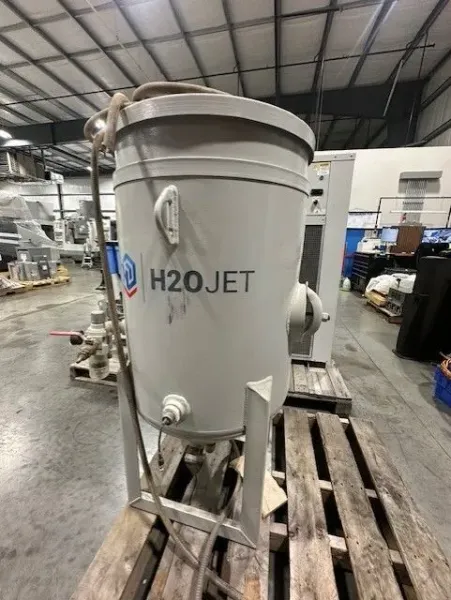

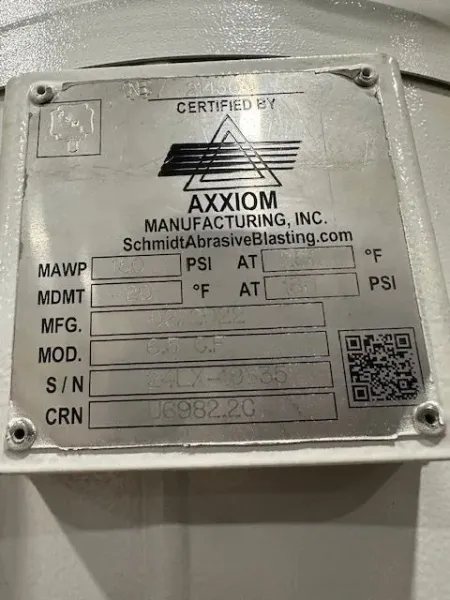

**Abrasive Pressure Vessel**
- Manufacturer: Axxiom Manufacturing, Inc.
- Schmidt Abrasive Blasting equipment
- Approximate capacity shown: 6.5 cu. ft.
- Pressure-rated vessel
- Air regulator, pressure gauge, drain, valves, and related plumbing visible
- H2O Jet branded application markings

**Cutting Head / Robot End-of-Arm Assembly**
- Large robotic cutting head assembly
- Waterjet-related tubing and high-pressure line routing
- Industrial spindle/cutting assembly
- Heavy-duty aluminum/steel mounting structure
- Integrated hoses, wiring, and protective cable routing

**Included Equipment Shown**
- KUKA KR210 R3100 Ultra F robot
- Robot pedestal/base
- BACA Systems control cabinet
- KUKA controller
- KUKA smartPAD
- H2O Jet 50 HP / 60,000 PSI pump
- Koolant Koolers chiller
- Axxiom abrasive pressure vessel
- Operator station with monitor
- Emergency-stop controls
- Electrical cabinets
- High-pressure hoses
- Coolant hoses
- Electrical cabling
- Interface connectors
- Related plumbing and fittings
- Miscellaneous components shown in photographs

**Condition**
Used industrial equipment. Overall cosmetic condition appears good from the supplied photos with normal signs of prior industrial use, including surface wear, scuffs, residue, and handling marks. Components appear substantially intact as shown.

Only equipment and accessories shown in the photographs are included unless otherwise stated. Cutting tables, guarding, fencing, light curtains, saw blade, or other components not shown should not be assumed included.

Equipment is used and is being sold “AS IS, WHERE IS,” “WITH ALL FAULTS,” and without any warranty, representation, or guarantee of any kind, express or implied.

WaterJet Table
ControlCNC (KUKA)CNC (KUKA)
Dimensions97"x 70x" 117"97"x 70x" 117"

Kuka Robot- 97"x 70x" 117"
Electrical Cabinet- 45"x53"x83"
Drawer/Toolbox- 45"x53"x87"
Water Tank- 45"x45"x57"
Power Box- 77"x45"x57"
Wires- 55"x42"x18"
Cages- 94"x69"x35"
Chiller- 59"x41"x70"

- Specifications are believed to be accurate and are to be verified by the buyer.
