Renishaw AGILITY S 796 Coordinate Measuring Machine

Stock

7612563

Model

AGILITY S 796

Dealer Location

Kentucky

Spec Sheet

Overview

Type:
Coordinate Measuring Machines
Manufacturer:
RENISHAW
Model:
AGILITY S 796
Stock #:
7612563
Status:
For Sale

Description

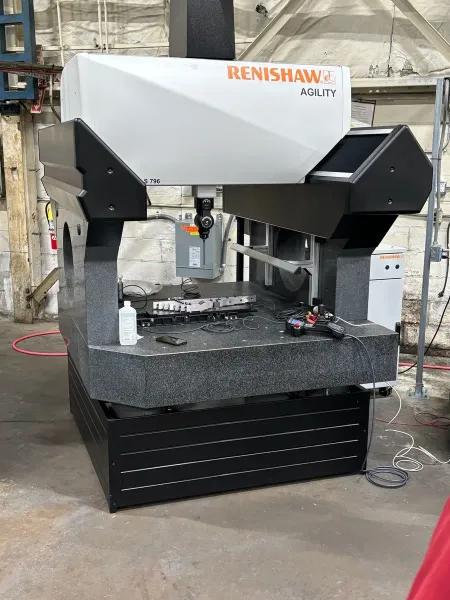

Renishaw AGILITY S 796 CNC coordinate measuring machine with a 700 x 900 x 600 mm measuring range and granite base. Photographed with Renishaw probing head and joystick controller. Contact Machine Tool Emporium for the included probe package, software license details, calibration status and inspection arrangements.

X27.559"700 mm
Y35.433"900 mm
Z23.622"600 mm
ControlCNCCNC
Dimensions1735 W x 2020 L x 2845 H mm (manufacturer specification)1735 W x 2020 L x 2845 H mm (manufacturer specification)
Weight2900 kg (manufacturer specification)2900 kg (manufacturer specification)

RENISHAW AGILITY S 796
Measuring range X/Y/Z: 700 / 900 / 600 mm (27.559 / 35.433 / 23.622 in.)
Maximum part weight: 500 kg
Overall dimensions W/L/H: 1735 / 2020 / 2845 mm
Machine mass: 2900 kg
Control system: Renishaw UCC S5 (manufacturer specification)
Maximum axis velocity: 300 mm/s
Maximum vector velocity: 520 mm/s
Scan speed: up to 500 mm/s
Minimum air supply: 6.5 bar with REVO-2 fitted
These are manufacturer S 796 specifications. Current calibration, included probes, accessories and software licenses require confirmation.

- Specifications are believed to be accurate and are to be verified by the buyer.
