Okamoto ACC-16-32DX 3-Axis Hydraulic Surface Grinder with Incremental Down Feed. 16"x32" Chuck, Coolant System with Paper Filtration- Auction Item

Manufacturer

Okamoto

Category

Grinding Machines

Type

GRINDERS, WAY OR RECIPROCATING TABLE, (Horizontal Spindle)

Stock

Lot No.: 60

Model

ACC-16.32DX

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

View Auction Item at: https://www.machinesused.com/lots/51849" shenjian-bridge-node-id="sjb-1791314383115-793101">,

  • Payment Info

  • Terms

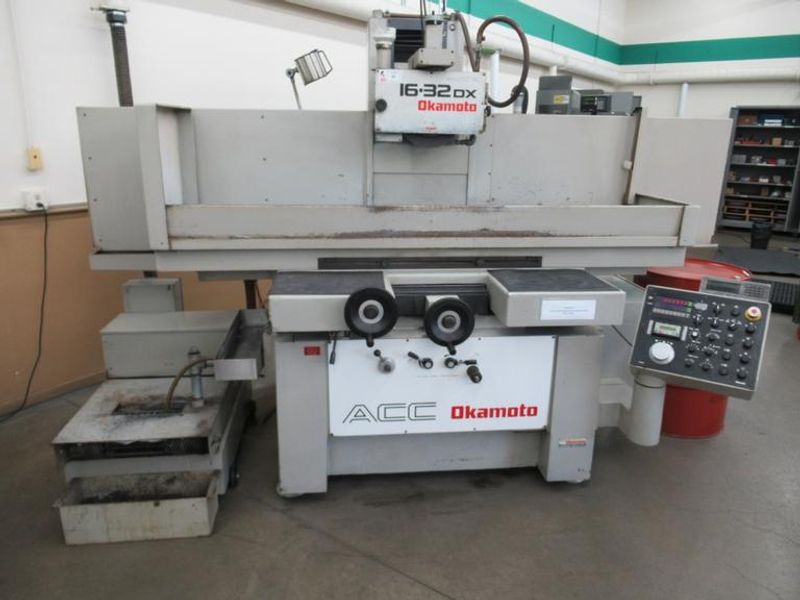

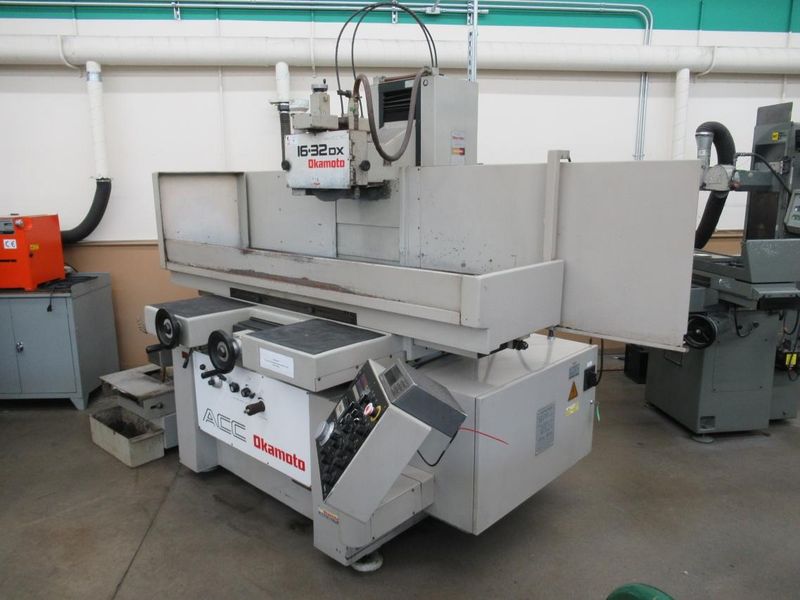

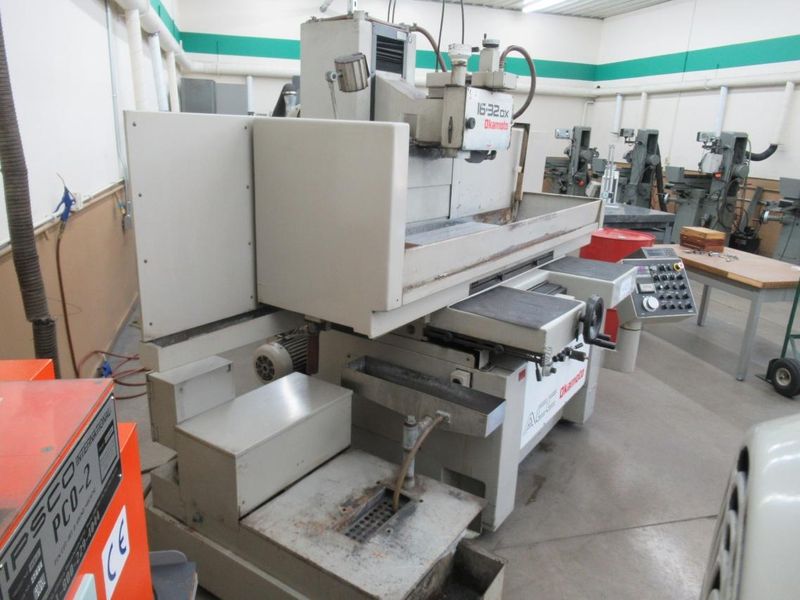

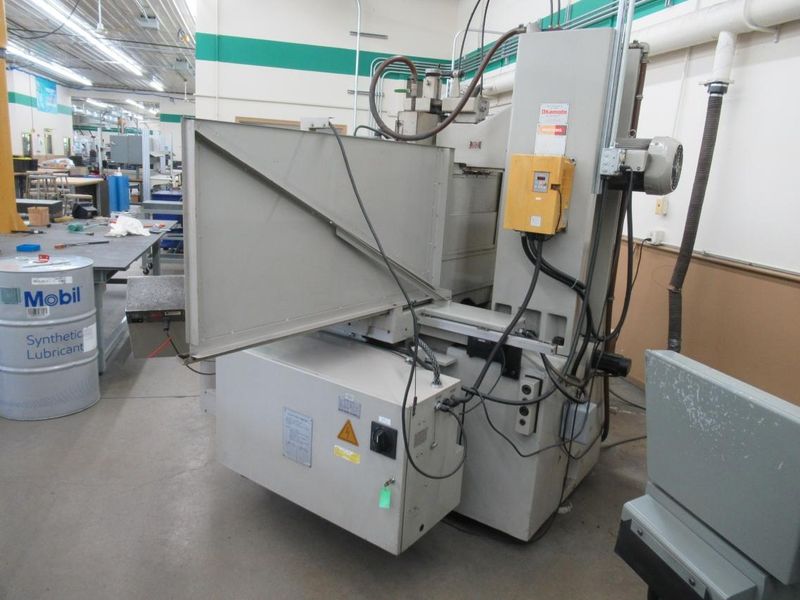

Lot 60: Okamoto ACC-16-32DX 3-Axis Hydraulic Surface Grinder with Incremental Down Feed. 16"x32" Chuck, Coolant System with Paper Filtration
Equipped With:

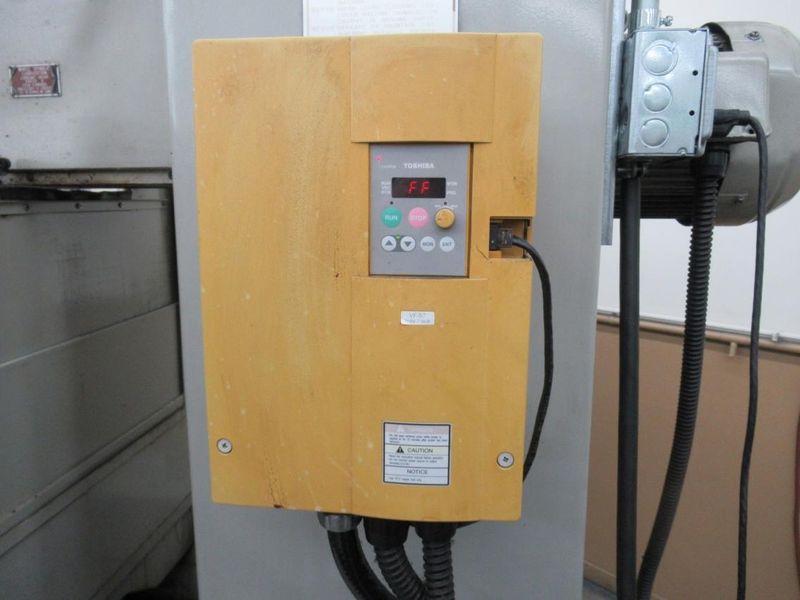

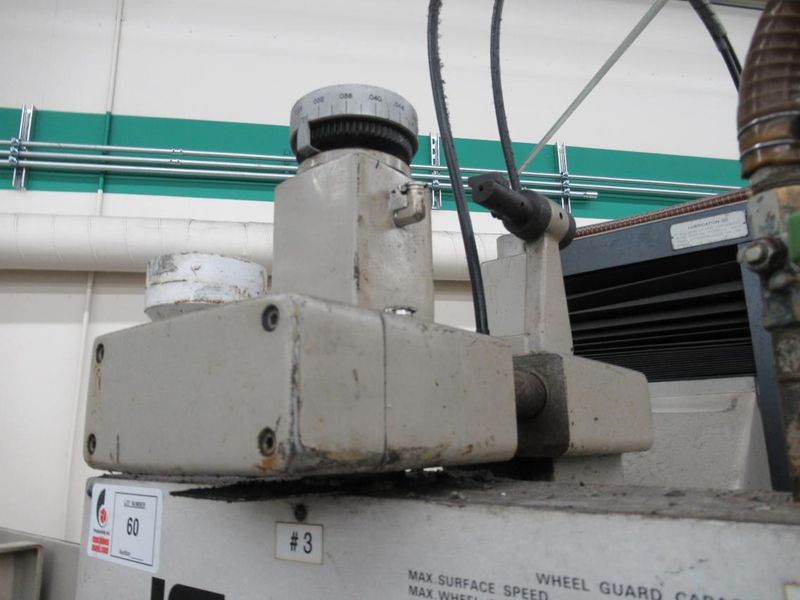

Incremental Down Feed, 16" x 32" Electromagnetic Chuck, Toshiba Variable Frequency Drive, LED Display, Heidenhain 1-Axis DRO on Cross Feed, Hydraulic Over the Wheel Dresser, Coolant System with Paper Filtration

Electrics:

230/460 Volt, 3 Phase

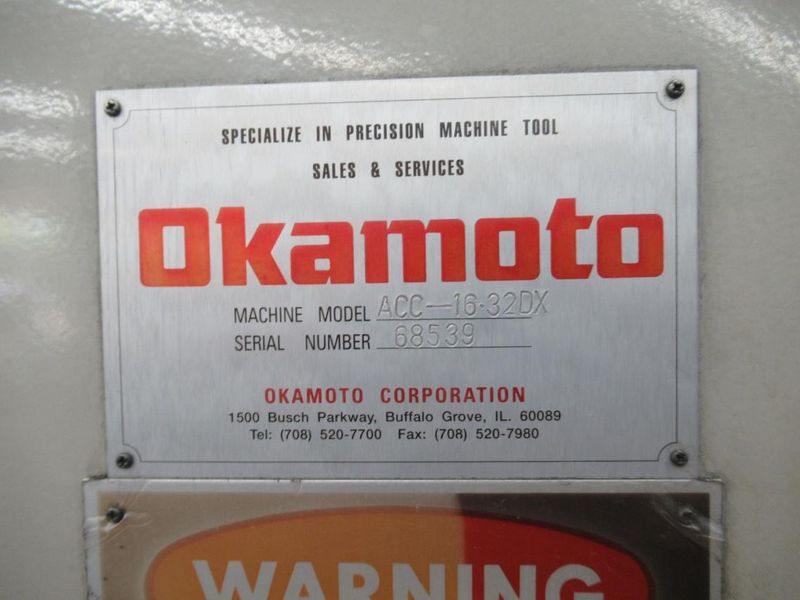

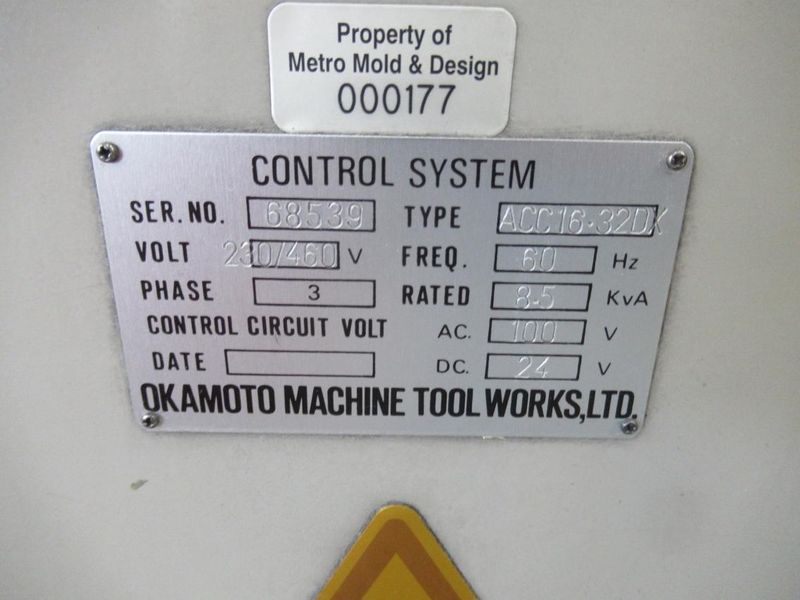

Manufacturer: Okamoto Model: ACC-16.32DX Year: 1998 Serial Number: 68539
Main Unit Approx Weight: 8800.00 lbs
Main Unit Dimensions (in inches): Length: 132.00"  Width: 87.00"  Height: 82.00"
Components:

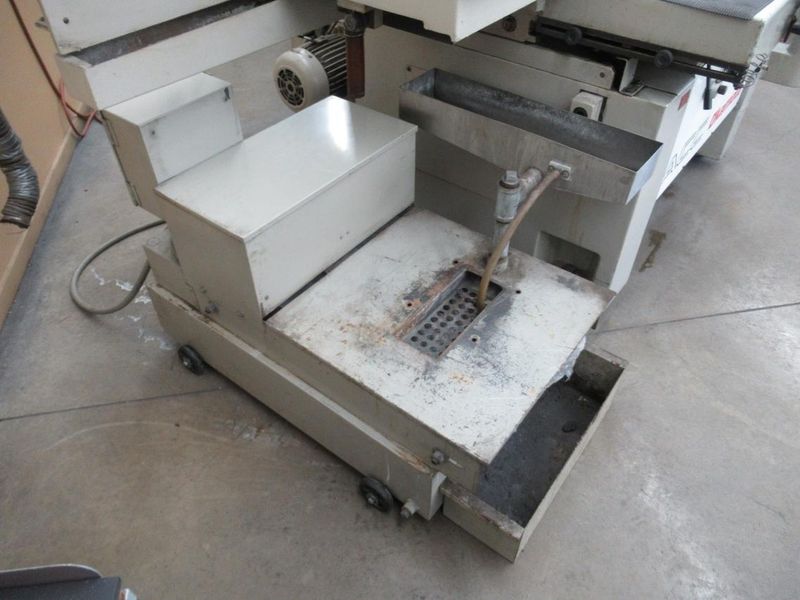

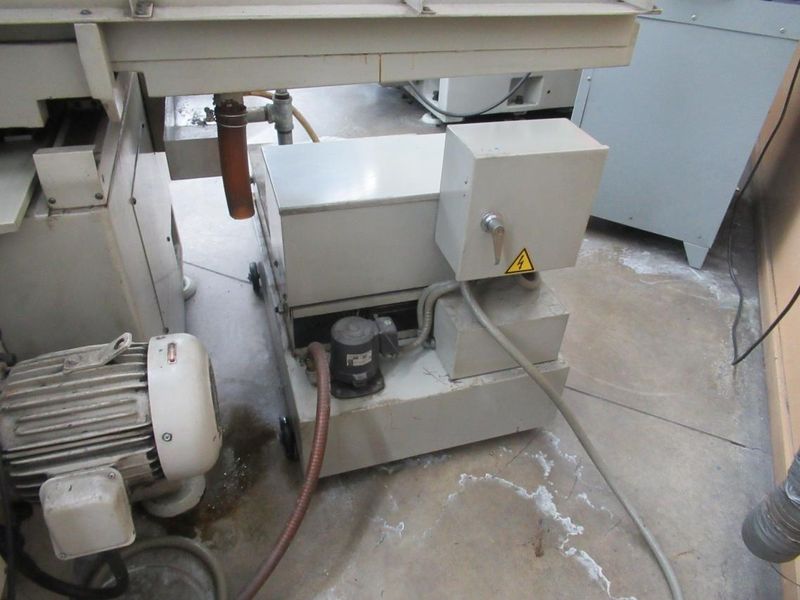

Coolant Tank and Paper Filtration Unit: Length: 48.00"  Width: 24.00"  Height: 32.00"
Specs:

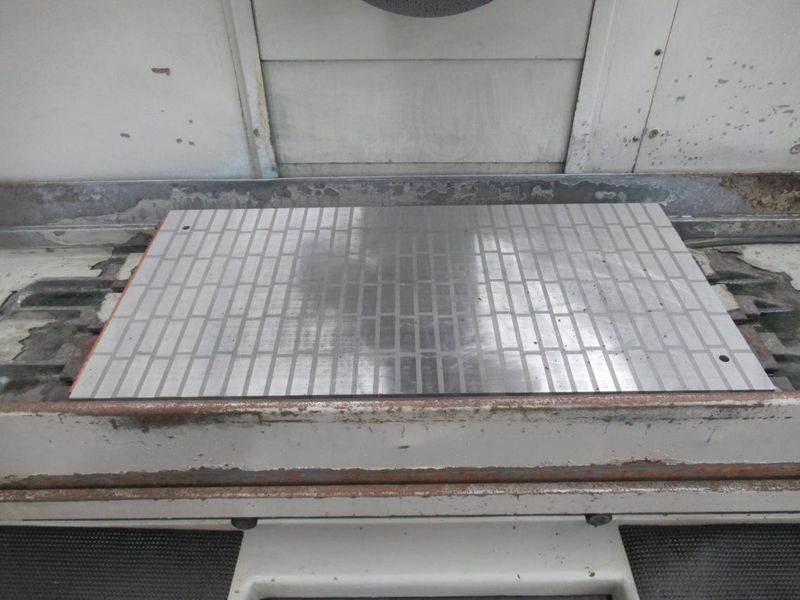

Max Chuck Size: 16" x 32"
Max Table Movement (Manual): 18" x 38"
Max Table Travel Powered: 16" x 32"
Auto Longitudinal Feed Rate: 1-82 Ft/Min
Max Distance Spindle / Wheel to Table: 1.9" - 21.5" Under 12" Wheel
Max Table Load (Including Chuck): 1,540 Lbs.

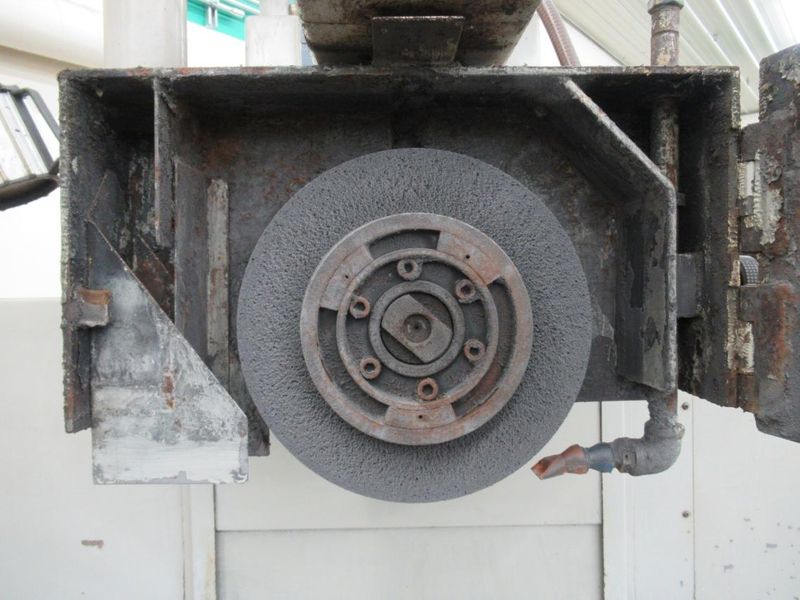

Max Wheel Size : 12" x 1/5" x 5"
Wheel Speed: 1,800 RPM
Cross Feed Rapid Traverse Rate: 8-40 Ft/Min
Cross Feed Automatic Increments: .02" - .8"
Rapid Wheelhead Feed Rate: 23.6 IPM
Auto Wheelhead Downfeed Increments: Rough: 0 -.0015" (11 Stages) / Fine: 0 - .0005" (7 Stages)

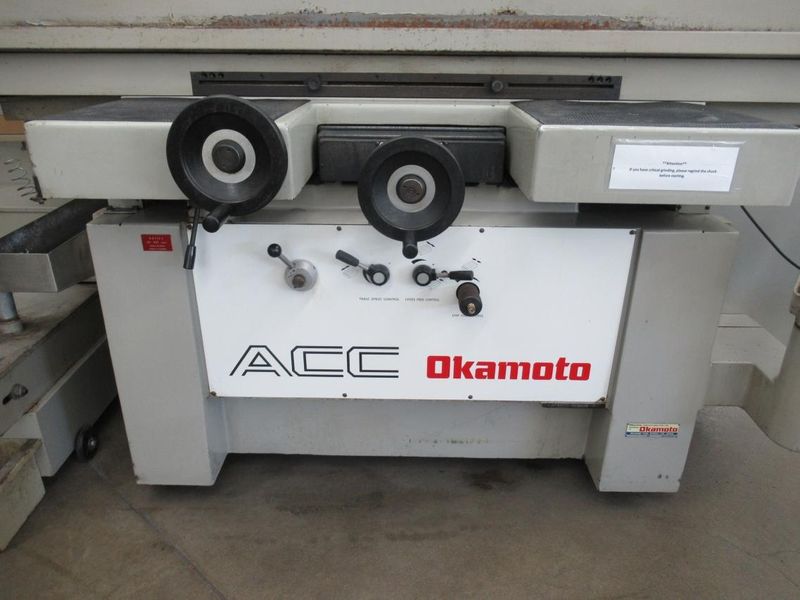

Hand Wheelhead Downfeed Increments: .01/.005 / .001" Per Revolution (3X Settings)
Wheelhead Elevation Motor: .5 HP
Hydraulic Motor: 2 HP
Spindle Drive: 5 HP
Seller Company: Paradigme Engineering - A Velosity Company
Seller Contact: Machinesused.com Phone: (763) 745-1166
Item Location: Paradigme Engineering - A Velosity Company, 14085 Commerce Drive, Becker, MN 55308
Location Contact: Machinesused.com Phone: (763) 745-1166
Inspection Date & Time: Friday, October 23, 2026 9AM-4PM
Dock Door: 12' x 12' Ground Level Door
Loading Dock: 8' x 8' Loading Dock
Removal Dates and Times: This item must be removed between Monday, November 2, 2026 and Thursday, November 5, 2026
